Toyota RAV4

2012-12 → 2019-09 · chassis ALA4#,ASA44,AVA4#,WWA42,ZSA4# · catalogue 662540 · Europe

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Door Window Regulator & Hinge

11 part groups · 2 illustrations

Illustrations

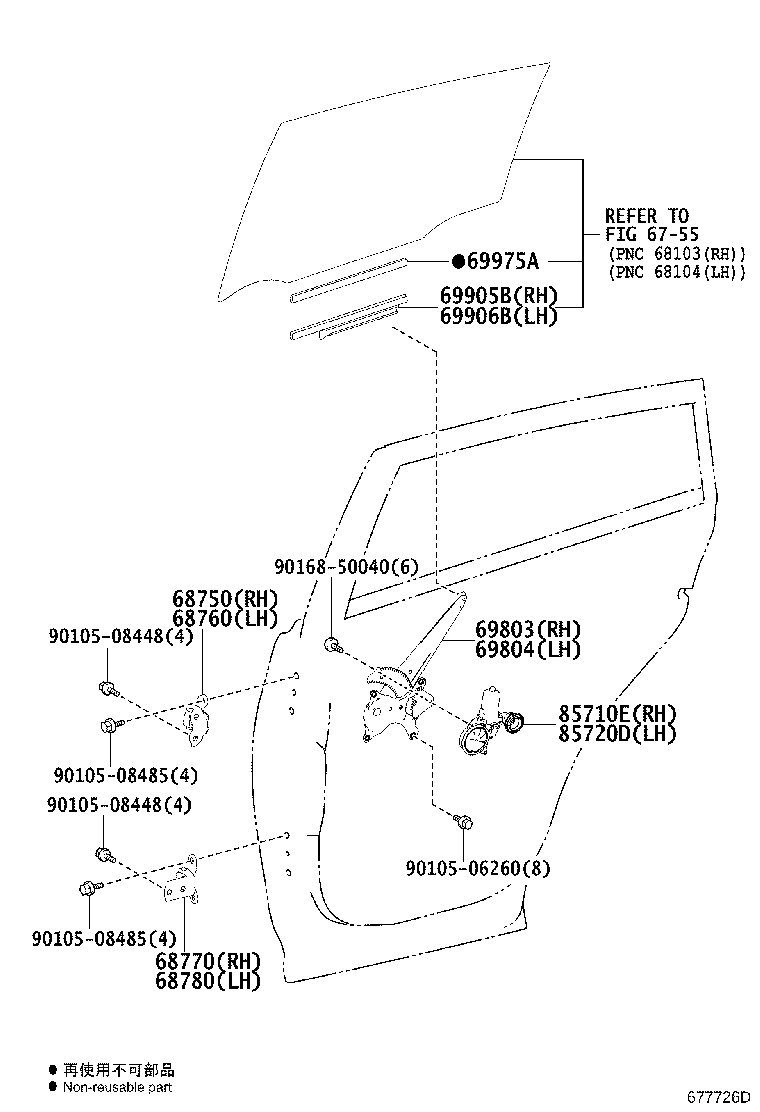

Figure 679303A 679303A 2012-12 → — Figure 677726D 677726D 2016-10 → —

Part groups

PNCDescription
68750 Hinge Assy, Rear Door, Upper RH
68760 Hinge Assy, Rear Door, Upper LH
68770 Hinge Assy, Rear Door, Lower RH
68780 Hinge Assy, Rear Door, Lower LH
69803 Regulator Sub-assy, Rear Door Window, RH
69804 Regulator Sub-assy, Rear Door Window, LH
69905B Channel Sub-assy, Rear Door Glass, RH
69906B Channel Sub-assy, Rear Door Glass, LH
69975A Filler, Rear Door Glass Channel
85710E Motor Assy, Power Window Regulator, RH
85720D Motor Assy, Power Window Regulator, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
