Toyota RAV4

2012-12 → 2019-09 · chassis ALA4#,ASA44,AVA4#,WWA42,ZSA4# · catalogue 662540 · Europe

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Lock & Hinge

17 part groups · 6 illustrations

Illustrations

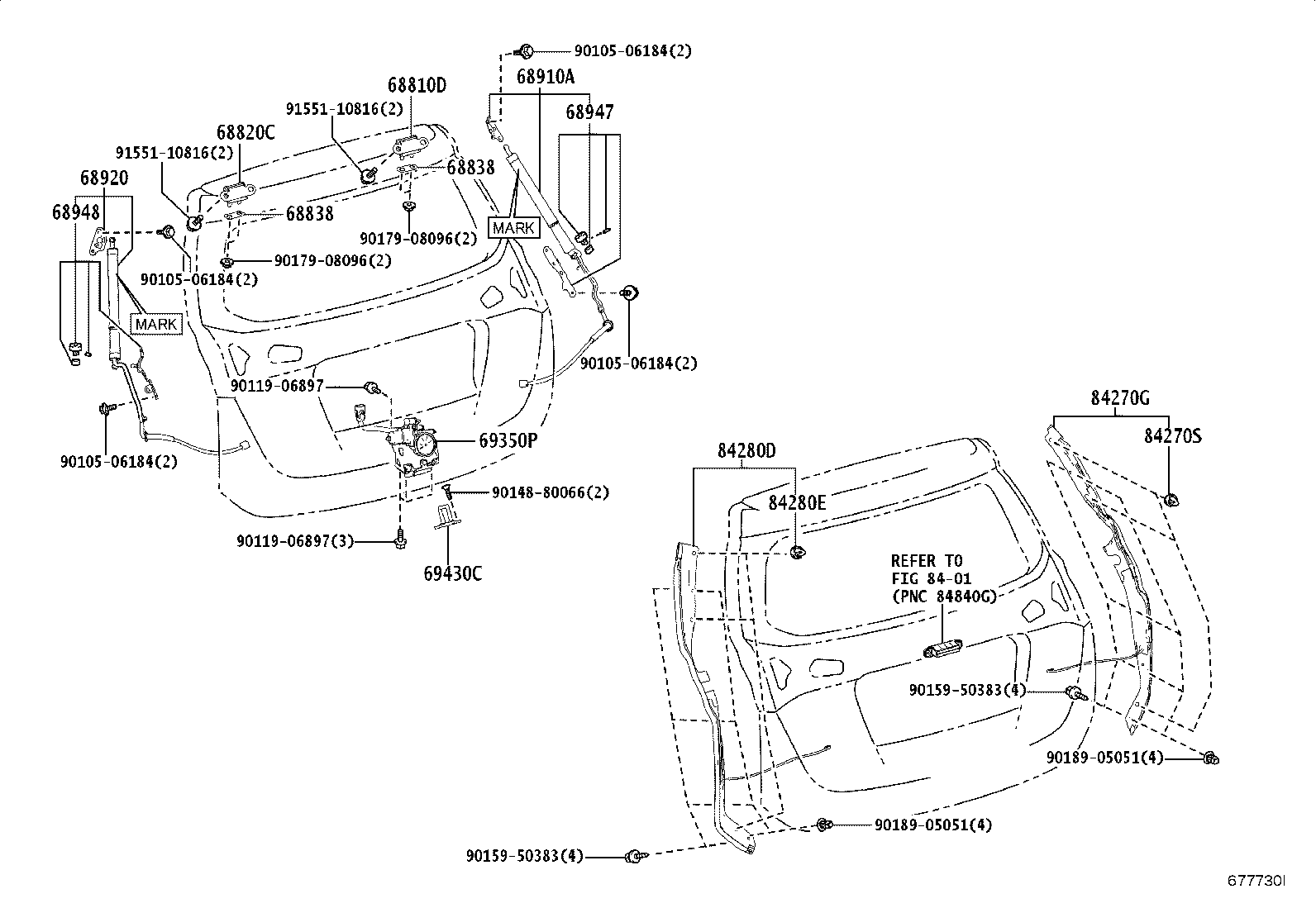

Figure 677729E 677729E 2012-12 → 2015-10 Figure 677729E 677729E 2015-10 → — Figure 677729E 677729E 2015-10 → — Figure 677730I 677730I 2012-12 → 2015-10 Figure 677730I 677730I 2015-10 → — Figure 677730I 677730I 2015-10 → —

Part groups

PNCDescription
68810D Hinge Assy, Back Door, RH
68820C Hinge Assy, Back Door, LH
68838 Pad, Back Door Hinge, NO.1
68910A Unit Assy Set, Power Back Door, RH
68920 Unit Assy Set, Power Back Door, LH
68945 Bracket, Back Door Damper Stay, Upper RH
68946 Bracket, Back Door Damper Stay, Upper LH
68947 Bracket, Back Door Damper Stay, Lower RH
68948 Bracket, Back Door Damper Stay, Lower LH
68950C Stay Assy, Back Door, RH
68960 Stay Assy, Back Door, LH
69350P Lock Assy, Back Door, W/Courtesy Lamp Switch
69430C Striker Assy, Back Door Lock
84270G Sensor Assy, Power Back Door, RH
84270S Clip(POWER BACK DOOR SENSOR, RH)
84280D Sensor Assy, Power Back Door, LH
84280E Clip (FOR POWER BACK DOOR SENSOR, LH)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
