Toyota RAV4

2012-12 → 2019-09 · chassis ALA4#,ASA44,AVA4#,WWA42,ZSA4# · catalogue 662540 · Europe

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

22 part groups · 8 illustrations

Illustrations

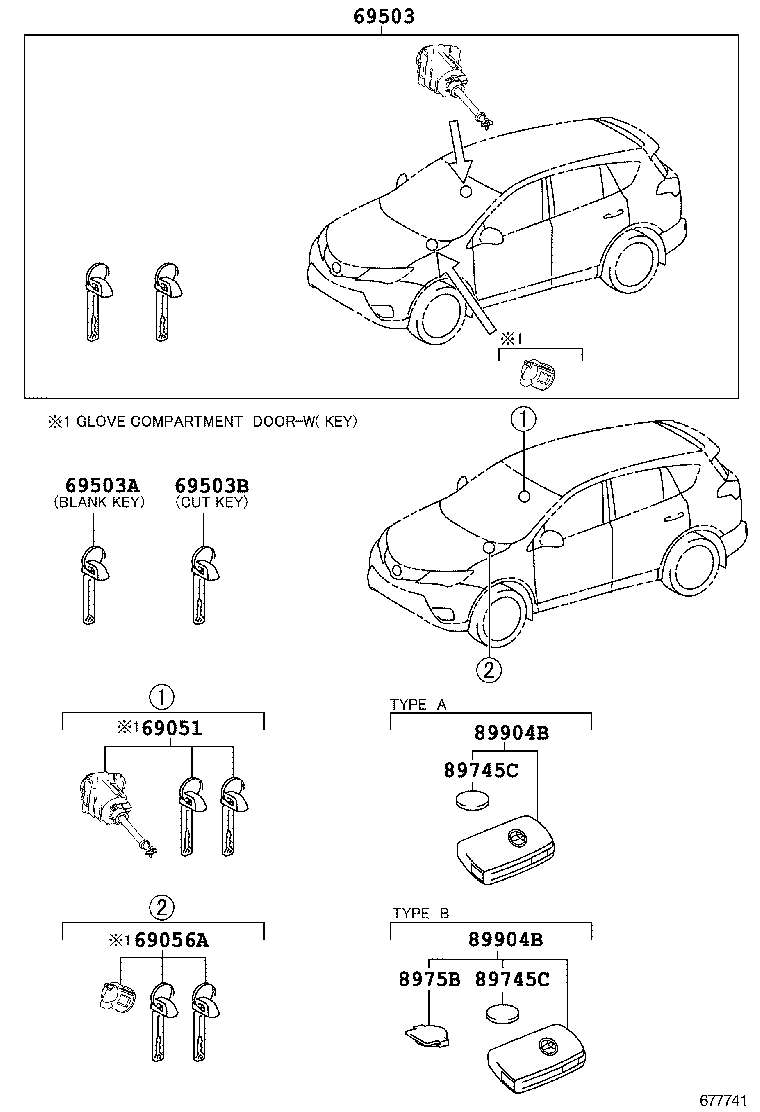

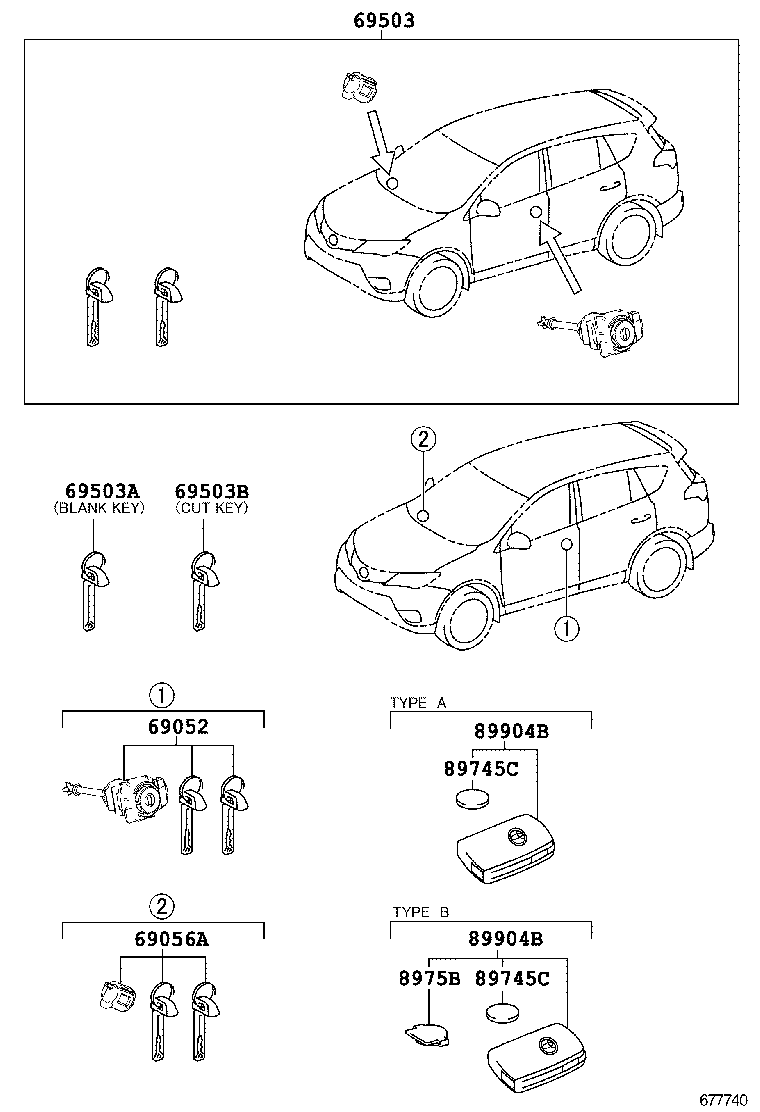

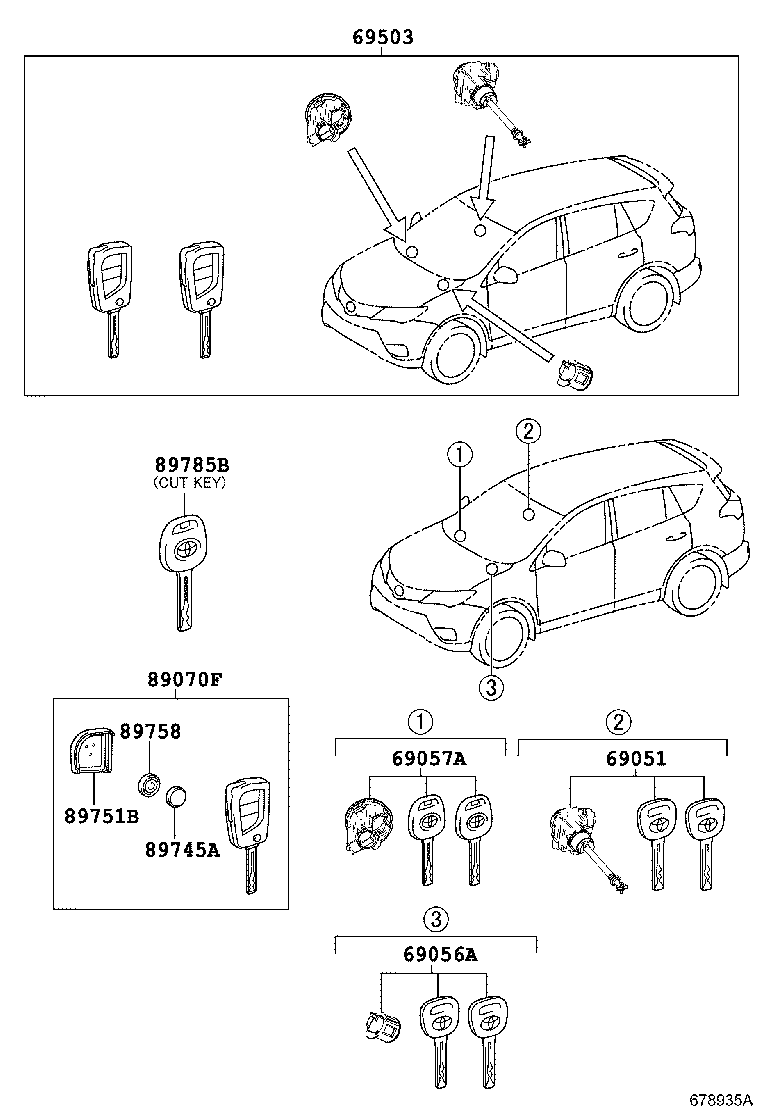

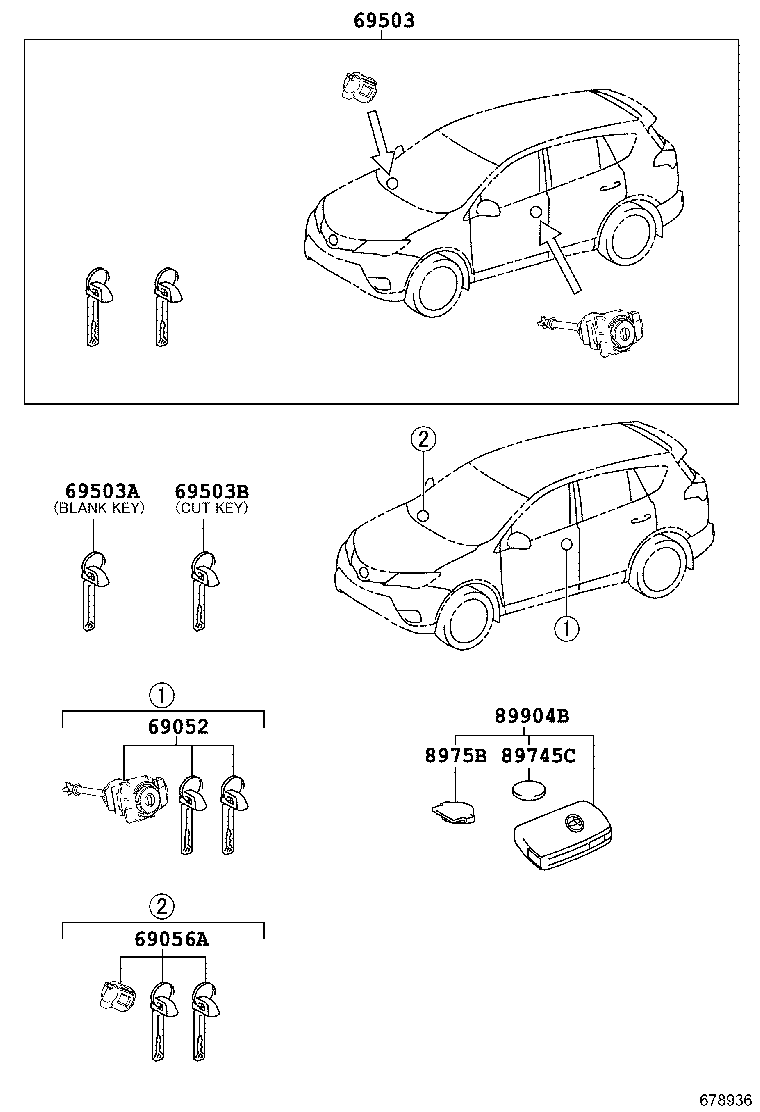

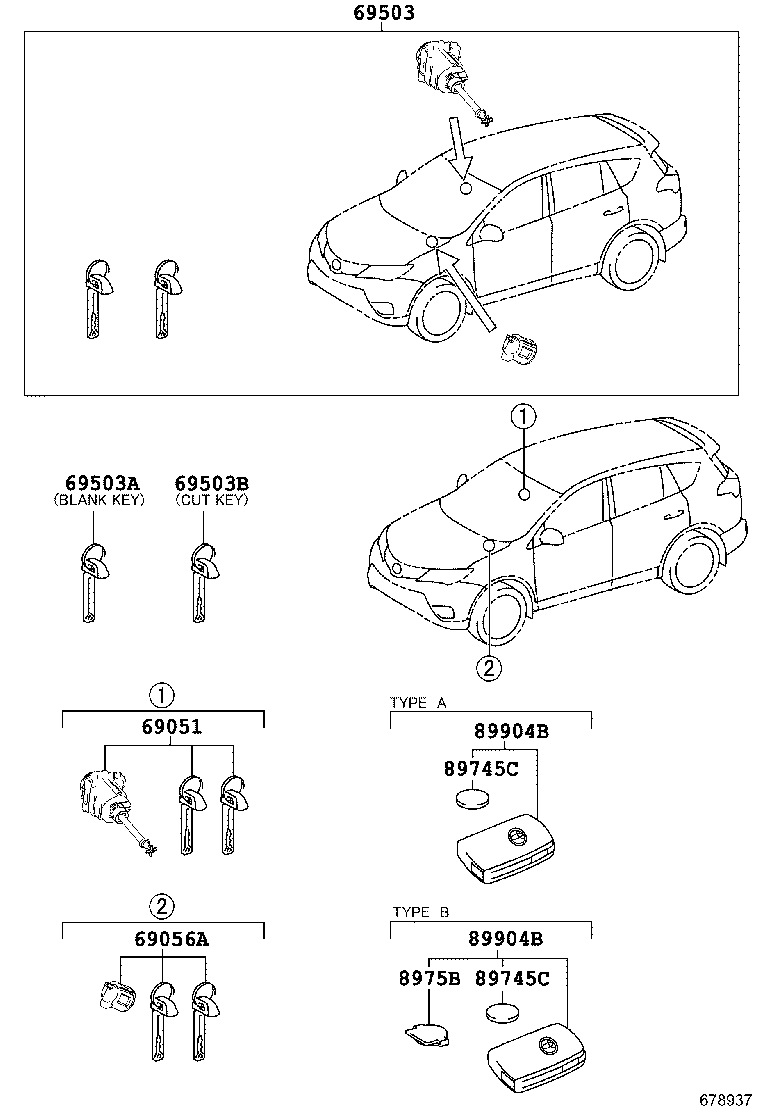

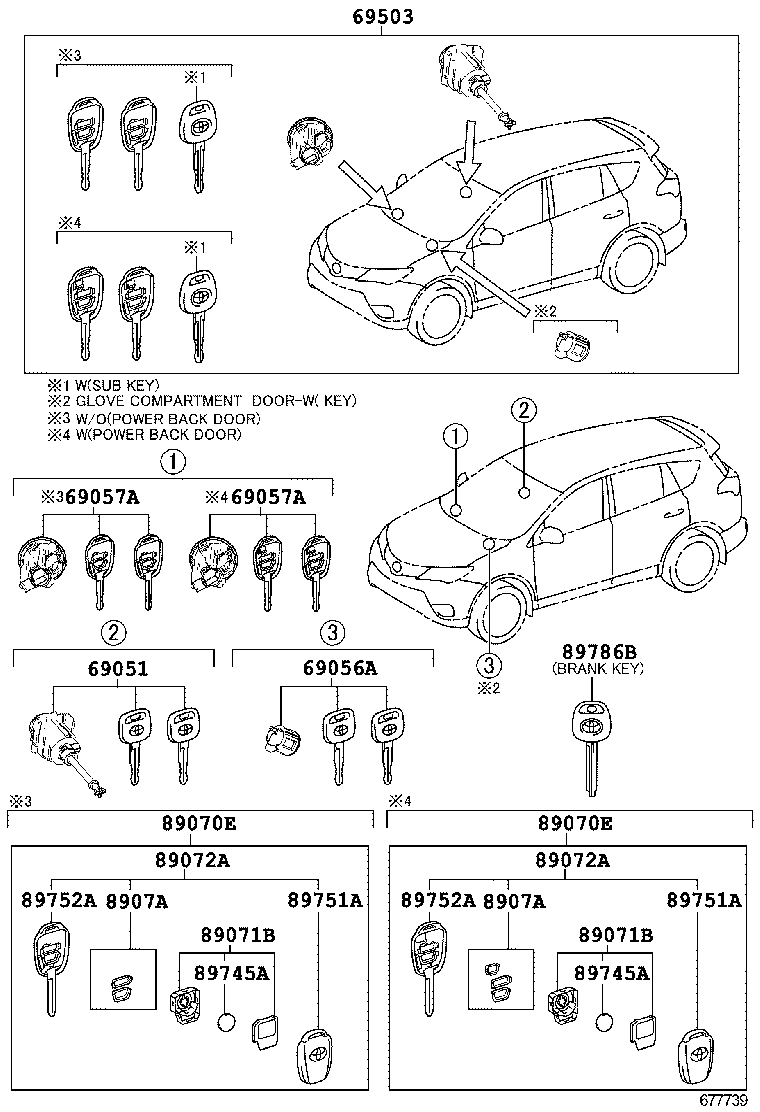

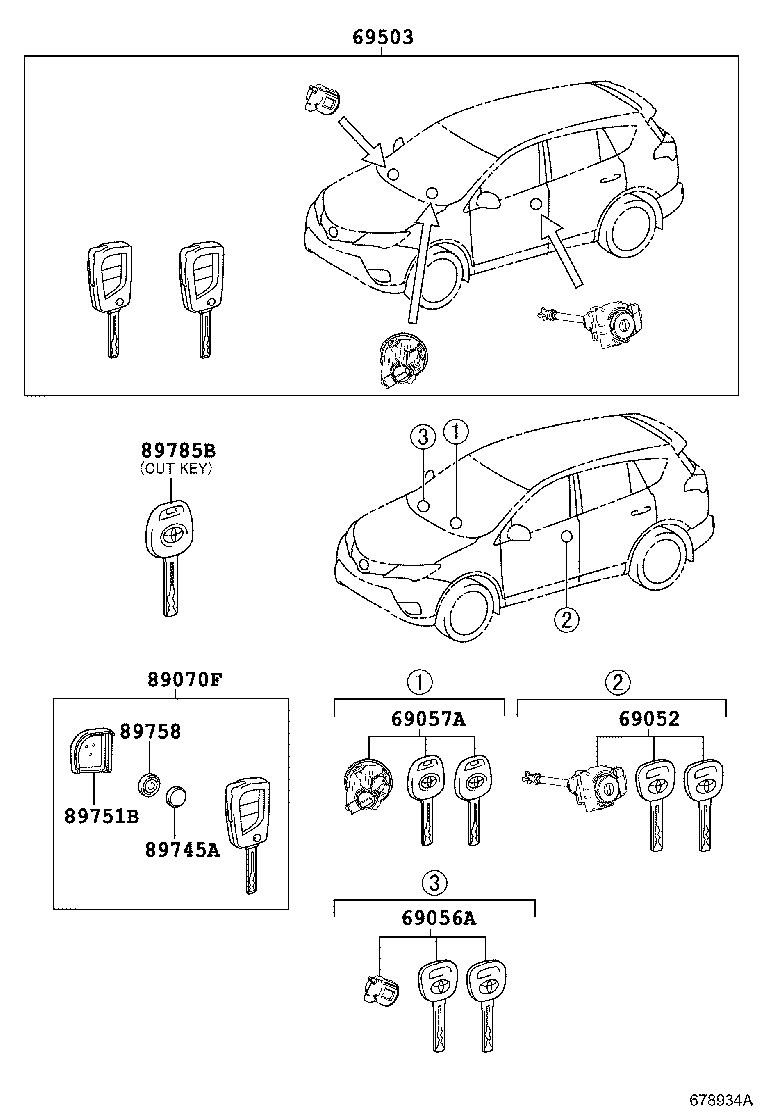

Figure 677738A 677738A 2012-12 → 2015-10 Figure 678934A 678934A 2015-10 → — Figure 677739 677739 2012-12 → 2015-10 Figure 678935A 678935A 2015-10 → — Figure 677740 677740 2012-12 → 2015-10 Figure 678936 678936 2015-10 → — Figure 677741 677741 2012-12 → 2015-10 Figure 678937 678937 2015-10 → —

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69052 Cylinder & Key Set, Door Lock, LH
69056A Cylinder & Key Set, Glove Compartment Lock
69057A Cylinder & Key Set, Ignition Switch Lock
69503 Cylinder Set, Lock
69503A Key, Blank
69503B Key, Cut
89070E Transmitter Assy, Door Control
89070F Transmitter Assy, Door Control (CUT KEY)
89071B Module Set, Transmitter Sub-assy, Door Control
89072A Housing Set, Door Control Transmitter
8907A Switch Set, Transmitter
89745A Battery, Transmitter
89745C Battery, Transmitter
89751A Cover, Transmitter Housing
89751B Cover, Transmitter Housing
89752A Case, Transmitter Housing
89758 Packing, Door Control Transmitter
8975B Cover, Transmitter Battery Housing
89785B Transmitter, Transponder Key Master
89786B Transmitter, Transponder Key Sub
89904B Transmitter Sub-assy, Electrical Key
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
