Seat & Seat Track

163 part groups · 17 illustrations

Illustrations

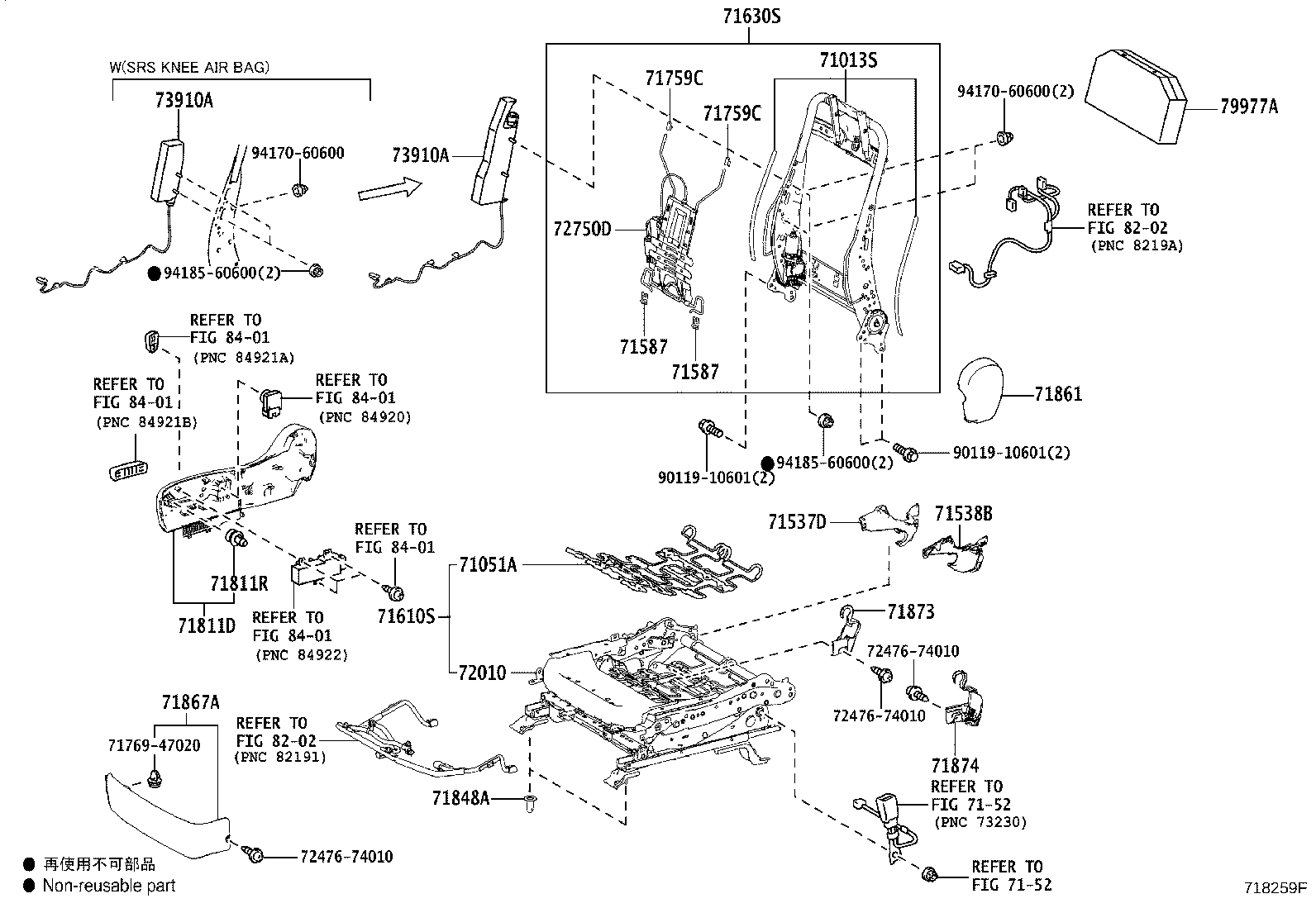

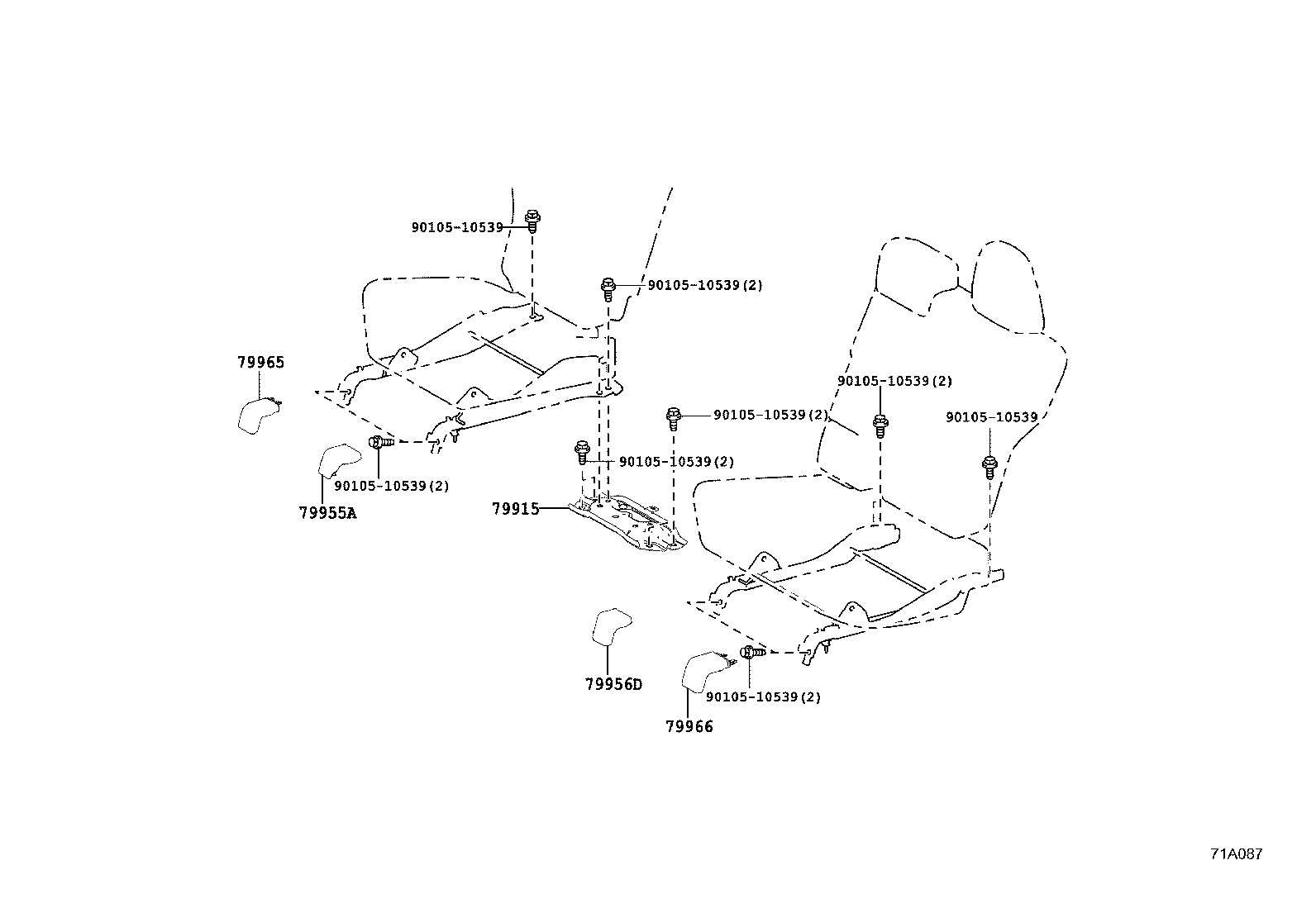

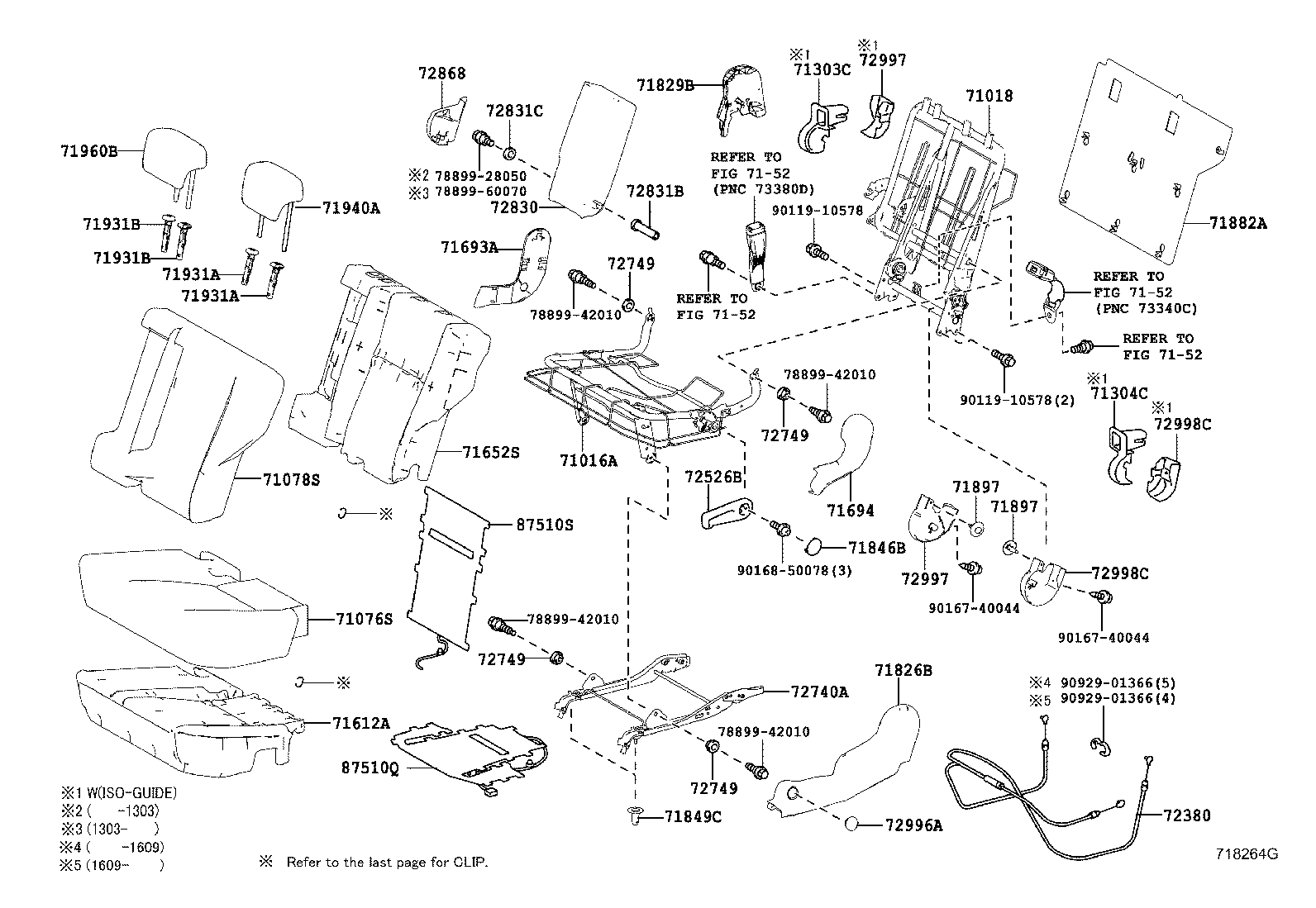

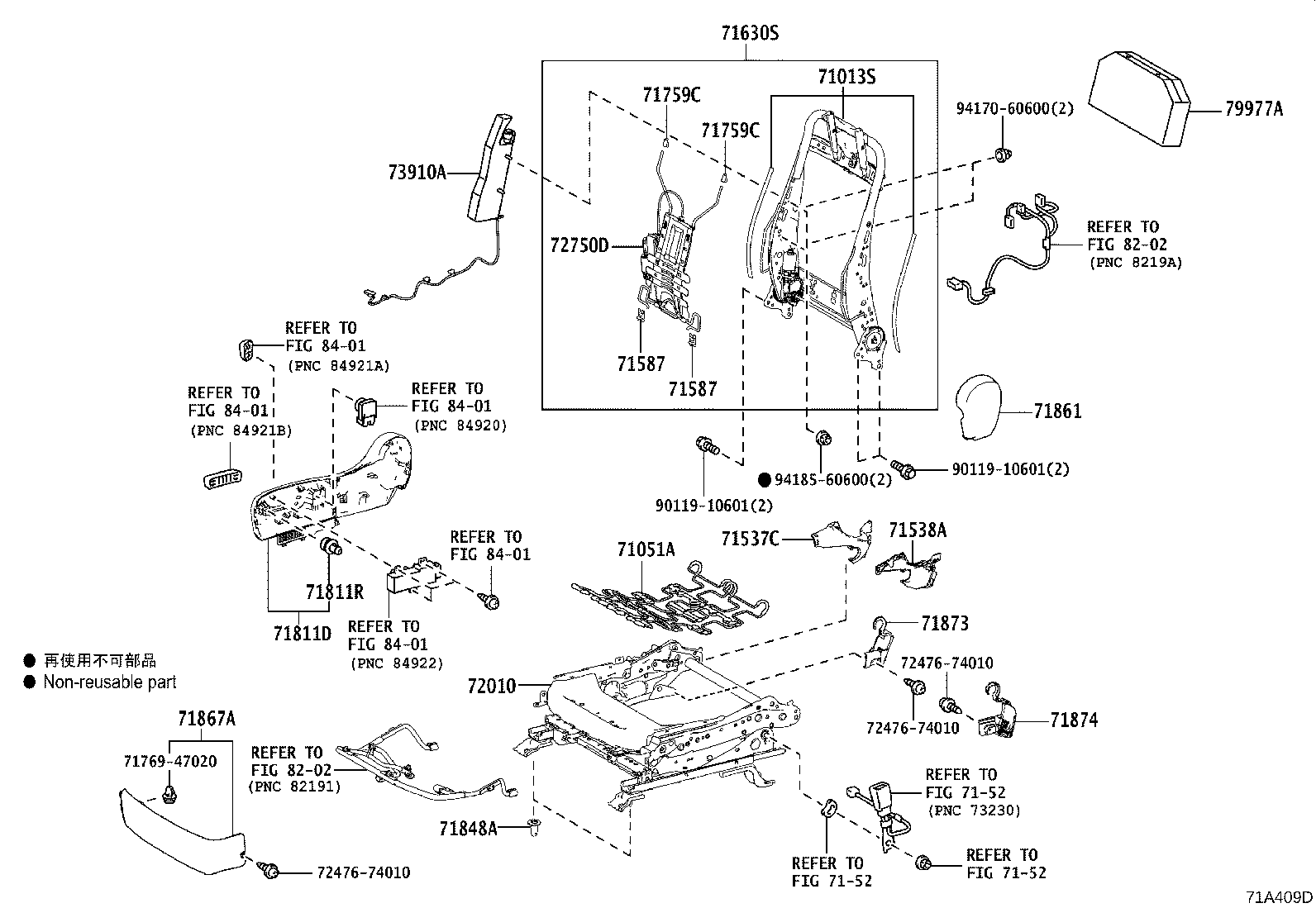

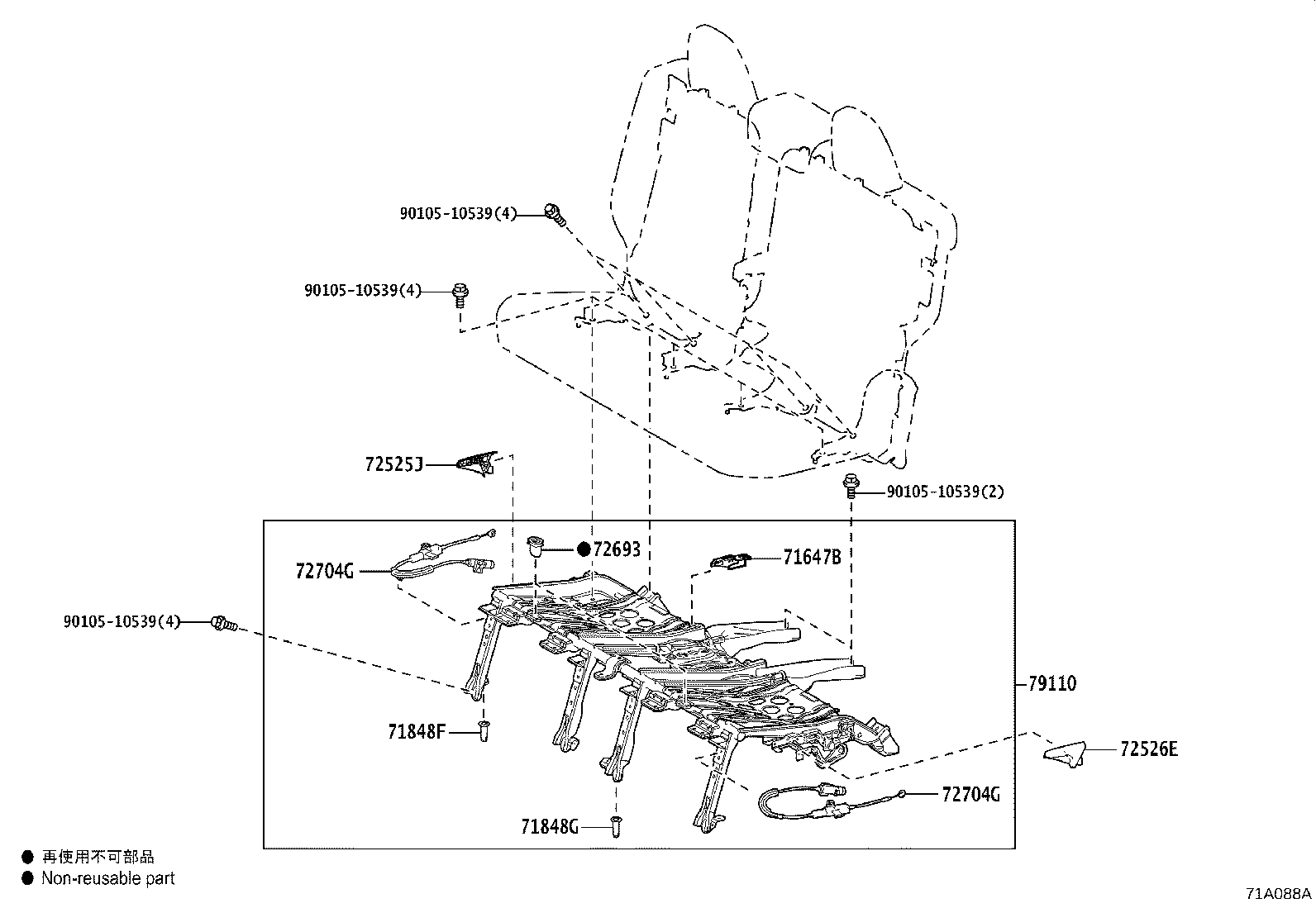

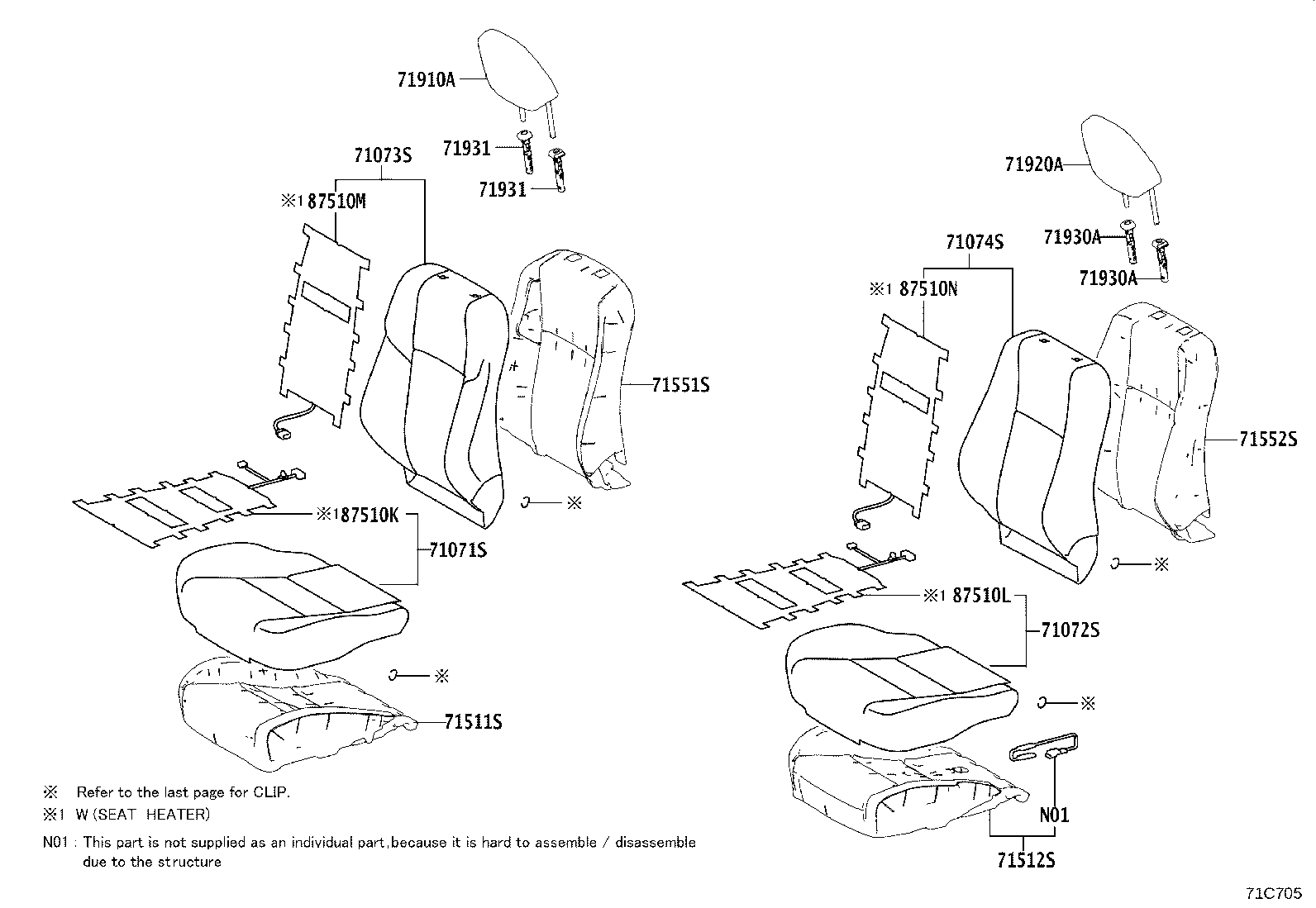

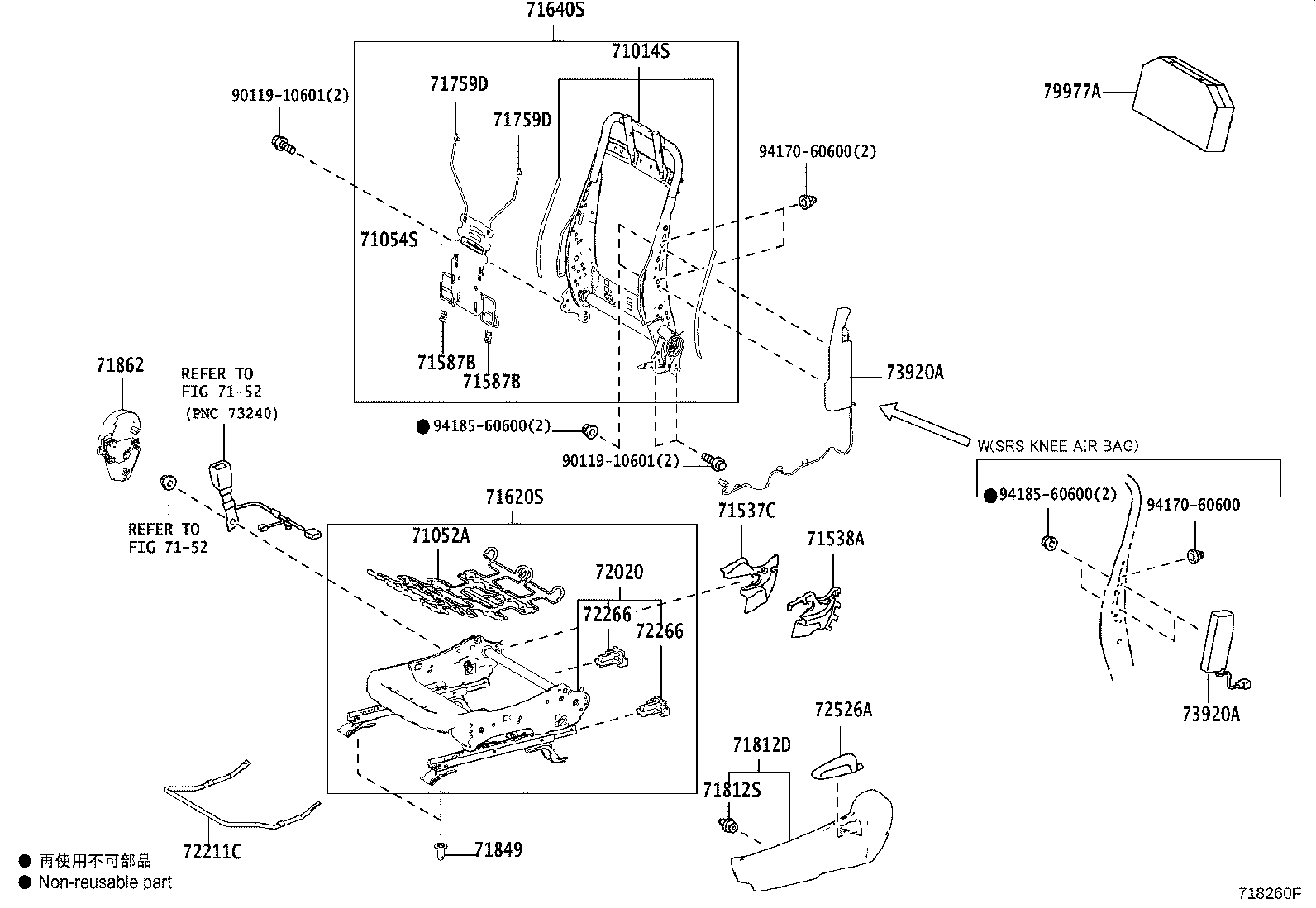

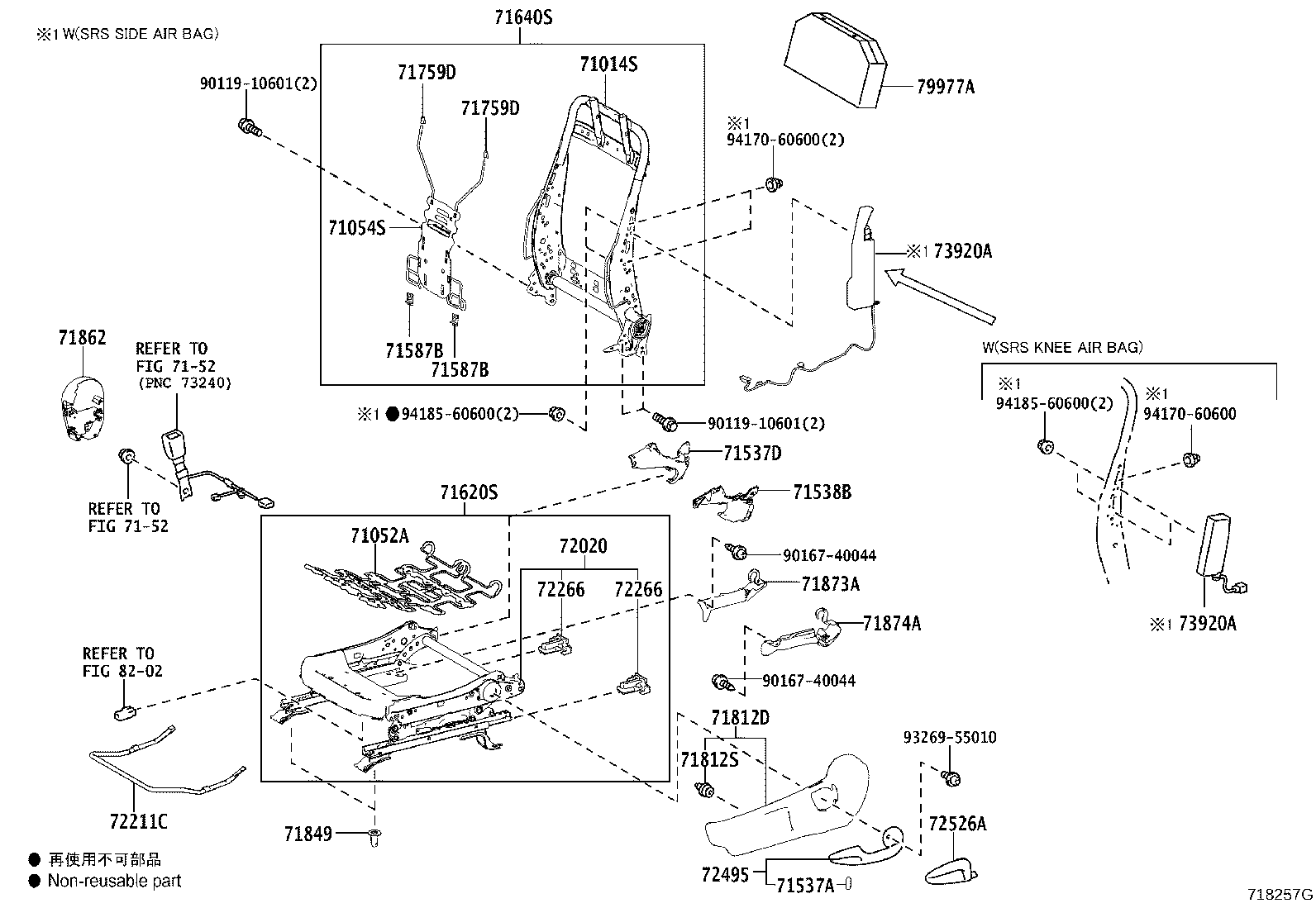

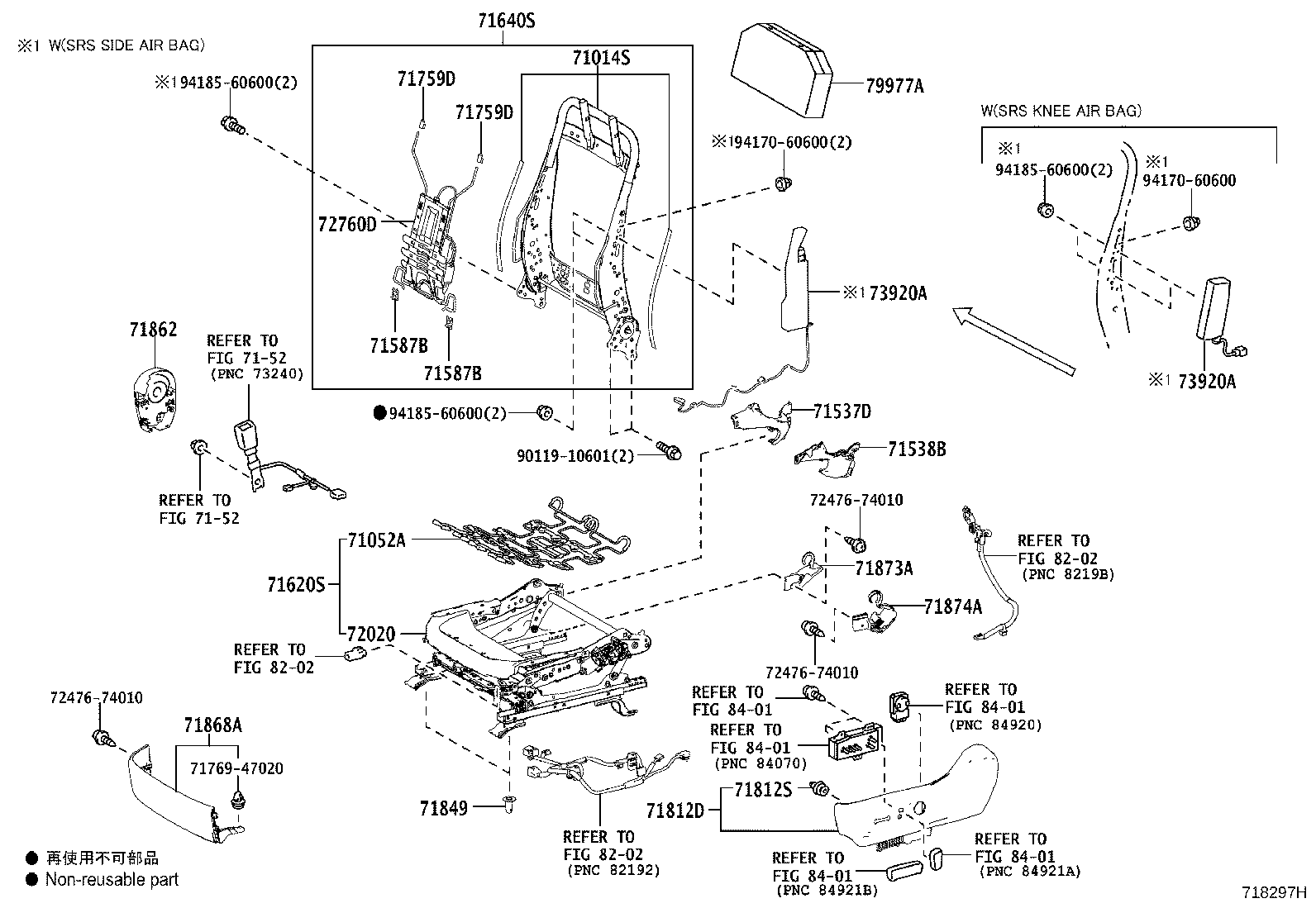

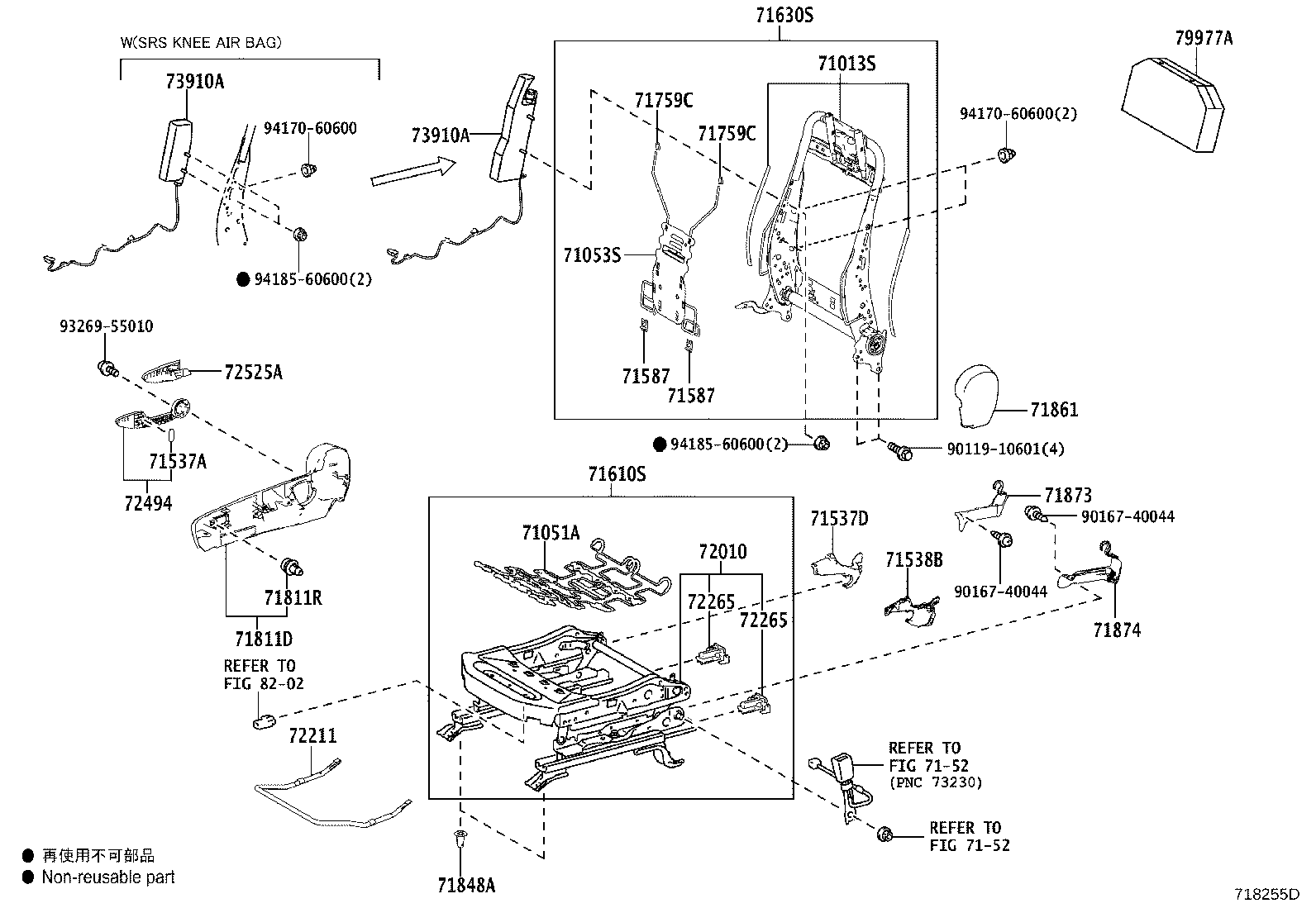

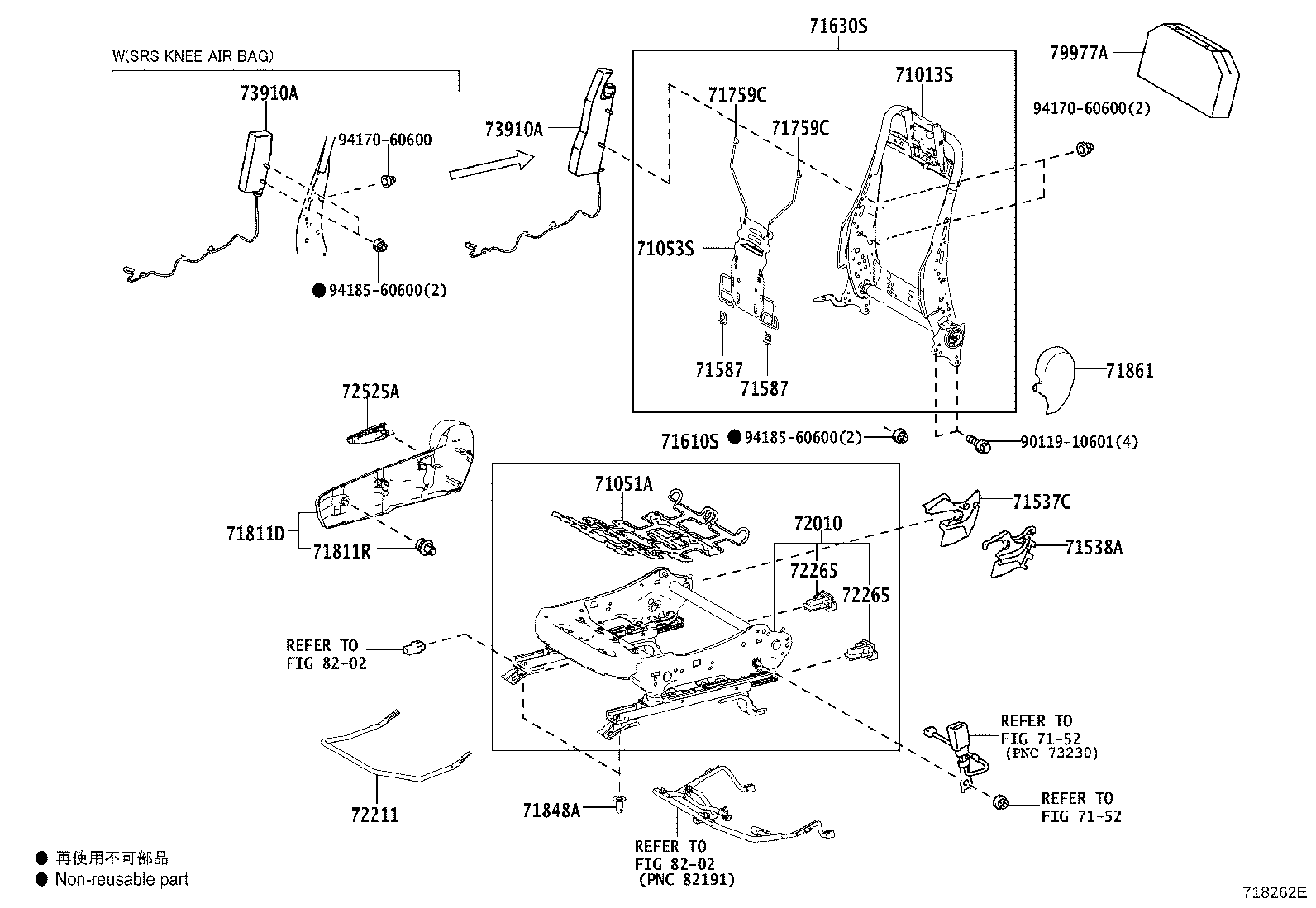

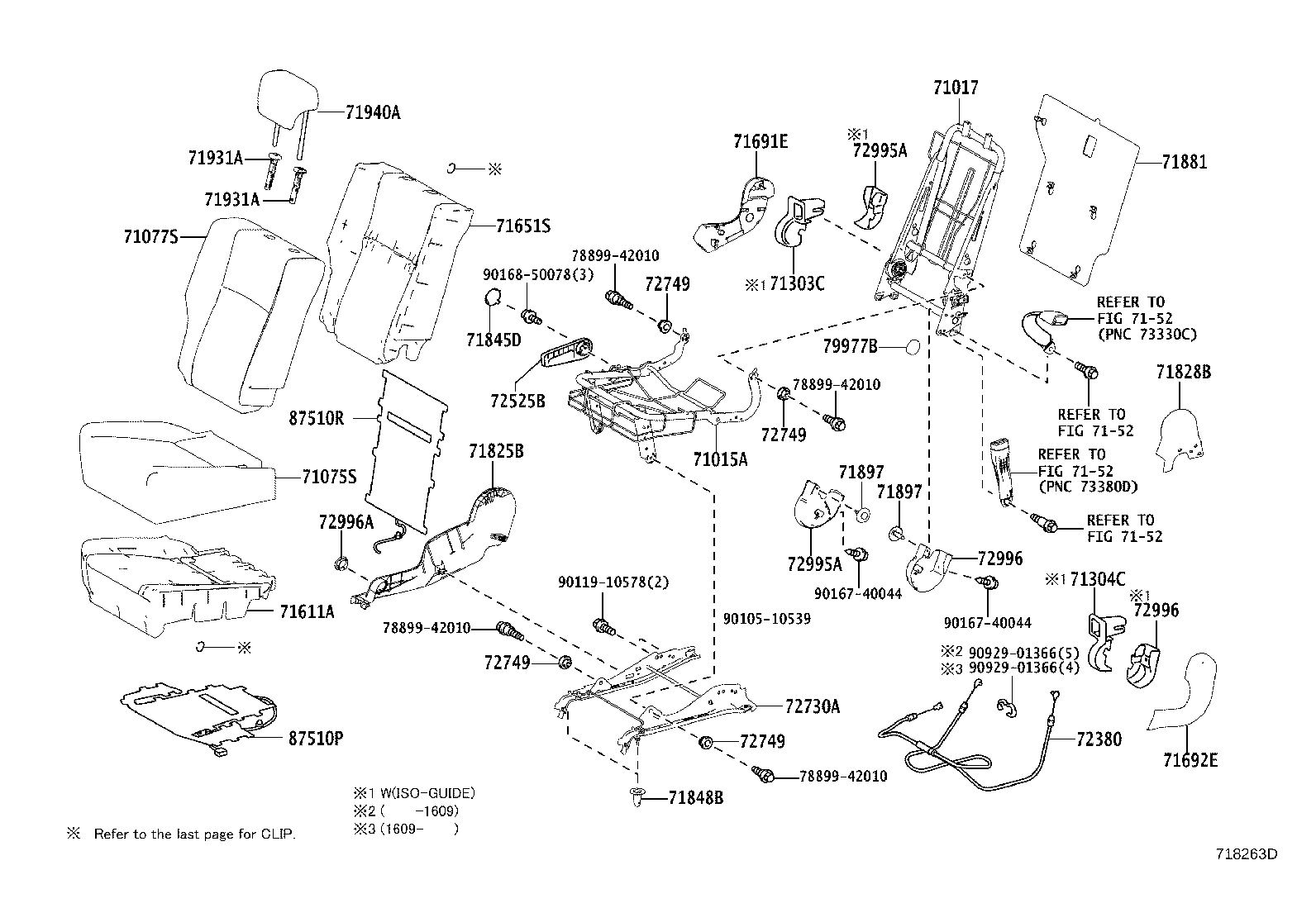

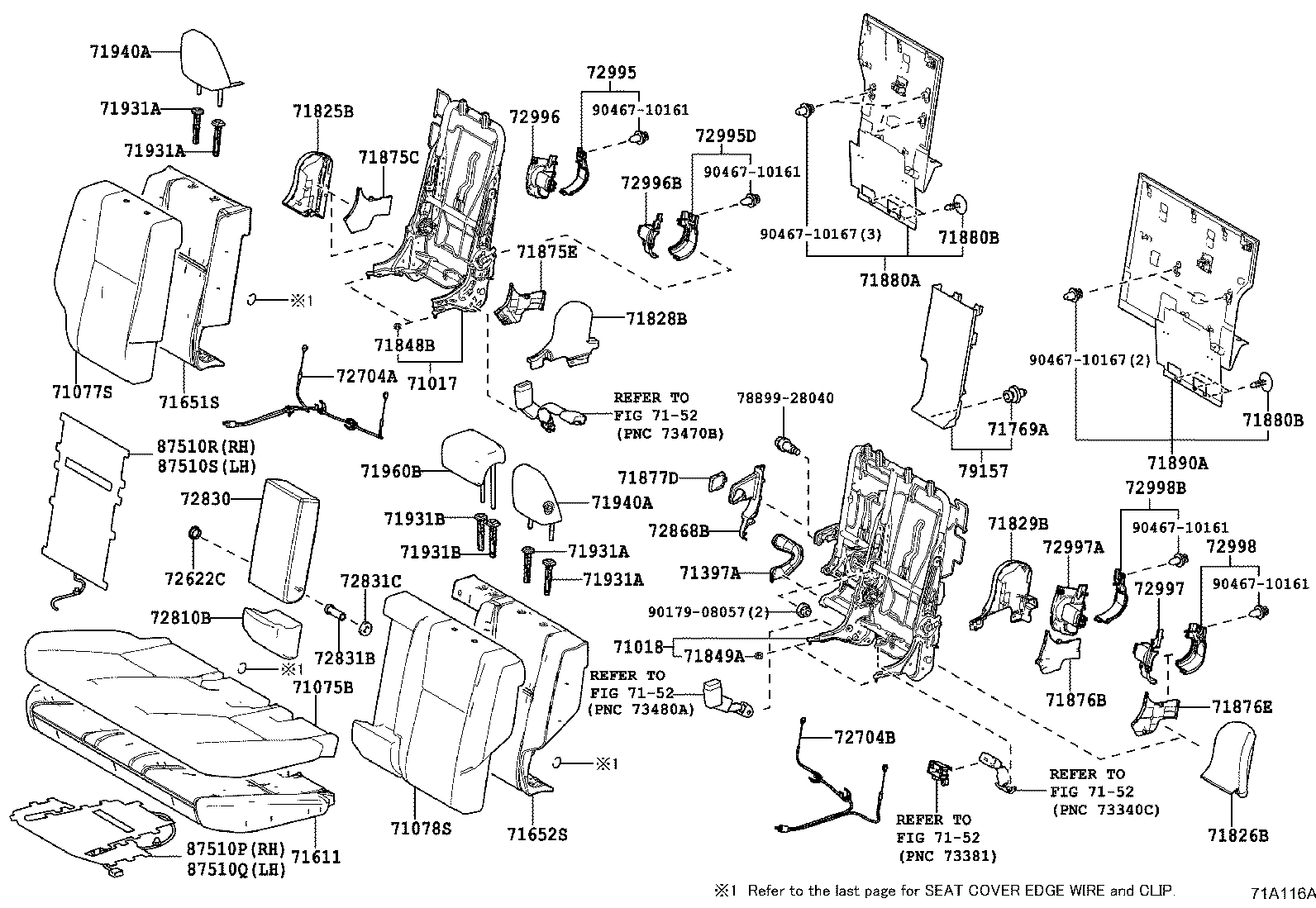

Figure 718252E 718252E 2012-12 → — Figure 71C705 71C705 2012-12 → — Figure 718255D 718255D 2012-12 → — Figure 718259F 718259F 2012-12 → 2016-08 Figure 718259F 718259F 2012-12 → — Figure 71A409D 71A409D 2016-08 → — Figure 718257G 718257G 2012-12 → — Figure 718297H 718297H 2012-12 → — Figure 718262E 718262E 2012-12 → — Figure 718260F 718260F 2012-12 → — Figure 718263E 718263E 2012-12 → — Figure 718264G 718264G 2012-12 → — Figure 71A116A 71A116A 2015-10 → — Figure 718324B 718324B 2012-12 → — Figure 71A087 71A087 2012-12 → — Figure 71A088A 71A088A 2015-10 → — Figure 719024D 719024D 2012-12 → —

Part groups

PNCDescription
71013S Frame Sub-assy, Front Seatback, RH
71014S Frame Sub-assy, Front Seatback, LH
71015A Frame Sub-assy, Rear Seat Cushion, RH
71016A Frame Sub-assy, Rear Seat Cushion, LH
71017 Frame Sub-assy, Rear Seatback, RH
71018 Frame Sub-assy, Rear Seatback, LH
71051A Spring Sub-assy, Front Seat Cushion, RH
71052A Spring Sub-assy, Front Seat Cushion, LH
71053S Spring Sub-assy, Front Seatback, RH
71054S Spring Sub-assy, Front Seatback, LH
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71075B Cover, Rear Seat Cushion (FOR BENCH TYPE)
71075S Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
71076S Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
71077S Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71303C Hinge Sub-assy, Rear Seatback, RH
71304C Hinge Sub-assy, Rear Seatback, LH
71397A Cover, Center Seat Hinge
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71537A Protector, Front Seat Cushion
71537C Protector, Front Seat Cushion Edge, RH
71537D Protector, Front Seat Cushion Edge, LH
71538A Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
71538B Protector, Front Seat Cushion Edge, LH(FOR LH SEAT)
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71587 Protector, Front Seatback Edge
71587B Protector, Front Seatback Edge
71610S Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71611 Pad, Rear Seat Cushion
71611A Pad, Rear Seat Cushion, RH
71612A Pad, Rear Seat Cushion, LH
71620S Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71630S Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71640S Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71647B Protector, Rear Seat Cushion Edge
71651S Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71691E Cover, Rear Seat Cushion Hinge, NO.1
71692E Cover, Rear Seat Cushion Hinge, NO.2
71693A Cover, Rear Seat Cushion Hinge, NO.3
71694 Cover, Rear Seat Cushion Hinge, Lower LH
71759C Hook, Front Seatback, NO.1
71759D Hook, Front Seatback, NO.2
71769A Clip, Rear Seatback Board
71811D Shield, Front Seat Cushion, RH
71811R Clip, Front Seat Cushion Shield, RH
71812D Shield, Front Seat Cushion, LH
71812S Clip, Front Seat Cushion Shield, LH
71825B Moulding, Rear Seat Cushion, RH
71826B Moulding, Rear Seat Cushion, LH
71828B Moulding, Rear Seat Cushion, Rear RH
71829B Moulding, Rear Seat Cushion, Rear LH
71845D Cap, Rear Seat Cover, RH
71846B Cap, Rear Seatback Board, NO.1
71848A Cap, Seat Adjuster Cover, RH
71848B Cap, Seat Adjuster Cover, RH
71848F Cap, Seat Adjuster Cover, NO.1
71848G Cap, Seat Adjuster Cover, NO.2
71849 Cap, Seat Adjuster Cover, LH
71849A Cap, Seat Adjuster Cover, LH
71849C Cap, Seat Adjuster Cover, LH(FOR LH SEAT)
71861 Shield, Front Seat Cushion, Inner RH
71862 Shield, Front Seat Cushion, Inner LH
71867A Shield, Front Seat Cushion, Inner NO.1 RH
71868A Shield, Front Seat Cushion, Inner NO.1 LH
71873 Shield, Front Seat Cushion, Lower RH
71873A Shield, Front Seat Cushion, Lower
71874 Shield, Front Seat Cushion, Lower LH
71874A Shield, Front Seat Cushion, Lower LH
71875C Cover, Reclining Adjuster Inside, RH
71875E Cover, Reclining Adjuster Inside, RH
71876B Cover, Reclining Adjuster Inside, LH
71876E Cover, Reclining Adjuster Inside, LH
71877D Cover, Rear Seat Armrest Hole
71880A Carpet Assy, Rear Seatback Board, RH
71880B Clip(FOR REAR SEATBACK CARPET)
71881 Board, Rear Seatback, RH
71882A Board, Rear Seatback, LH
71890A Carpet Assy, Rear Seatback Board, LH
71897 Hook, Seat Cover Side
71910A Headrest Assy, Front Seat
71920A Headrest Assy, Front Seat, LH
71930A Support Assy, Front Seat Headrest
71931 Support, Front Seat Headrest
71931A Support, Rear Seat Headrest
71931B Support Assy, Rear NO.1 Seat Headrest
71940A Headrest Assy, Rear Seat
71960B Headrest Assy, Rear Seat, Center
72010 Adjuster Assy, Front Seat, RH
72020 Adjuster Assy, Front Seat, LH
72123A Cover, Seat Track Bracket, Outer Front RH
72124 Cover, Seat Track Bracket, Outer Front LH
72127A Cover, Seat Track Bracket, Inner Front RH
72128A Cover, Seat Track Bracket, Inner Front LH
72137 Cover, Seat Track, Outer RH
72138 Cover, Seat Track, Outer LH
72157 Cover, Seat Track Bracket, Inner
72158 Cover, Seat Track Bracket, Inner LH
72211 Handle, Seat Track Adjusting
72211C Handle, Seat Track Adjusting
72265 Cover, Seat Track Upper Rail, RH
72266 Cover, Seat Track Upper Rail, LH
72380 Cable Assy, Seat Adjuster Control, NO.2
72494 Handle, Vertical Adjusting, RH
72495 Handle, Vertical Adjusting, LH
72525A Handle, Reclining Adjuster Release, RH
72525B Handle, Reclining Adjuster Release, RH
72525J Handle, Reclining Adjuster Release, RH
72526A Handle, Reclining Adjuster Release, LH
72526B Handle, Reclining Adjuster Release, NO.1 LH
72526E Handle, Reclining Adjuster Release, LH
72622C Bush, Rear Seatback Protector Shaft
72693 Hook, Rear Seat Cushion Lock
72704A Cable, Rear Seat Reclining Control
72704B Cable, Rear Seat Reclining Control, NO.2
72704G Cable, Rear Seat Reclining Control, NO.4
72730A Adjuster Assy, Rear Seat Reclining, RH
72740A Adjuster Assy, Rear Seat Reclining, LH
72749 Spacer, Rear Seat Reclining
72750D Adjuster Assy, Lumbar Support, RH
72760D Adjuster Assy, Lumbar Support, LH
72810B Armrest Assy, NO.1 Seat
72830 Armrest Assy, Rear Seat, Center
72831B Plate, Rear Seat Center Armrest, NO.1
72831C Plate, Rear Seat Center Armrest, NO.2
72868 Cover, Center Armrest Hinge, RH
72868B Cover, Center Armrest Hinge
72995 Cover, Rear Seat Cushion, RH
72995A Cover, Rear Seat
72995D Cover, Rear Seat Cushion, Inner RH
72996 Cover, Rear Seatback, RH
72996A Cover, Rear Seatback
72996B Cover, Rear Seatback, Inner RH
72997 Cover, Rear Seatback, LH
72997A Cover, Rear Seatback, Inner LH
72998 Cover, Rear Seat Cushion, LH
72998B Cover, Rear Seat Cushion, LH
72998C Cover, Rear Seat, LH
73910A Airbag Assy, Front Seat, RH
73920A Airbag Assy, Front Seat, LH
79110 Leg Assy, NO.1 Seat
79157 Cover, NO.1 Seatback
79915 Bracket, Seat Leg
79955A Cover, Rear Seat Front Bracket, RH
79956D Cover, Rear Seat Front Bracket, LH
79965 Cover, Rear Seat Leg Side, NO.2
79966 Cover, Rear Seat Leg Side, NO.3
79977A Felt, Seatback
79977B Felt, Seatback Frame
87510K Heater Assy, Front Seat Cushion, RH
87510L Heater Assy, Front Seat Cushion, LH
87510M Heater Assy, Front Seatback, RH
87510N Heater Assy, Front Seatback, LH
87510P Heater Assy, Seat
87510Q Heater Assy, Seat
87510R Heater Assy, Seat
87510S Heater Assy, Seat
