Toyota RAV4

2012-12 → 2019-09 · chassis ALA4#,ASA44,AVA4#,WWA42,ZSA4# · catalogue 662540 · Europe

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate

24 part groups · 6 illustrations

Illustrations

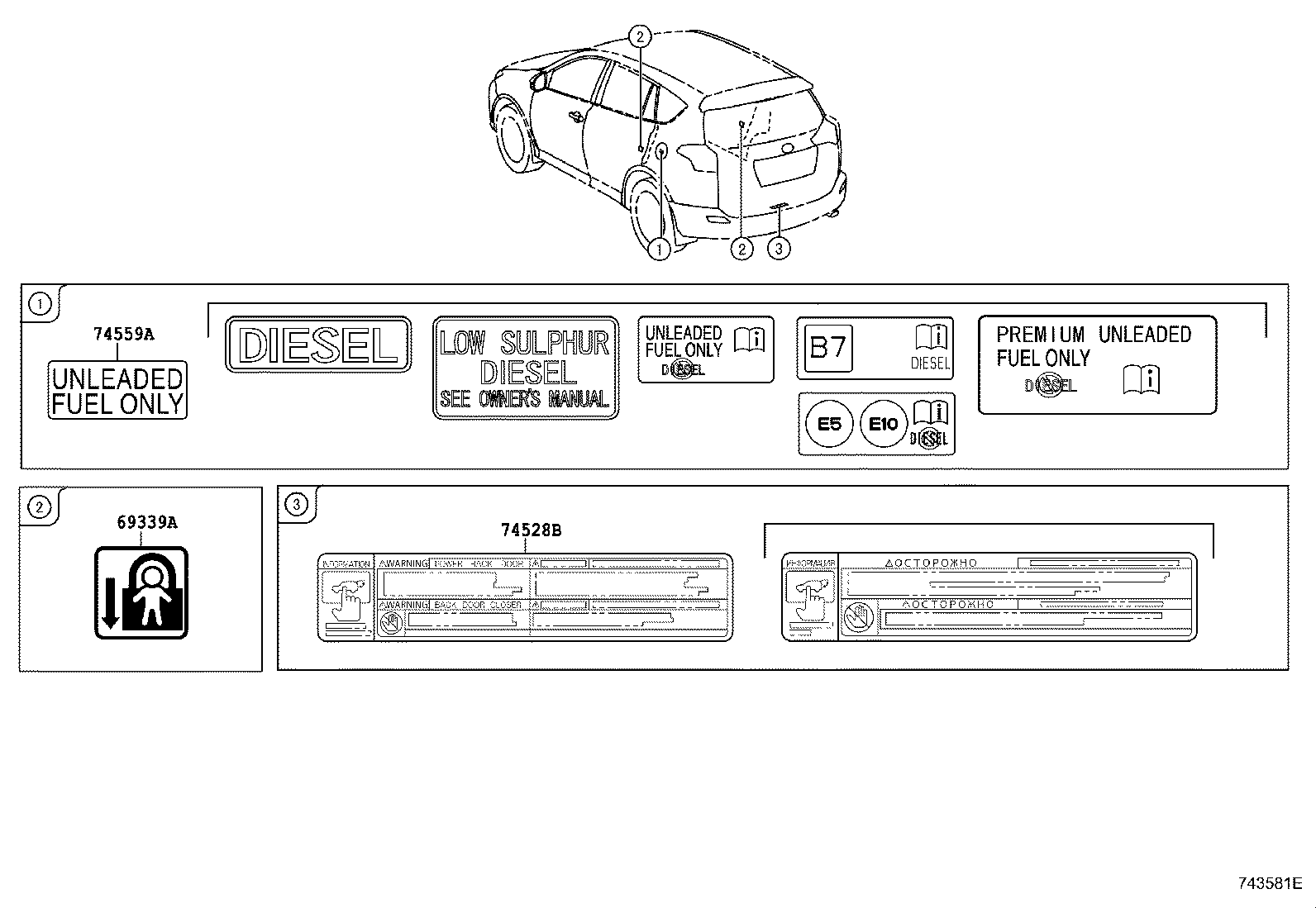

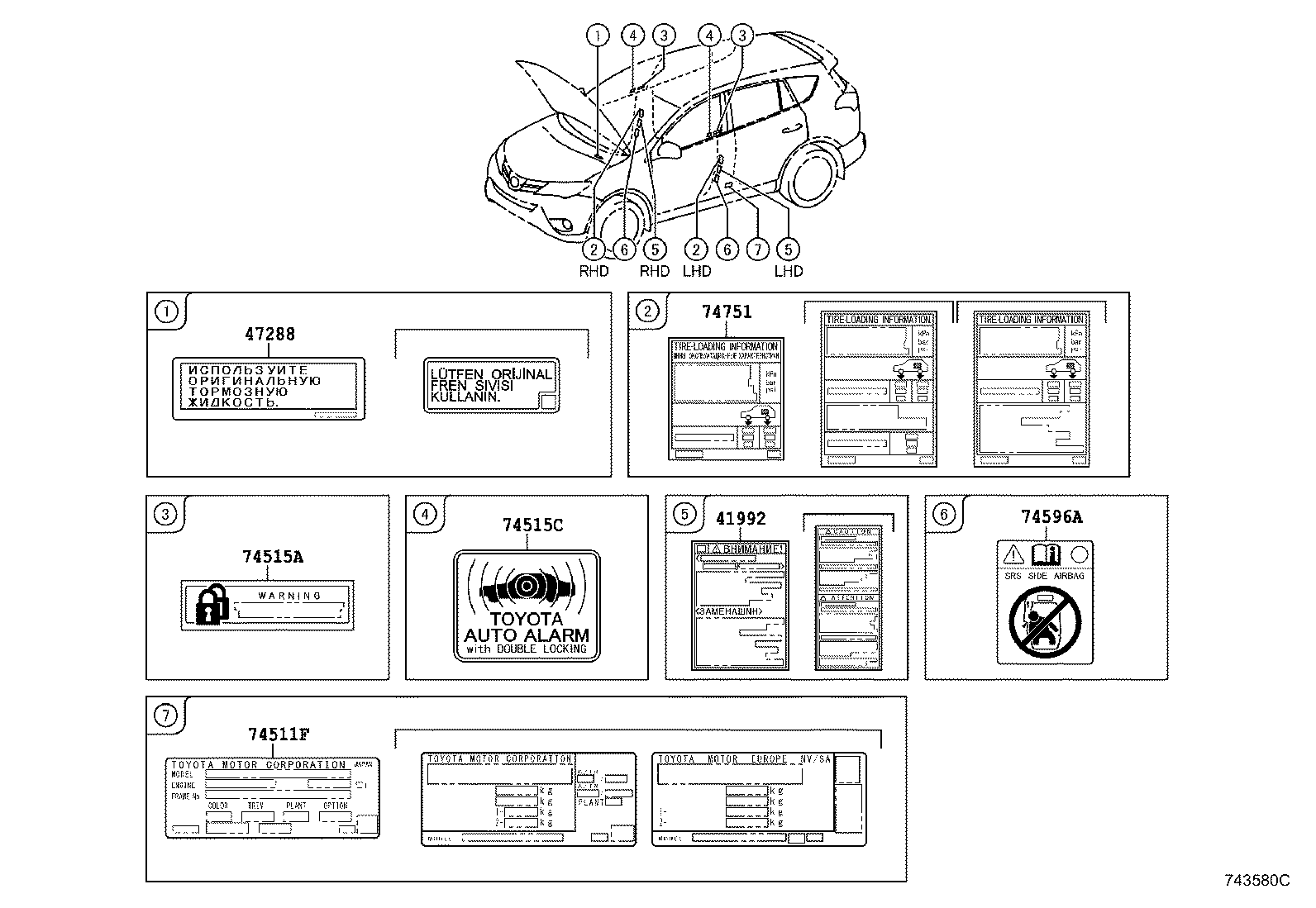

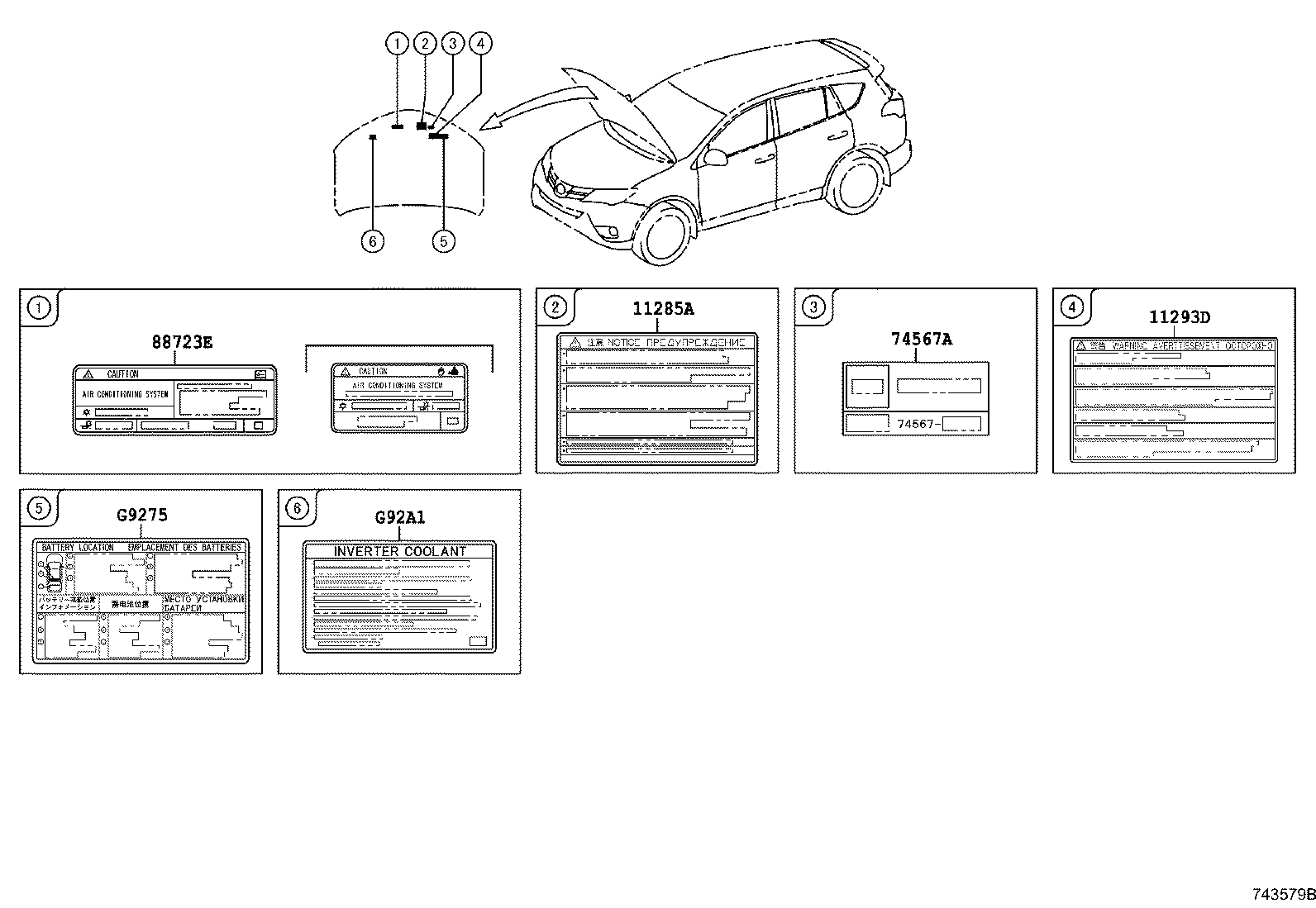

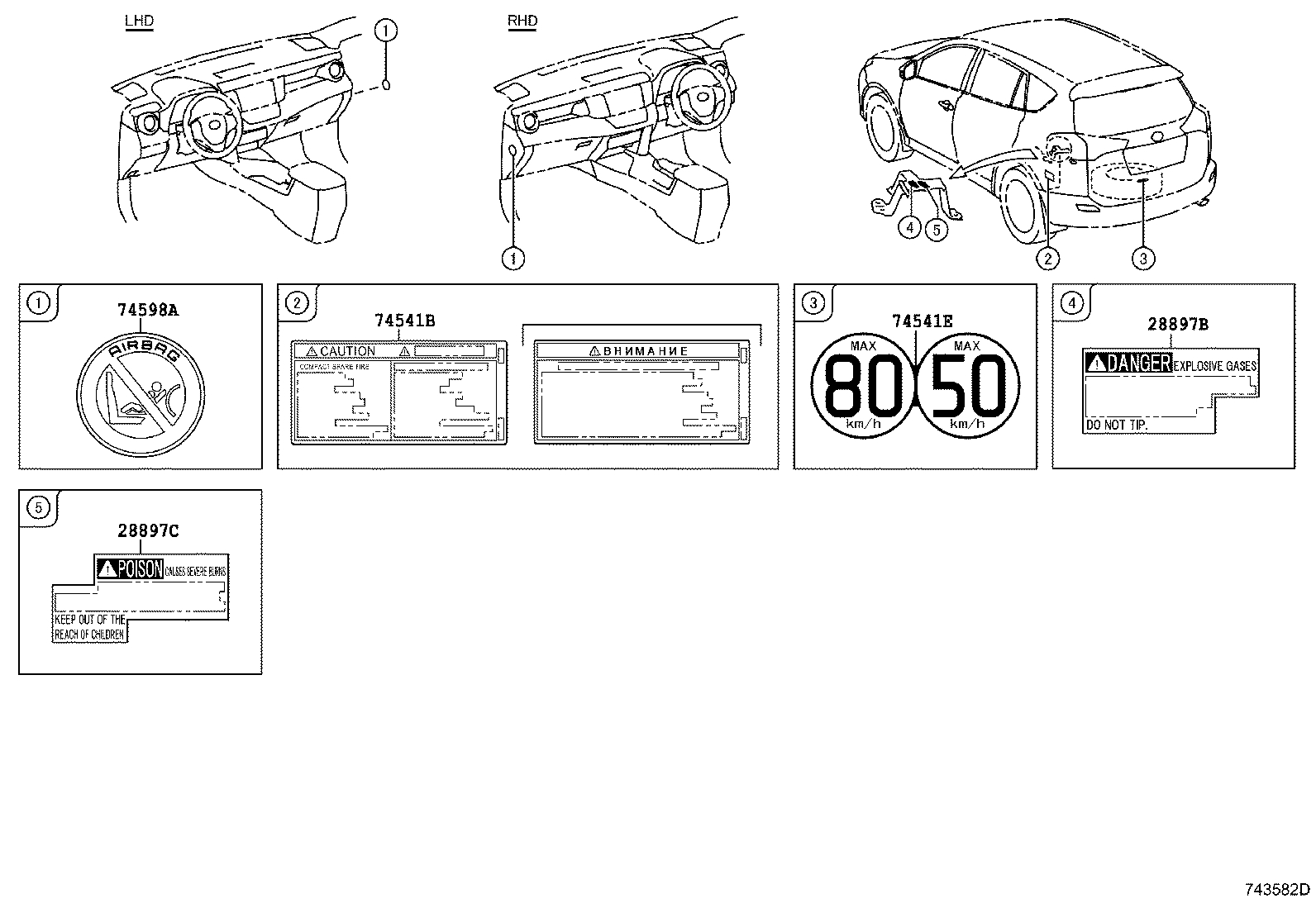

Figure 746059A 746059A 2012-12 → — Figure 743579B 743579B 2012-12 → — Figure 743580C 743580C 2012-12 → — Figure 743581E 743581E 2012-12 → — Figure 743582D 743582D 2012-12 → — Figure 743477 743477 2012-12 → —

Part groups

PNCDescription
11285A Label, Coolant System Notice
11291B Plate, Engine Name
11293D Label, Engine Caution
16793E Label, Cooling Fan Caution
28897B Label, Battery Caution, NO.1
28897C Label, Battery Caution, NO.2
41992 Label, Differential Notice
47288 Label, Brake Fluid Notice
69339A Plate, Child Protector Lock Caution
74501B Label Set, Caution
74511F Label, Name (IDENTIFICATION LASER LABEL)
74515A Plate, Theft Warning
74515C Label, Theft Warning Information
74528B Label, Back Door Caution
74541B Plate, Compact Spare Tire Caution
74541E Plate, Compact Spare Tire Caution
74559A Plate, Fuel Caution
74567A Plate, E.C.E Approved Number
74596A Label, Side Airbag Caution
74598A Label, Passenger Airbag Caution
74751 Label, Tire Pressure Information
88723E Label, Cooler Service Caution
G9275 Label, Battery Caution, NO.1
G92A1 Label, Hybrid Coolant System Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
