Toyota RAV4

2012-12 → 2019-09 · chassis ALA4#,ASA44,AVA4#,WWA42,ZSA4# · catalogue 662540 · Europe

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

78 part groups · 19 illustrations

Illustrations

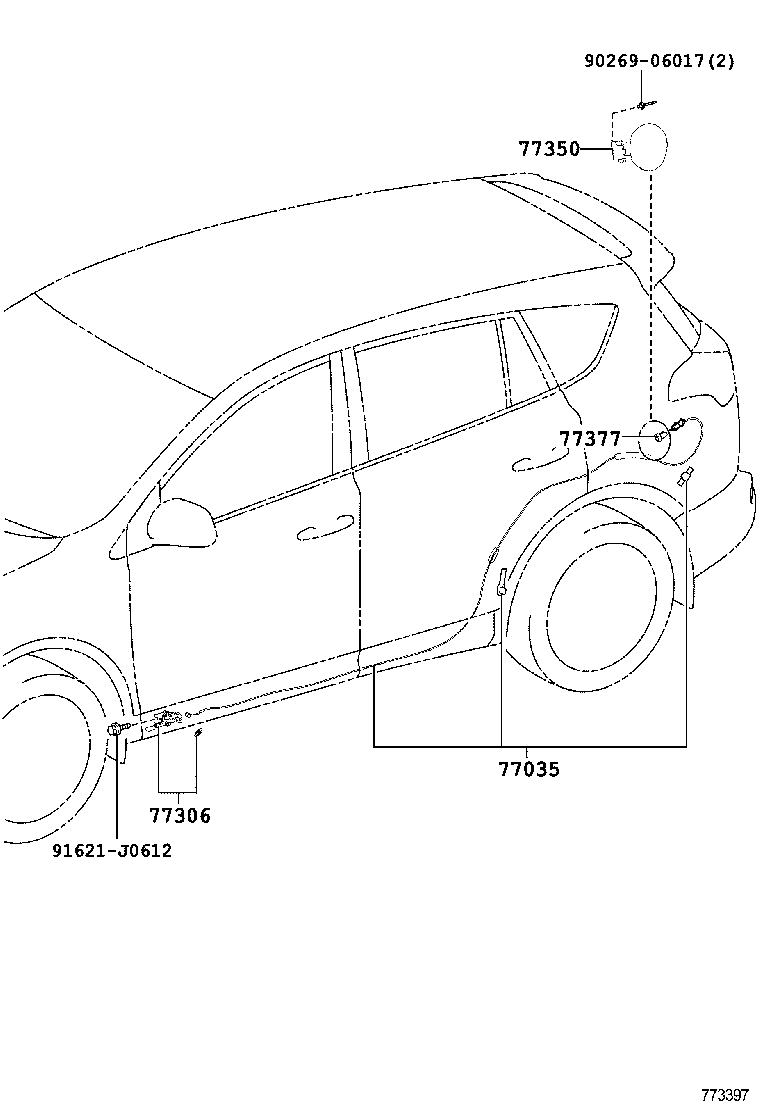

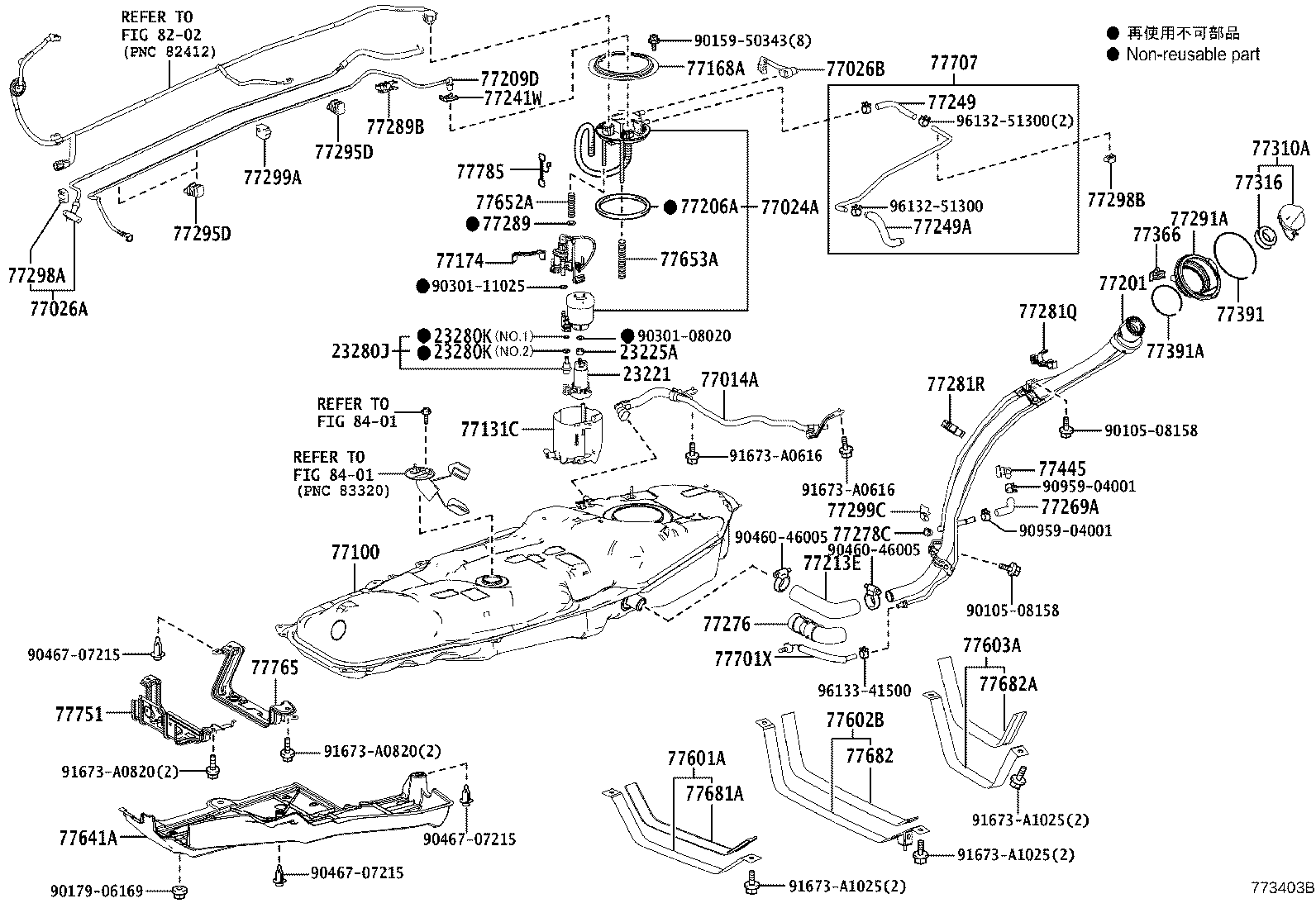

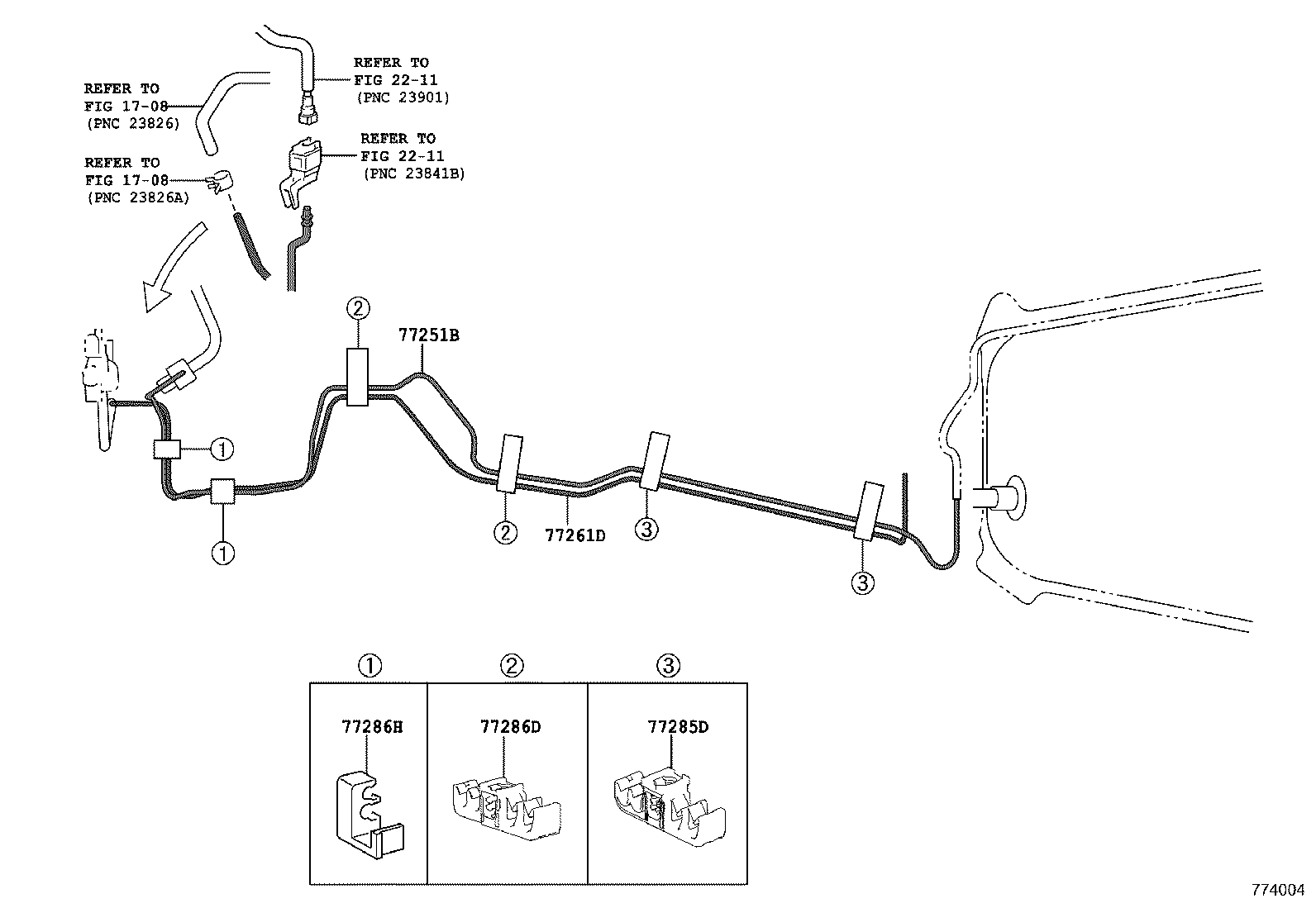

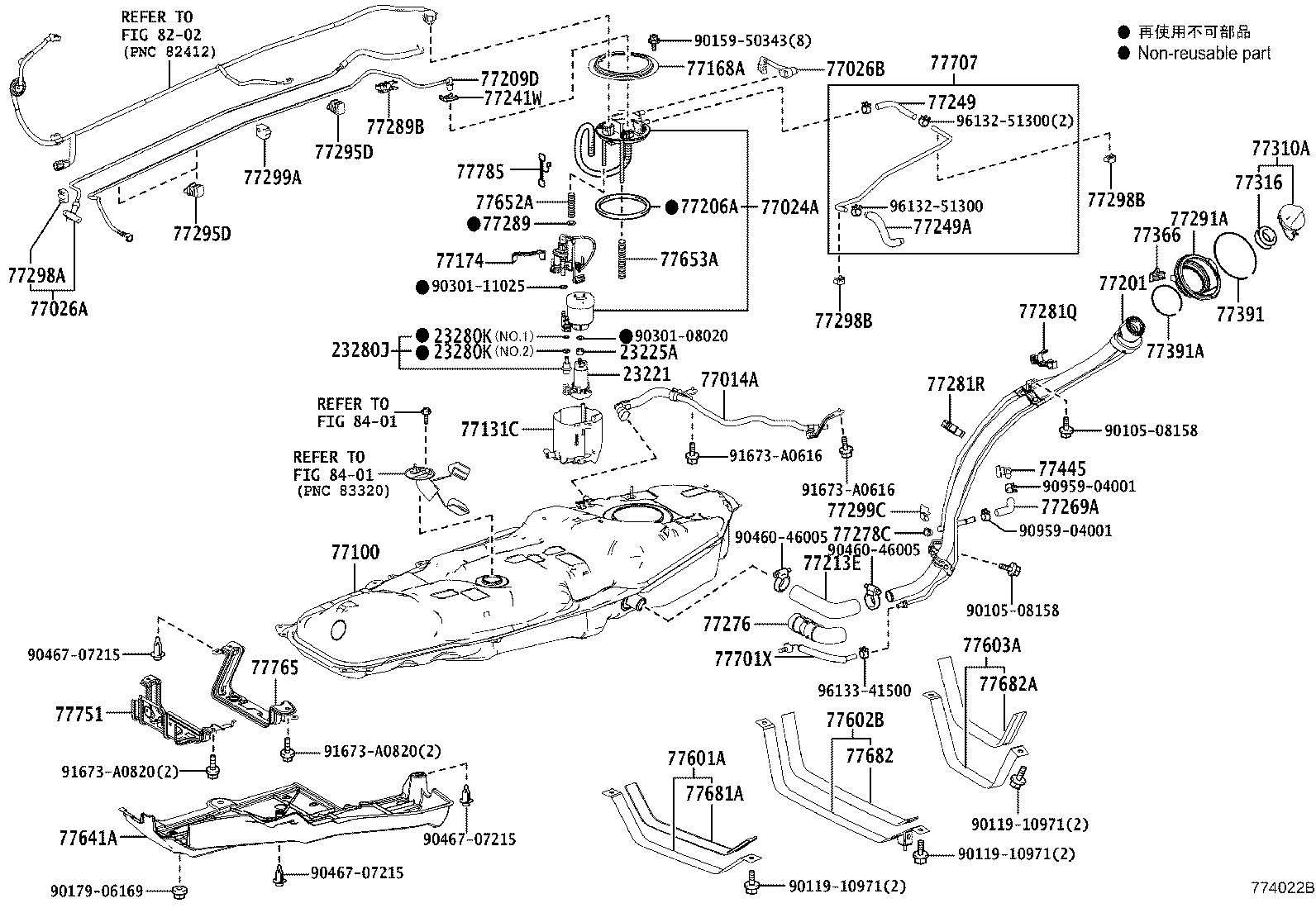

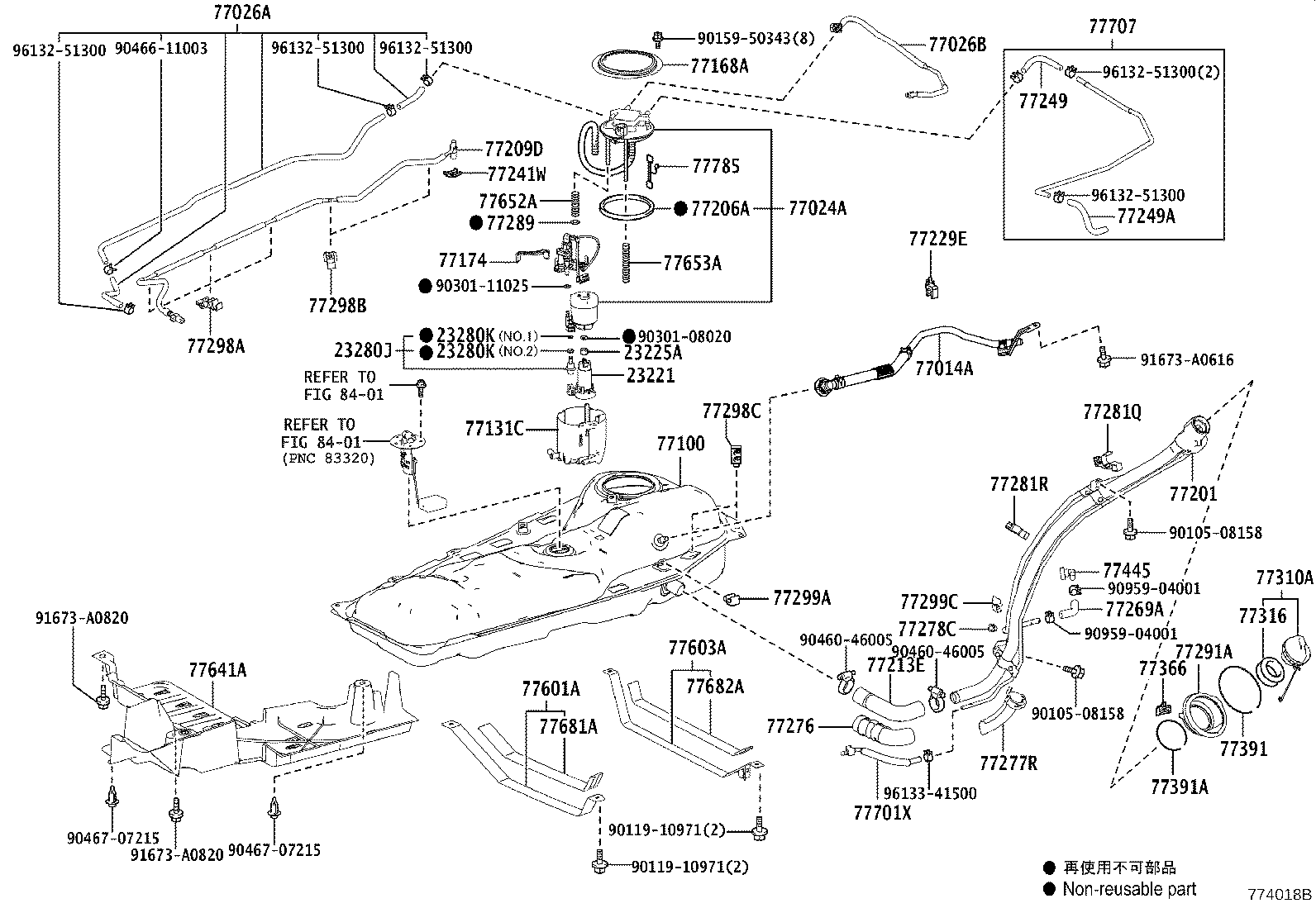

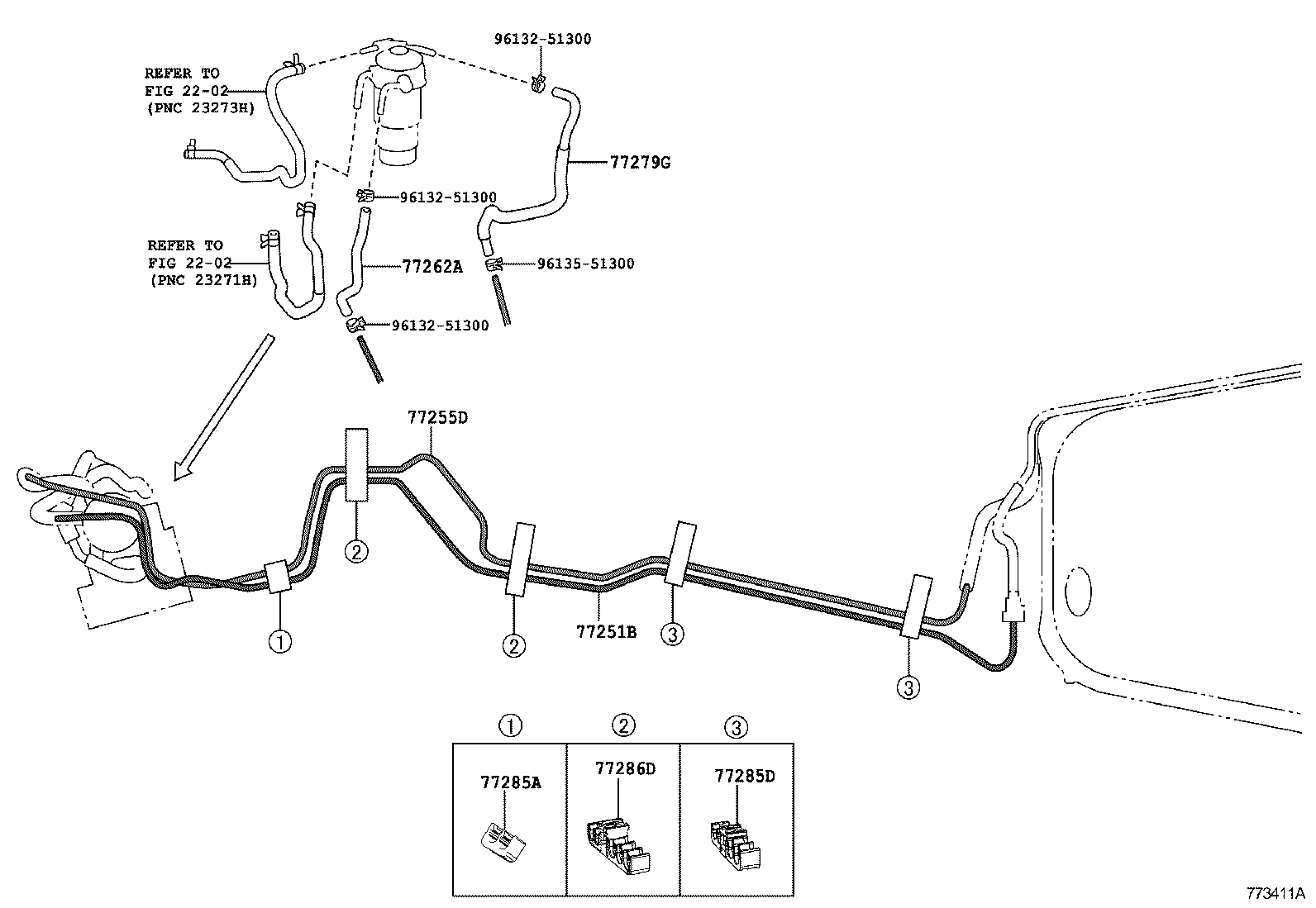

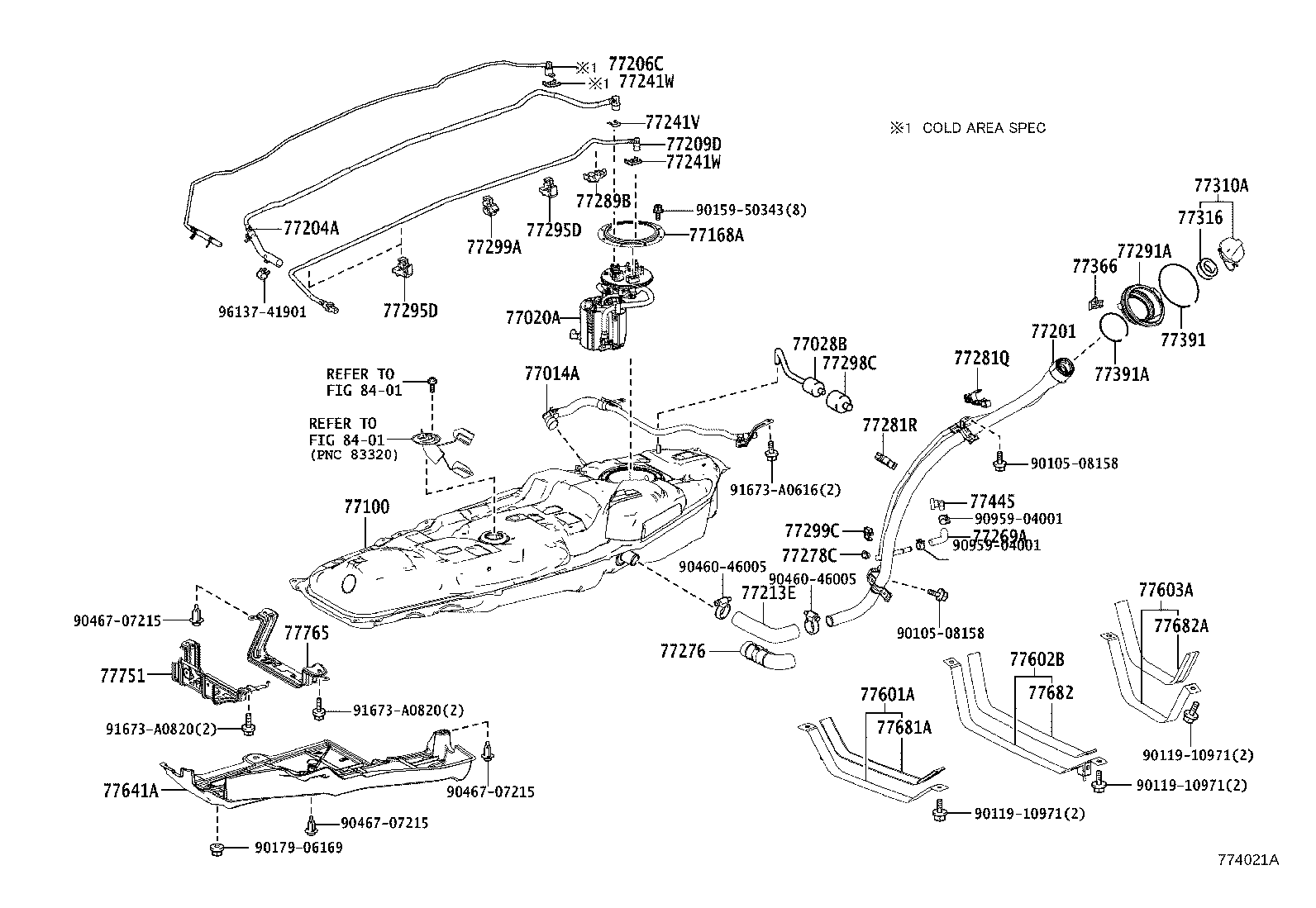

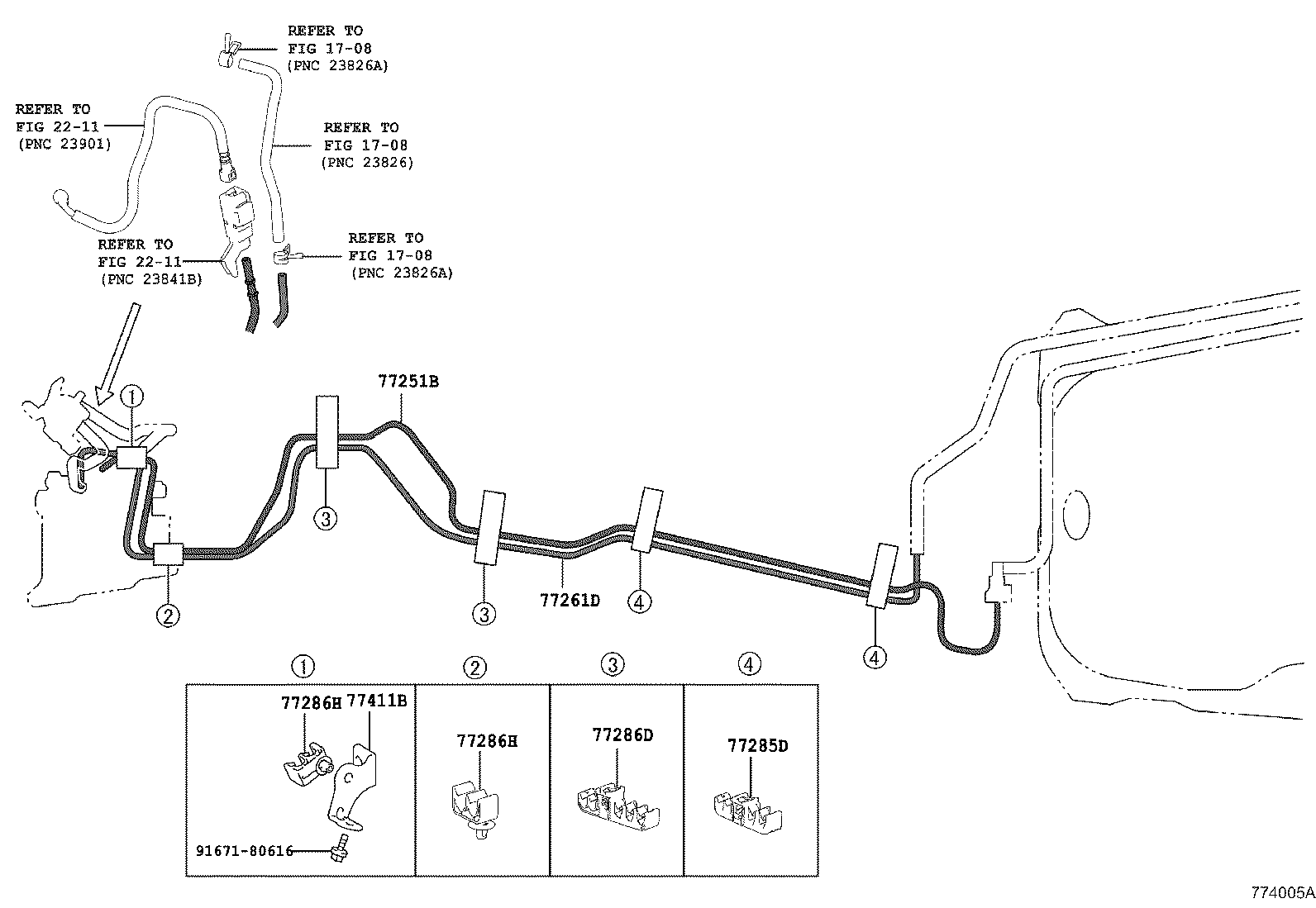

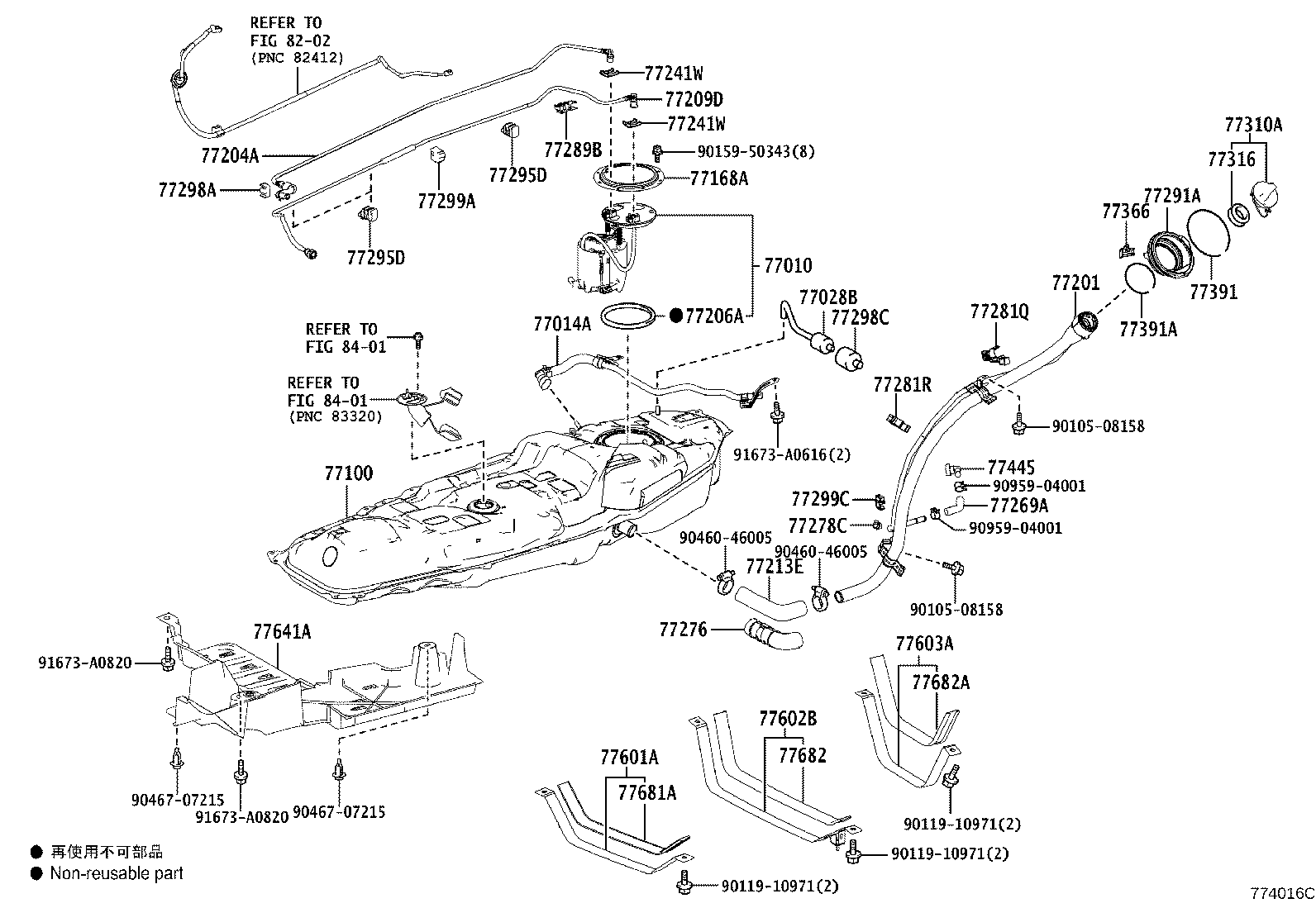

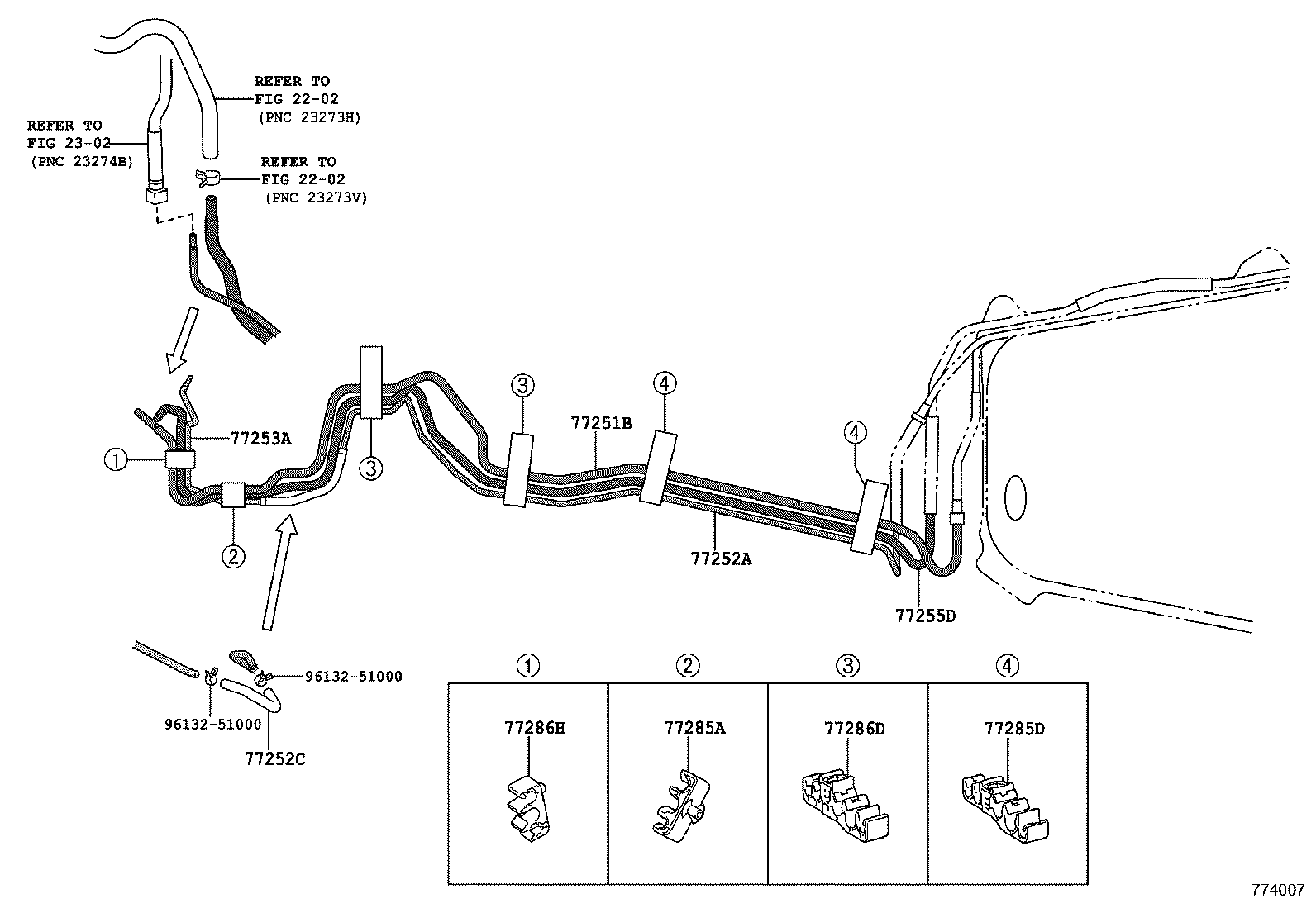

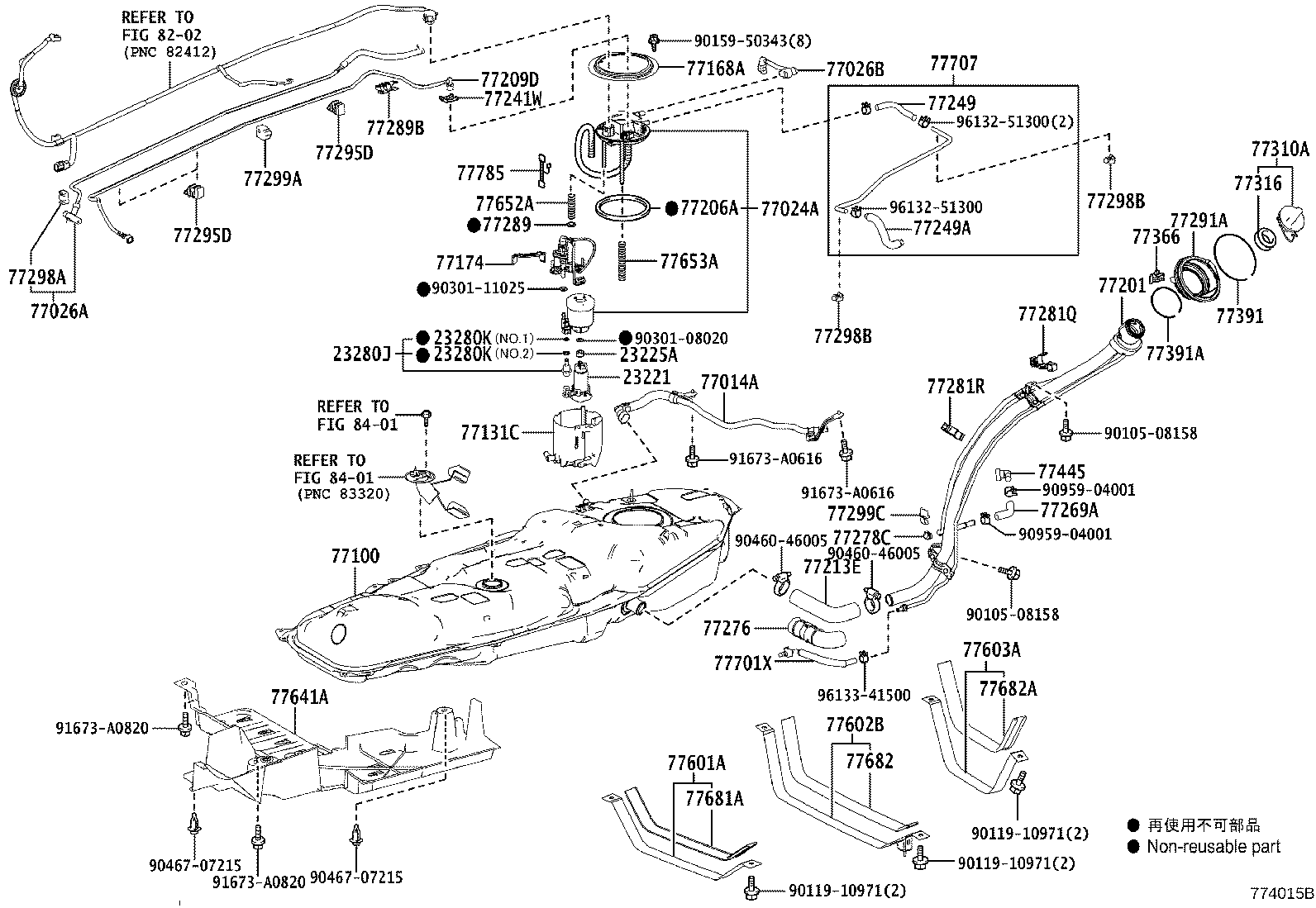

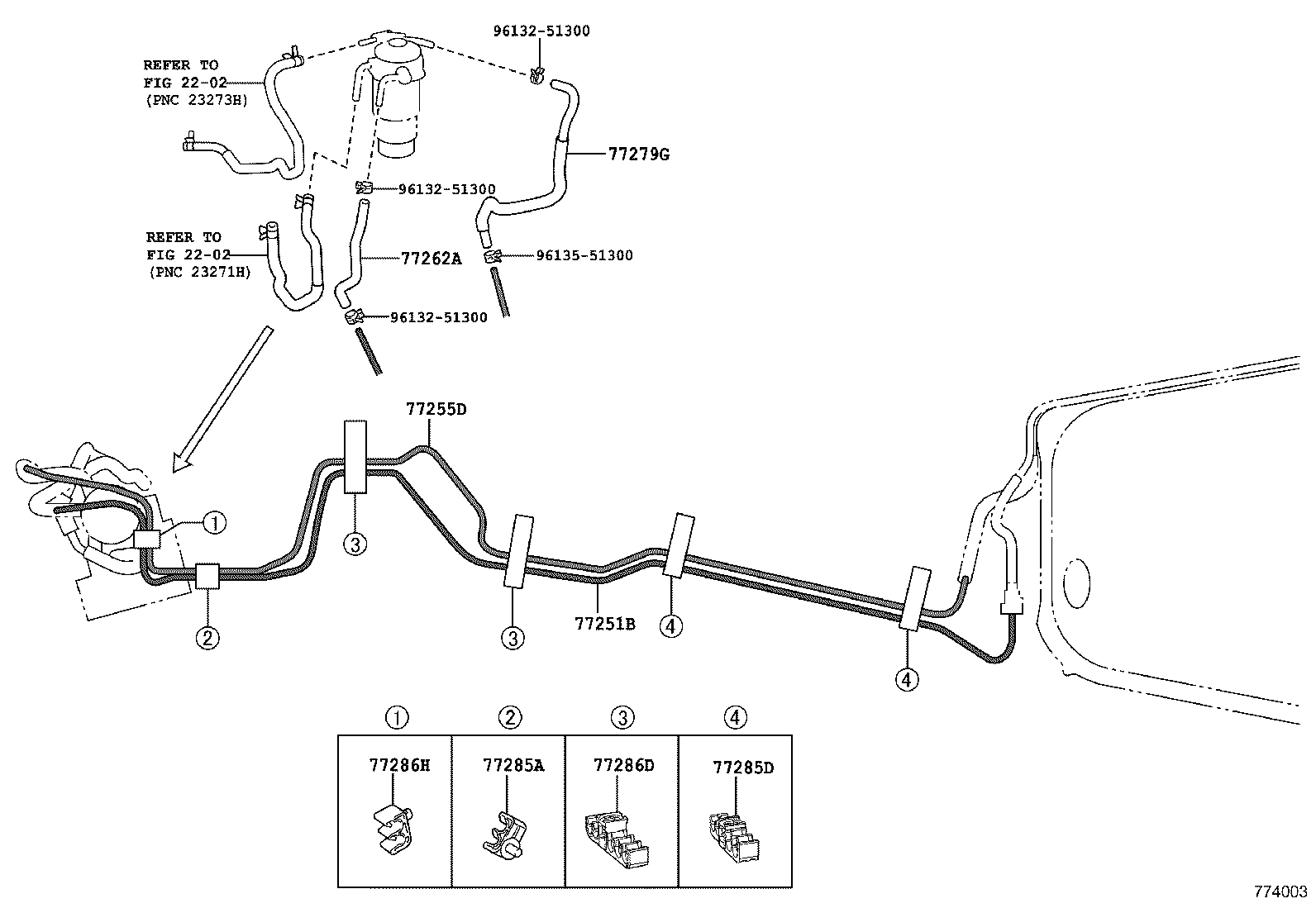

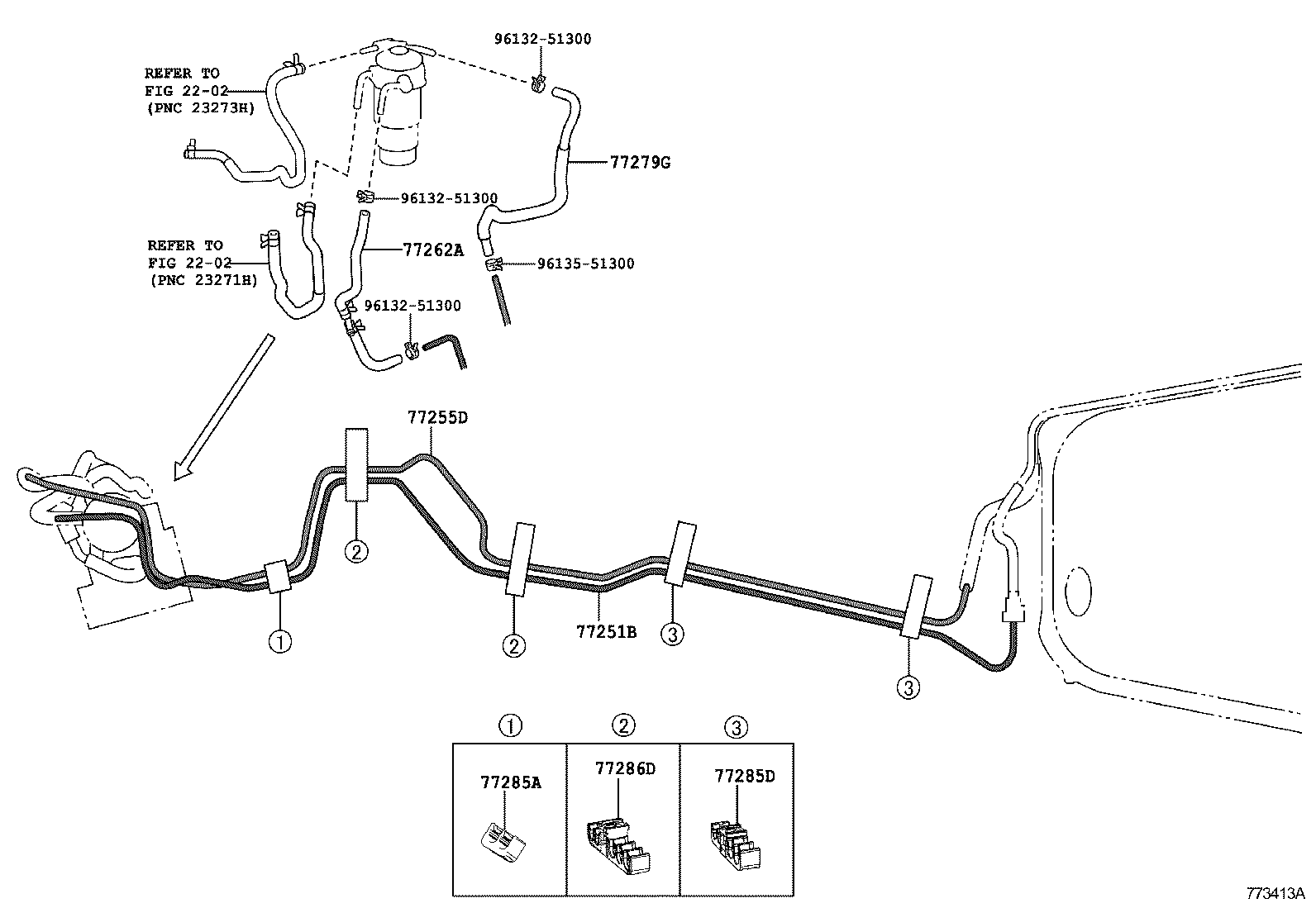

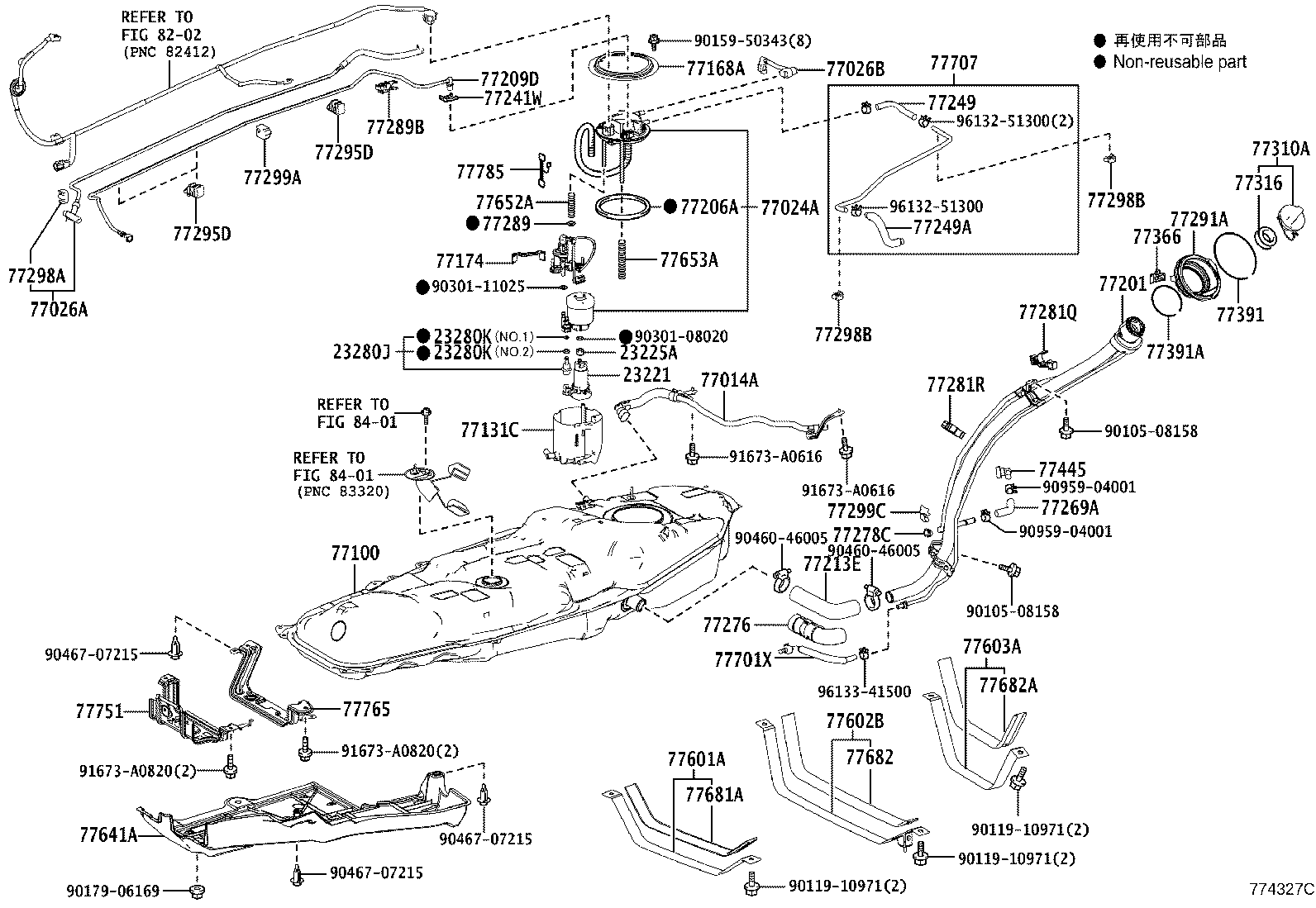

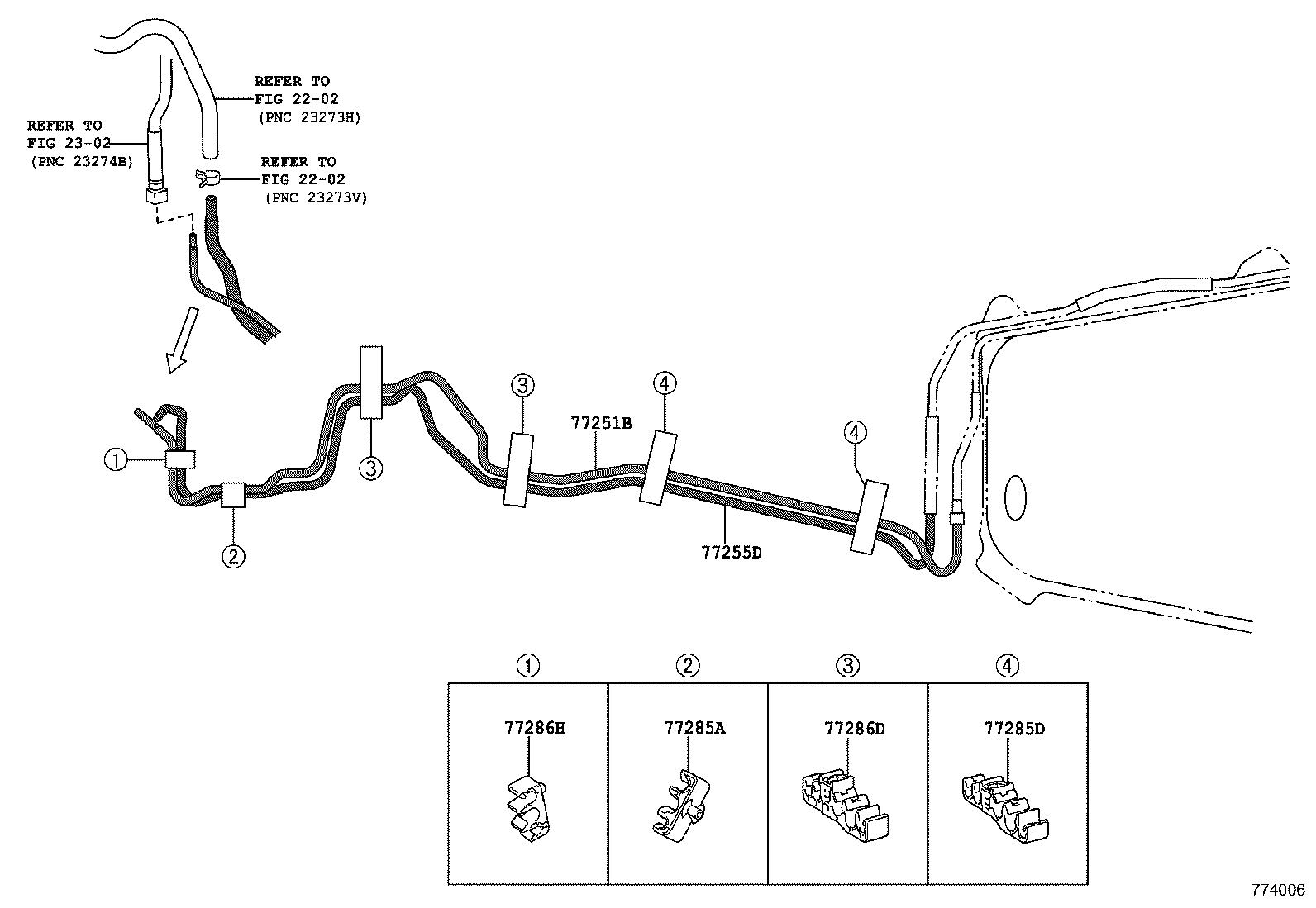

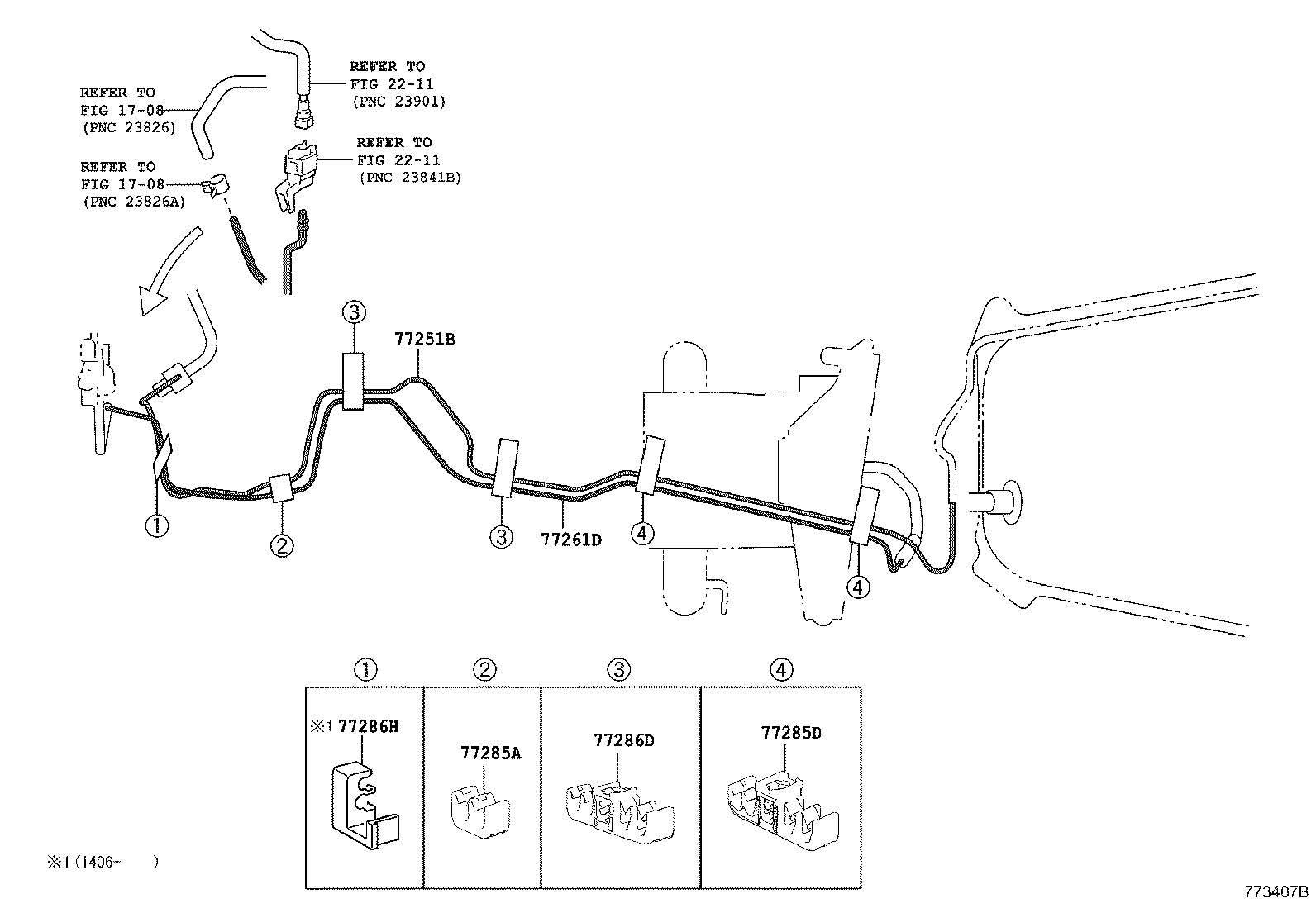

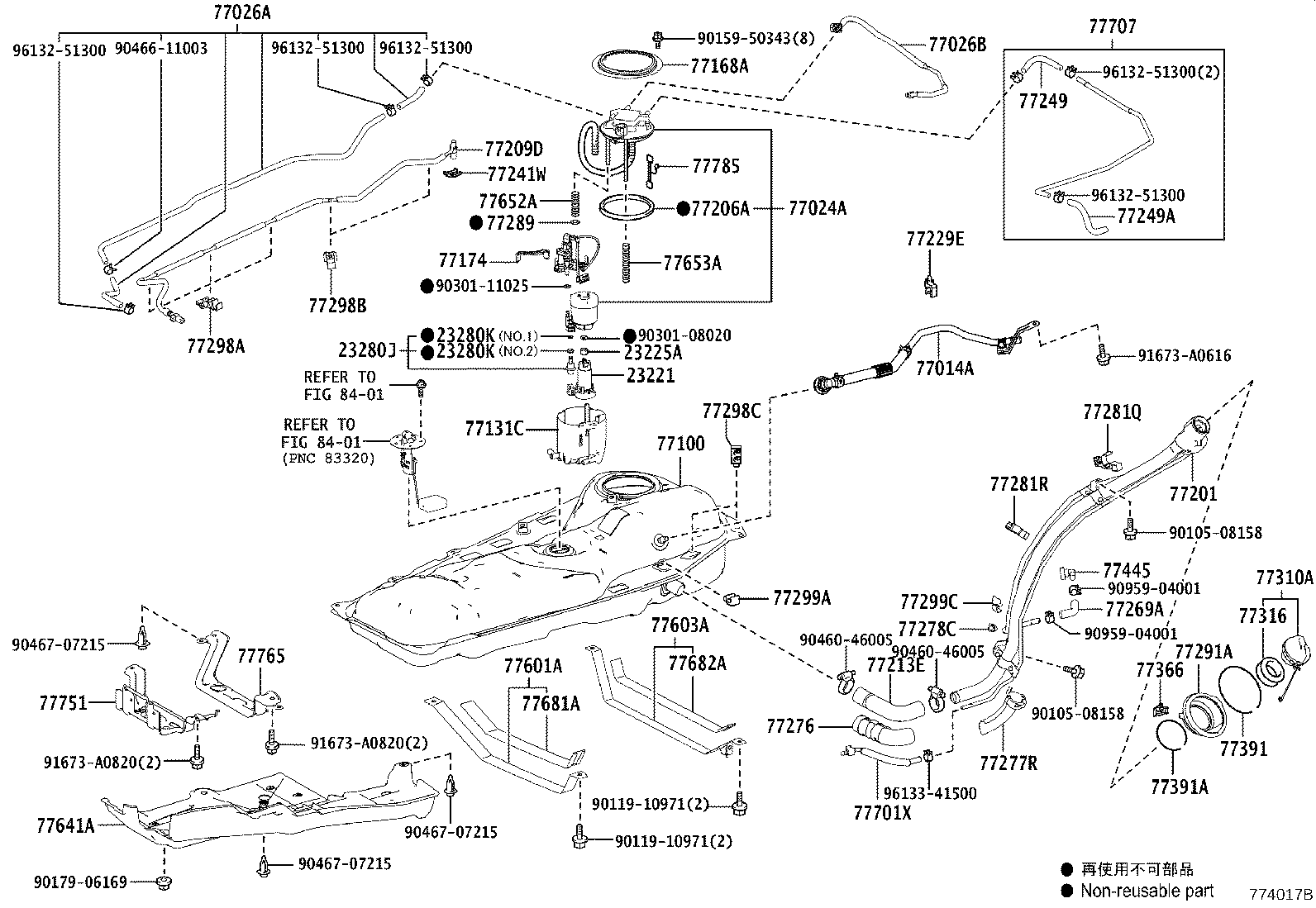

Figure 773402D 773402D 2012-12 → 2015-10 Figure 773403B 773403B 2012-12 → 2015-10 Figure 774016C 774016C 2015-10 → — Figure 774015B 774015B 2015-10 → — Figure 774017B 774017B 2015-10 → — Figure 774018B 774018B 2015-10 → — Figure 774021A 774021A 2015-10 → — Figure 774022B 774022B 2015-10 → — Figure 774327B 774327B 2017-08 → — Figure 773411A 773411A 2012-12 → 2015-10 Figure 773413A 773413A 2012-12 → 2015-10 Figure 773407B 773407B 2012-12 → 2015-10 Figure 774003 774003 2015-10 → — Figure 774004 774004 2015-10 → — Figure 774005A 774005A 2015-10 → — Figure 774006 774006 2015-10 → — Figure 774007 774007 2015-10 → — Figure 773404 773404 2012-12 → — Figure 774023 774023 2012-12 → —

Part groups

PNCDescription
23221 Pump, Fuel
23225A Spacer, Fuel Pump
23280J Regulator Assy, Fuel Pressure
23280K Ring, O(FOR FUEL PRESSURE REGULATOR)
77010 Tube Assy, Fuel Tank Vent
77014A Tube Sub-assy, Fuel Tank Breather, NO.3
77020A Tube Assy, Fuel Suction W/Pump & Gage
77024A Plate Sub-assy, Fuel Suction
77026A Tube Sub-assy, Fuel Evaporation, NO.1
77026B Tube Sub-assy, Fuel Evaporation, NO.1
77028B Tube Sub-assy, Fuel Evaporation, NO.3
77035 Cable Sub-assy, Fuel Lid Lock Control
77100 Tank Assy, Fuel
77131C Sub-tank, Fuel, NO.1
77168A Plate, Fuel Tank Vent Tube Set
77174 Support, Fuel Suction, NO.1
77201 Pipe Sub-assy, Fuel Tank Inlet
77204A Tube, Fuel Tank Return
77206A Gasket (FOR FUEL TANK SUCTION TUBE)
77206C Tube Sub-assy, Fuel Main, NO.2
77209D Tube Sub-assy, Fuel Tank Main
77213E Hose, Fuel Tank TO Filler Pipe
77229E Clamp, Breather Tube
77241V Clip, Tube Joint
77241W Clip, Tube Joint
77249 Hose, Fuel Emission
77249A Hose, Fuel Emission
77251B Tube, Fuel Main
77252A Tube, Fuel Main, NO.2
77252C Hose, Fuel, NO.2(FOR FUEL MAIN NO.2 TUBE)
77253A Tube, Fuel Main, NO.3
77255D Tube, Fuel Return
77261D Tube, Fuel Tank TO Canister
77262A Hose, Fuel, NO.1(FOR FUEL TANK TO CANISTER CENTER TUBE)
77269A Hose, Fuel Tank Breather
77276 Protector, Fuel Hose
77277R Protector, Fuel Tank Filler Pipe
77278C Protector, Fuel Tank Filler Pipe, NO.2
77279G Hose, Fuel, NO.2
77281Q Clamp, Fuel Filler, NO.1
77281R Clamp, Fuel Filler Pipe, NO.2
77285A Support, Fuel Return And Main Tube
77285D Clamp, Fuel Tube, NO.1
77286D Clamp, Fuel Tube, NO.2
77286H Clamp, Fuel Tube, NO.3
77289 Holder, Fuel Tank Pipe Setting
77289B Clamp, Fuel Tube, NO.3
77291A Shield, Fuel Tank Filler Pipe
77295D Grommet, Fuel Tube
77298A Clamp, Fuel Tube, NO.4
77298B Clamp, Fuel Tube, NO.4
77298C Clamp, Fuel Tube, NO.4
77299A Clamp, Fuel Tube, NO.5
77299C Clamp (FOR FUEL FILLER PIPE)
77306 Lever Sub-assy, Fuel Lid Lock Open
77310A Cap Assy, Fuel Tank
77316 Gasket, Fuel Tank Cap
77350 Lid Assy, Fuel Filler Opening
77366 Spring, Fuel Filler Opening Lid Hinge
77377 Retainer, Fuel Filler Opening Lid Lock
77391 Ring, Fuel Inlet Box
77391A Ring, Fuel Inlet Box
77411B Support, Fuel Tube Grommet, NO.1
77445 Connector, Fuel Tank Vent, NO.2
77601A Band Sub-assy, Fuel Tank, NO.1
77602B Band Sub-assy, Fuel Tank, NO.1 LH
77603A Band Sub-assy, Fuel Tank, NO.2
77641A Protector, Fuel Tank, NO.1
77652A Cushion, Fuel Tank, NO.2
77653A Cushion, Fuel Tank, NO.3
77681A Seat, Fuel Tank Band
77682 Seat, Fuel Tank Band, LH
77682A Seat, Fuel Tank Band, NO.2
77701X Hose Sub-assy, Canister Outlet, NO.1
77707 Tube Sub-assy, Charcoal Canister Outlet
77751 Bracket, Charcoal Canister Base
77765 Protector, Charcoal Canister
77785 Harness, Fuel Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
