Toyota RAV4

2012-12 → 2019-09 · chassis ALA4#,ASA44,AVA4#,WWA42,ZSA4# · catalogue 662540 · Europe

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

15 part groups · 4 illustrations

Illustrations

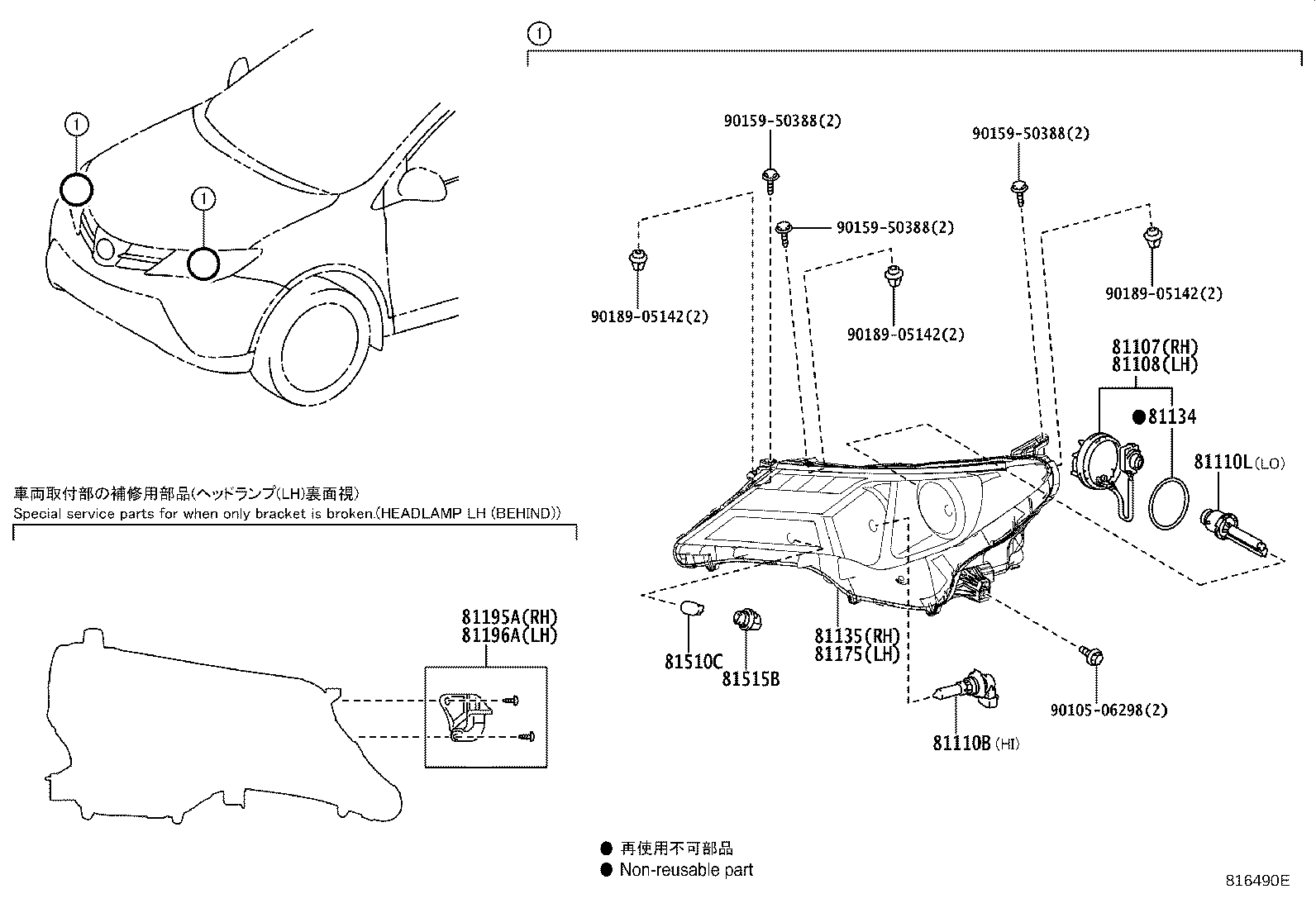

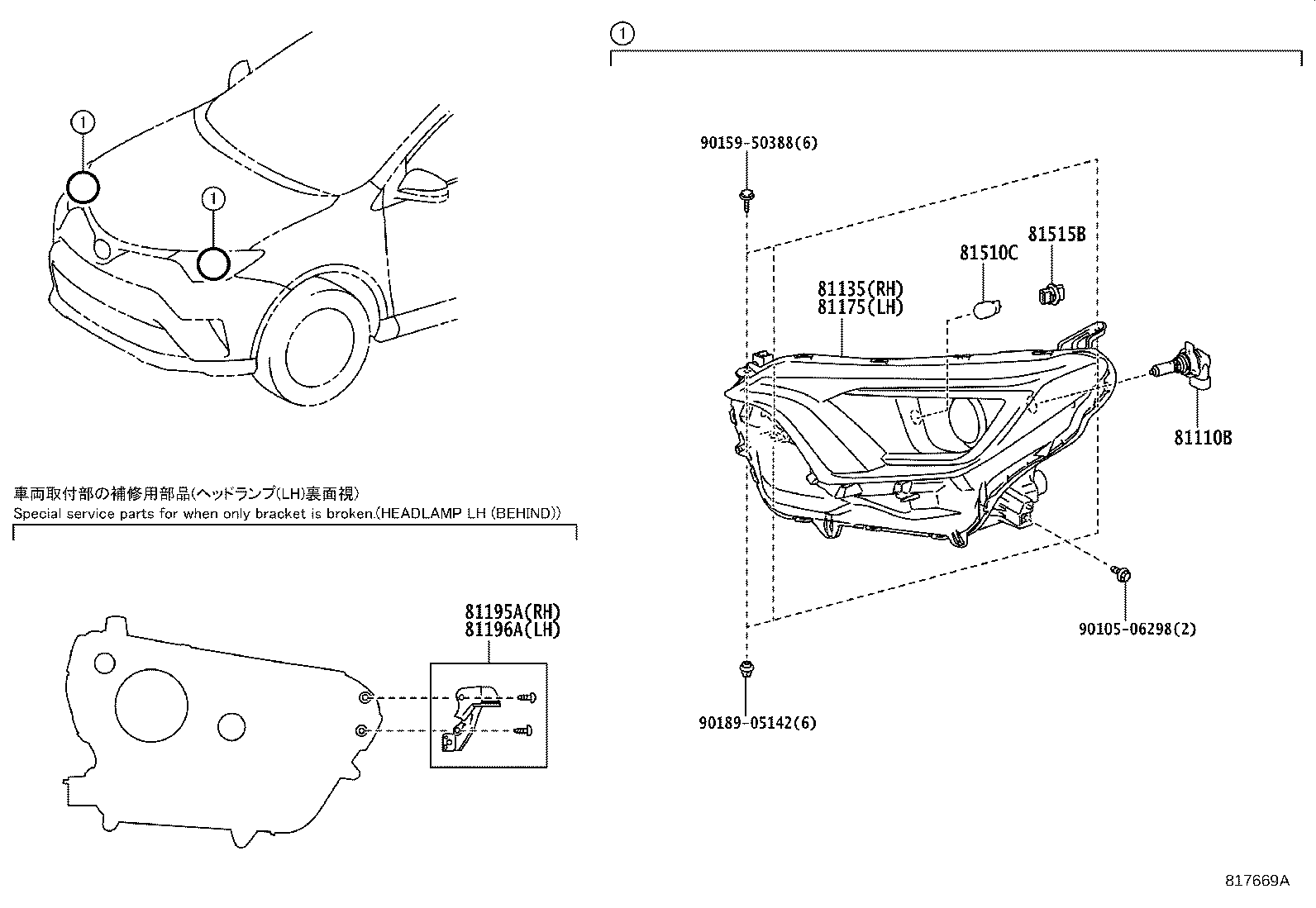

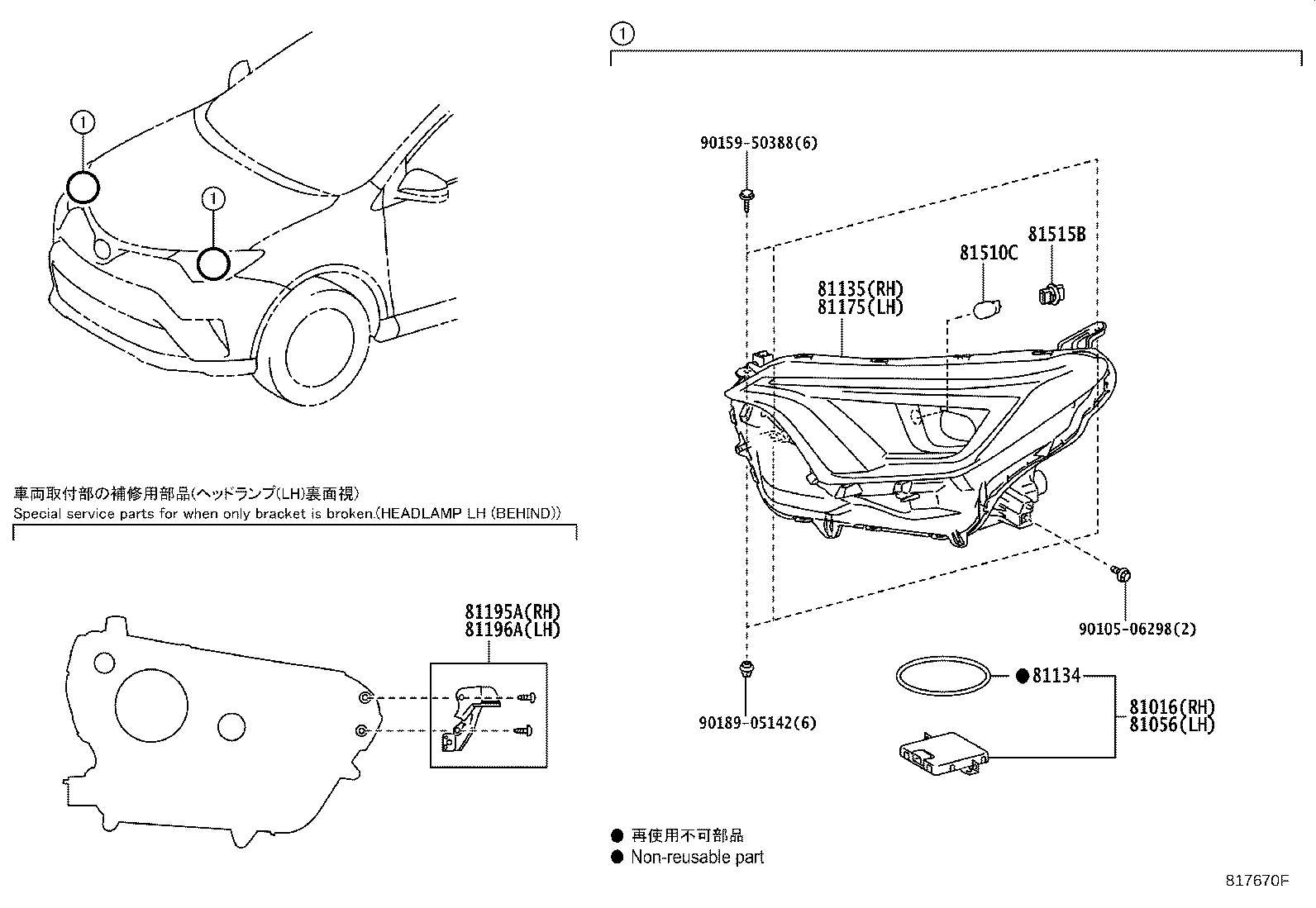

Figure 816491C 816491C 2012-12 → 2015-10 Figure 816490E 816490E 2012-12 → 2015-10 Figure 817669A 817669A 2015-10 → — Figure 817670F 817670F 2015-10 → —

Part groups

PNCDescription
81016 Computer Sub-assy, Headlamp, RH NO.1
81056 Computer Sub-assy, Headlamp, LH NO.1
81107 Computer Sub-assy, Headlamp Light Control, RH
81108 Computer Sub-assy, Headlamp Light Control, LH
81110B Bulb(FOR HEADLAMP, NO.1)
81110D Bulb(FOR HEADLAMP, NO.2)
81110L Bulb, Discharge Headlamp
81134 Gasket, Headlamp
81135 Unit Assy, Headlamp, RH
81135C Cover, Headlamp Back, NO.1
81175 Unit Assy, Headlamp, LH
81195A Retainer, Headlamp Protector, Lower RH
81196A Retainer, Headlamp Protector, Lower LH
81510C Bulb (FOR FRONT TURN SIGNAL LAMP)
81515B Socket, Front Turn Signal Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
