Toyota RAV4

2012-12 → 2019-09 · chassis ALA4#,ASA44,AVA4#,WWA42,ZSA4# · catalogue 662540 · Europe

Supported model Data version 2019-09

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fog Lamp

5 part groups · 2 illustrations

Illustrations

Figure 816400B

816400B 2012-12 → 2015-10

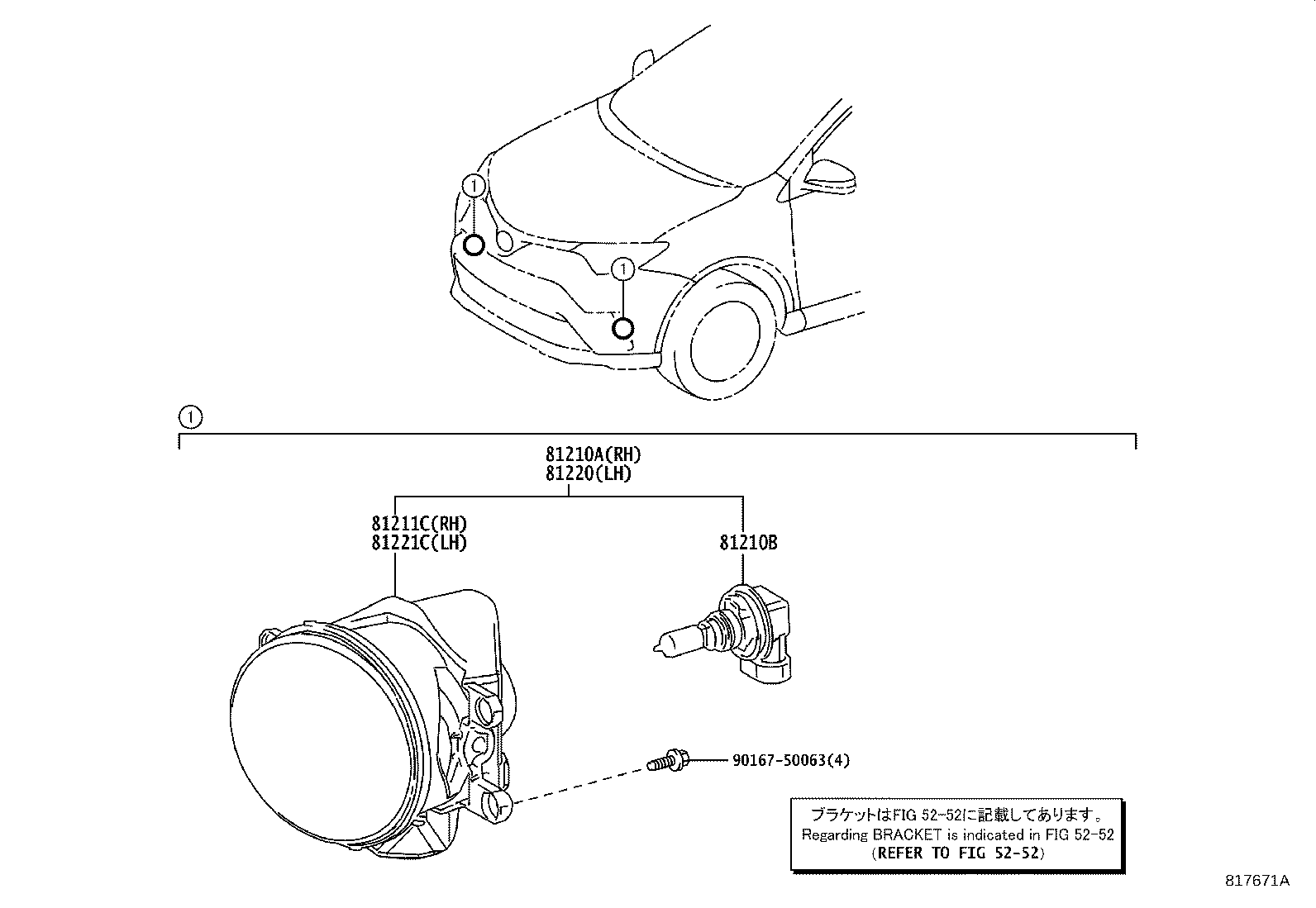

Figure 817671A

817671A 2015-10 → —

Part groups

PNC	Description
81210A	Lamp Assy, Fog, RH
81210B	Bulb, Fog Lamp
81211C	Lamp Unit, Fog Lamp, RH
81220	Lamp Assy, Fog, LH
81221C	Lamp Unit, Fog Lamp, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
