Toyota RAV4

2012-12 → 2019-09 · chassis ALA4#,ASA44,AVA4#,WWA42,ZSA4# · catalogue 662540 · Europe

Supported model Data version 2019-09

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Fog Lamp

5 part groups · 2 illustrations

Illustrations

Figure 816405B

816405B 2012-12 → 2015-10

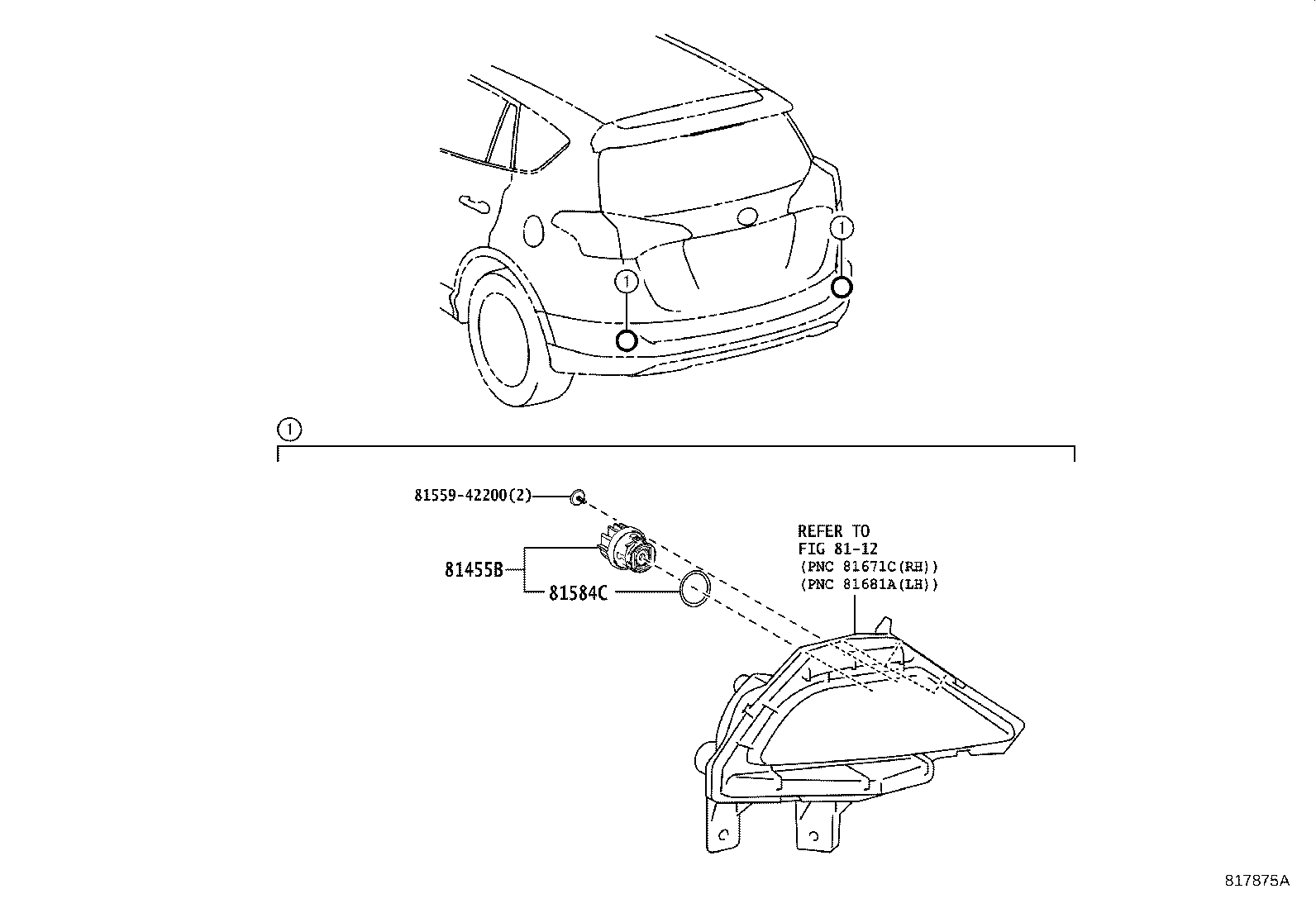

Figure 817875A

817875A 2015-10 → —

Part groups

PNC	Description
81210C	Bulb, Rear Fog Lamp
81455B	Led, Rear Fog Lamp
81480A	Lamp Assy, Rear Fog, RH
81490C	Lamp Assy, Rear Fog, LH
81584C	Gasket, Rear Fog Lamp

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
