Toyota RAV4

2012-12 → 2019-09 · chassis ALA4#,ASA44,AVA4#,WWA42,ZSA4# · catalogue 662540 · Europe

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

16 part groups · 4 illustrations

Illustrations

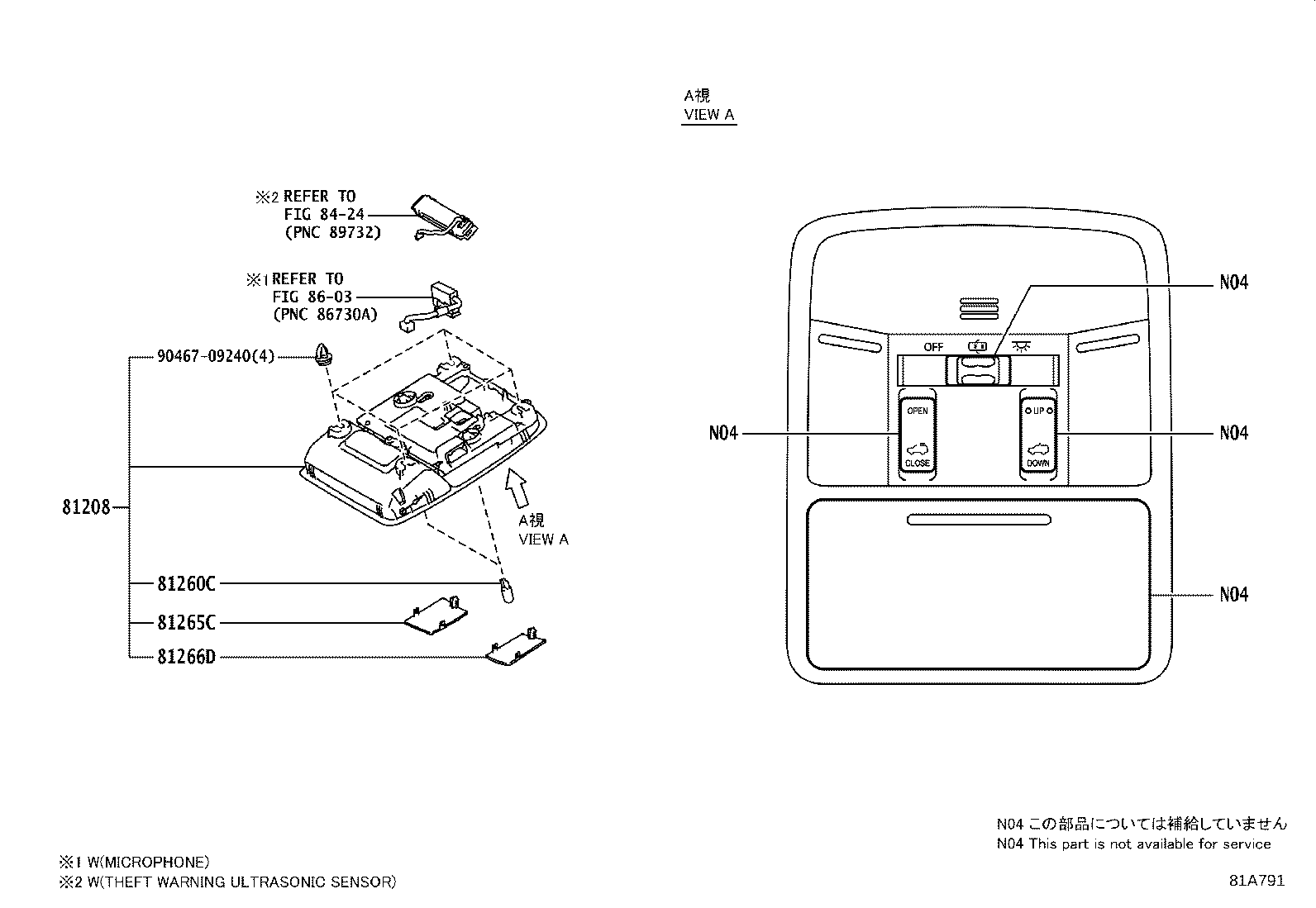

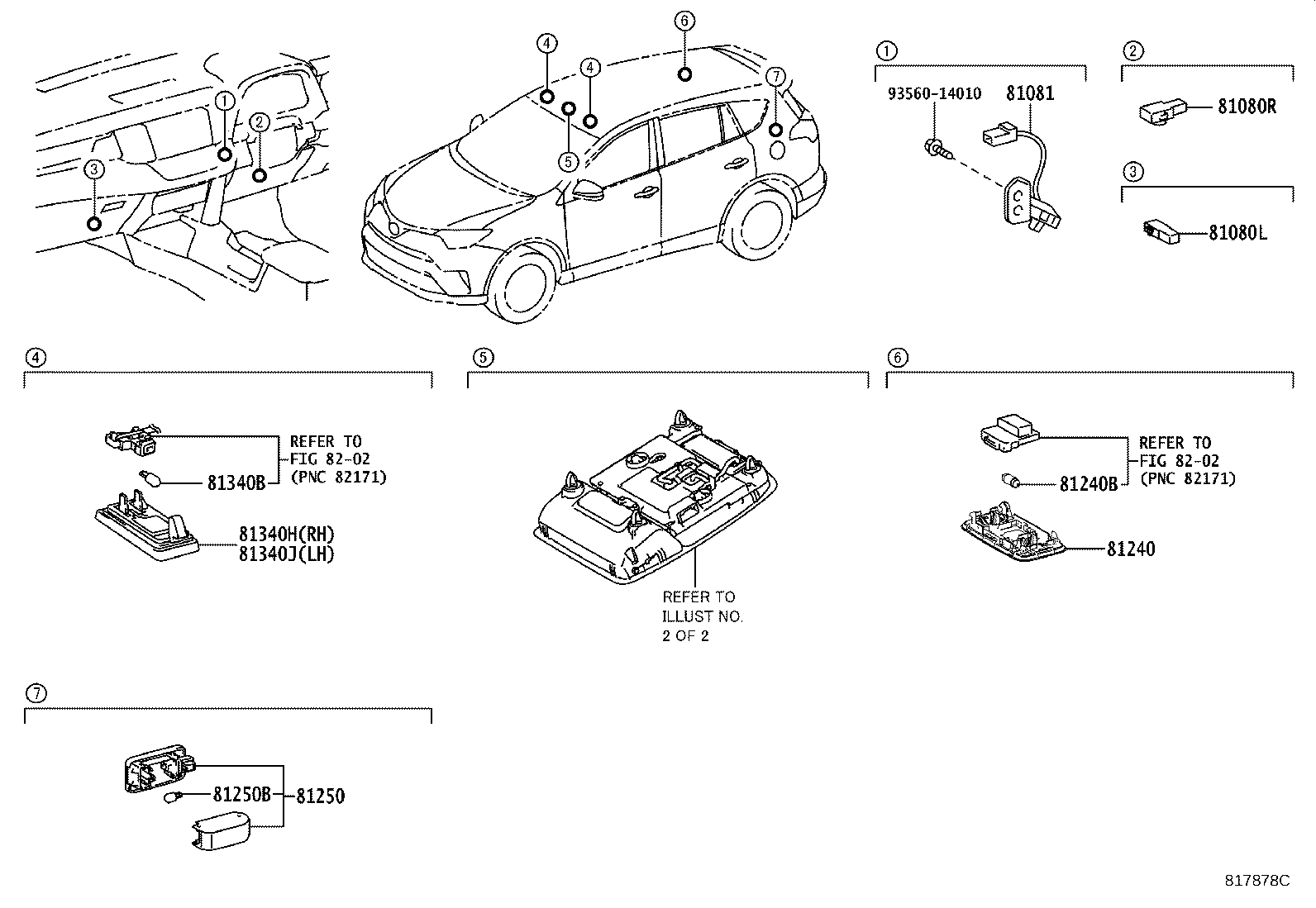

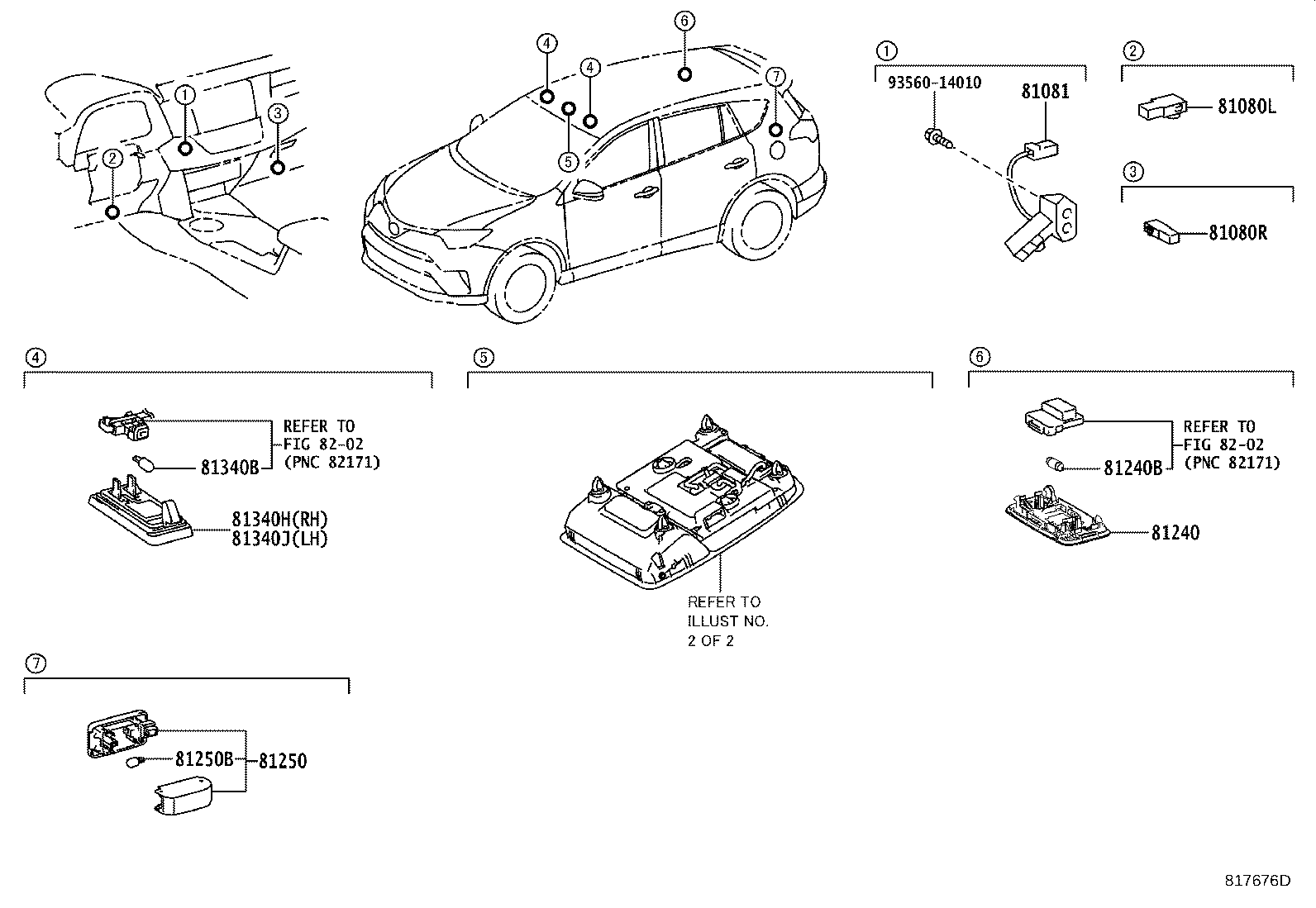

Figure 816471C 816471C 2012-12 → 2015-10 Figure 817676D 817676D 2015-10 → — Figure 817878C 817878C 2015-10 → — Figure 81A791 81A791 2015-10 → —

Part groups

PNCDescription
81080L Lamp Assy, Interior Illumination, NO.1 LH
81080R Lamp Assy, Interior Illumination, NO.1 RH
81081 Lamp Sub-assy, Interior Illumination
81208 Lamp Sub-assy, Map
81240 Lamp Assy, Room, NO.1
81240B Bulb, Room Lamp, NO.1
81250 Lamp Assy, Room, NO.2
81250B Bulb, Room Lamp, NO.2
81260A Lamp Assy, Map
81260C Bulb(FOR MAP LAMP)
81265C Lens, Map Lamp, NO.1
81266D Lens, Map Lamp, NO.2
81340B Bulb (FOR VANITY LAMP)
81340H Lamp Assy, Vanity, RH
81340J Lamp Assy, Vanity, LH
81363 Lens, Room Lamp, Outer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
