Toyota RAV4
2012-12 → 2019-09 · chassis ALA4#,ASA44,AVA4#,WWA42,ZSA4# · catalogue 662540 · Europe
Supported model
Data version 2019-09
Battery & Battery Cable

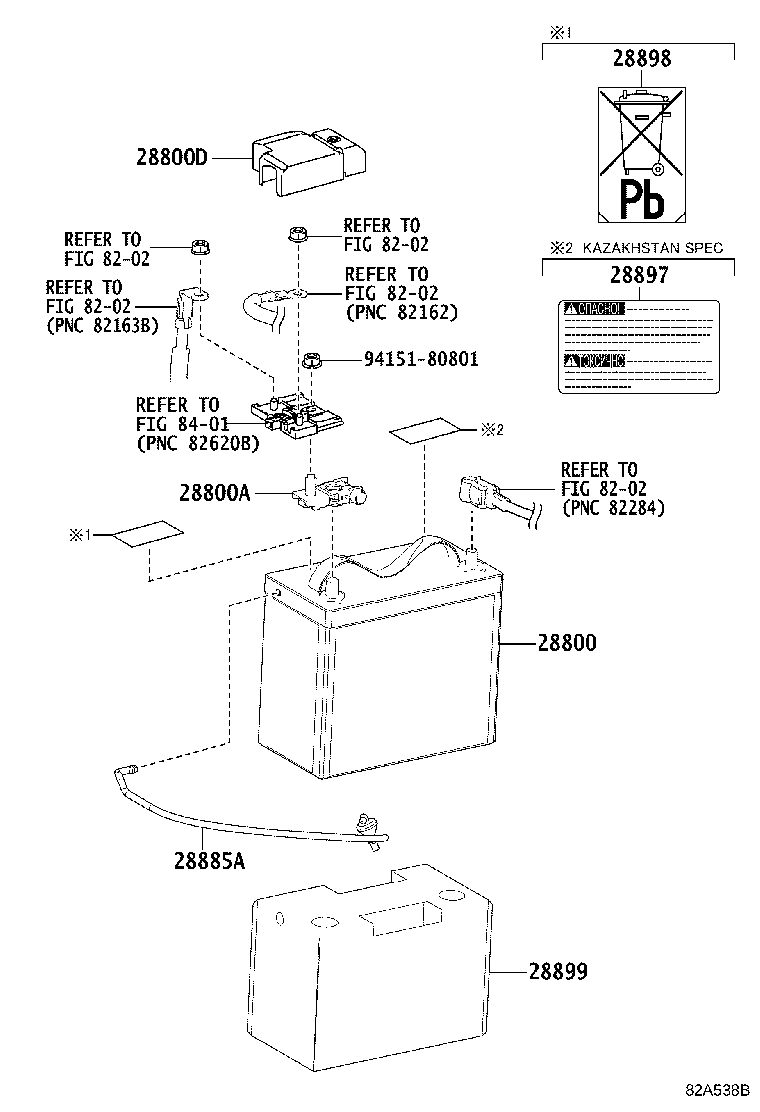

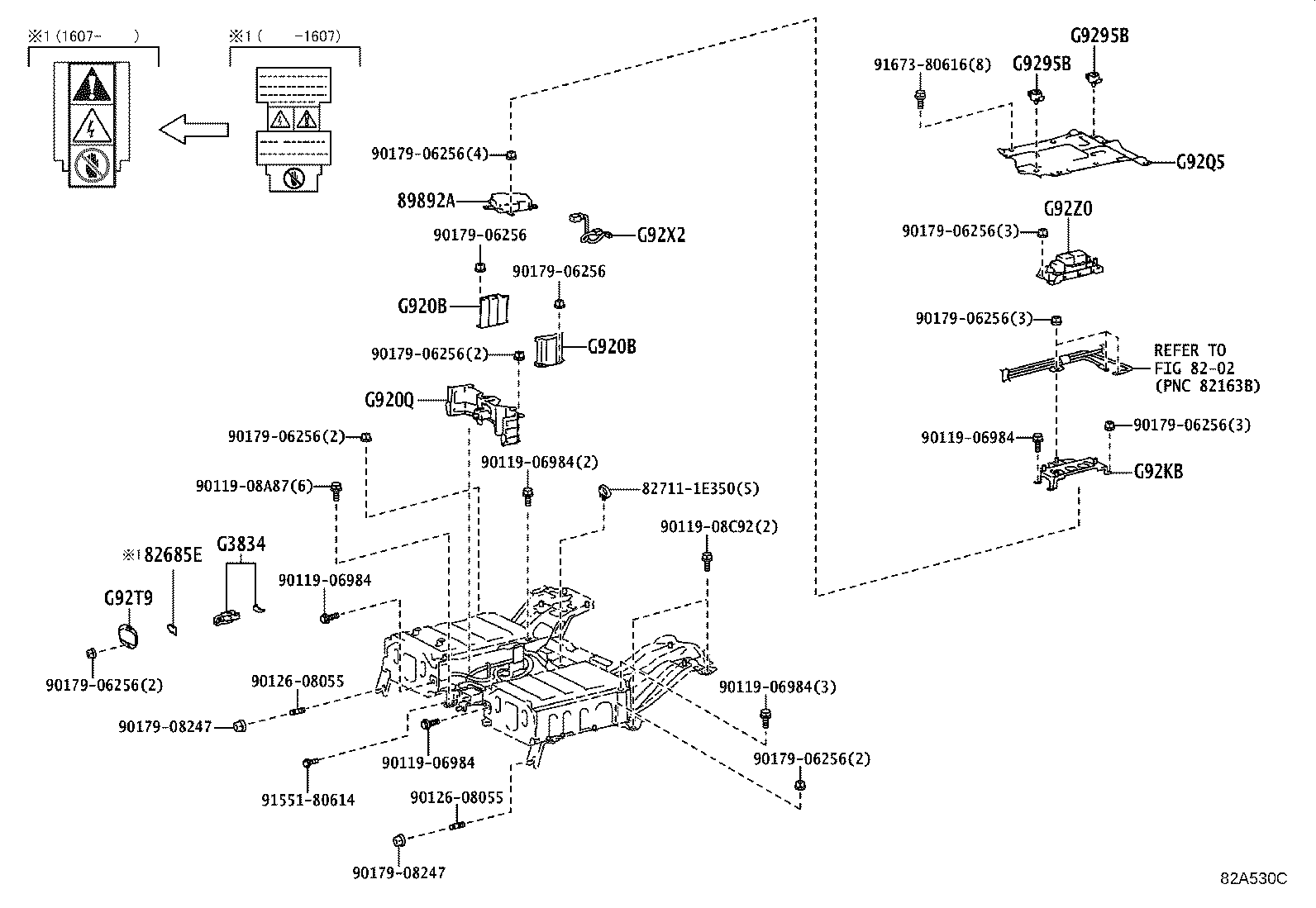

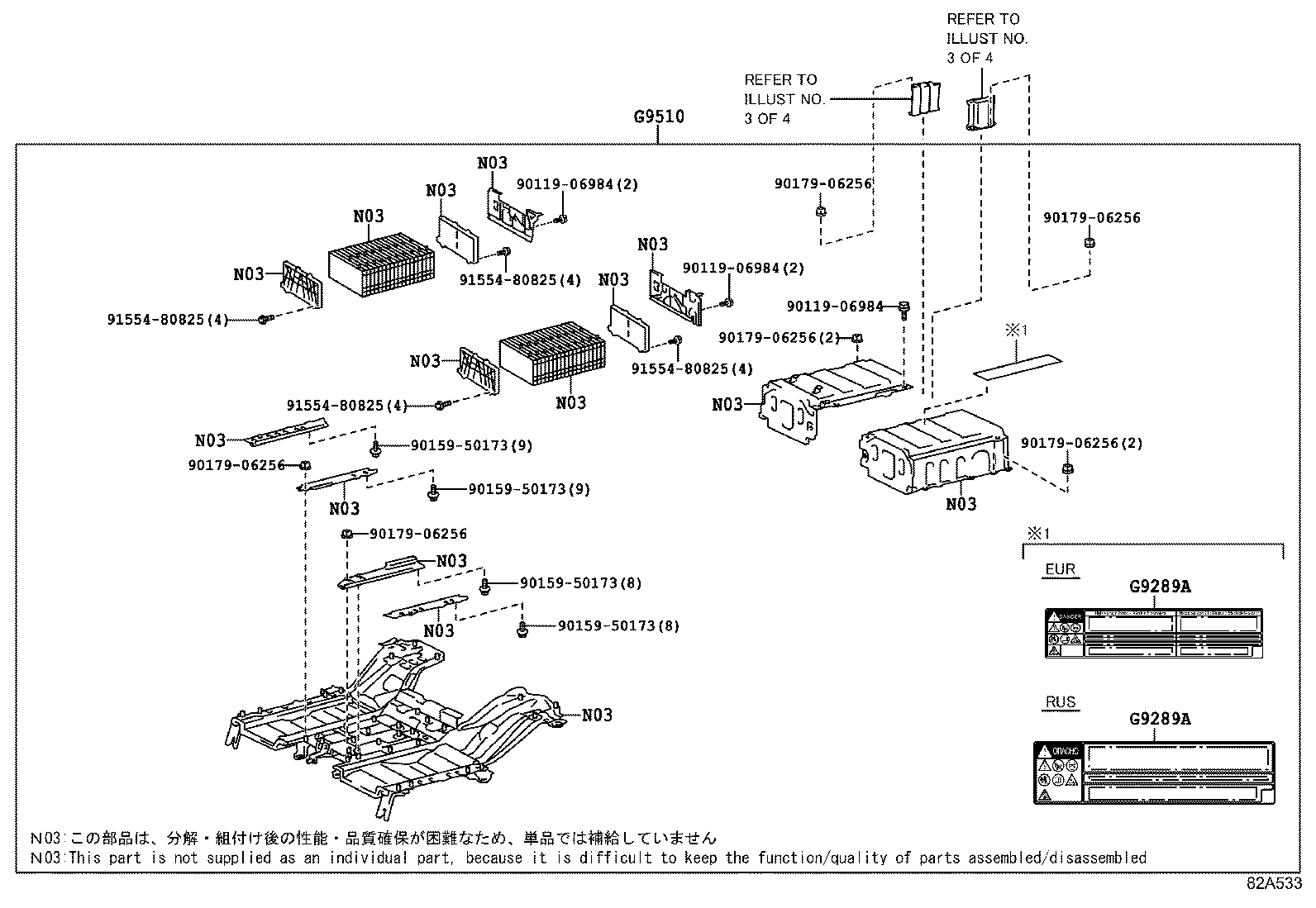

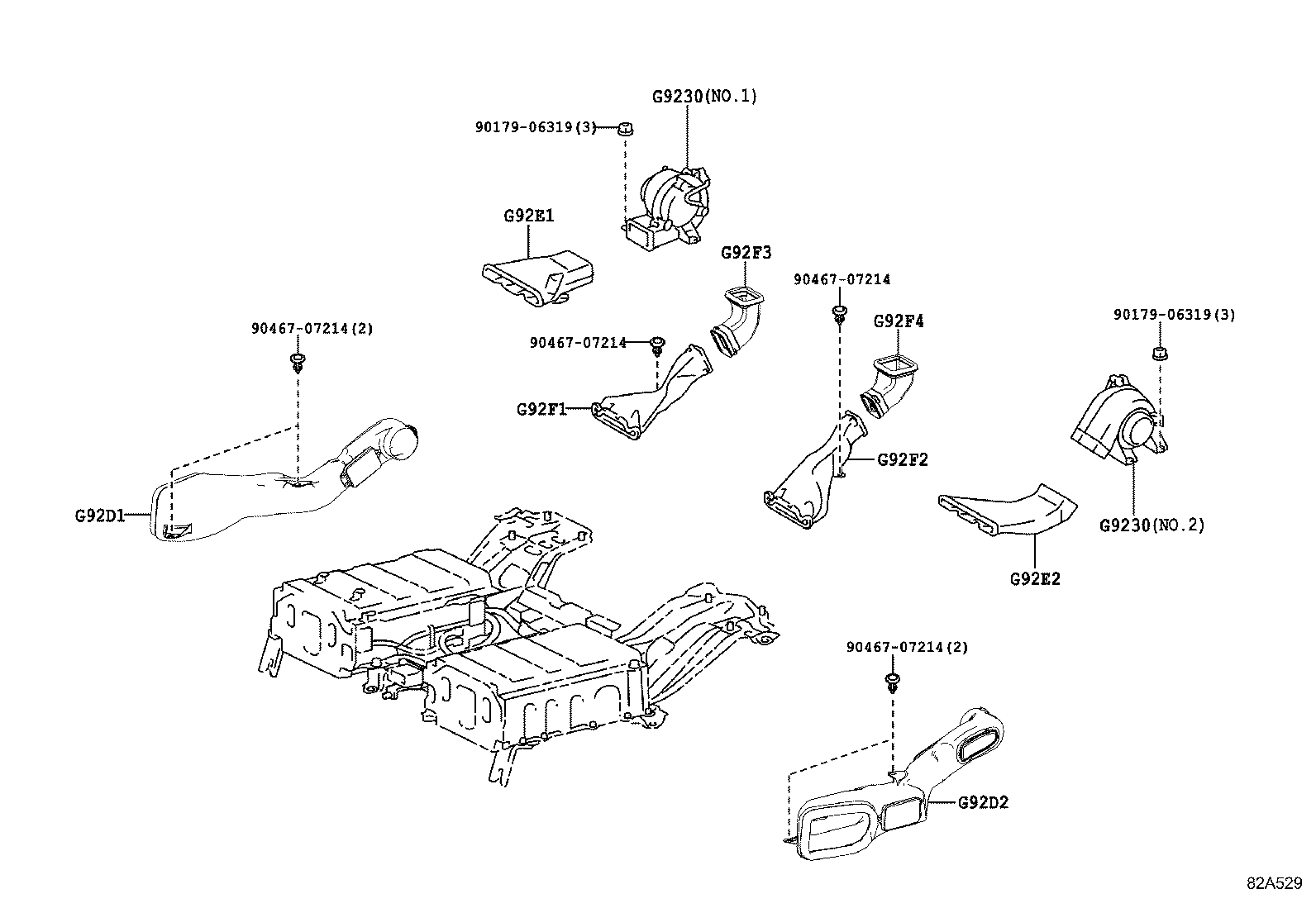

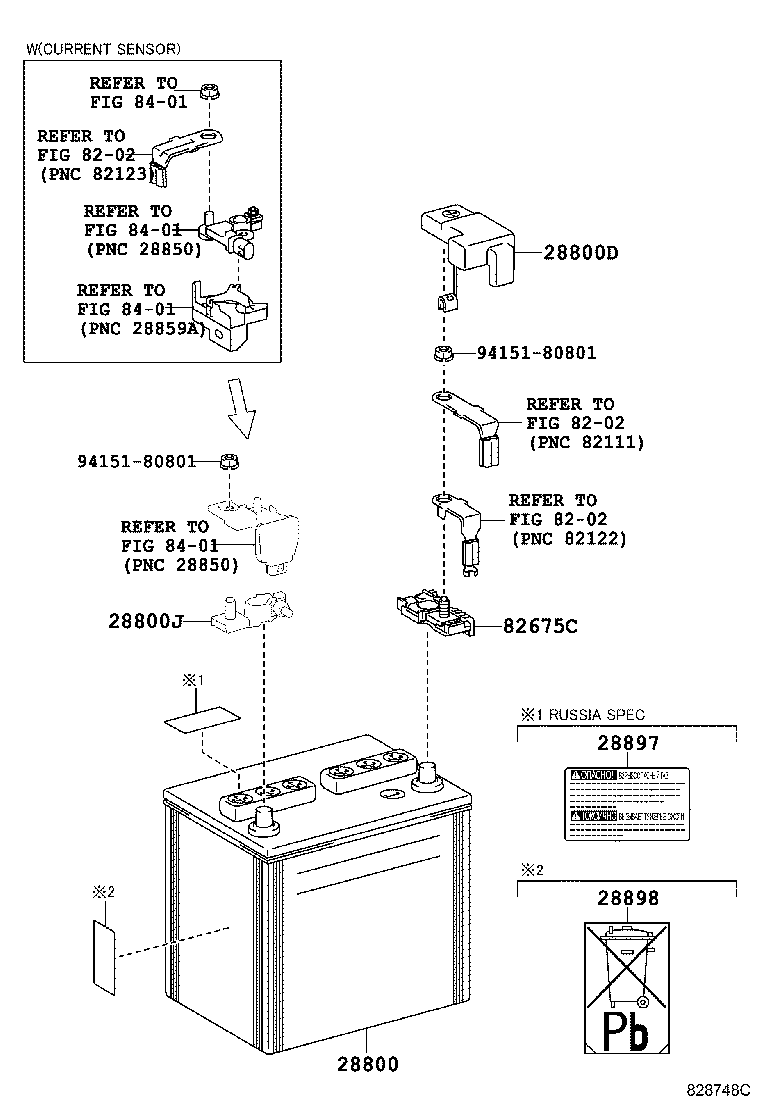

31 part groups · 11 illustrations
Part groups
| PNC | Description |
|---|---|
| 28800 | Battery |
| 28800A | Terminal, Battery Positive |
| 28800D | Cover, Connector(FOR BATTERY TERMINAL) |
| 28800J | Terminal, Battery Negative |
| 28885A | Hose, Battery Room Ventilation |
| 28897 | Plate, Battery Caution |
| 28898 | Plate, Battery |
| 28899 | Insulator, Battery |
| 82675C | Terminal, Junction |
| 82685E | Plate, Service Plug Caution |
| 89892A | Sensor, Battery Voltage |
| G3834 | Grip, Service Plug |
| G920B | Bracket Sub-assy, HV Battery Carrier, NO.1 |
| G920Q | Shield Sub-assy, Hybrid Battery, NO.1 |
| G9230 | Blower Assy, Battery Cooling |
| G9289A | Label, Battery Caution |
| G9295B | Striker, Battery Cover Lock |
| G92D1 | Duct, Hybrid Battery Intake, NO.1 |
| G92D2 | Duct, Hybrid Battery Intake, NO.2 |
| G92E1 | Duct, HV Battery Cover Intake, NO.1 |
| G92E2 | Duct, HV Battery Cover Intake, NO.2 |
| G92F1 | Duct, Hybrid Battery Exhaust, NO.1 |
| G92F2 | Duct, Hybrid Battery Exhaust, NO.2 |
| G92F3 | Duct, Hybrid Battery Exhaust, NO.3 |
| G92F4 | Duct, HV Battery Exhaust, NO.4 |
| G92KB | Patch, HV Battery Lwr Carrier, NO.2 |
| G92Q5 | Reinforcement, HV Battery Shield, NO.2 |
| G92T9 | Cover, Hybrid Battery Service Plug |
| G92X2 | Wire, HV Battery Pack, NO.2 |
| G92Z0 | Block Assy, HV Battery Junction |
| G9510 | Battery Assy, HV Supply |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
