Toyota RAV4

2012-12 → 2019-09 · chassis ALA4#,ASA44,AVA4#,WWA42,ZSA4# · catalogue 662540 · Europe

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

95 part groups · 36 illustrations

Illustrations

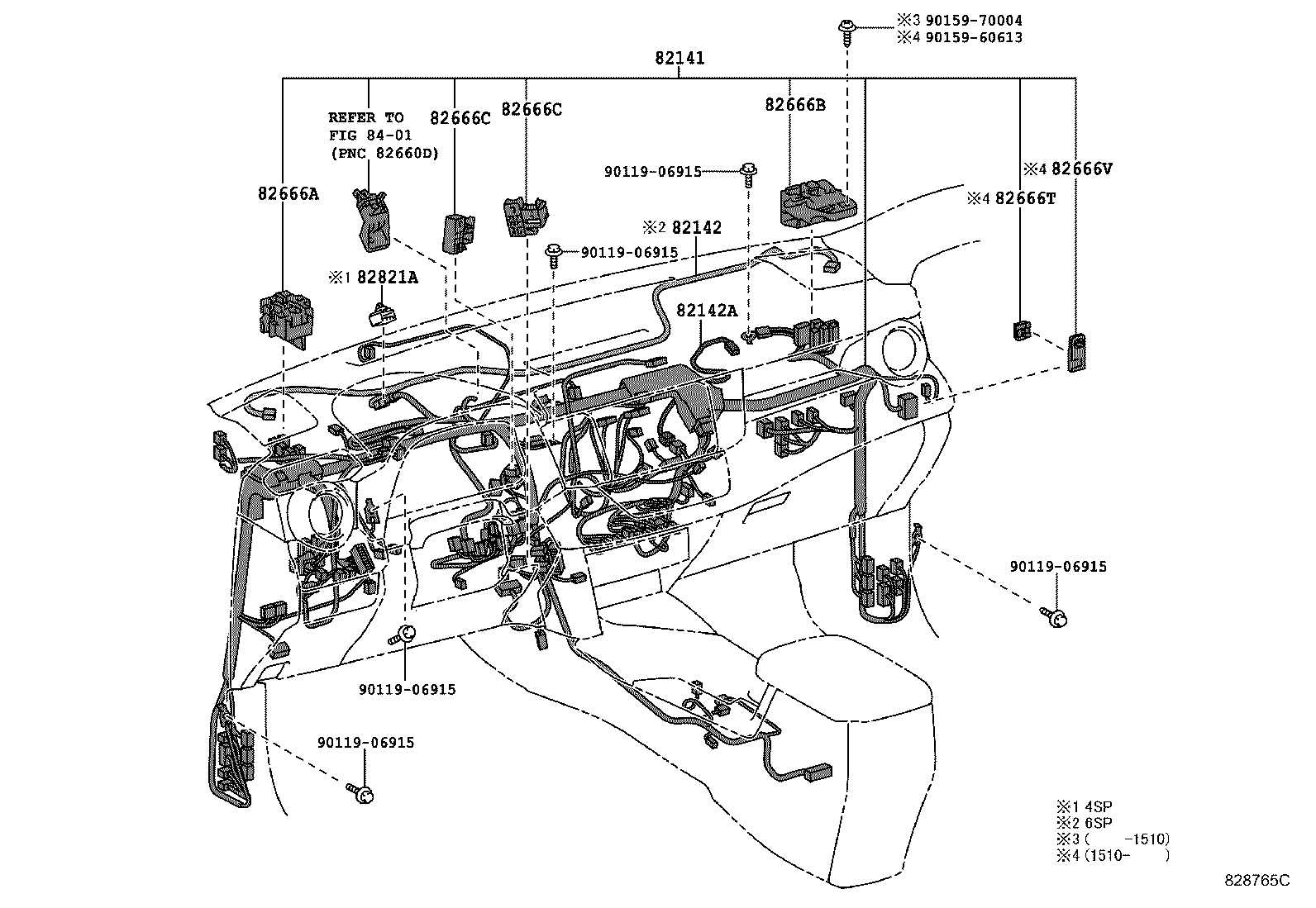

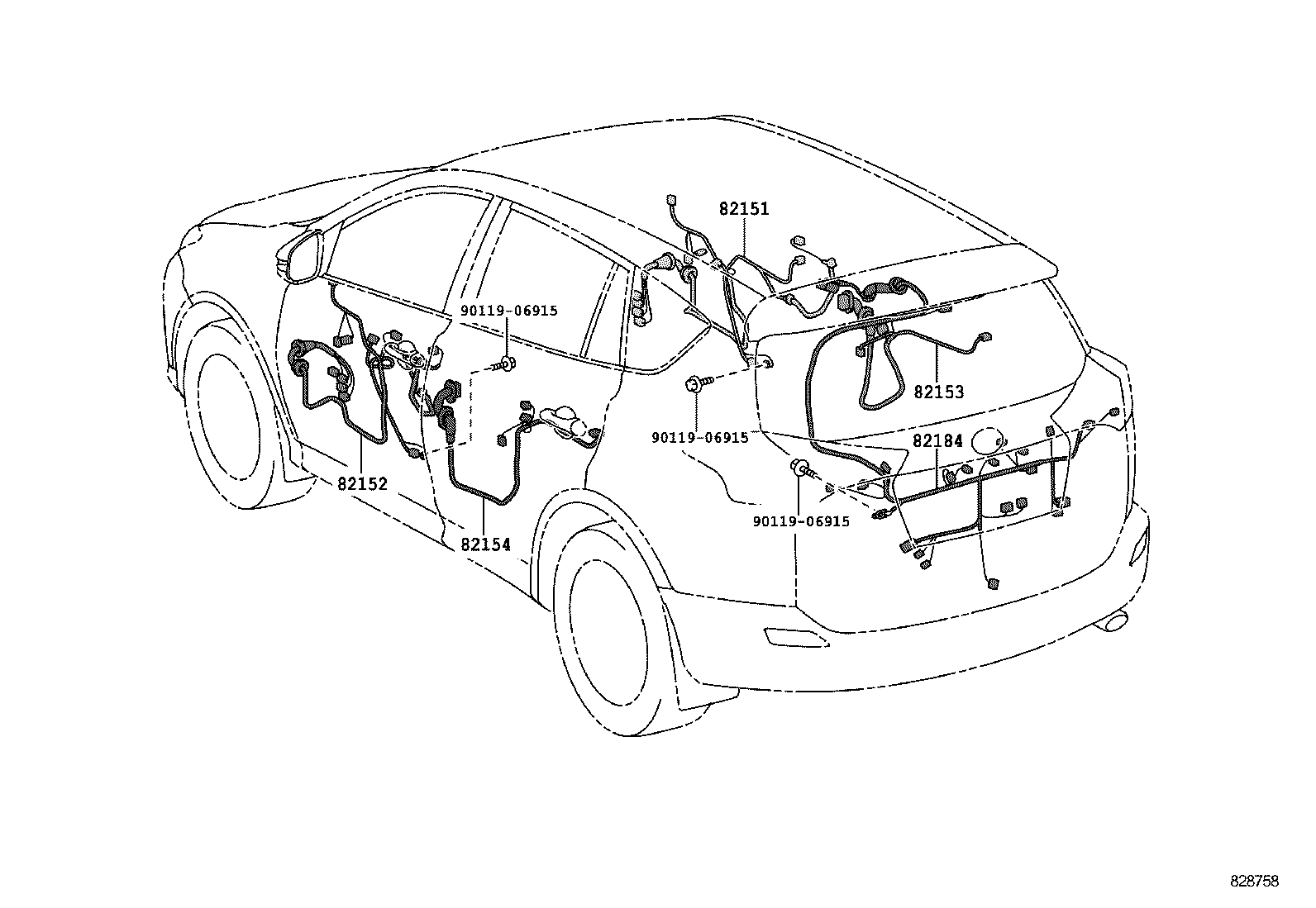

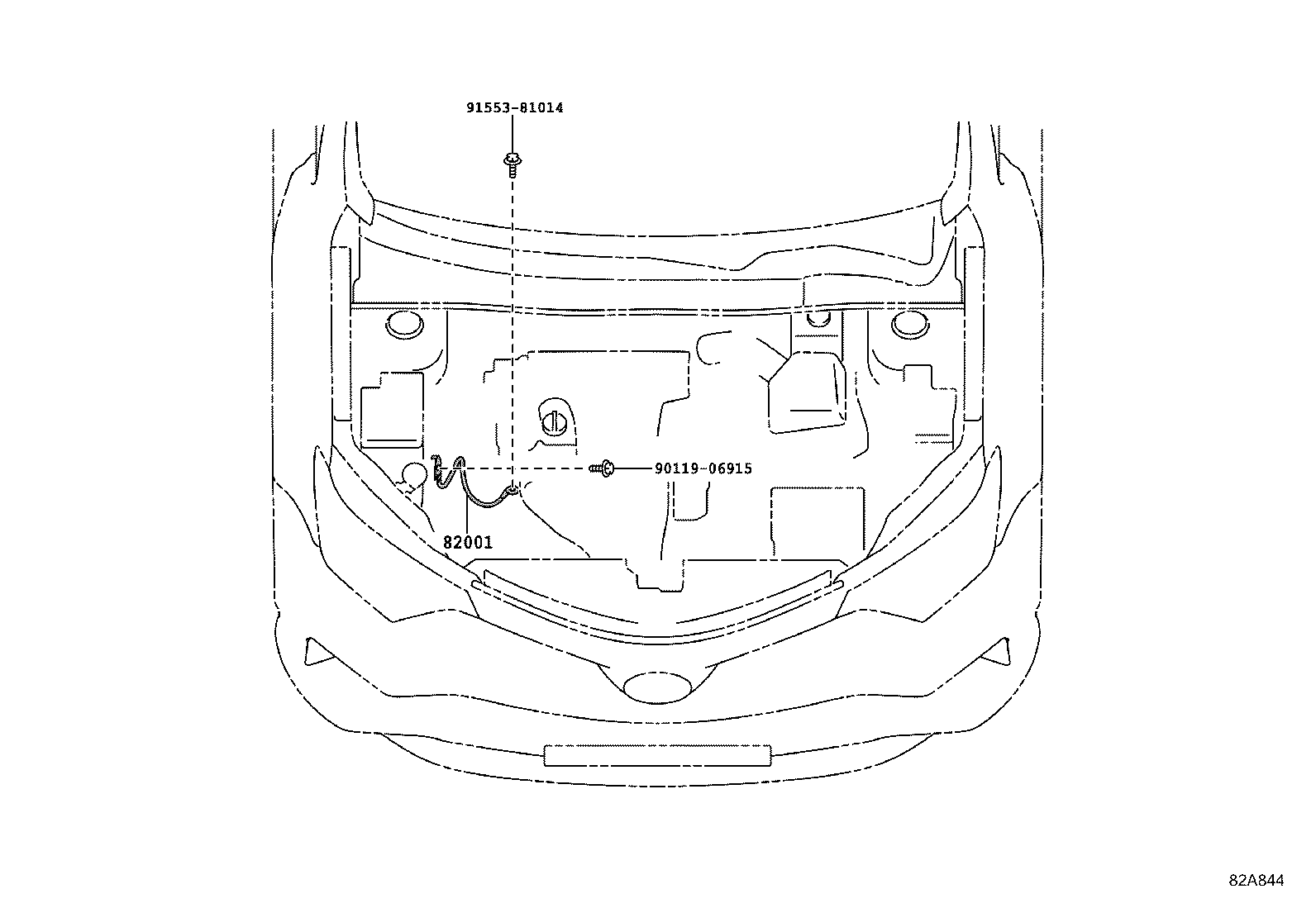

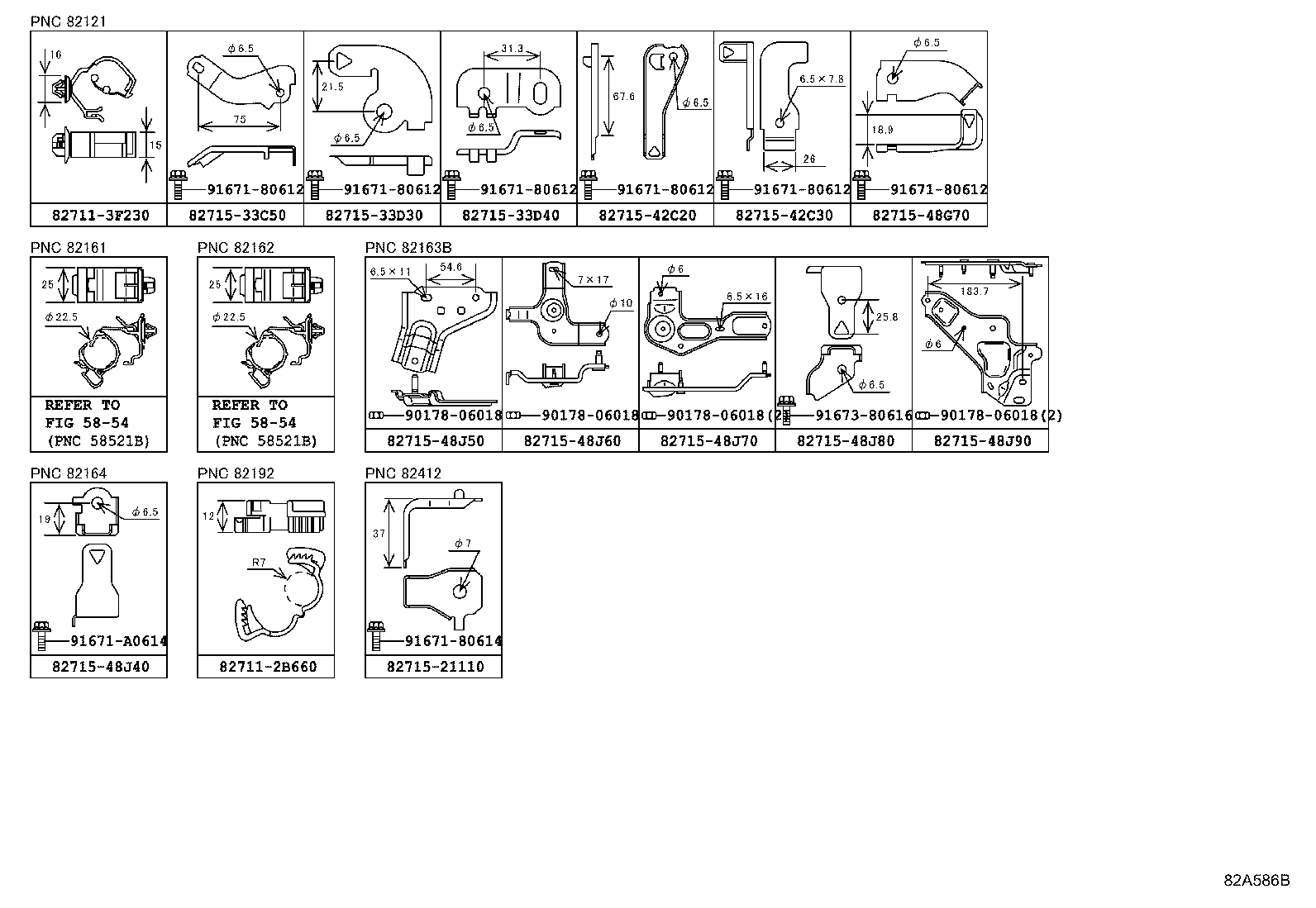

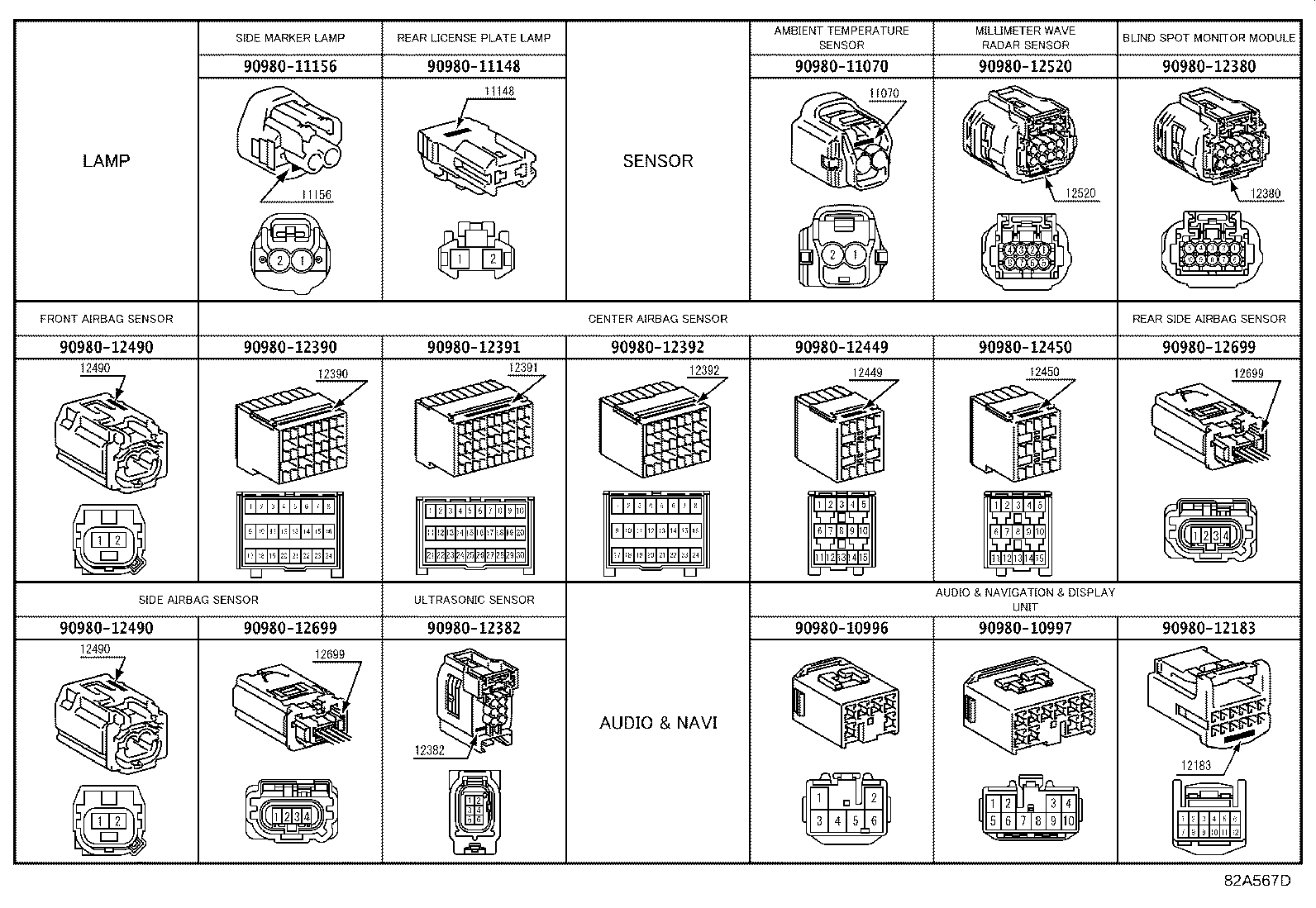

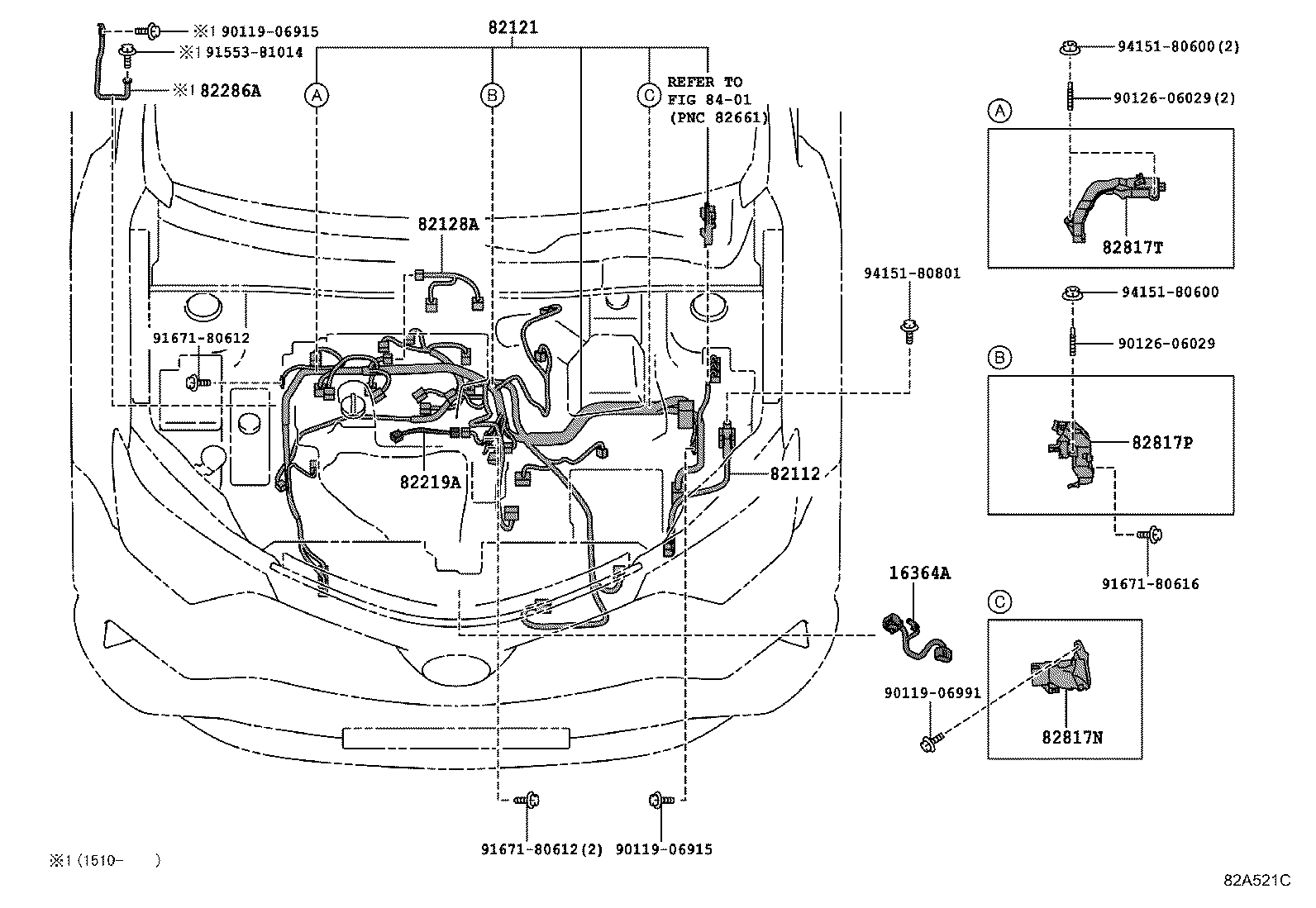

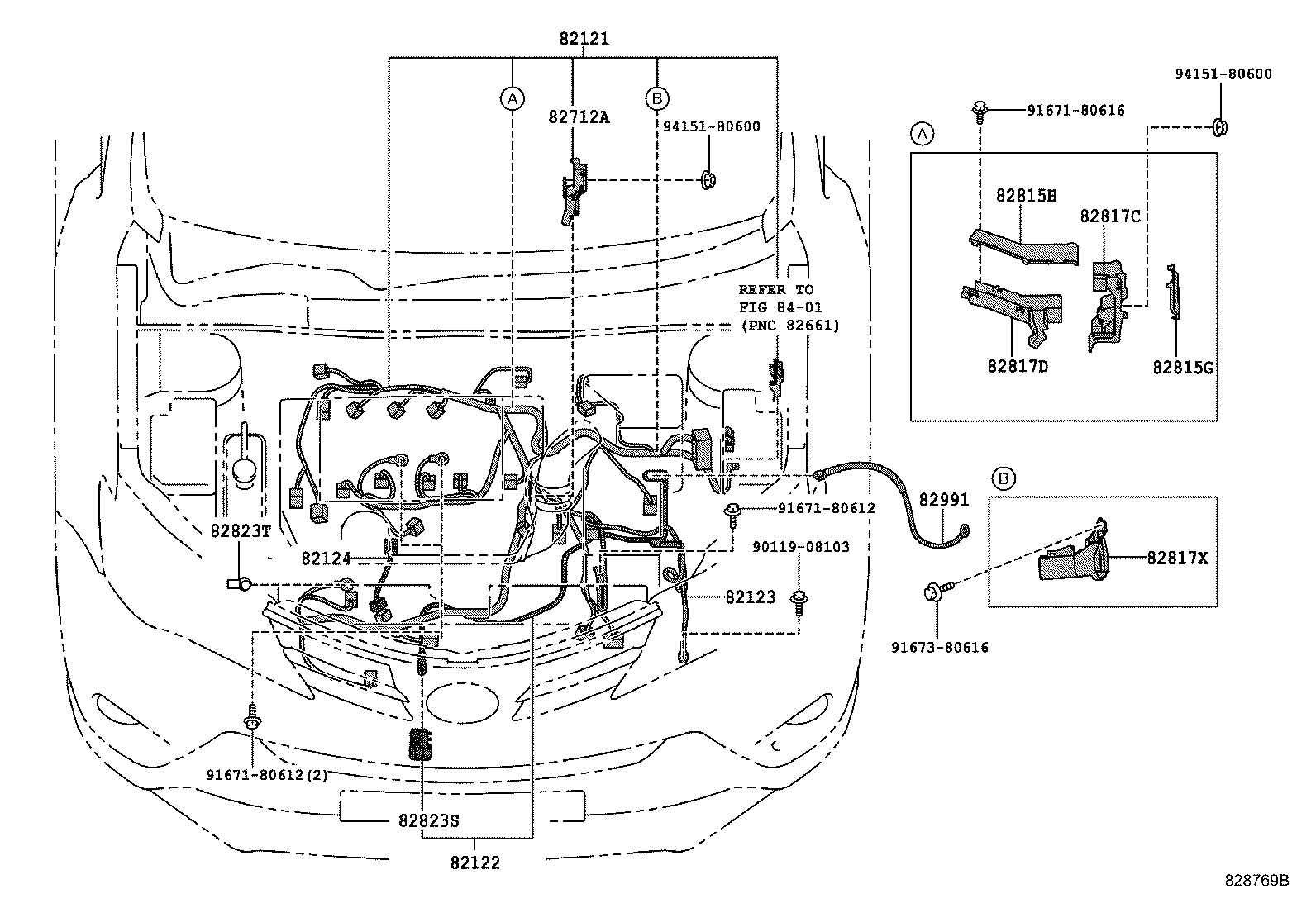

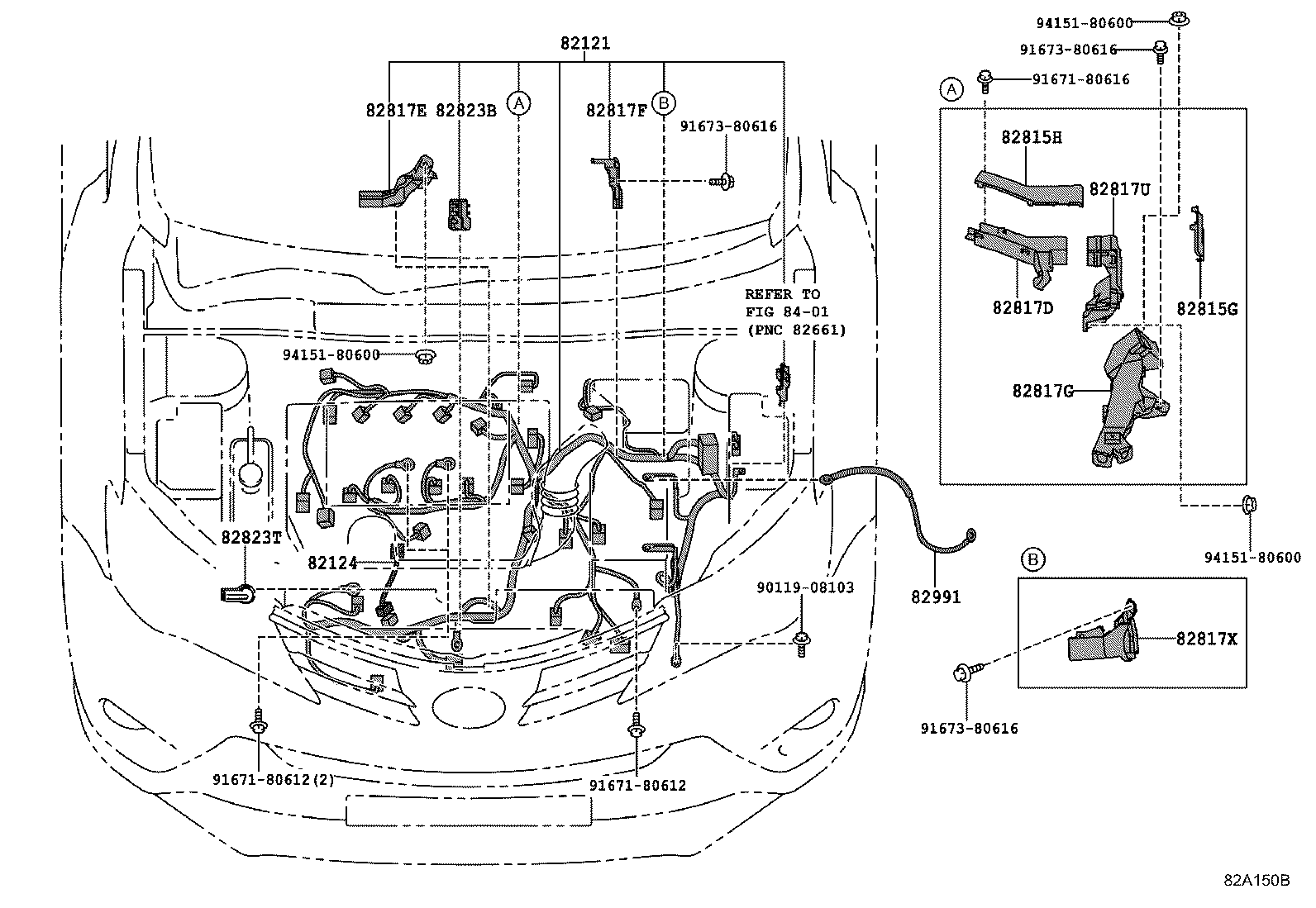

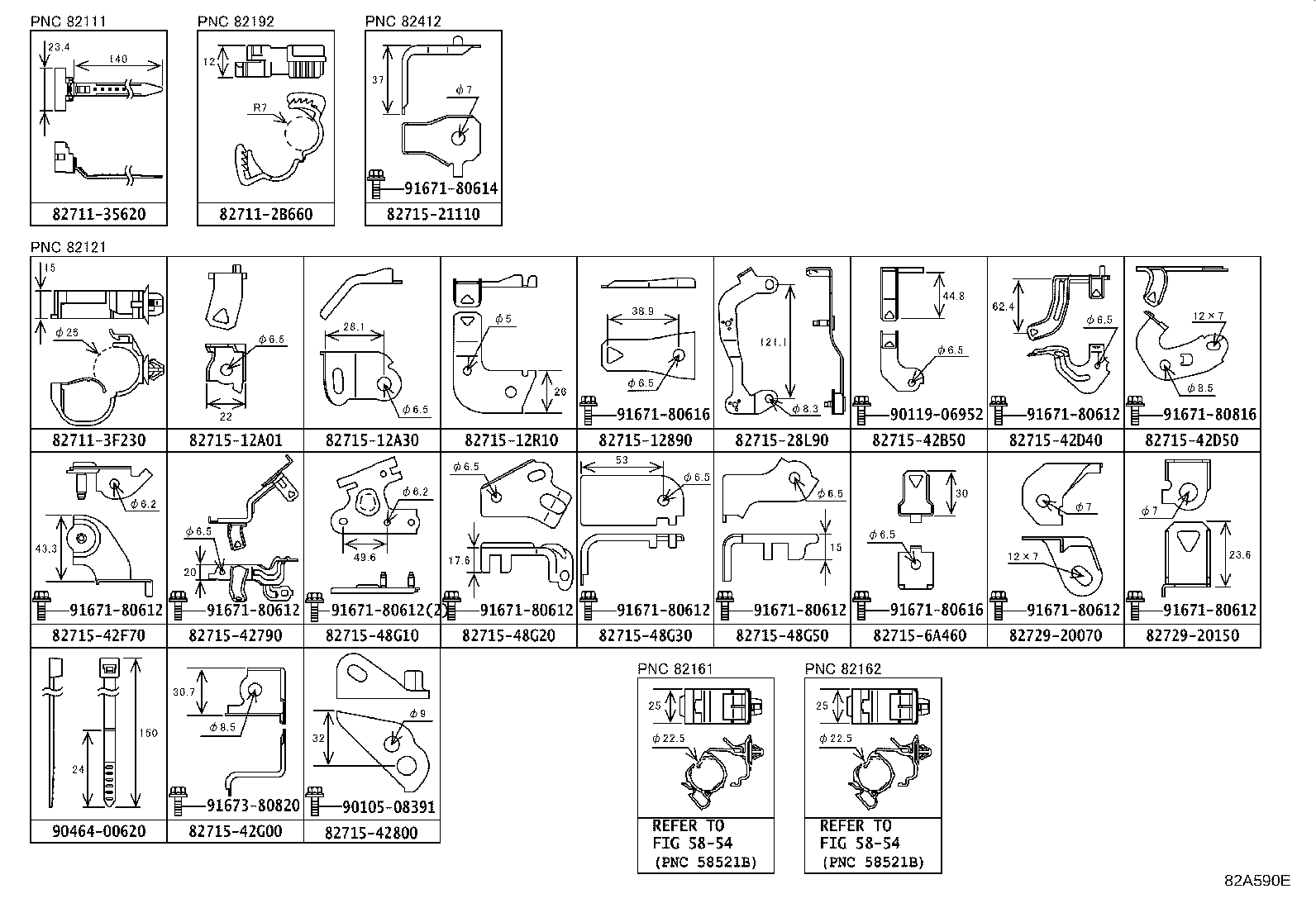

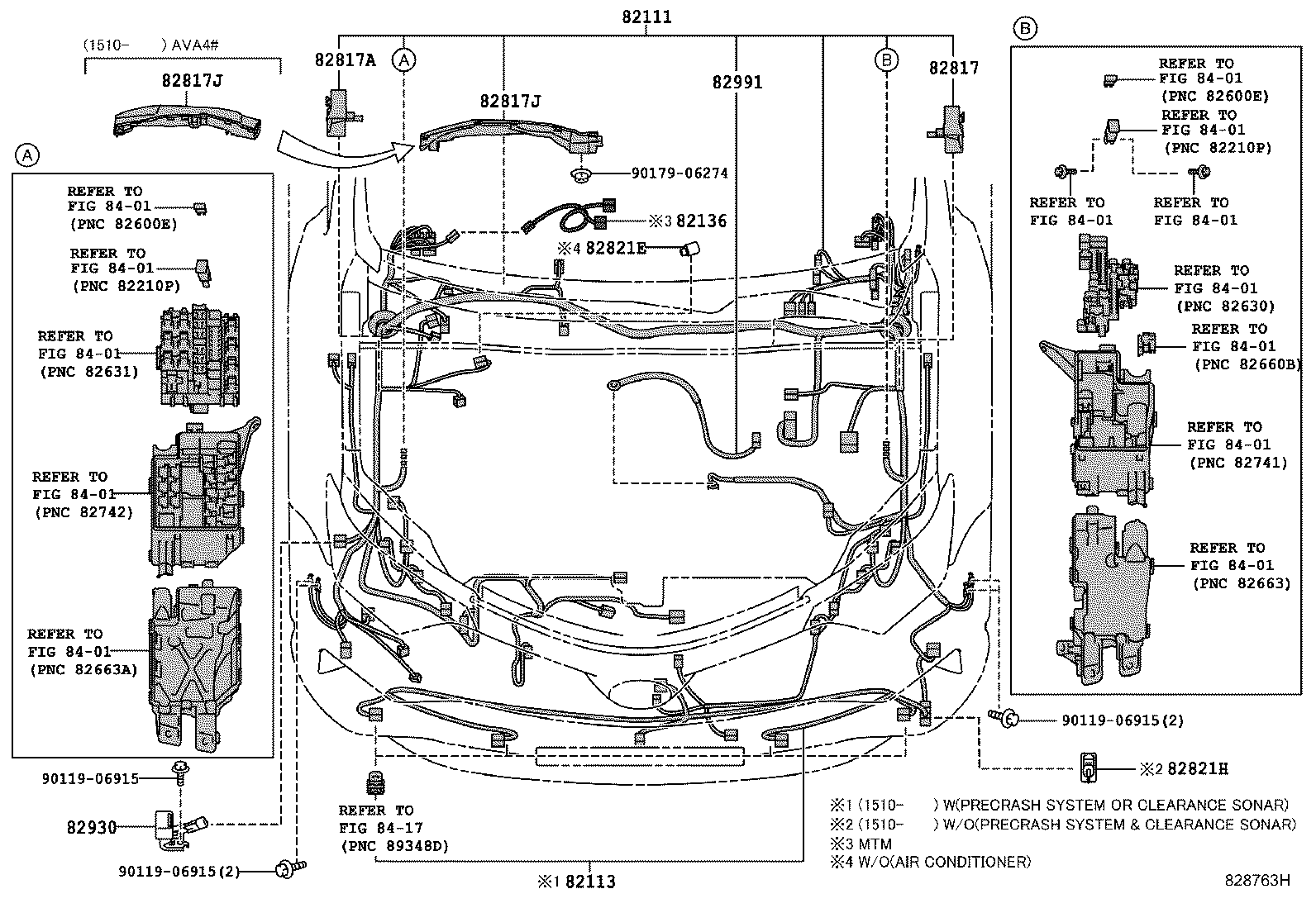

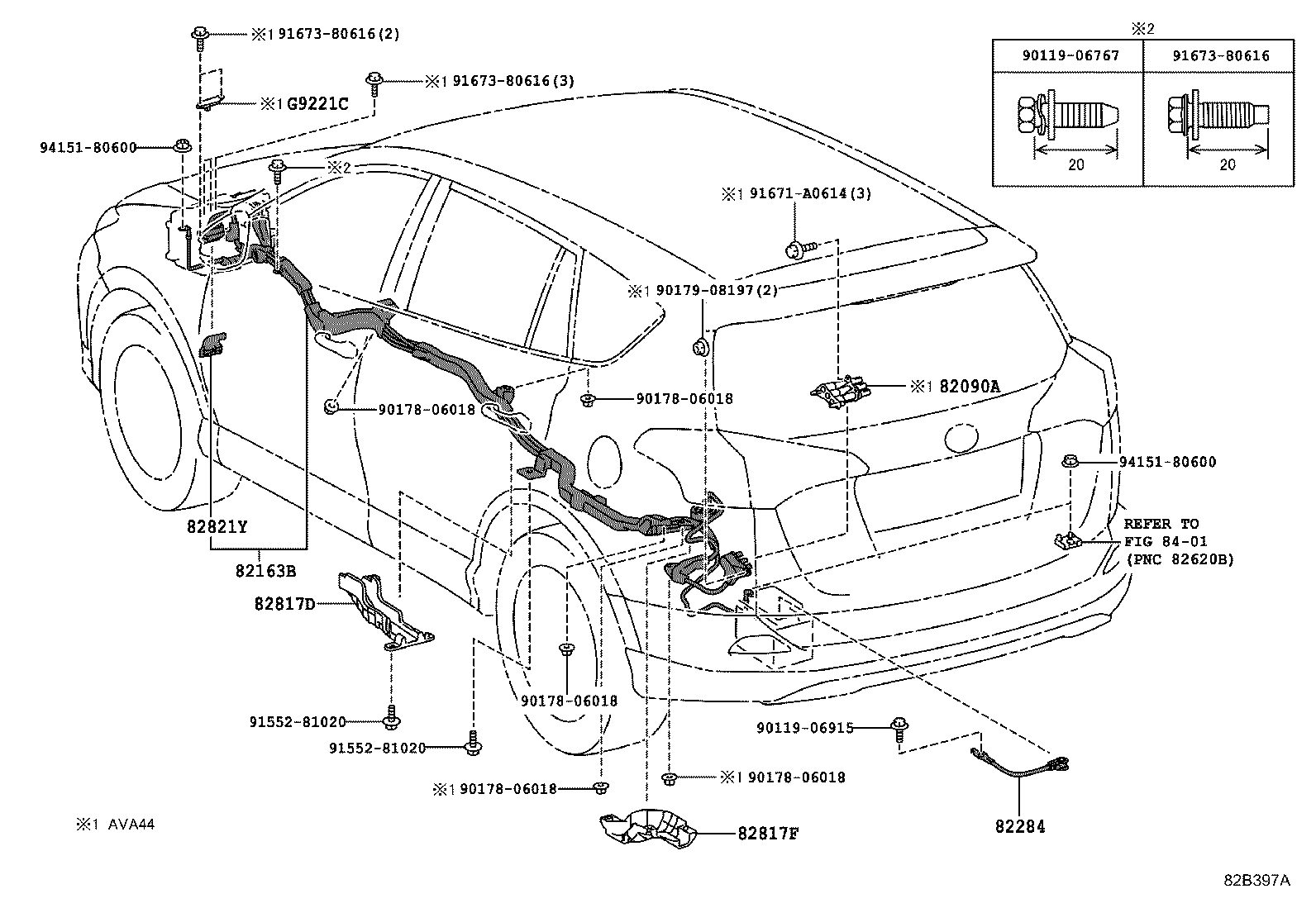

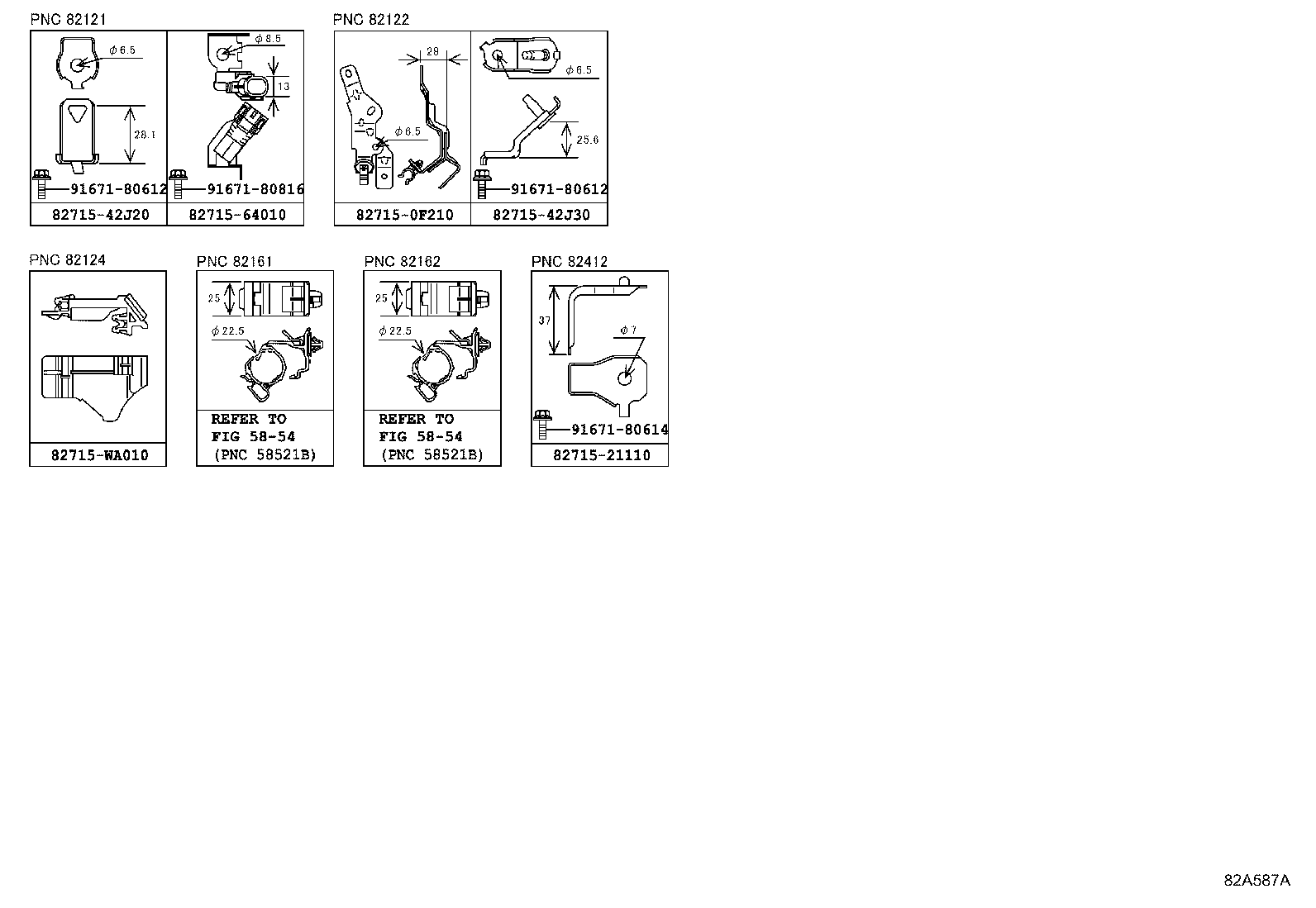

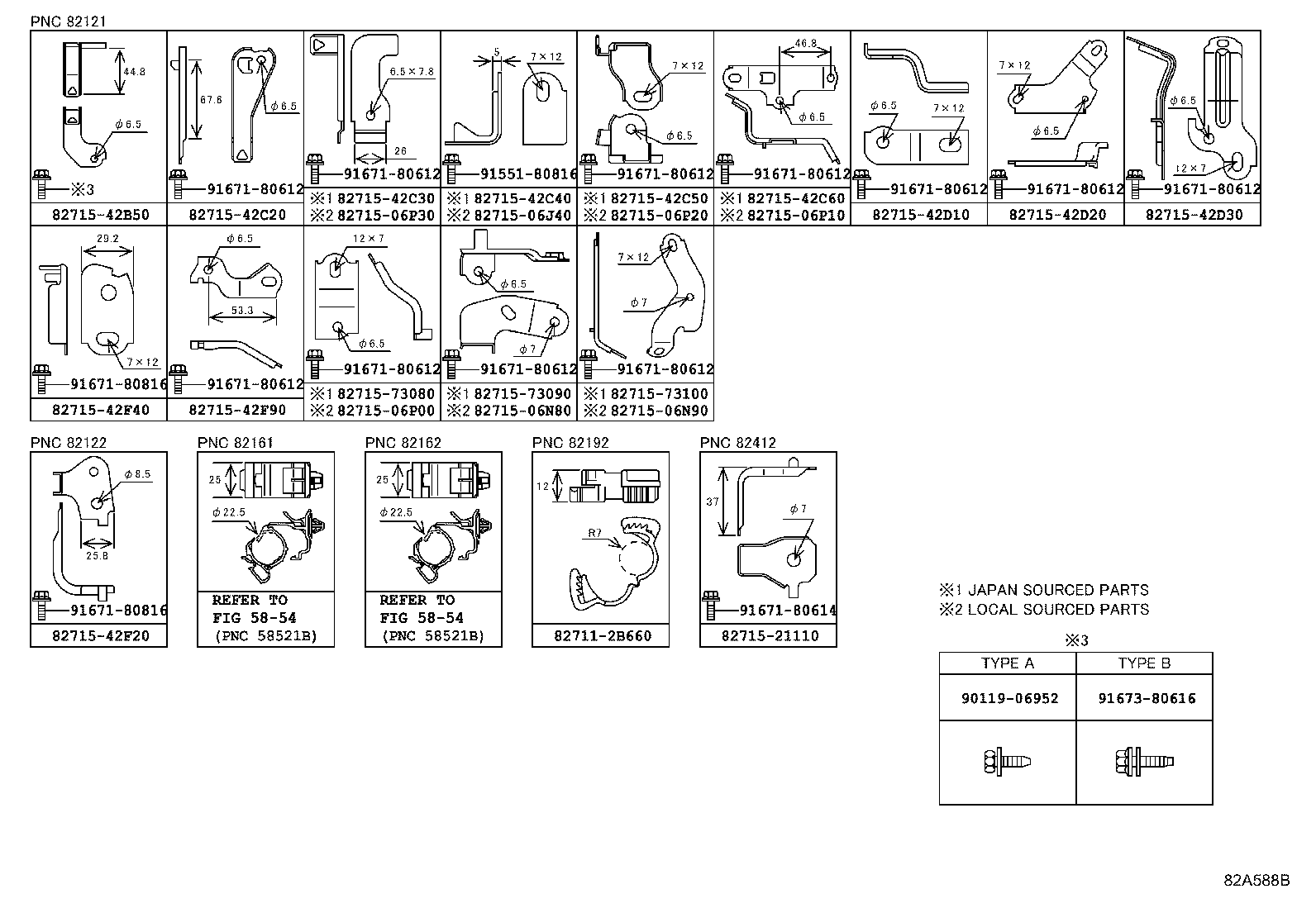

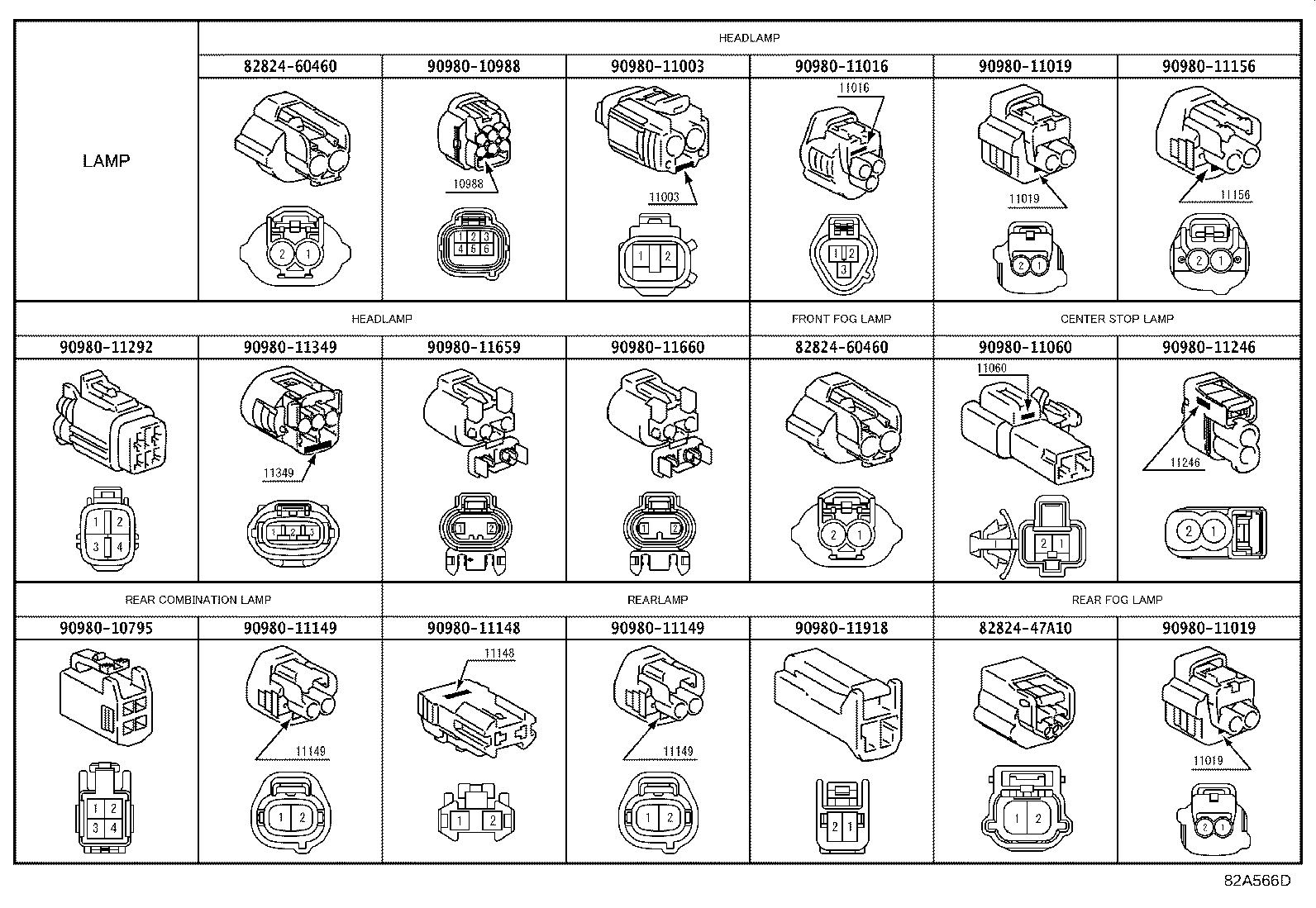

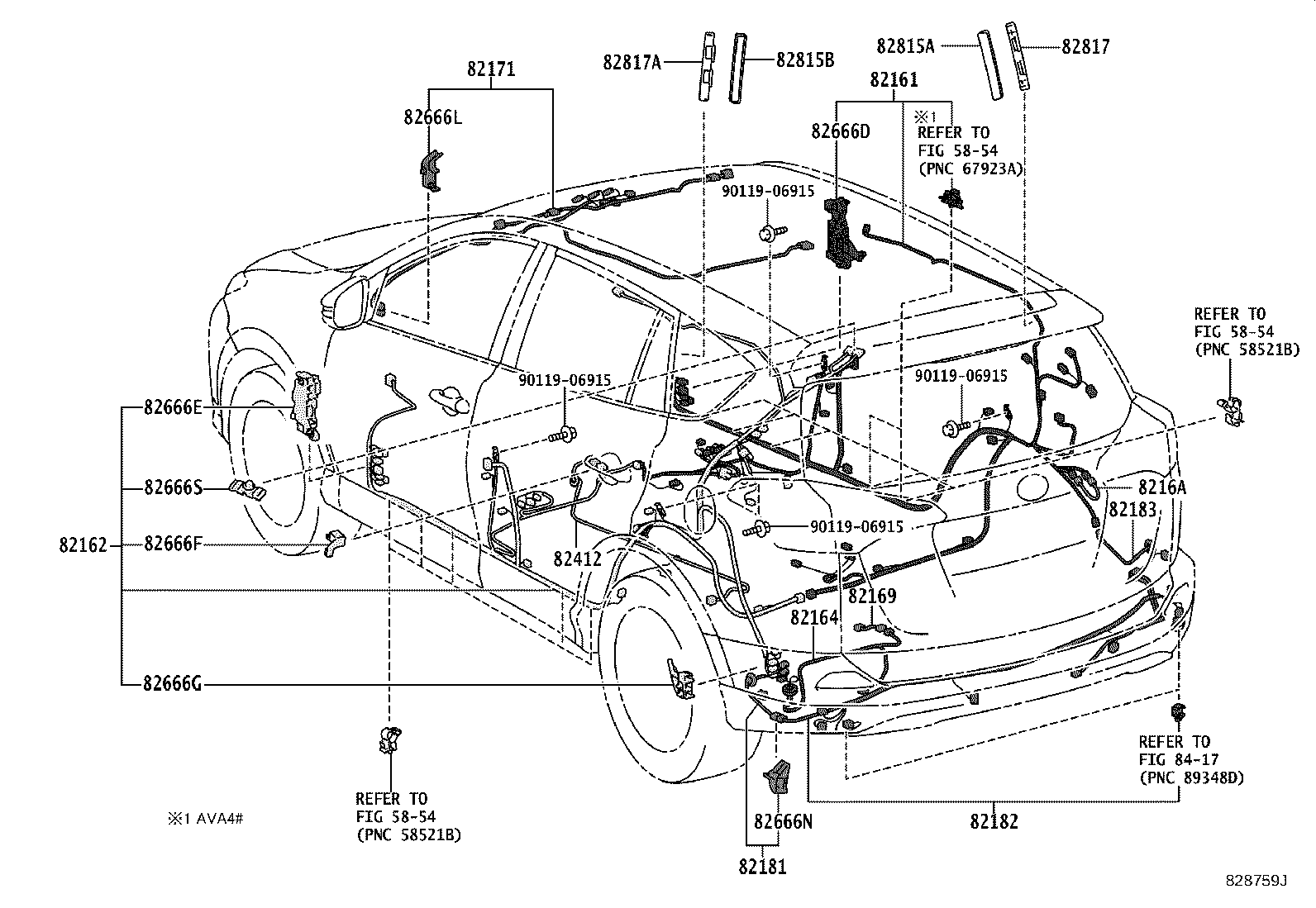

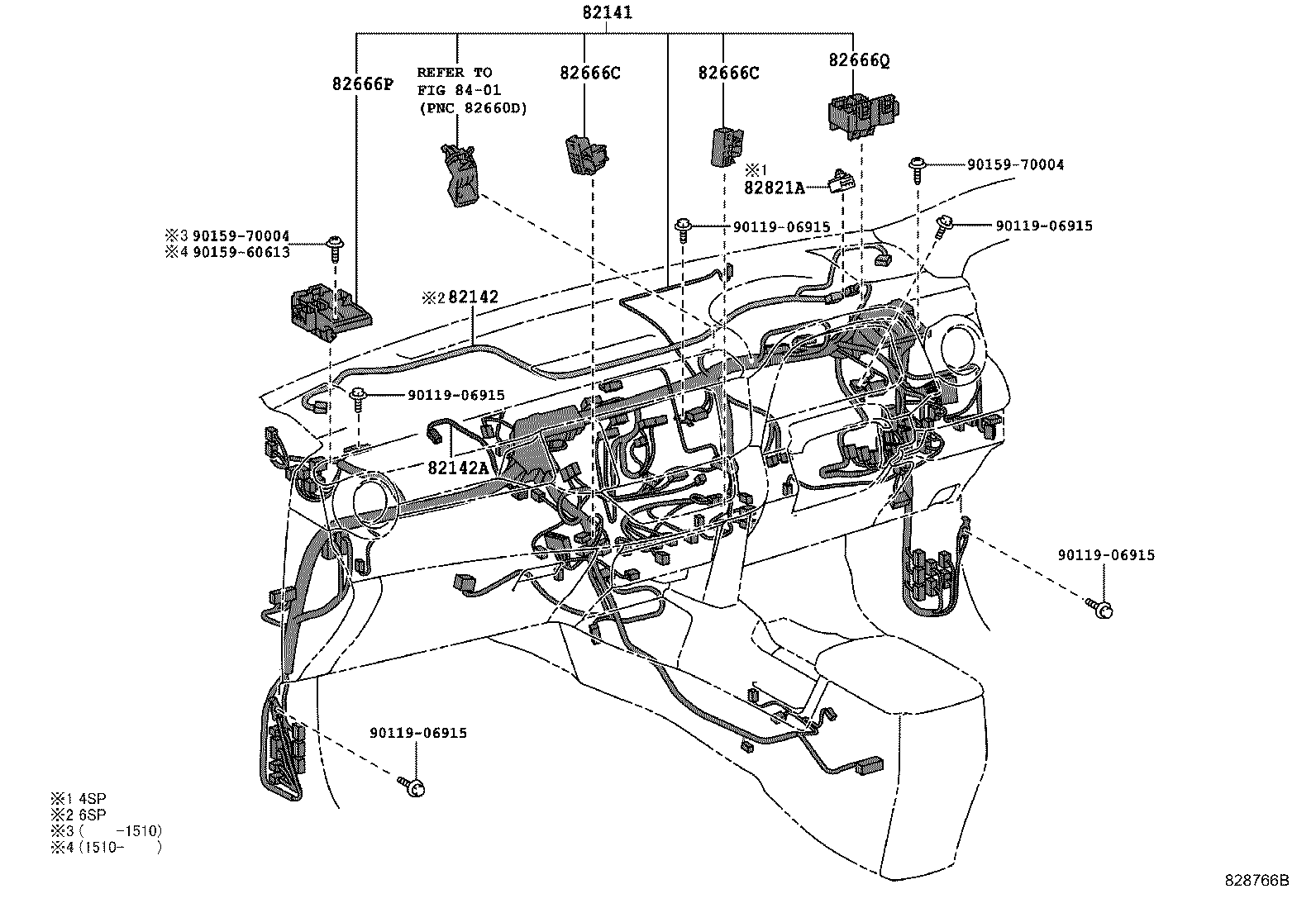

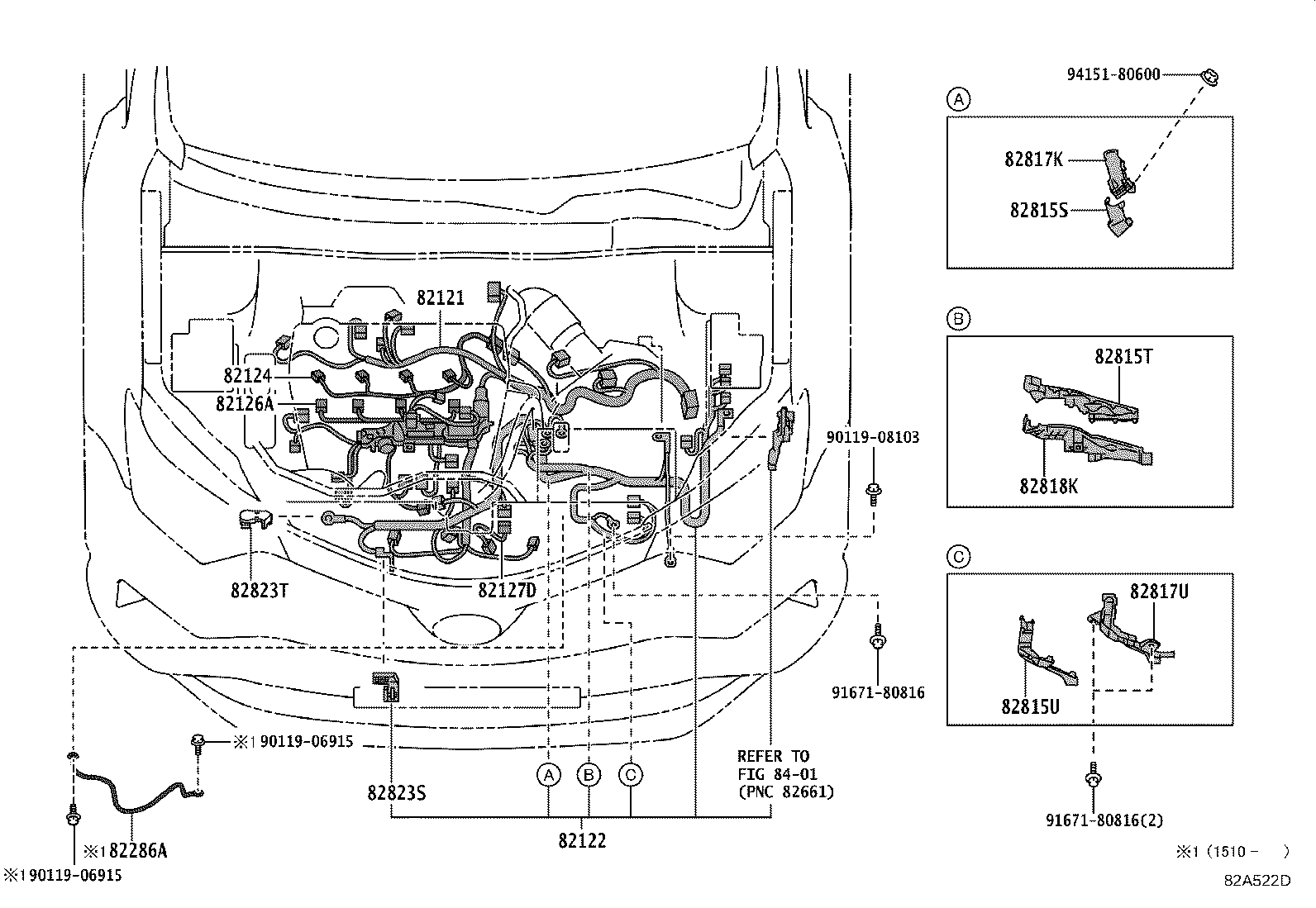

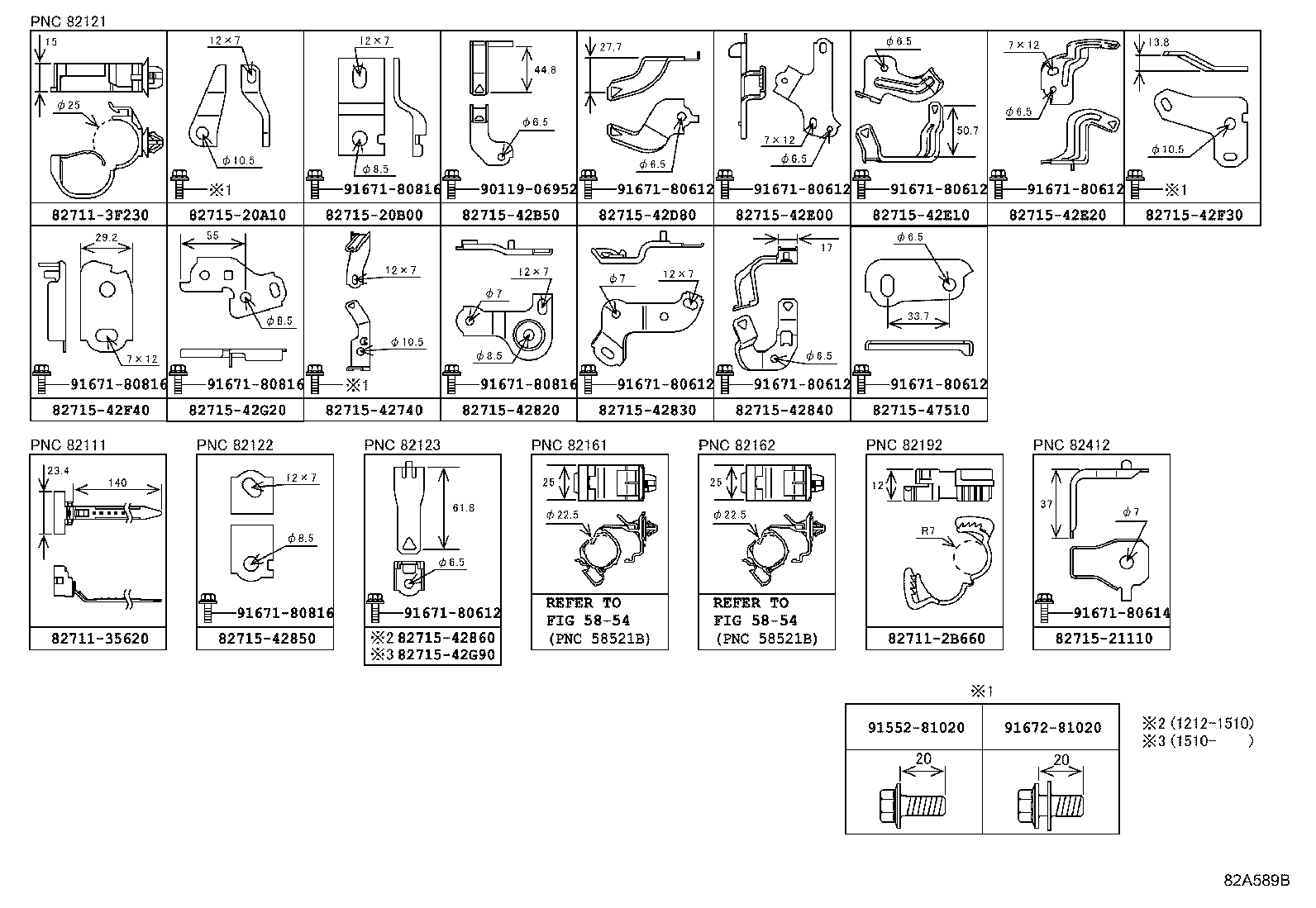

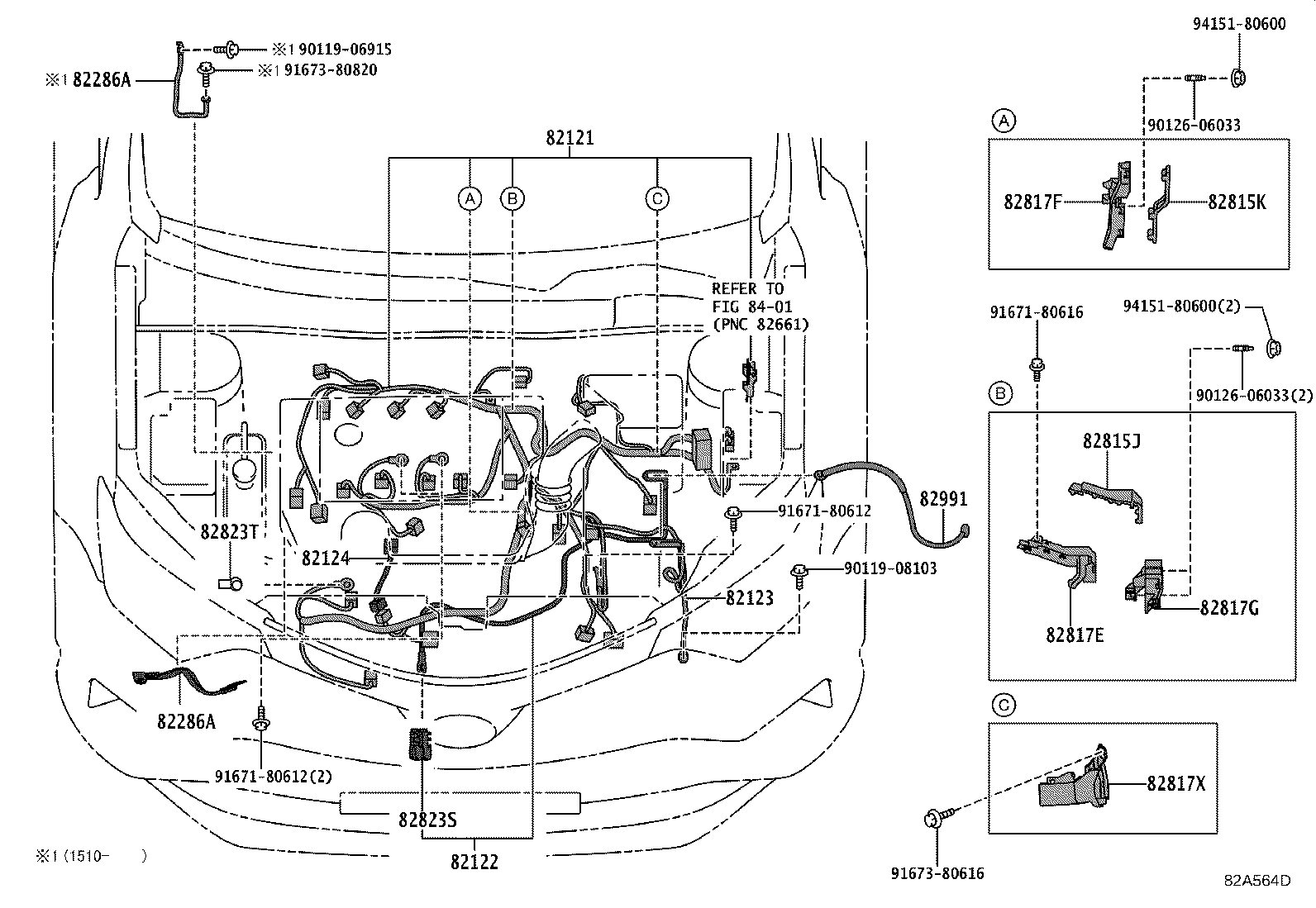

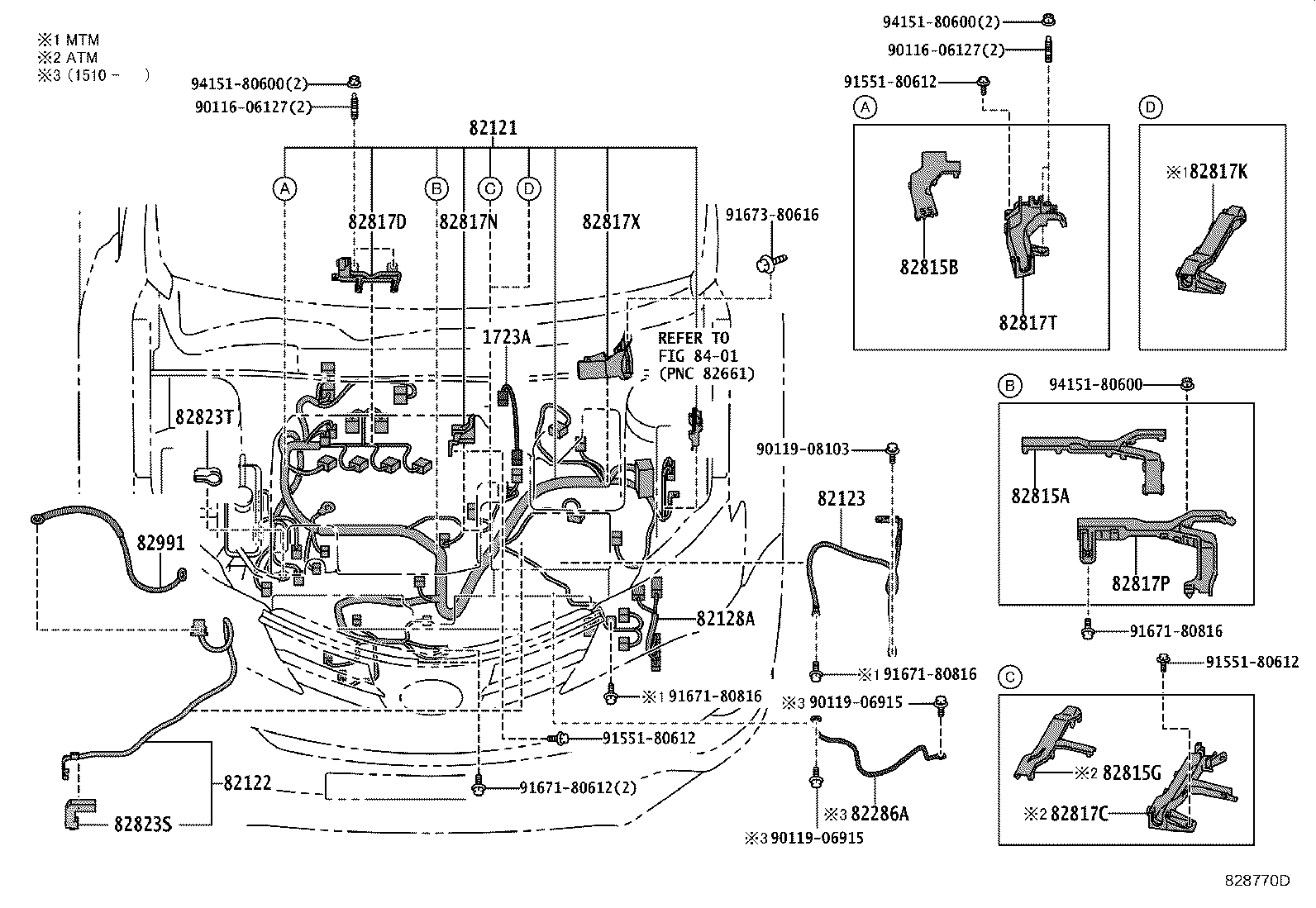

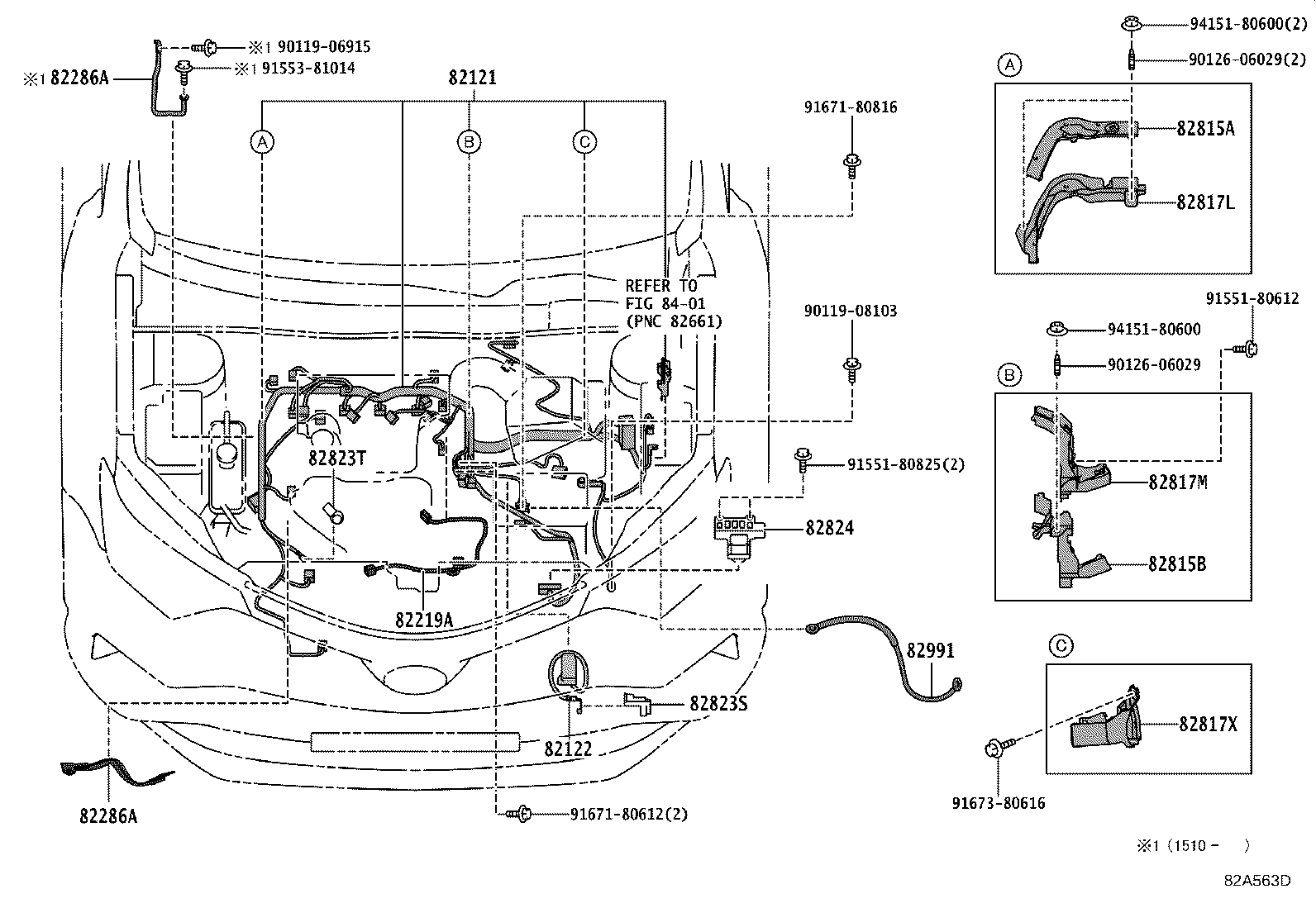

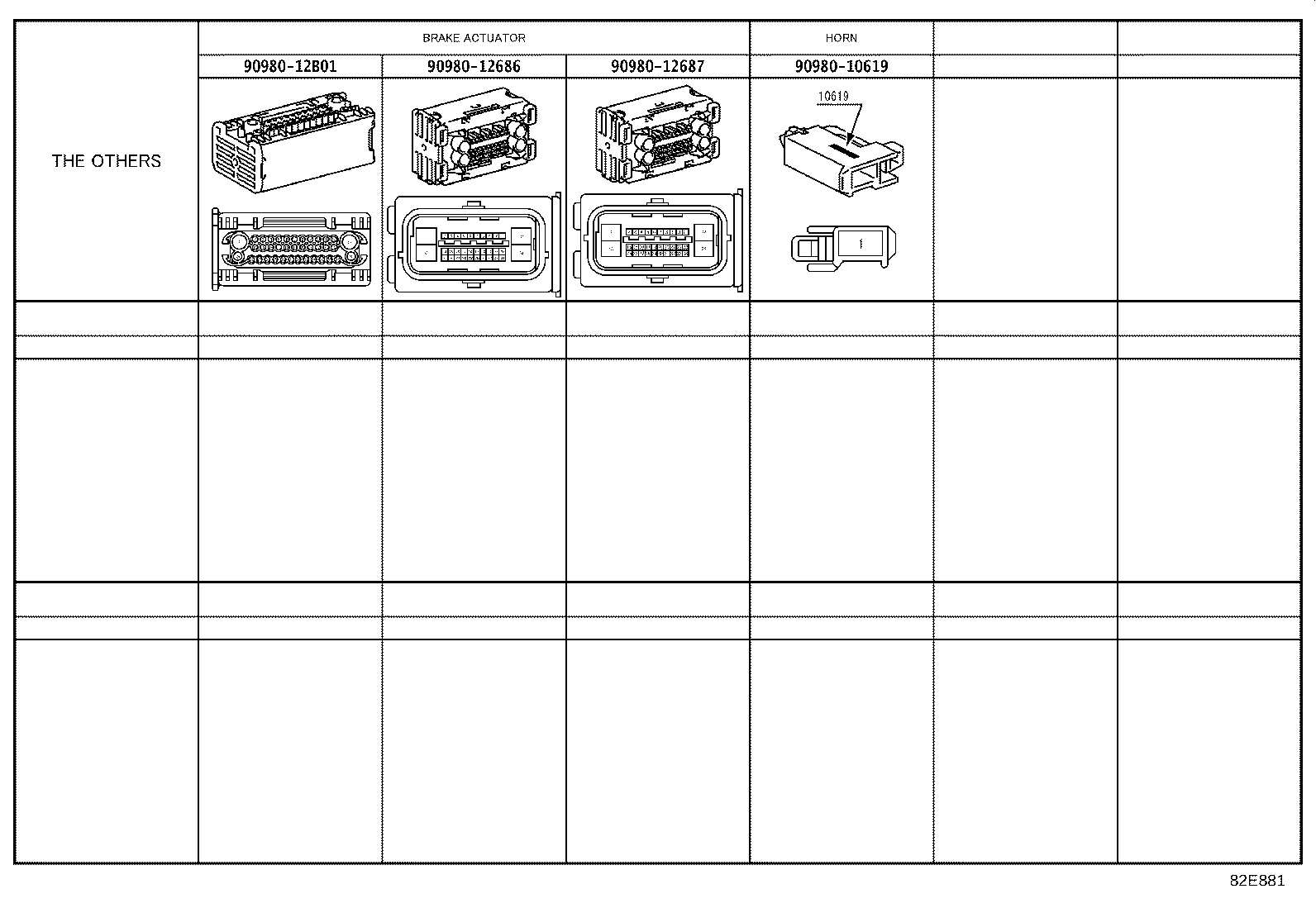

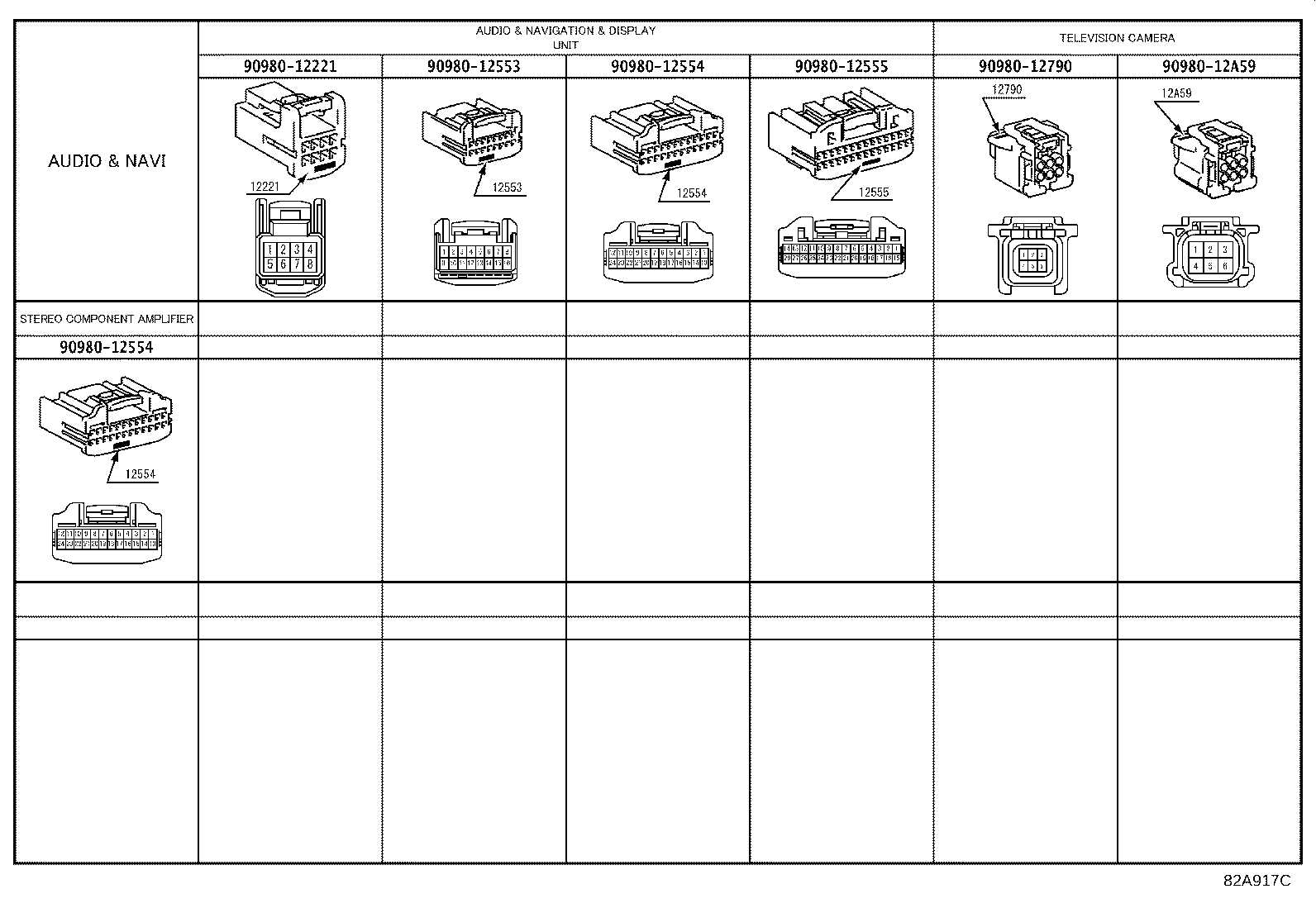

Figure 828762F 828762F 2012-12 → — Figure 828763H 828763H 2012-12 → — Figure 828769B 828769B 2012-12 → 2015-04 Figure 828769B 828769B 2012-12 → — Figure 828769B 828769B 2016-10 → — Figure 82A150B 82A150B 2015-04 → — Figure 828770D 828770D 2012-12 → — Figure 828770D 828770D 2016-10 → — Figure 82A564D 82A564D 2015-10 → — Figure 82A564D 82A564D 2016-10 → — Figure 82A563D 82A563D 2015-10 → — Figure 82A563D 82A563D 2016-10 → — Figure 82A521C 82A521C 2015-10 → — Figure 82A522D 82A522D 2015-10 → — Figure 828765C 828765C 2012-12 → — Figure 828766B 828766B 2012-12 → — Figure 828758 828758 2012-12 → — Figure 828758 828758 2016-10 → — Figure 828759J 828759J 2012-12 → — Figure 828759J 828759J 2016-10 → — Figure 828767A 828767A 2012-12 → — Figure 828767A 828767A 2016-10 → — Figure 82B397A 82B397A 2015-10 → — Figure 82A589B 82A589B 2012-12 → — Figure 82A589B 82A589B 2016-10 → — Figure 82A590E 82A590E 2012-12 → — Figure 82A590E 82A590E 2016-10 → — Figure 82A588B 82A588B 2015-10 → — Figure 82A588B 82A588B 2016-10 → — Figure 82A586B 82A586B 2015-10 → — Figure 82A587A 82A587A 2015-10 → — Figure 82A844 82A844 2015-10 → — Figure 82A566D 82A566D 2012-12 → — Figure 82A567D 82A567D 2012-12 → — Figure 82A917C 82A917C 2012-12 → — Figure 82E881 82E881 2012-12 → —

Part groups

PNCDescription
16364A Wire, Cooling Fan
1723A Wire, Turbocharger
82001 Cable, Bond, NO.1
82090A Wire Assy, Extension
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82113 Wire, Engine Room, NO.3
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82126A Wire, Engine, NO.6
82127D Wire, Engine, NO.7
82128A Wire, Engine, NO.8
82136 Wire, Dash
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82142A Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163B Wire, Floor NO.5
82164 Wire, Frame
82169 Wire Frame, NO.3
8216A Wire, Floor NO.7
82171 Wire, Roof, NO.1
82181 Wire, Luggage Room, NO.1
82182 Wire, Luggage Room, NO.2
82183 Wire, Luggage Room, NO.3
82184 Wire, Back Door, NO.1
82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
8219A Wire, Front Seat, RH NO.2
8219B Wire, Front Seat, LH NO.2
82219A Wire, Sensor
82241C Wire, Relay
82284 Wire, Earth
82286A Wire, Earth, NO.2
82412 Wire, Fuel Gage
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666L Holder, Connector NO.9
82666N Holder, Connector NO.10
82666P Holder, Connector NO.11
82666Q Holder, Connector NO.12
82666S Holder, Connector NO.13
82666T Holder, Connector NO.14
82666V Holder, Connector NO.15
82712A Support, Wiring Harness
82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82815G Cover, Wiring Harness Protector NO.5
82815H Cover, Wiring Harness Protector NO.6
82815J Cover, Wiring Harness Protector, NO.7
82815K Cover, Wiring Harness Protector, NO.8
82815S Cover, Wiring Harness Protector, NO.15
82815T Cover, Wiring Harness Protector, NO.16
82815U Cover, Wiring Harness Protector, NO.17
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82817K Protector, Wiring Harness, NO.10
82817L Protector, Wiring Harness, NO.11
82817M Protector, Wiring Harness, NO.12
82817N Protector, Wiring Harness, NO.13
82817P Protector, Wiring Harness, NO.14
82817T Protector, Wiring Harness, NO.15
82817U Protector, Wiring Harness, NO.16
82817X Protector, Wiring Harness, NO.17
82818K Protector, Wiring Harness, NO.11
82821A Cover, Connector
82821E Cover, Connector
82821H Cover, Connector
82821Y Cover, Connector
82823B Cap, Terminal, NO.3
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
82930 Condenser Assy, Wiring Harness, NO.1
82991 Wire, Fusible Link Repair
G9221C Cover, Inverter, Upper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
