Toyota RAV4

2012-12 → 2019-09 · chassis ALA4#,ASA44,AVA4#,WWA42,ZSA4# · catalogue 662540 · Europe

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

157 part groups · 24 illustrations

Illustrations

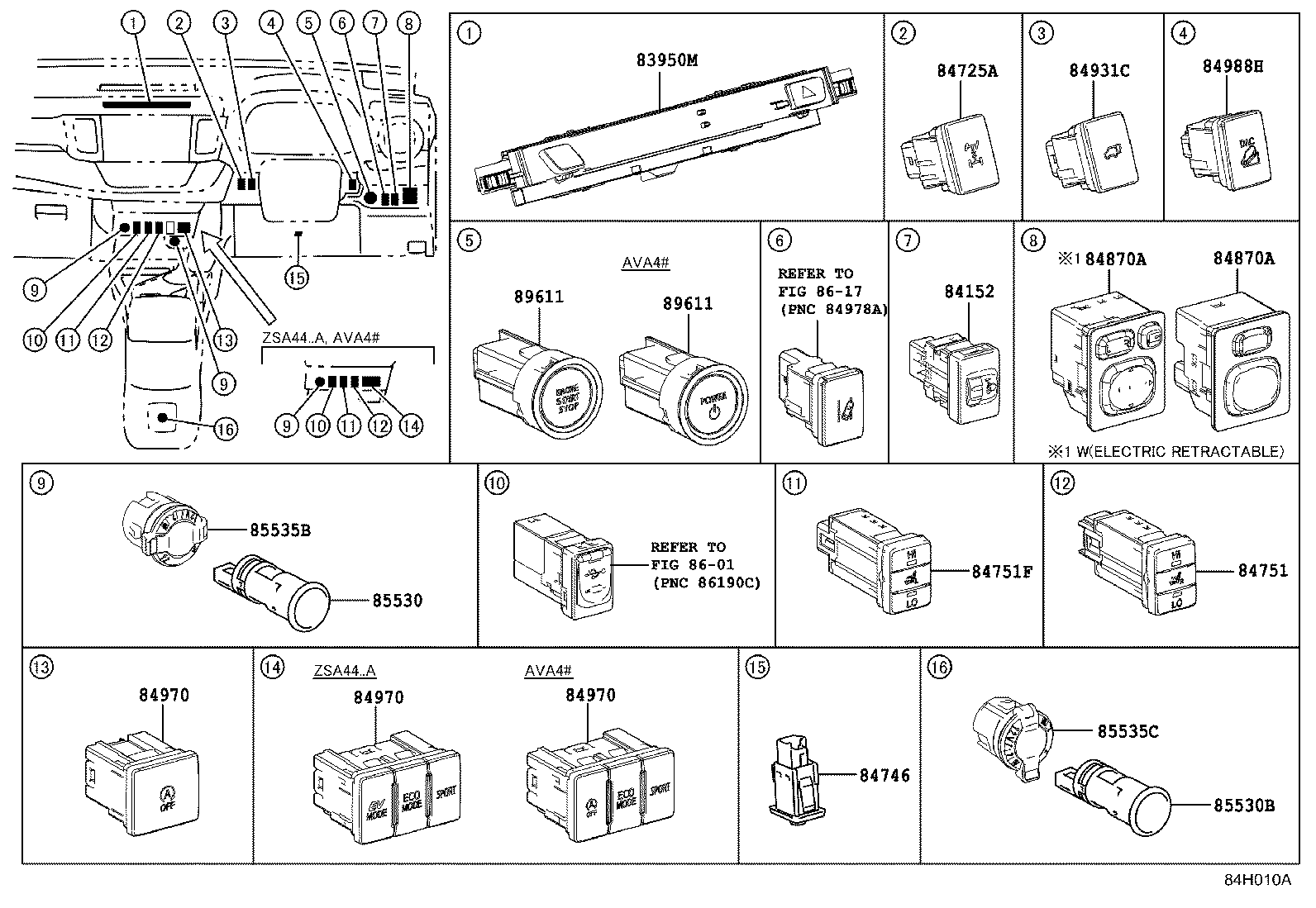

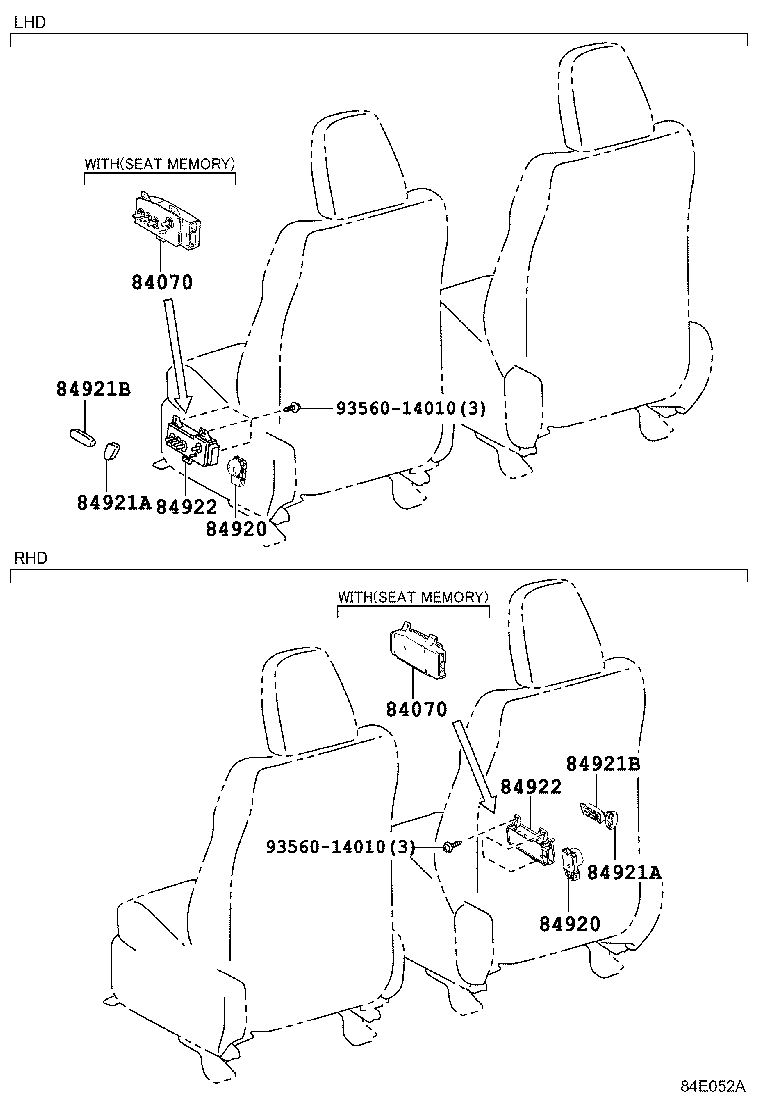

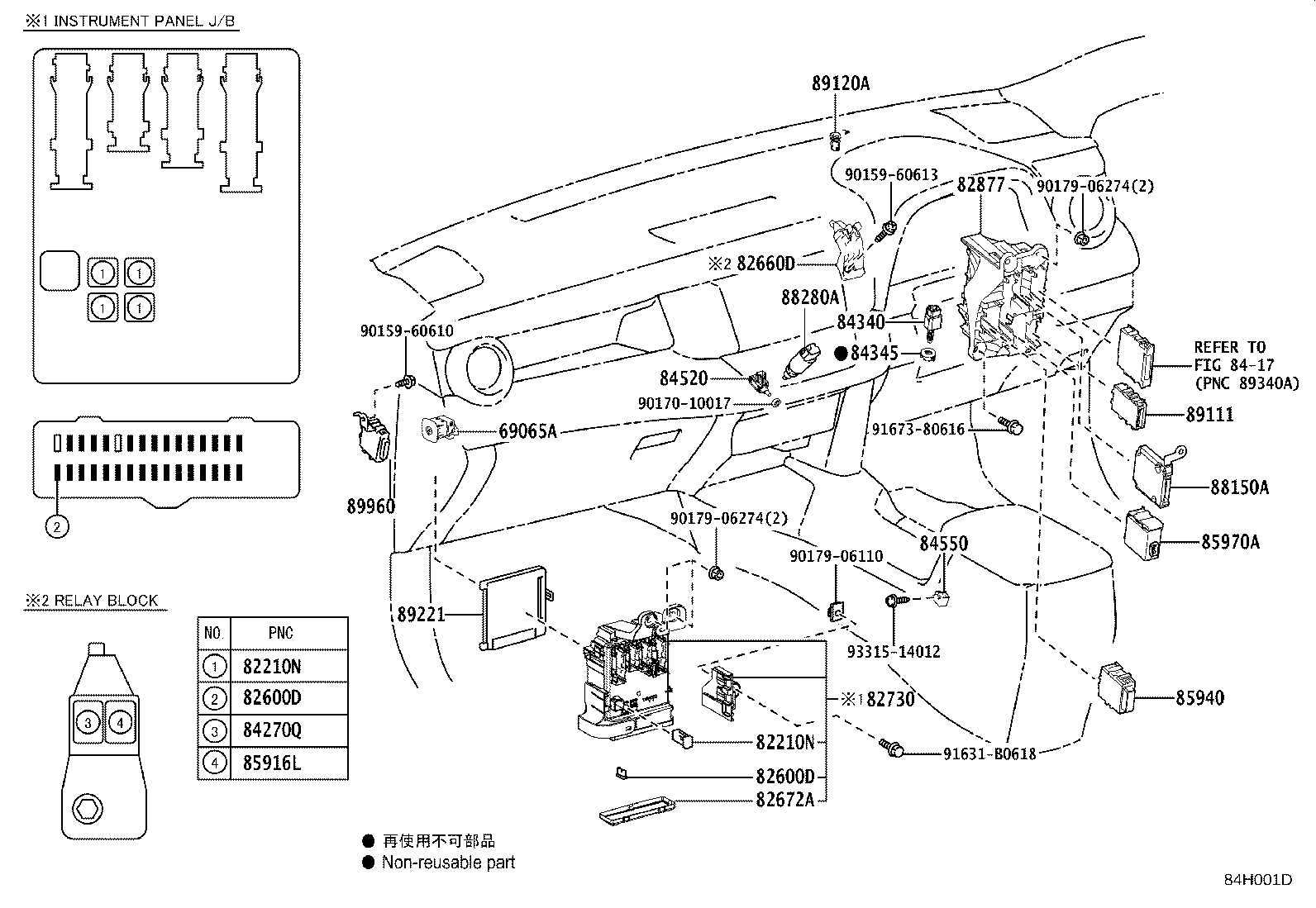

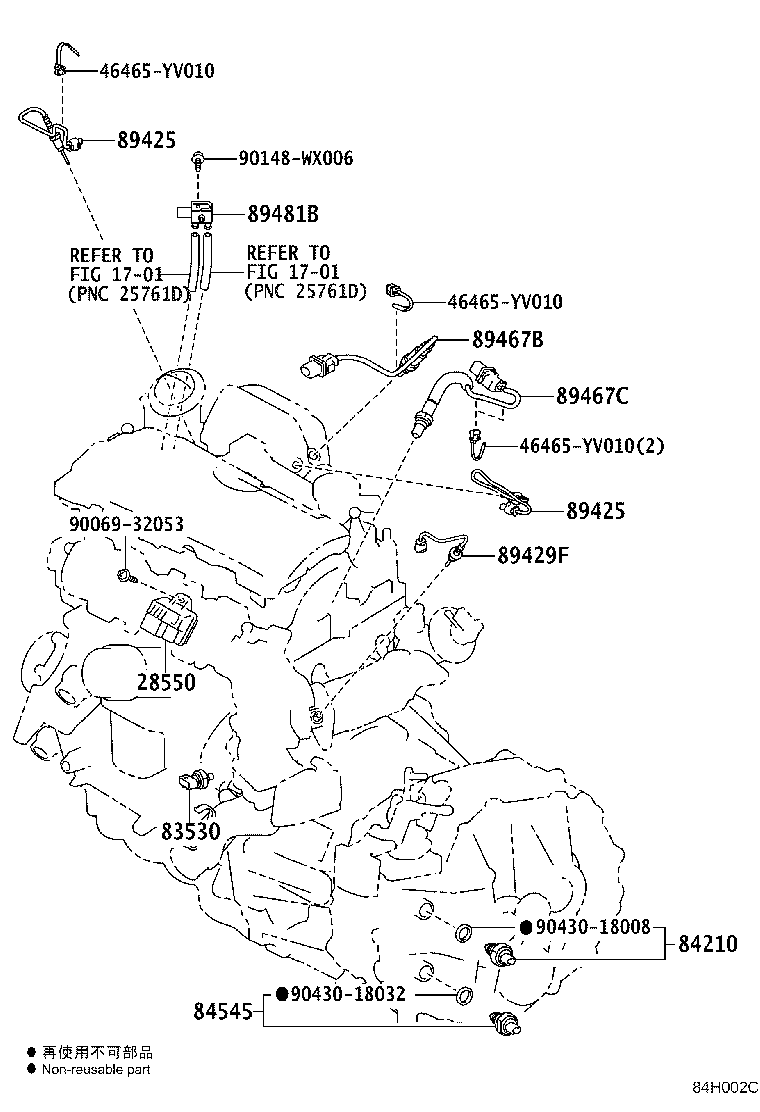

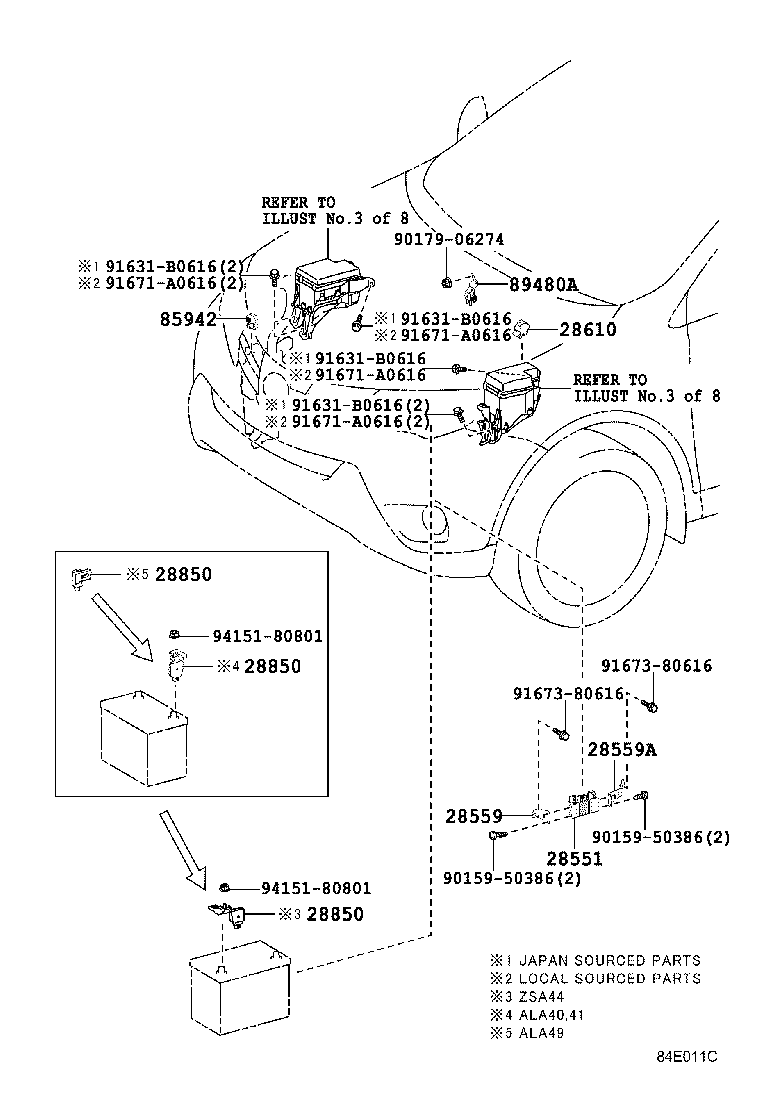

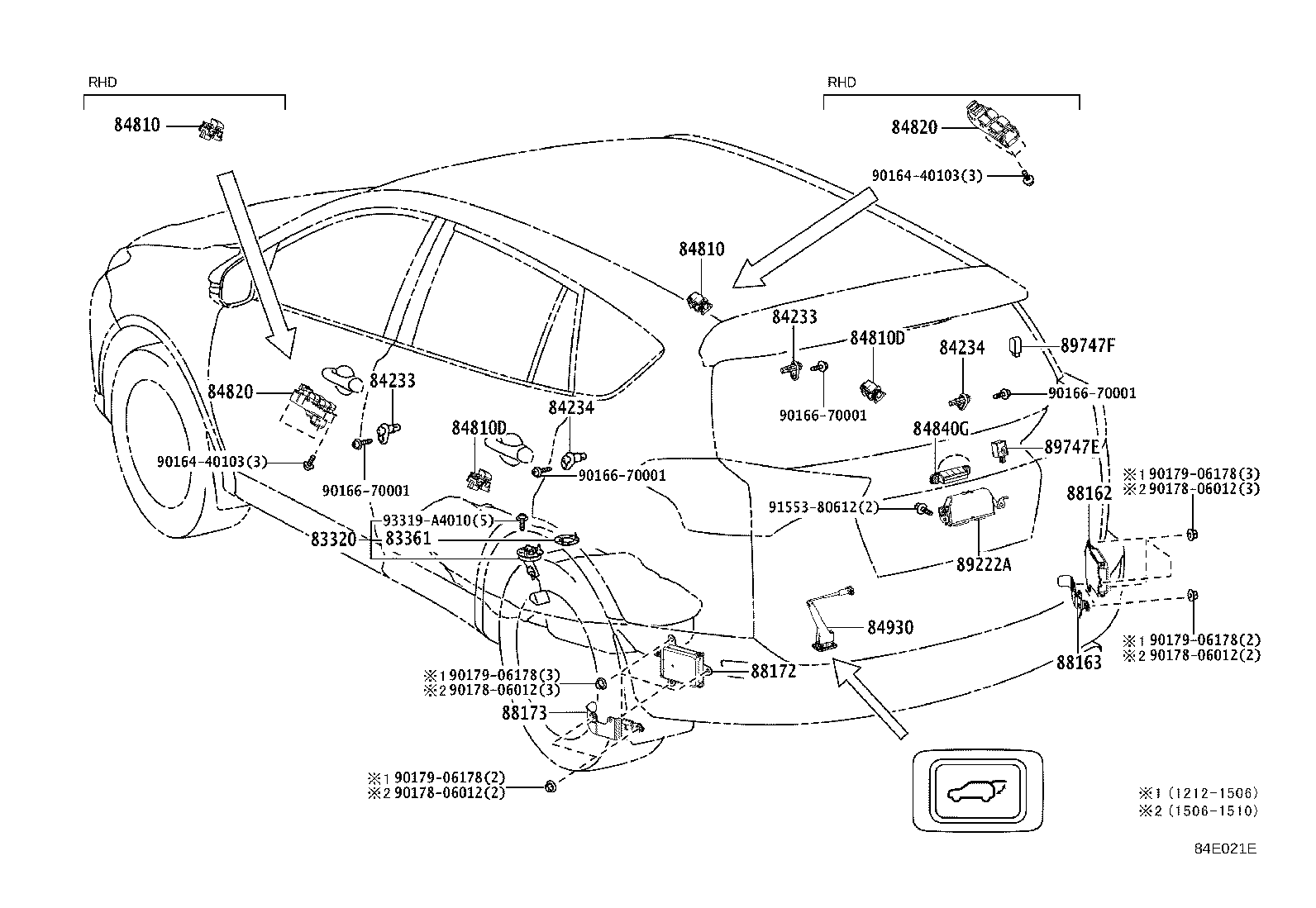

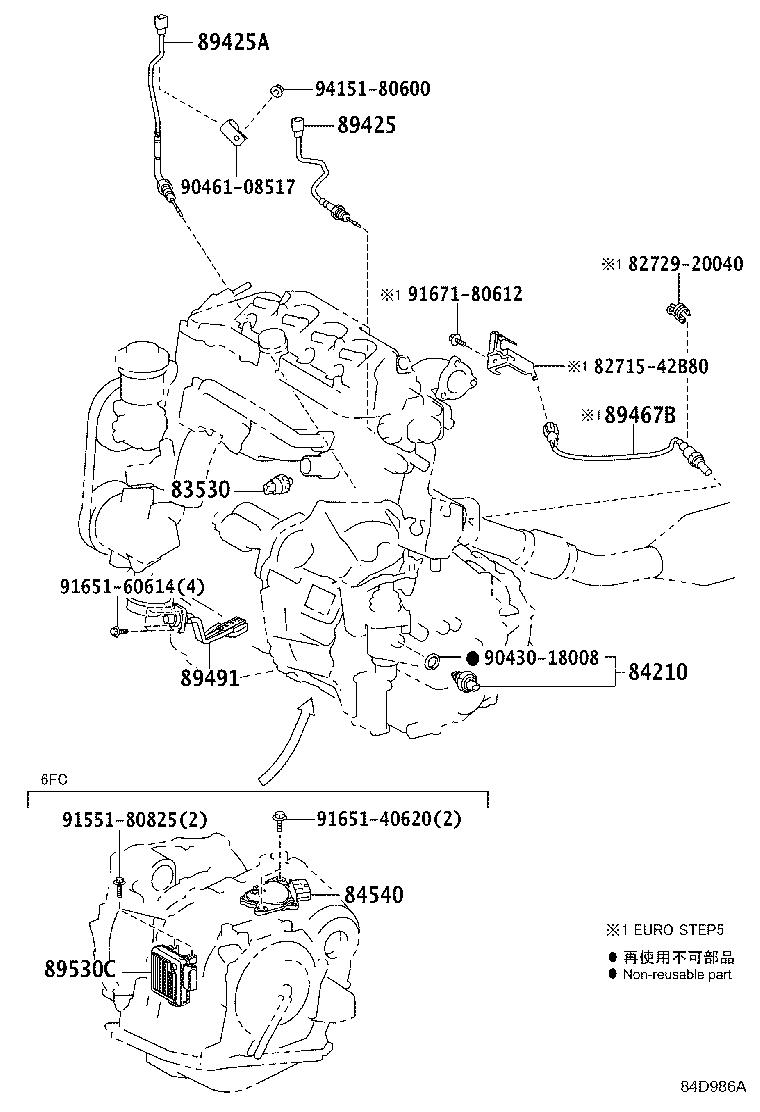

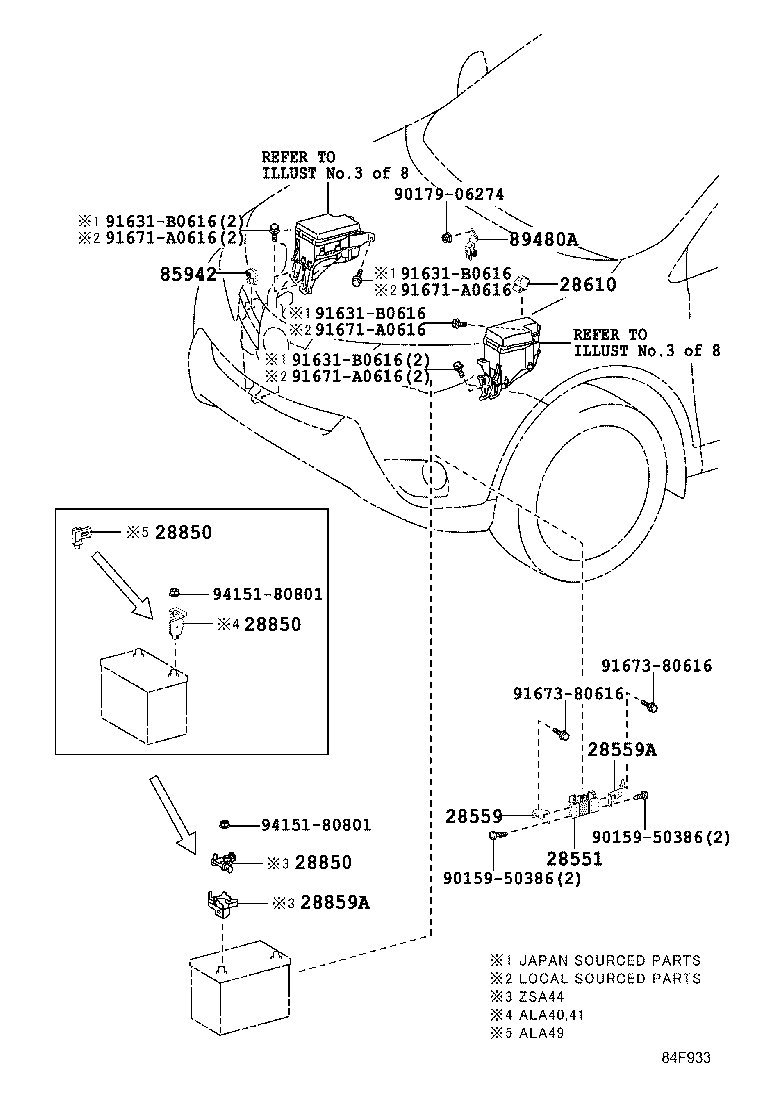

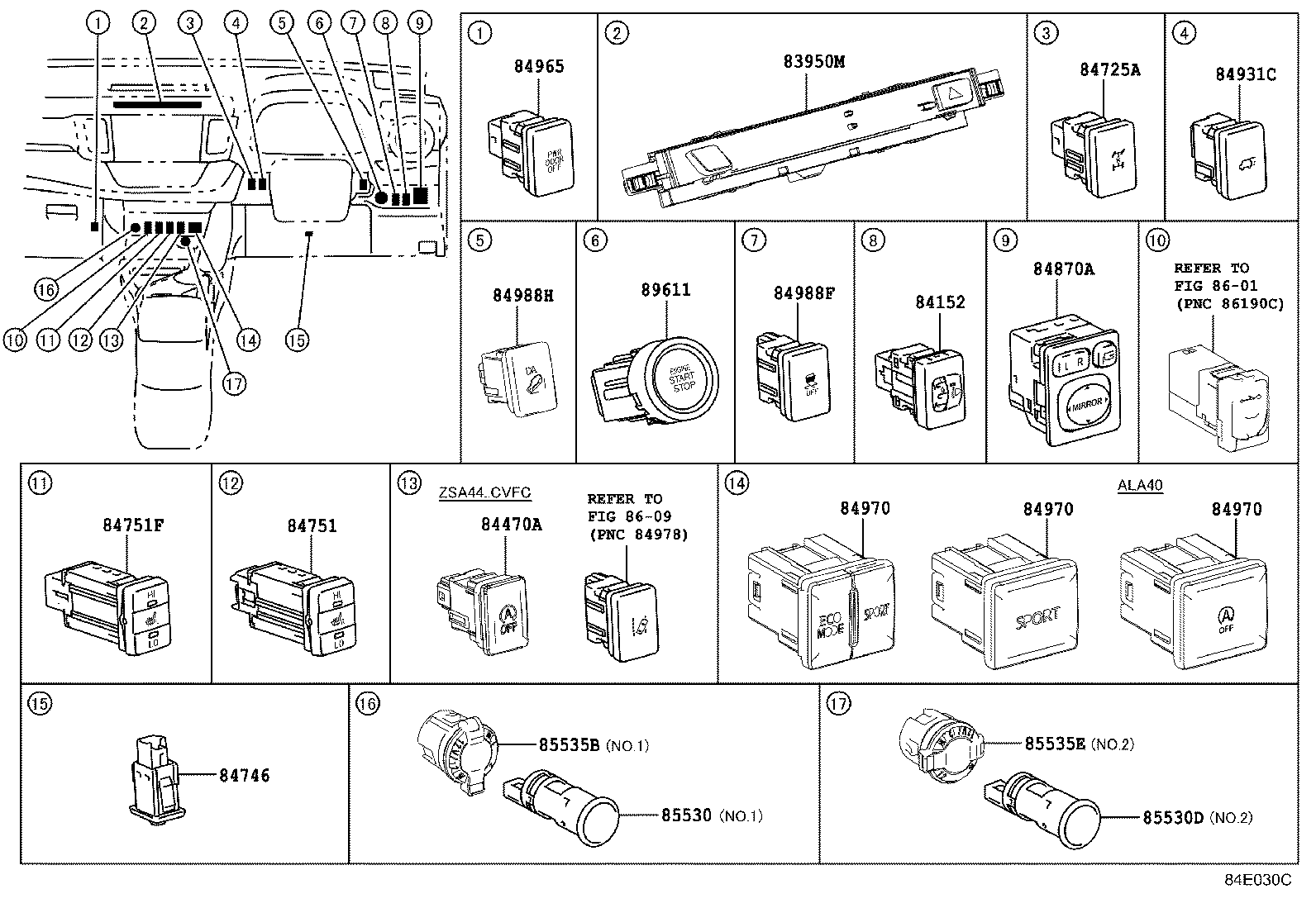

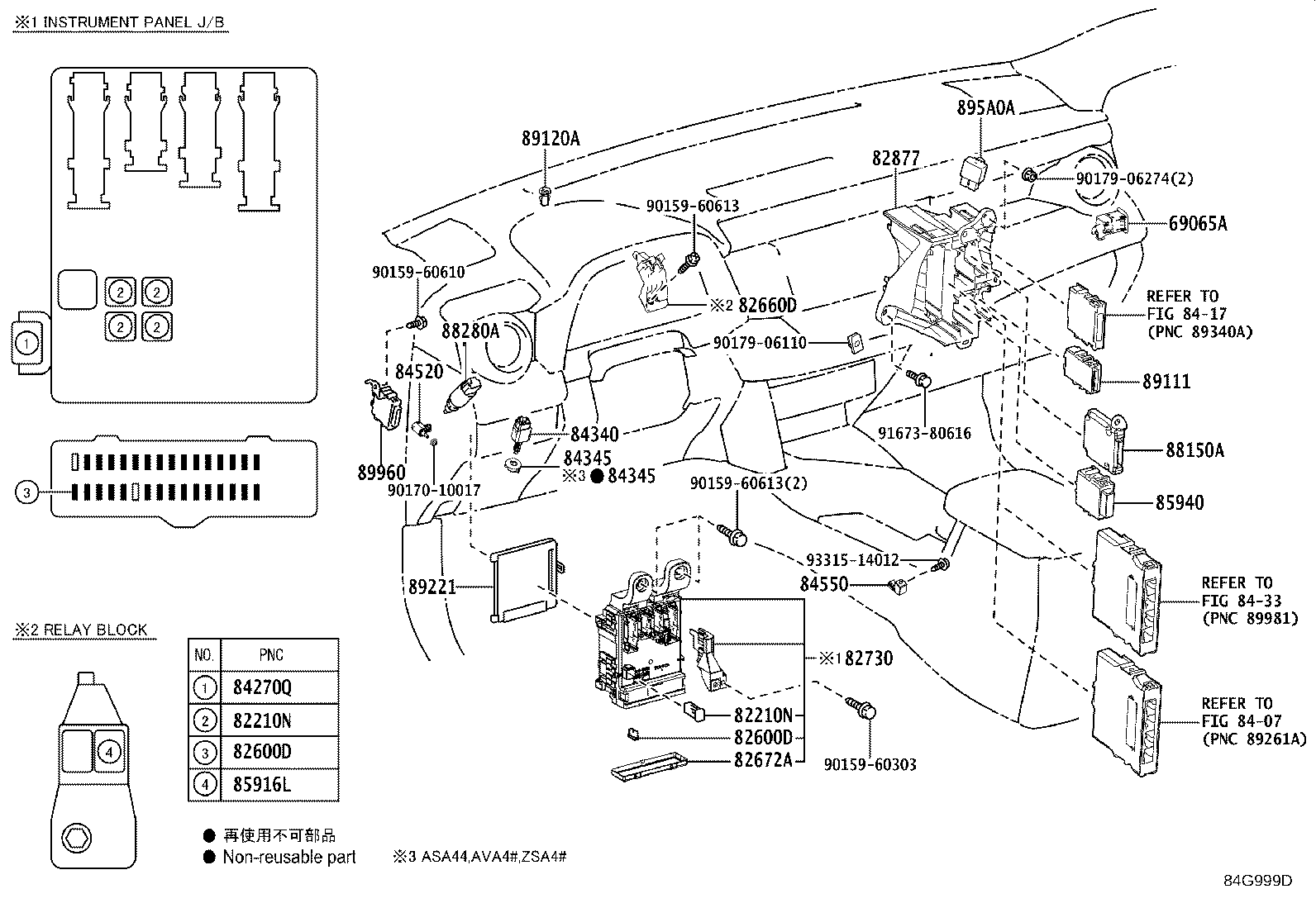

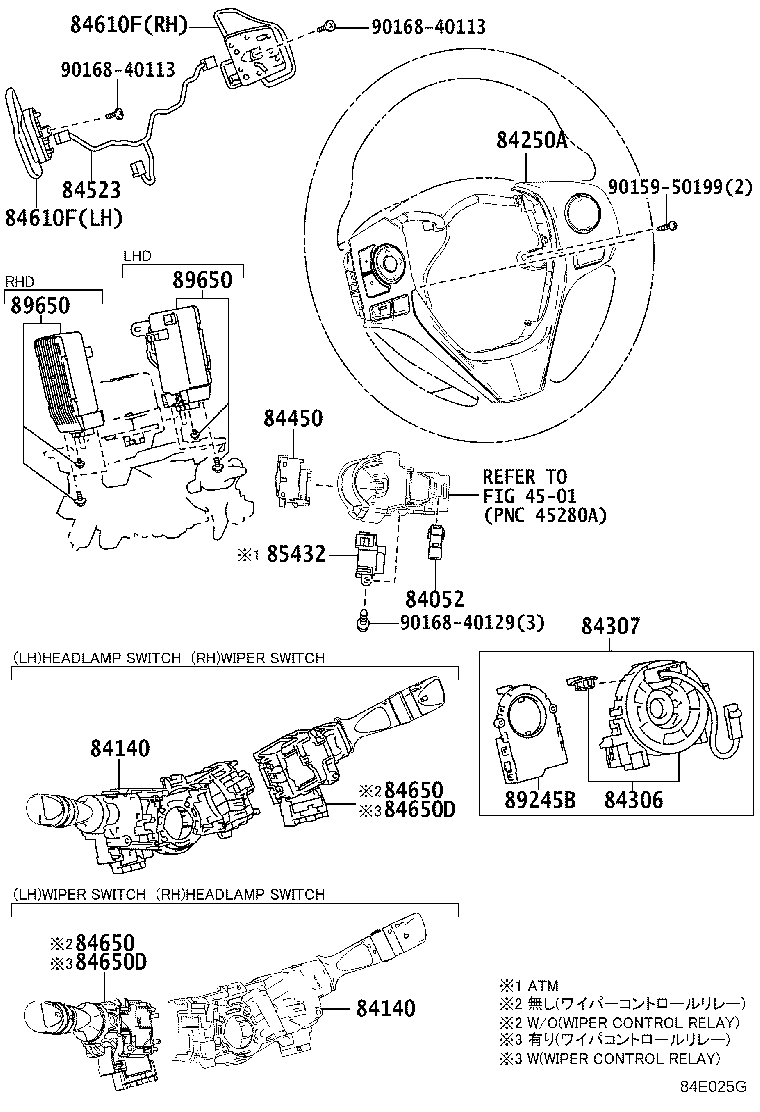

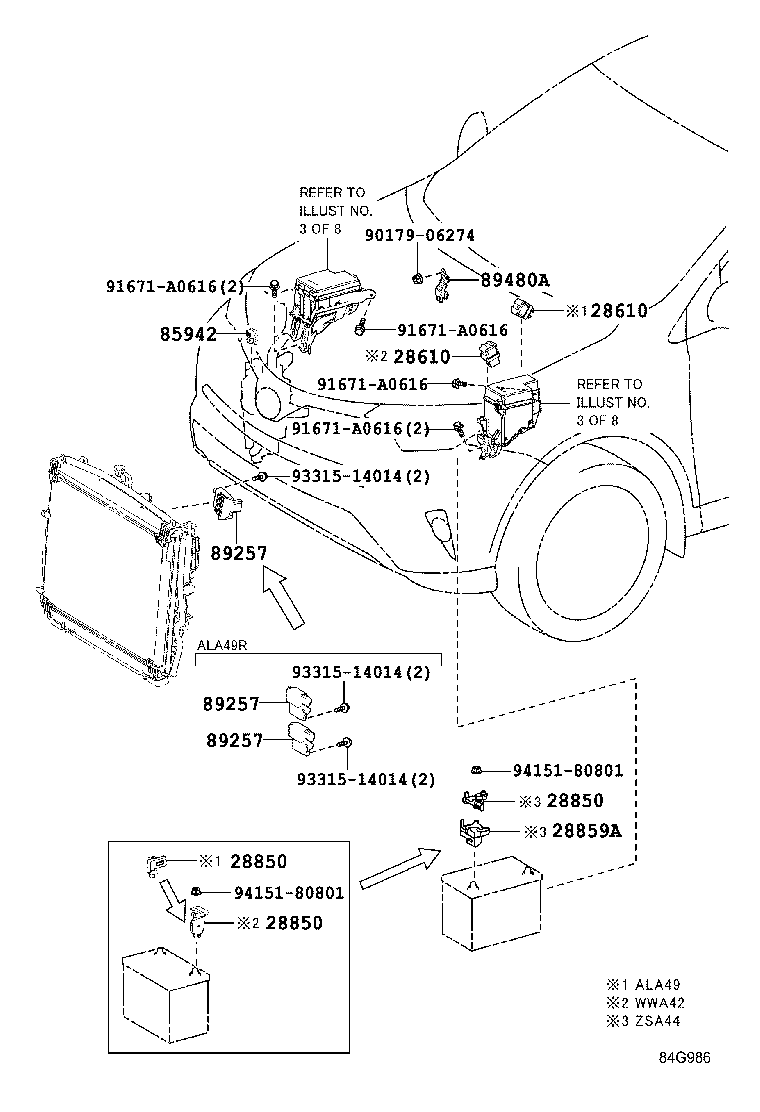

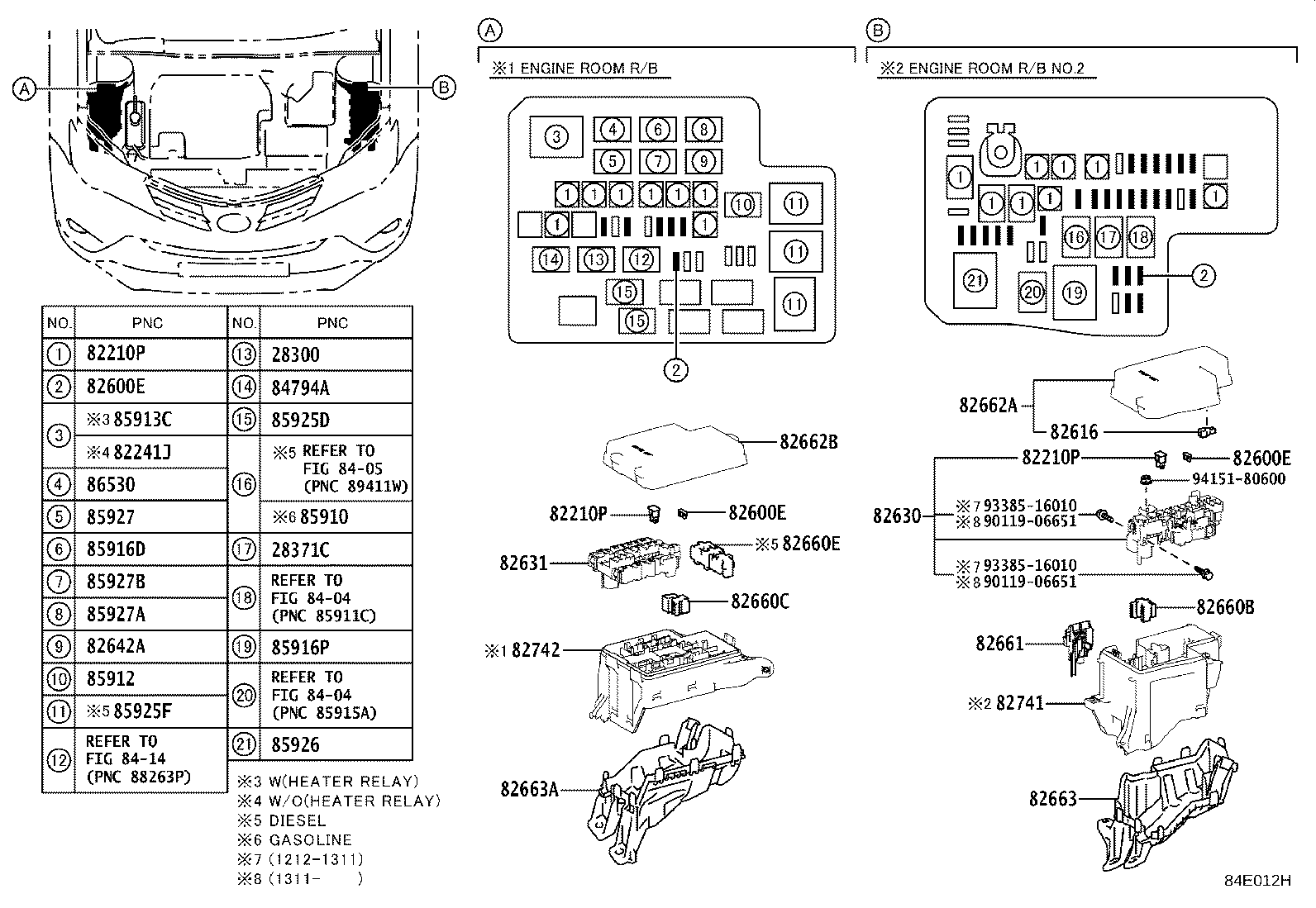

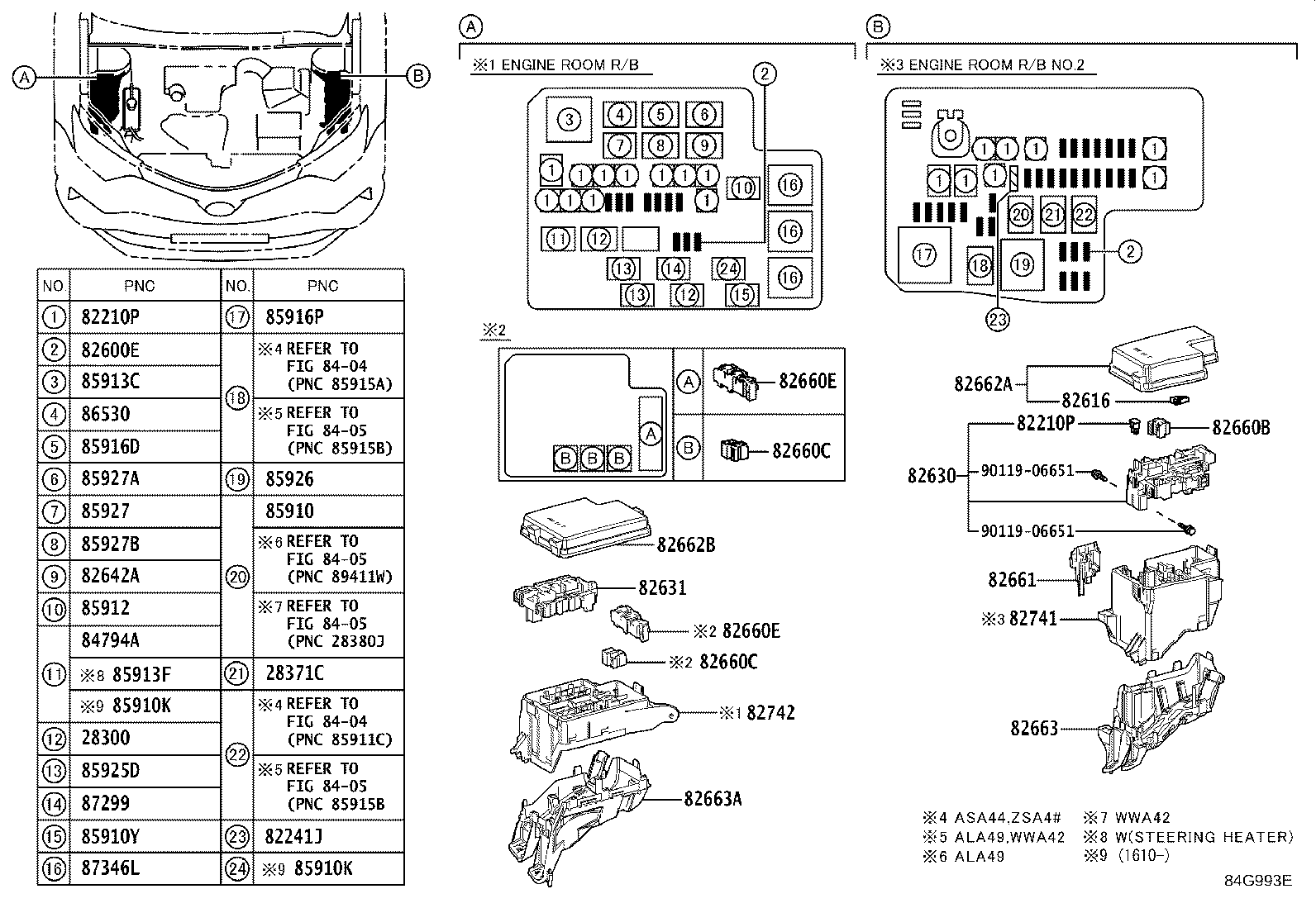

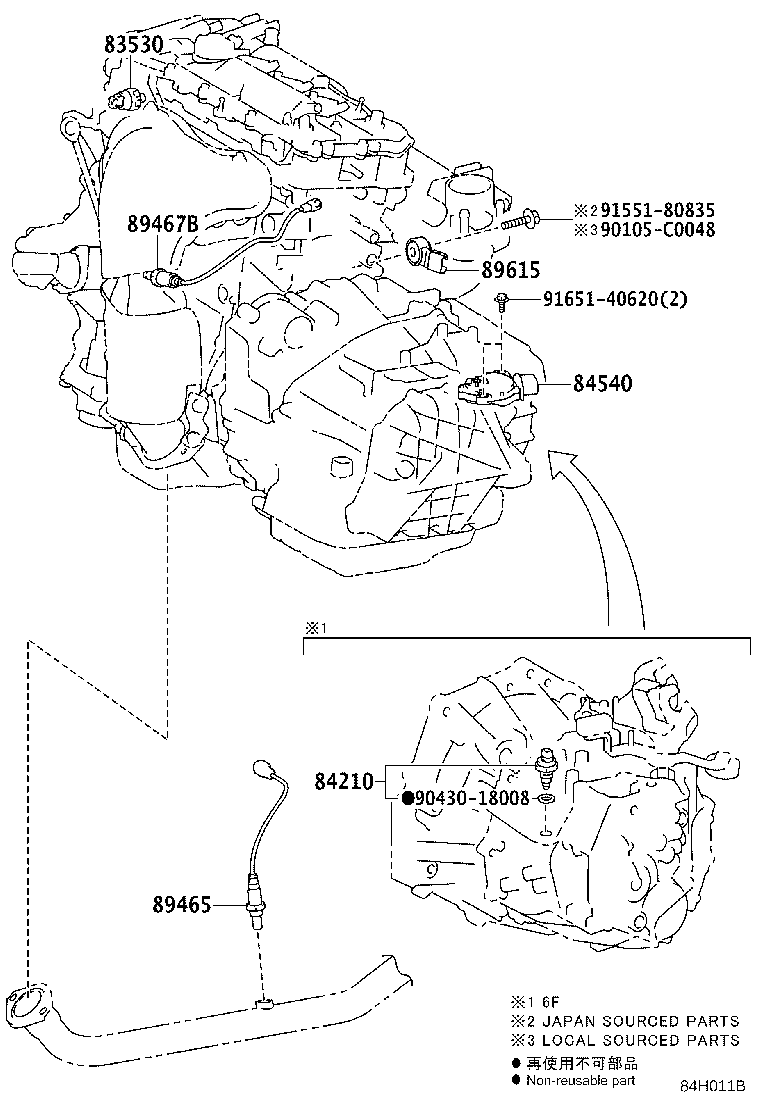

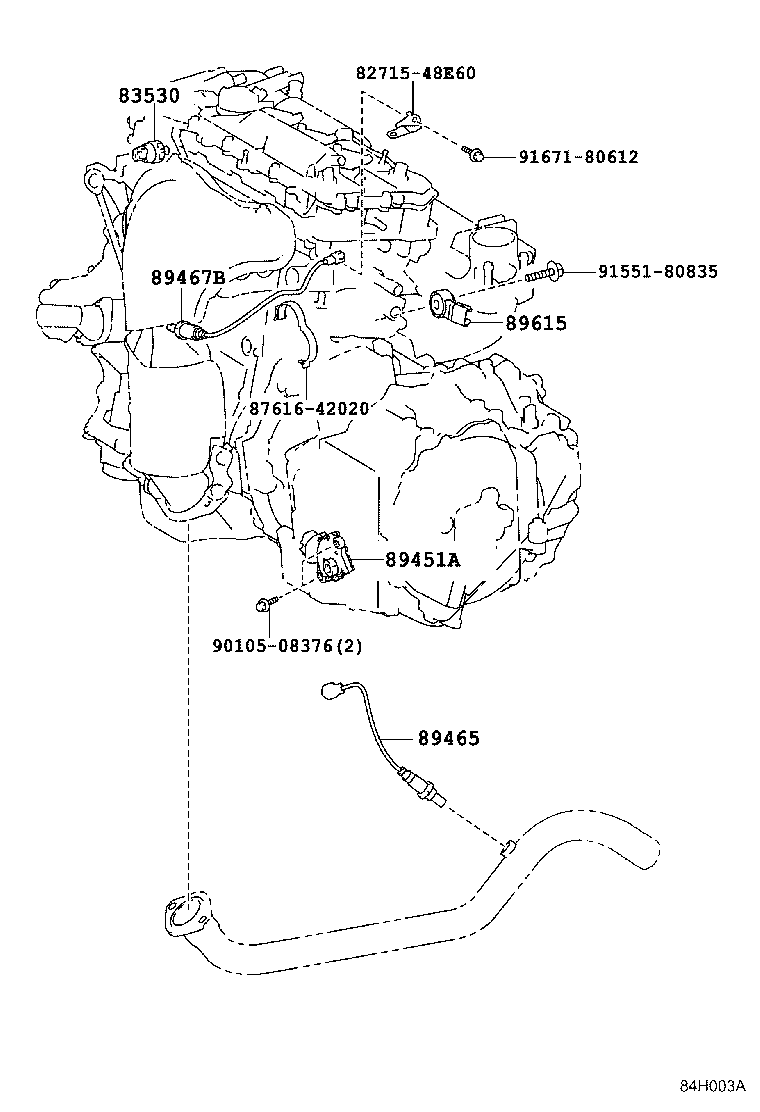

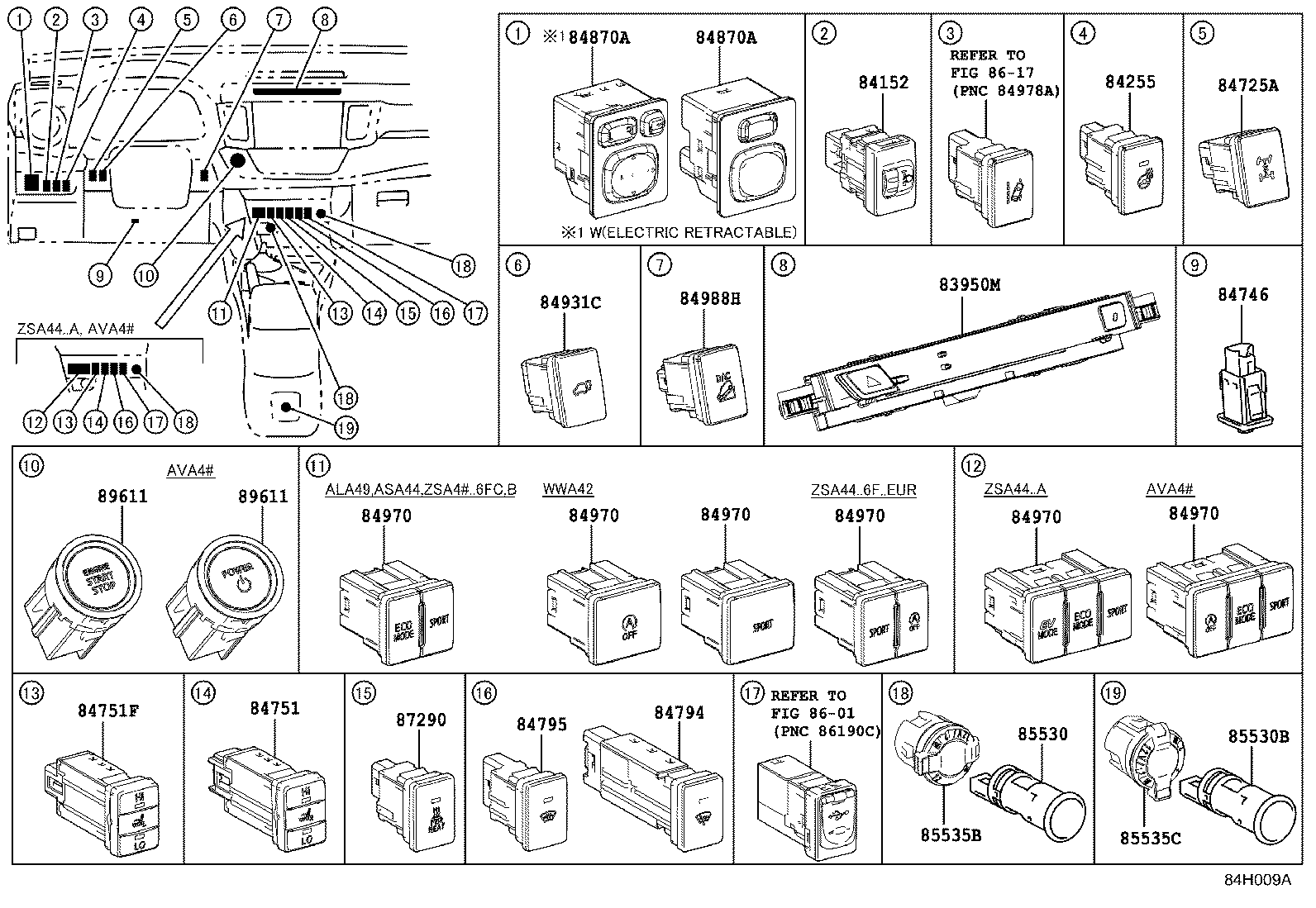

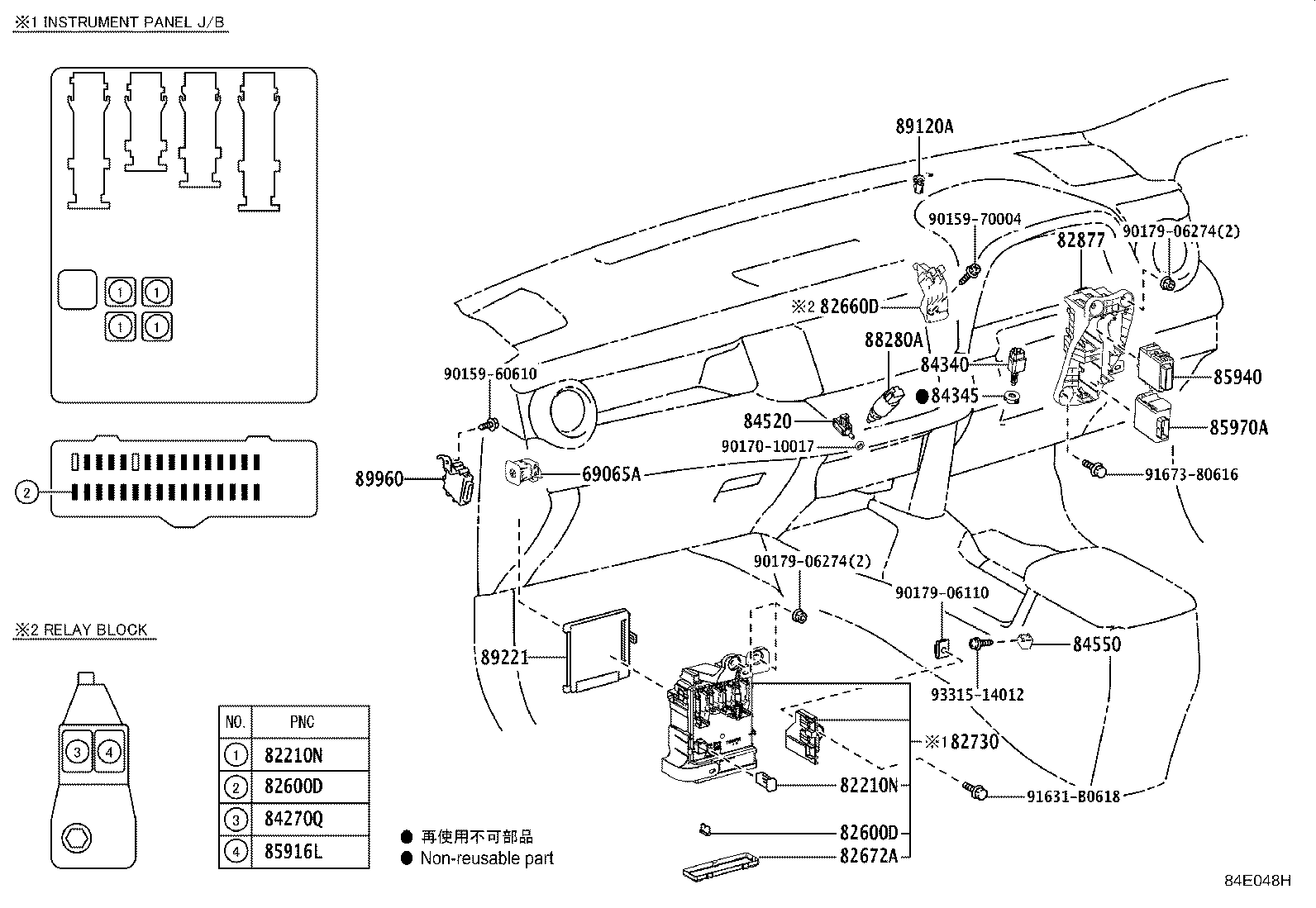

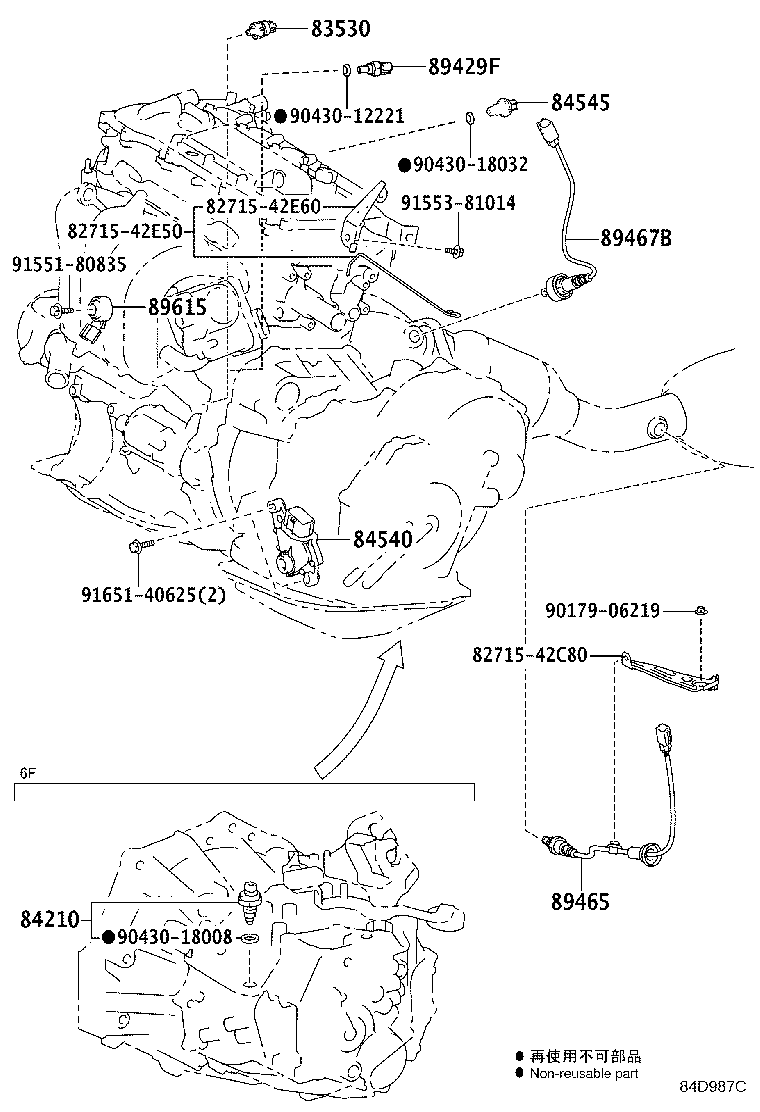

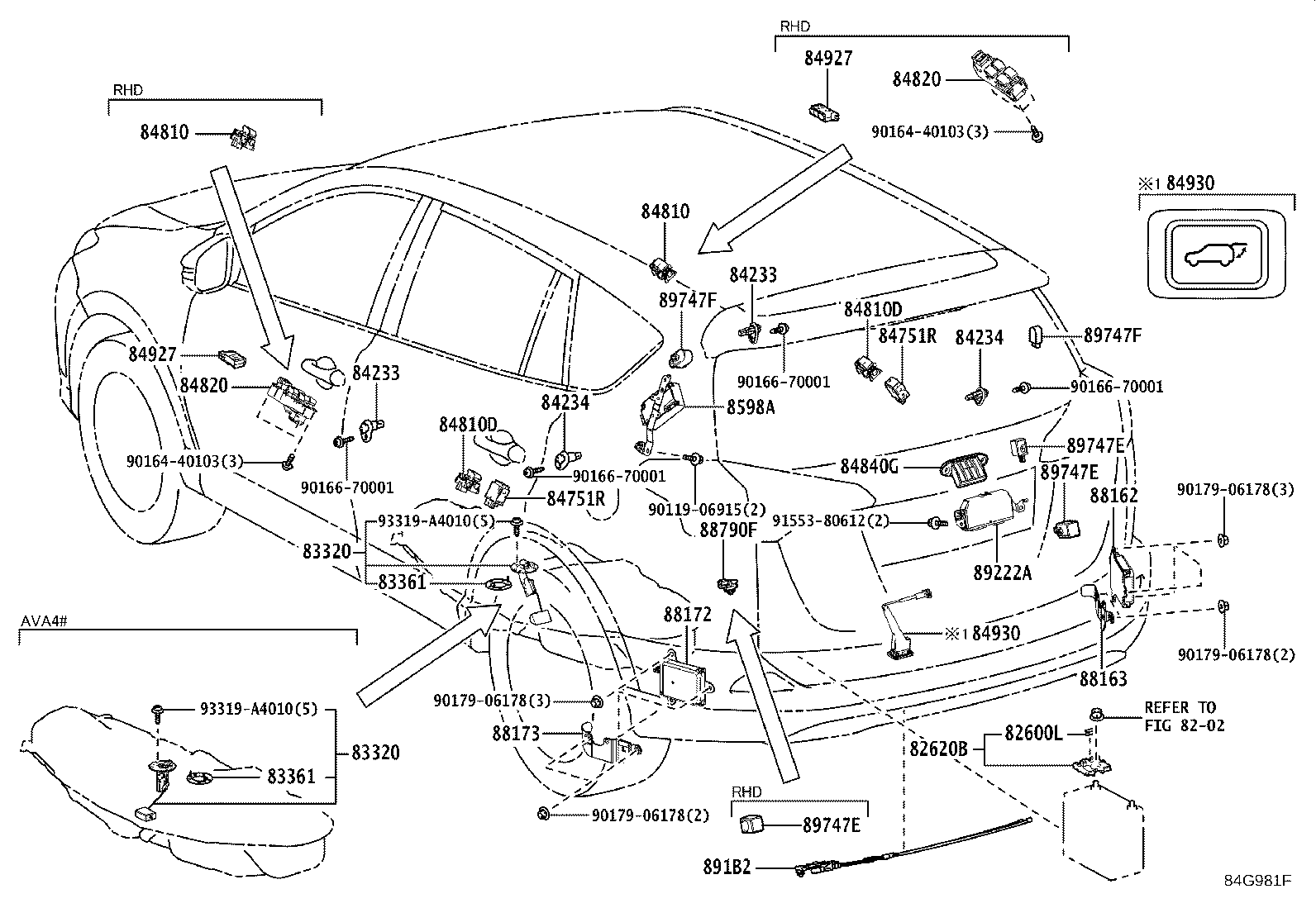

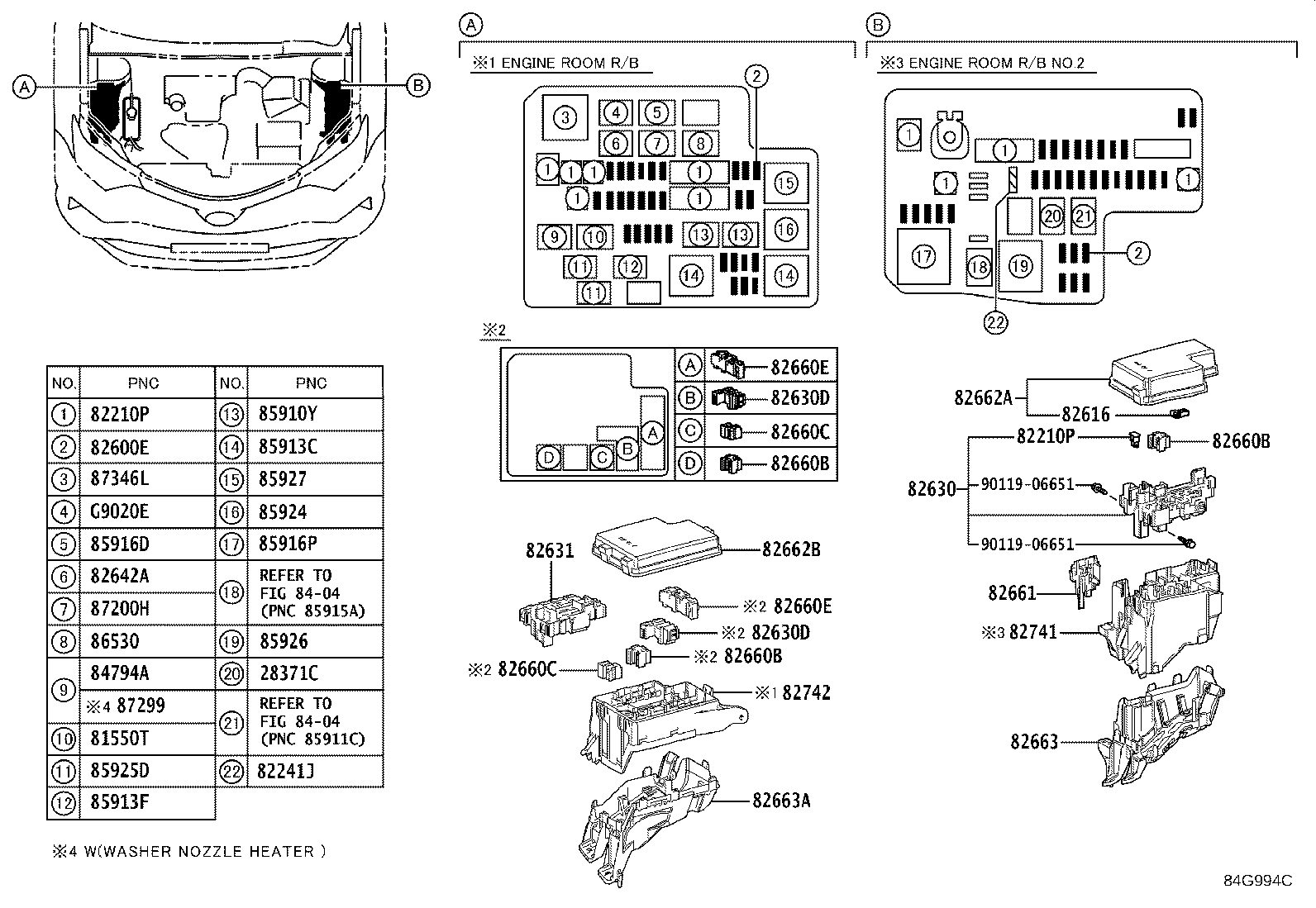

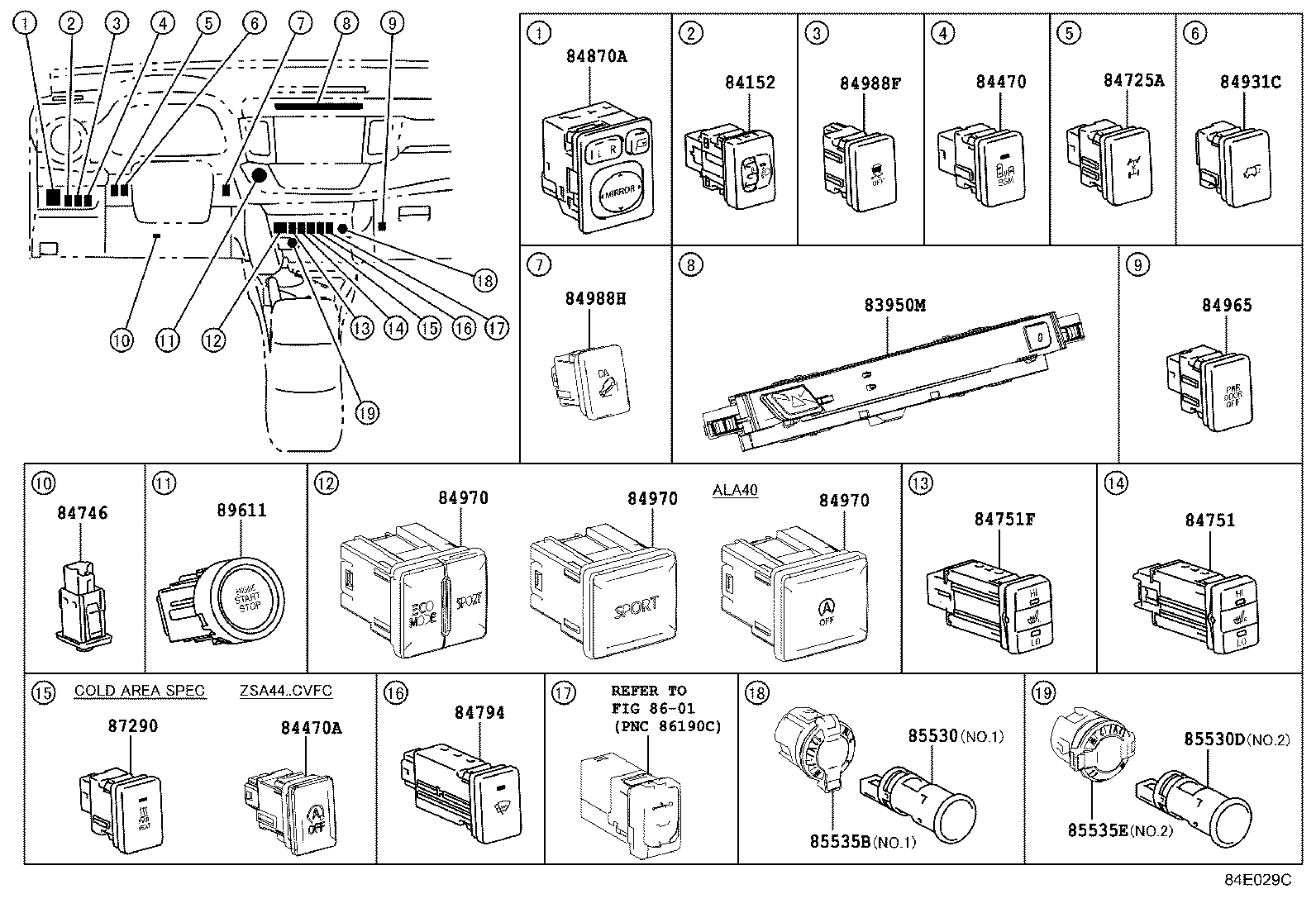

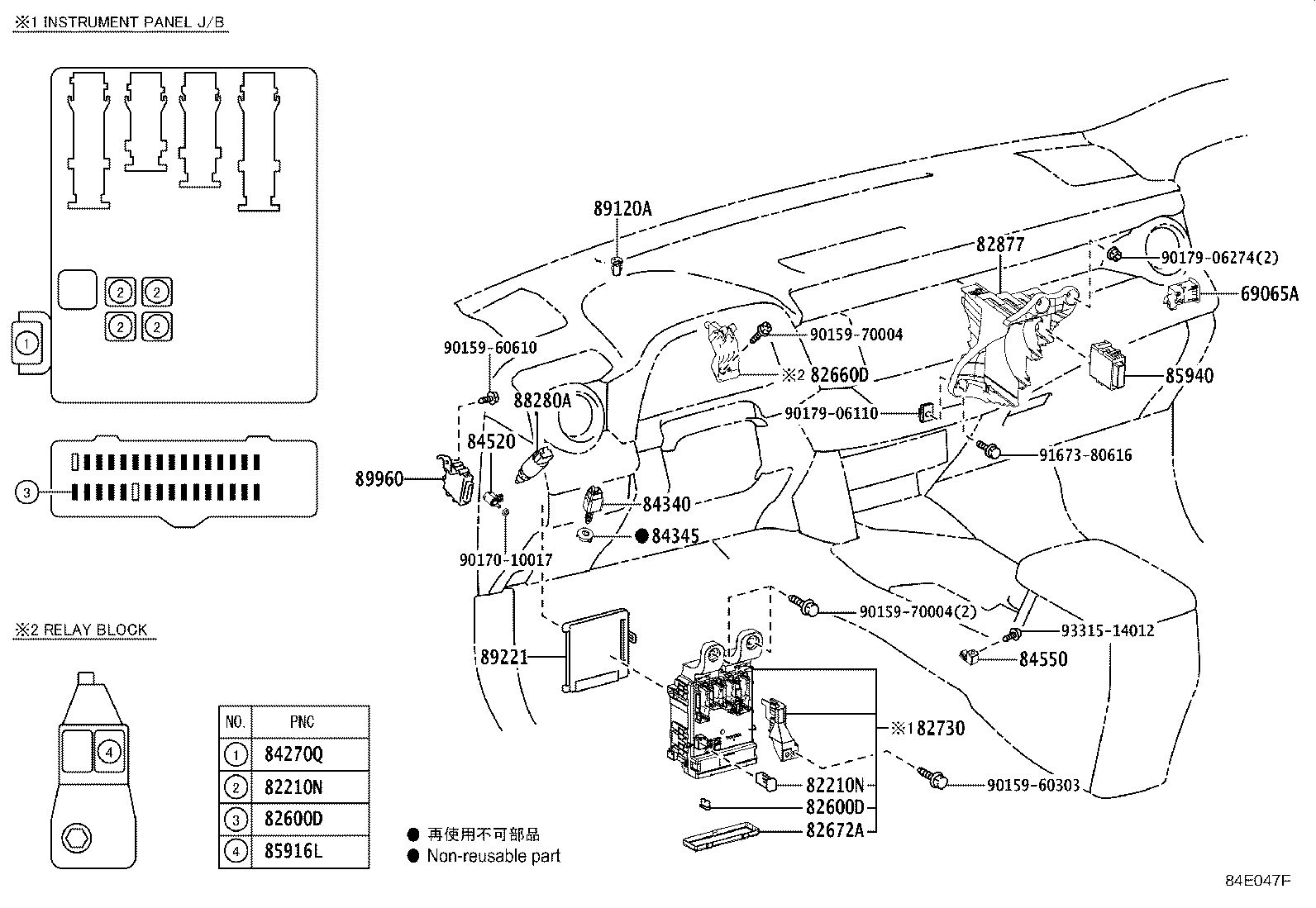

Figure 84D985B 84D985B 2012-12 → 2015-10 Figure 84D986A 84D986A 2012-12 → — Figure 84D987C 84D987C 2012-12 → — Figure 84H002C 84H002C 2015-10 → — Figure 84H003A 84H003A 2015-10 → — Figure 84H011B 84H011B 2015-10 → — Figure 84E011C 84E011C 2012-12 → 2015-04 Figure 84F933 84F933 2015-04 → 2015-10 Figure 84G986 84G986 2015-10 → — Figure 84E012H 84E012H 2012-12 → 2015-10 Figure 84G993E 84G993E 2015-10 → — Figure 84G994C 84G994C 2015-10 → — Figure 84E047F 84E047F 2012-12 → 2015-10 Figure 84G999D 84G999D 2015-10 → — Figure 84E048H 84E048H 2012-12 → 2015-10 Figure 84H001D 84H001D 2015-10 → — Figure 84E029C 84E029C 2012-12 → 2015-10 Figure 84H009A 84H009A 2015-10 → — Figure 84E030C 84E030C 2012-12 → 2015-10 Figure 84H010A 84H010A 2015-10 → — Figure 84E025G 84E025G 2012-12 → — Figure 84E052A 84E052A 2012-12 → — Figure 84E021E 84E021E 2012-12 → 2015-10 Figure 84G981F 84G981F 2015-10 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28371C Relay, Ignition, NO.2
28550 Controller Assy, Glow Plug
28551 Controller, Glow Plug
28559 Bracket, Glow Plug Controller, NO.1
28559A Bracket, Glow Plug Controller, NO.2
28610 Relay Assy, Intake Heater OR Glow Plug
28850 Sensor Assy, Battery Current
28859A Holder, Battery Current Sensor
69065A Cylinder Sub-assy, Airbag Cut Off Switch
81550T Relay, Back UP Lamp
82210N Instrument Panel Fusible Link
82210P Engine Room Fusible Link
82241J Pin, Short
82600D Instrument Panel Fuse
82600E Engine Room Fuse
82600L Luggage Room Fuse
82616 Puller, Fuse
82620B Block Assy, Fusible Link
82630 Holder Assy, Fuse
82630D Holder, Fuse
82631 Holder, Fuse
82642A Relay, Running Light
82660B Block Assy, Relay
82660C Block Assy, Relay
82660D Block Assy, Relay
82660E Block Assy, Relay
82661 Cover, Relay Block, NO.1
82662A Cover, Relay Block, Upper, NO.1
82662B Cover, Relay Block, Upper, NO.2
82663 Cover, Relay Block, Lower
82663A Cover, Relay Block, Lower, NO.2
82672A Cover, Junction Block
82730 Block Assy, Instrument Panel Junction
82741 Block, Engine Room Relay
82742 Block, Engine Room Relay, NO.2
82877 Box, Computer Integration, RH
83320 Gage Assy, Fuel Sender
83361 Gasket, Fuel Sender Gage
83520 Gage Assy,Oil Pressure Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
83950M Lamp Assy, Telltale
84052 Switch Assy, Un-lock Warning
84070 Computer & Switch Assy, Position Control
84140 Switch Assy, Headlamp Dimmer
84152 Switch, Headlamp Leveling
84210 Switch Assy, Back-up Lamp
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84250A Switch Assy, Steering Pad
84255 Switch, Steering Heater
84270Q Relay, Lamp Cut
84306 Cable Sub-assy, Spiral
84307 Cable Sub-assy, Spiral W/Sensor
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84450 Switch Assy, Ignition OR Starter
84470 Switch Assy, Warning Canceling
84470A Switch Assy, Ecorun Cancel
84520 Switch Assy, Clutch Start
84523 Wire, Switch NO.1
84540 Switch Assy, Neutral Start
84545 Switch, Neutral Position
84550 Switch Assy, Parking Brake
84610F Switch Assy, Transmission Shift
84650 Switch Assy, Windshield Wiper
84650D Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84725A Switch, Differential Lock
84746 Switch, Tire Pressure Warning
84751 Switch, Seat Heater
84751F Switch, Seat Heater
84751R Switch, Seat Heater(REAR)
84794 Switch, FR Wiper Deicer
84794A Relay, FR Wiper Deicer
84795 Switch, Front Window Deicer
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84820 Master Switch Assy, Power Window Regulator
84840G Switch Assy, Back Door Opener
84870A Switch Assy, Outer Mirror
84920 Switch Assy, Power Seat
84921A Knob, Power Seat Switch (FOR RECLINING)
84921B Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
84922 Switch, Front Power Seat
84927 Switch, Seat Memory
84930 Switch Assy, Door Control
84931C Switch, Back Door Control
84965 Switch, Power Back Door Main
84970 Switch Assy, Combination
84988F Switch, Traction Control
84988H Switch, Downhill Assist Control
85432 Solenoid, Key Interlock
85530 Socket Assy, Power Outlet, NO.1
85530B Socket Assy, Power Outlet, Rear NO.1
85530D Socket Assy, Power Outlet, NO.2
85535B Cover, Power Outlet Socket, NO.1
85535C Cover, Power Outlet Socket, Rear
85535E Cover, Power Outlet Socket, NO.2
85910 Relay Assy, Circuit Opening
85910K Relay, Rear Seat Heater
85910Y Relay, Rear Heater
85912 Relay, Defogger
85913C Relay, Heater, NO.1
85913F Relay, Steering Heater
85916D Relay, Fog Lamp
85916L Relay, Rear Fog Lamp
85916P Relay, Headlamp
85924 Relay, Ignition Control
85925D Relay, Ptc Heater
85925F Relay, Ptc Heater NO.2
85926 Relay, Headlamp Dimmer
85927 Relay, Cooling Fan
85927A Relay, Cooling Fan, NO.2
85927B Relay, Cooling Fan, NO.3
85940 Relay Assy, Windshield Wiper
85942 Relay, Headlamp Cleaner Control
85970A Relay Assy, Double Lock Door Control
8598A Battery, Door Control
86530 Relay Assy, Horn
87200H Relay, Heater Water Pump
87290 Switch Assy, Heater
87299 Relay, Heater
87346L Relay, Ptc Heater
88150A Computer Assy, Driving Support
88162 Sensor, Blind Spot Monitor, RH
88163 Cover, Blind Spot Monitor, RH
88172 Sensor, Blind Spot Monitor, LH
88173 Cover, Blind Spot Monitor, LH
88280A Switch Assy, Clutch
88790F Thermistor Assy
89111 Computer, Network Gateway
89120A Sensor, Automatic Light Control
891B2 Sensor, Kick Door Control
89221 Computer, Multiplex Network Body
89222A Computer, Multiplex Network Door
89245B Sensor, Steering
89257 Computer, Cooling Fan
89425 Sensor, Exhaust Gas Temperature
89425A Sensor, Exhaust Gas Temperature, NO.2
89425B Sensor, Exhaust Gas Temperature, NO.3
89429F Sensor, Temperature
89451A Sensor, Shift Lever Position
89465 Sensor, Oxygen
89467B Sensor, Air Fuel Ratio
89467C Sensor, Air Fuel Ratio, NO.2
89480A Sensor Assy, Differential Pressure
89481B Sensor, Differential Pressure
89491 Sensor, Engine Oil Level
89530C Computer Assy, Transmission Control
895A0A Computer Assy, Stop Lamp Control
89611 Switch, Push Start
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
89747E Buzzer, Power Back Door Warning
89747F Buzzer, Blind Spot Monitor
89960 Computer Assy, Headlamp Leveling
G9020E Relay, Hybrid Water Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
