Electronic Controled Diesel (ECD)

14 part groups · 3 illustrations

Illustrations

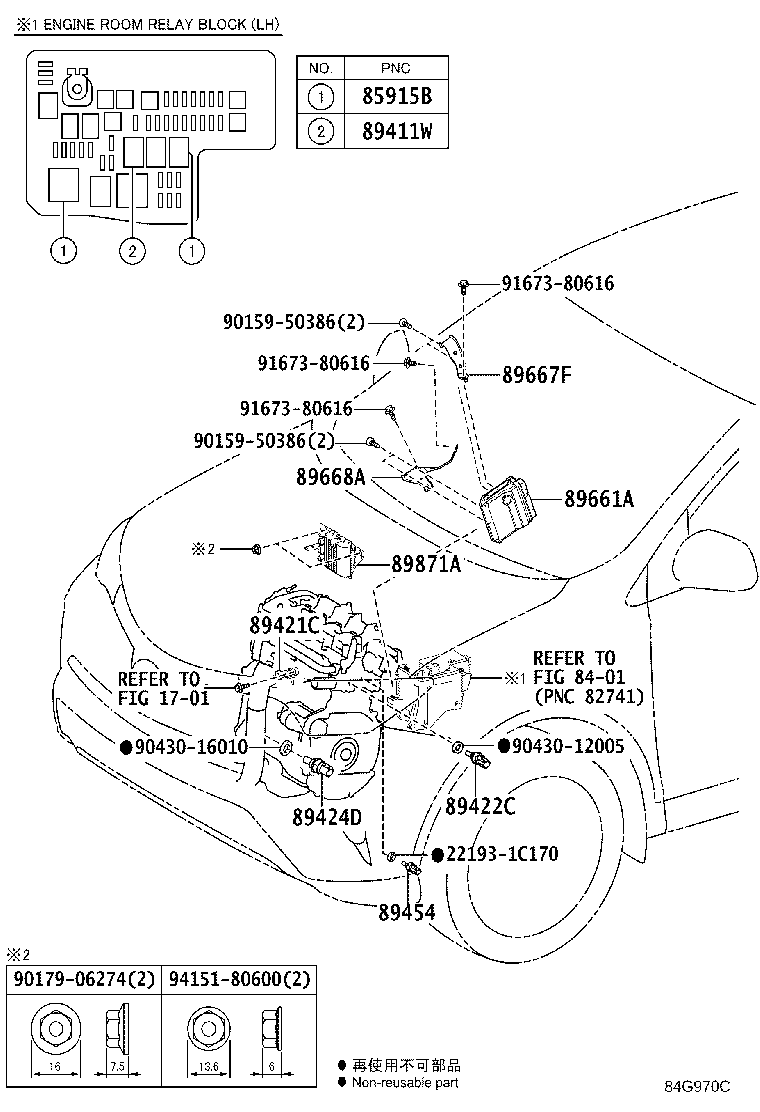

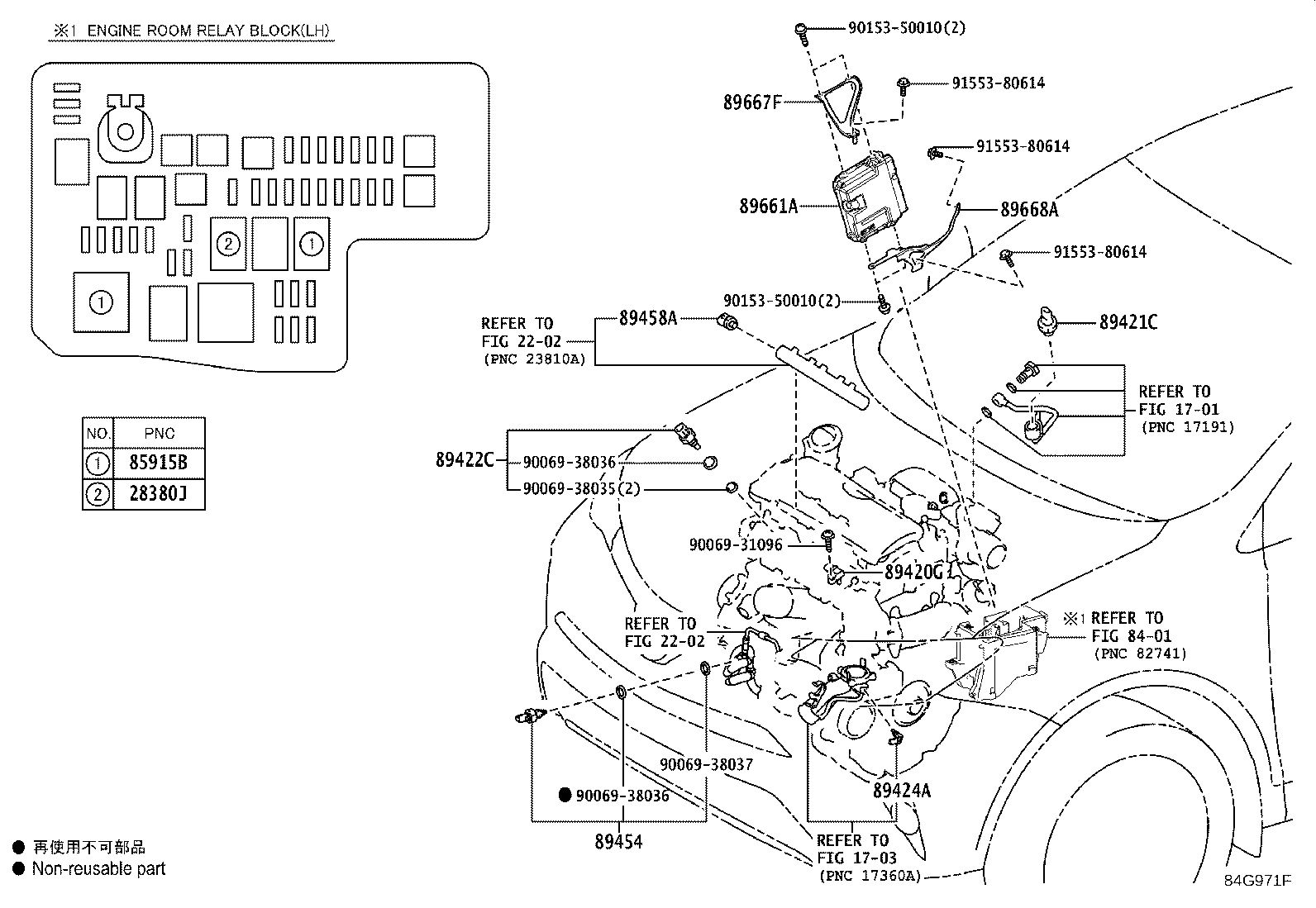

Figure 84E003D 84E003D 2012-12 → 2015-10 Figure 84G970C 84G970C 2015-10 → — Figure 84G971F 84G971F 2015-10 → —

Part groups

PNCDescription
28380J Relay, Fuel Pump
85915B Relay, Main (FOR DIESEL TURBO)
89411W Relay, Electronic Driver Unit
89420G Sensor Assy, Turbo Pressure
89421C Sensor, Turbo Pressure (FOR DIESEL TURBO)
89422C Sensor, Diesel Engine Water Temperature
89424A Sensor, Inlet Air Temperature (FOR DIESEL TURBO)
89424D Sensor, Inlet Air Temperature
89454 Sensor, Fuel Temperature
89458A Sensor, Fuel Pressure
89661A Computer, Engine Control
89667F Bracket, Engine Control Computer, NO.1
89668A Bracket, Engine Control Computer, NO.2
89871A Driver, Injector
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
