Toyota RAV4

2012-12 → 2019-09 · chassis ALA4#,ASA44,AVA4#,WWA42,ZSA4# · catalogue 662540 · Europe

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

14 part groups · 2 illustrations

Illustrations

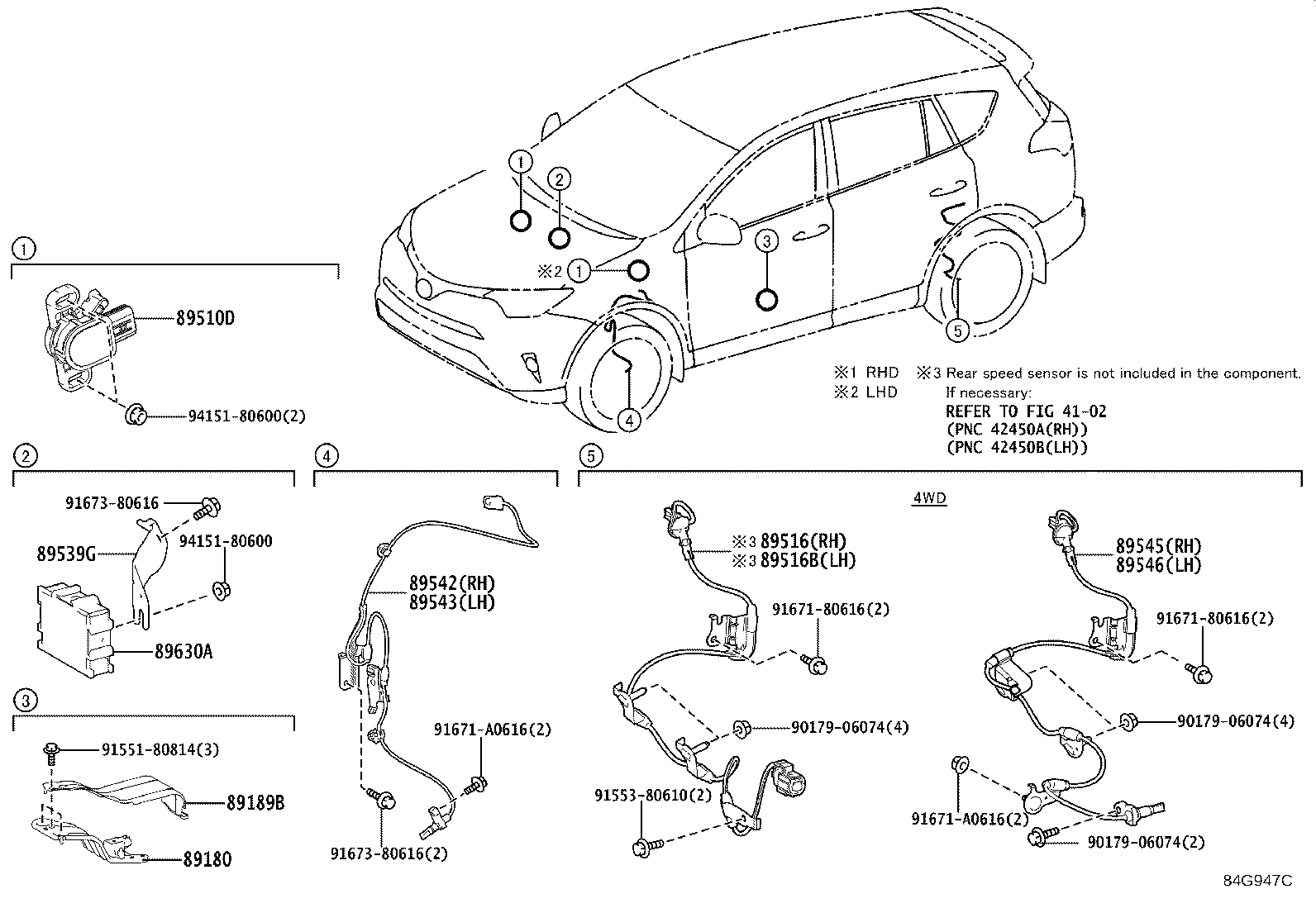

Figure 84D997E 84D997E 2012-12 → 2015-10 Figure 84G947C 84G947C 2015-10 → —

Part groups

PNCDescription
86652A Buzzer Assy, Skid Control
88263P Relay, Stop Lamp Control
89180 Sensor Assy, Yawrate
89189B Bracket, Yawrate Sensor
89510D Sensor Assy, Brake Pedal Stroke
89516 Wire, Skid Control Sensor
89516B Wire, Skid Control Sensor
89539G Bracket, Computer
89542 Sensor, Speed, Front RH
89543 Sensor, Speed, Front LH
89545 Sensor, Speed, Rear RH
89546 Sensor, Speed, Rear LH
89630A Computer Assy, 4WD
89634D Bracket, Skid Control Computer NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
