Toyota RAV4
2012-12 → 2019-09 · chassis ALA4#,ASA44,AVA4#,WWA42,ZSA4# · catalogue 662540 · Europe
Supported model
Data version 2019-09

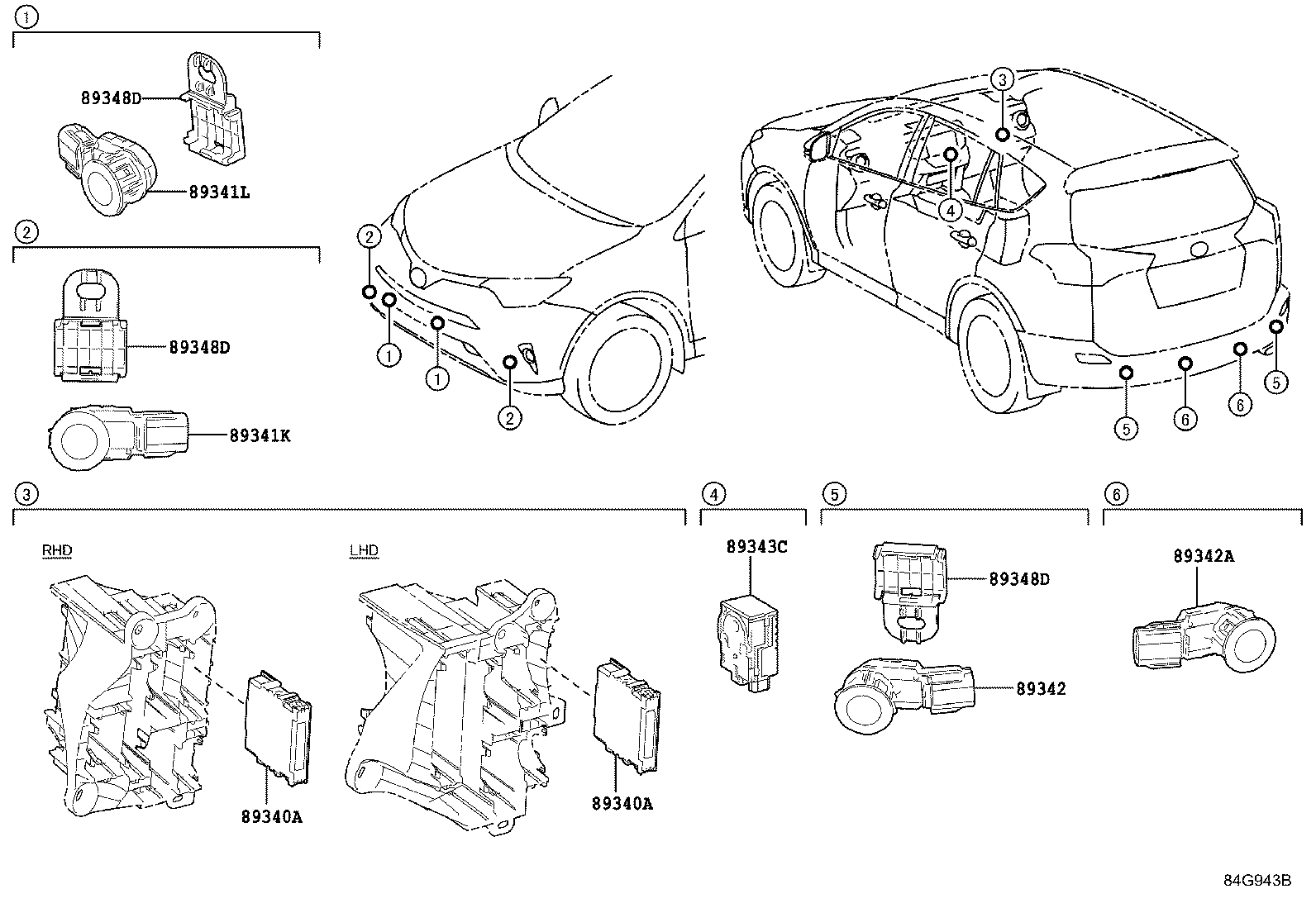

Clearance & Back Sonar
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 89340A | Computer Assy, Clearance Warning |
| 89341C | Sensor, Ultrasonic, NO.3 |
| 89341K | Sensor, Ultrasonic, Front Corner |
| 89341L | Sensor, Ultrasonic, Front Center |
| 89342 | Sensor, Ultrasonic, Rear Corner |
| 89342A | Sensor, Ultrasonic, Rear Center |
| 89343C | Buzzer, Clearance Warning, NO.1 |
| 89348D | Clip, Ultrasonic Sensor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
