Toyota RAV4

2012-12 → 2019-09 · chassis ALA4#,ASA44,AVA4#,WWA42,ZSA4# · catalogue 662540 · Europe

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Washer

21 part groups · 8 illustrations

Illustrations

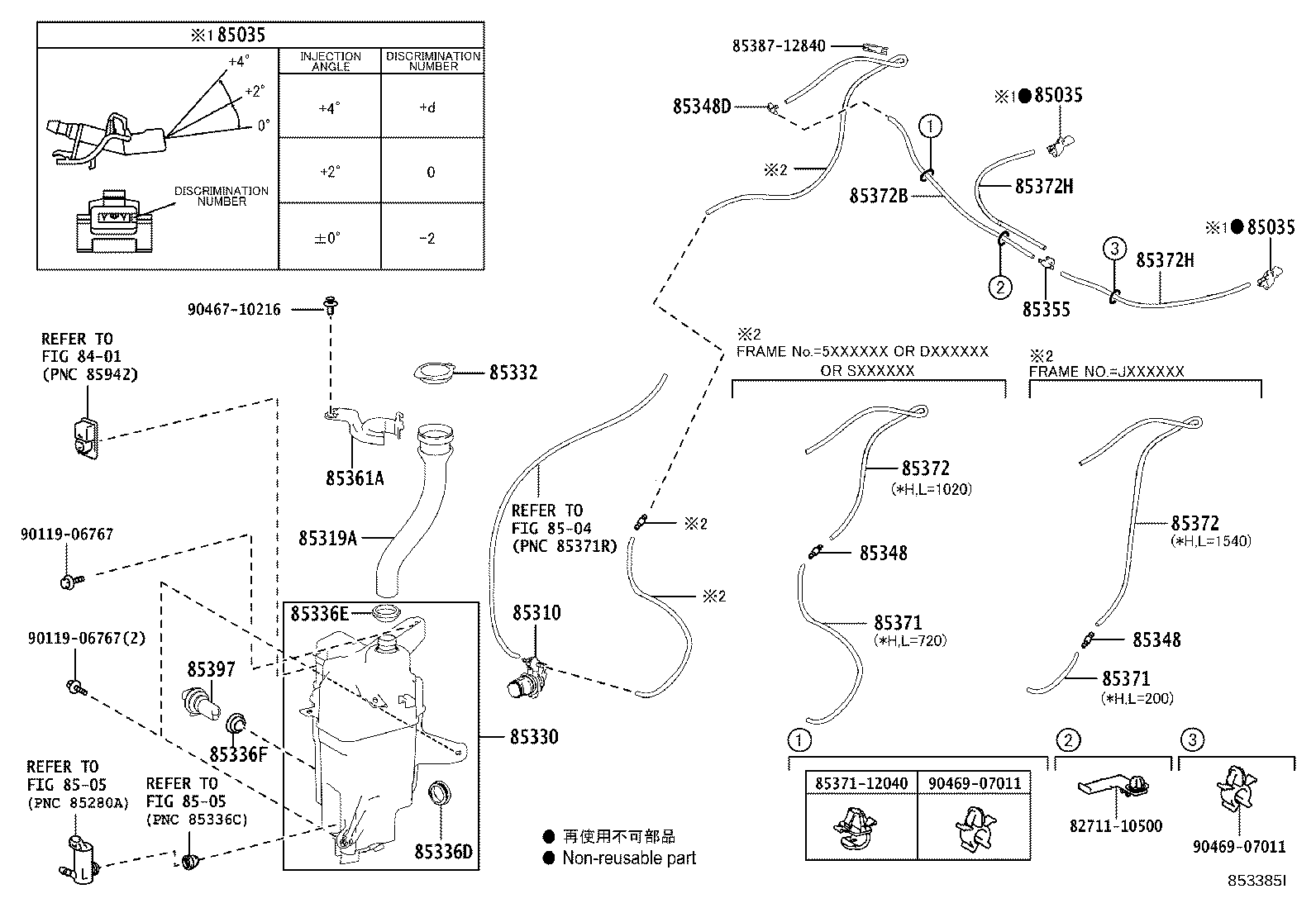

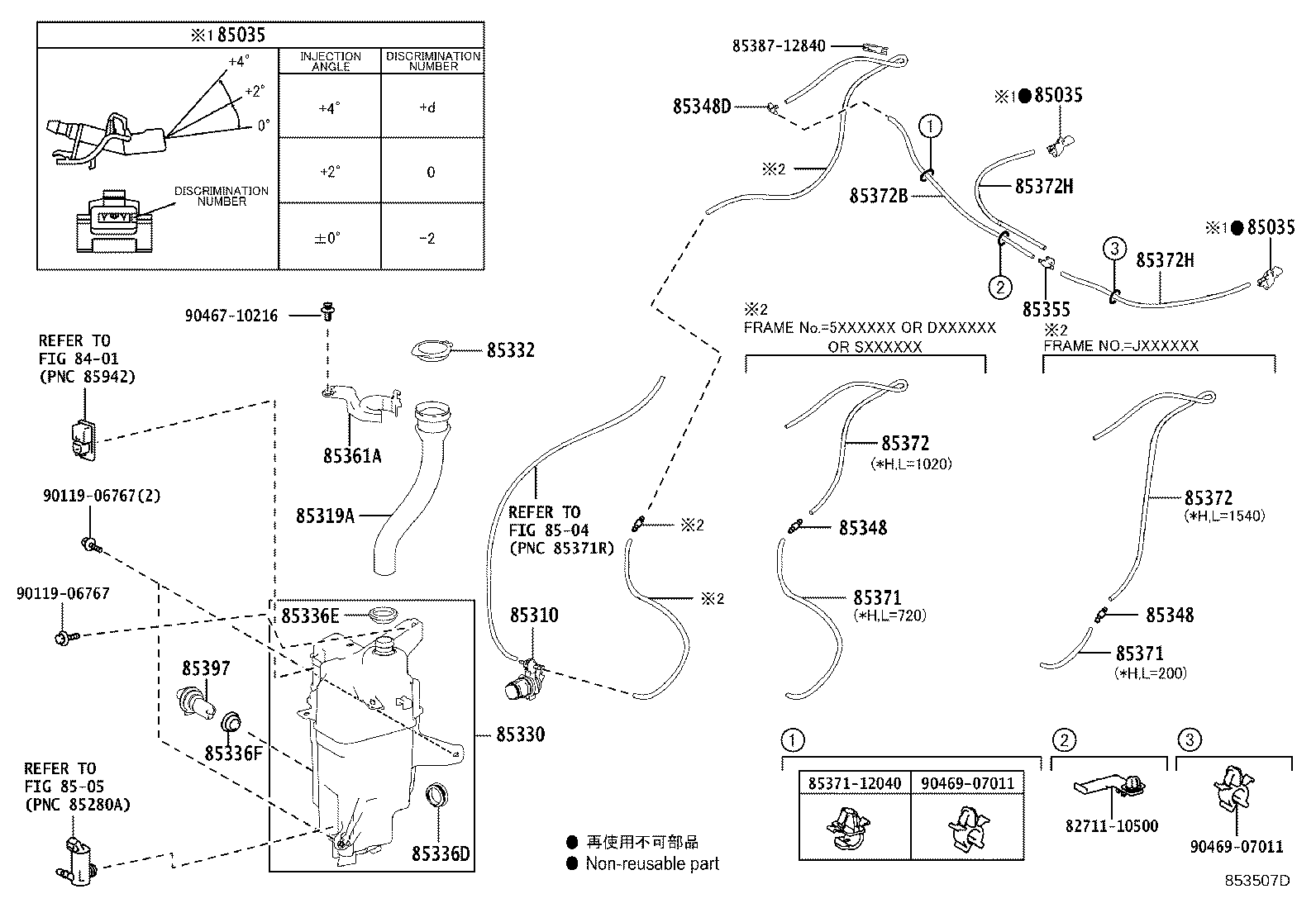

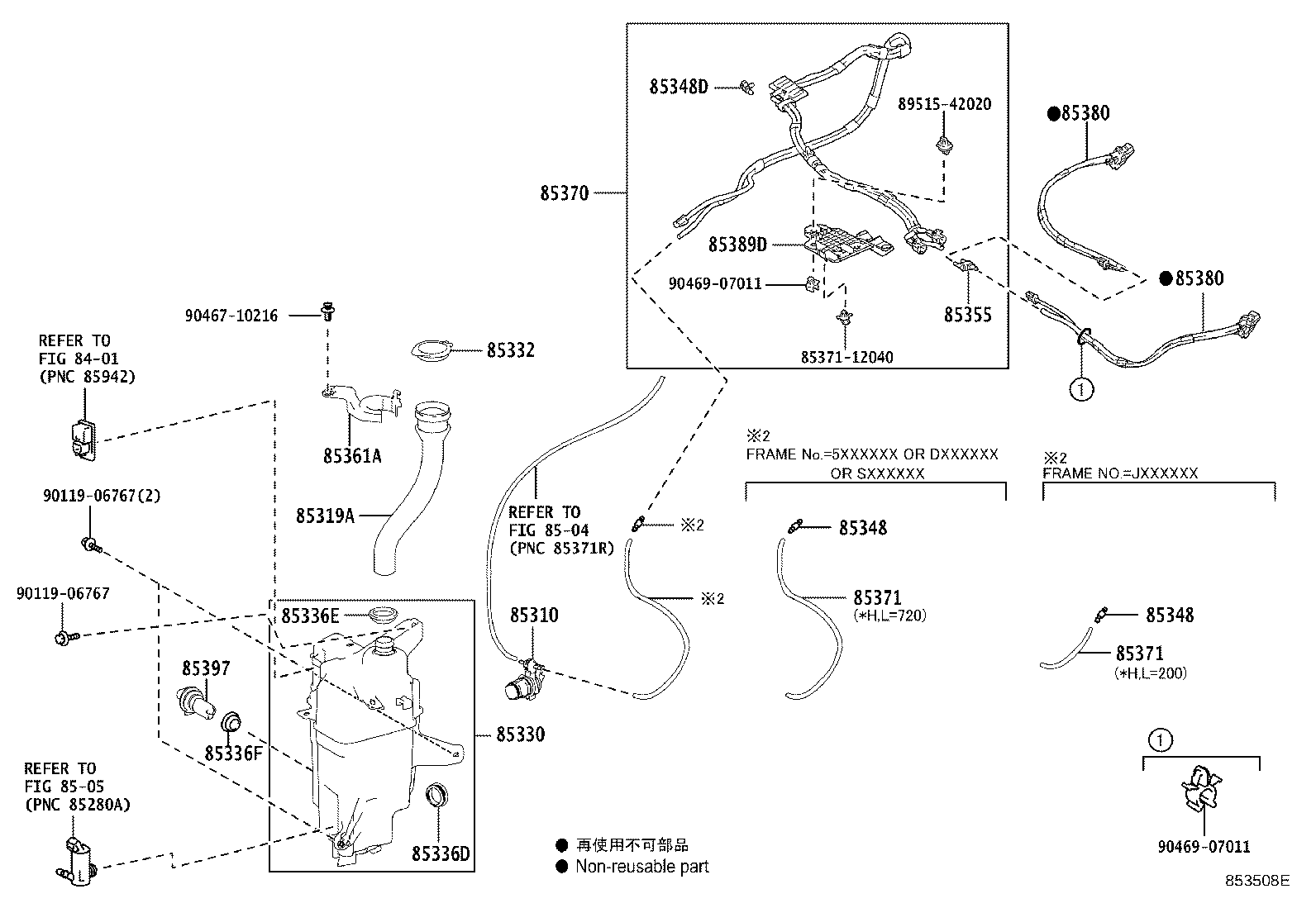

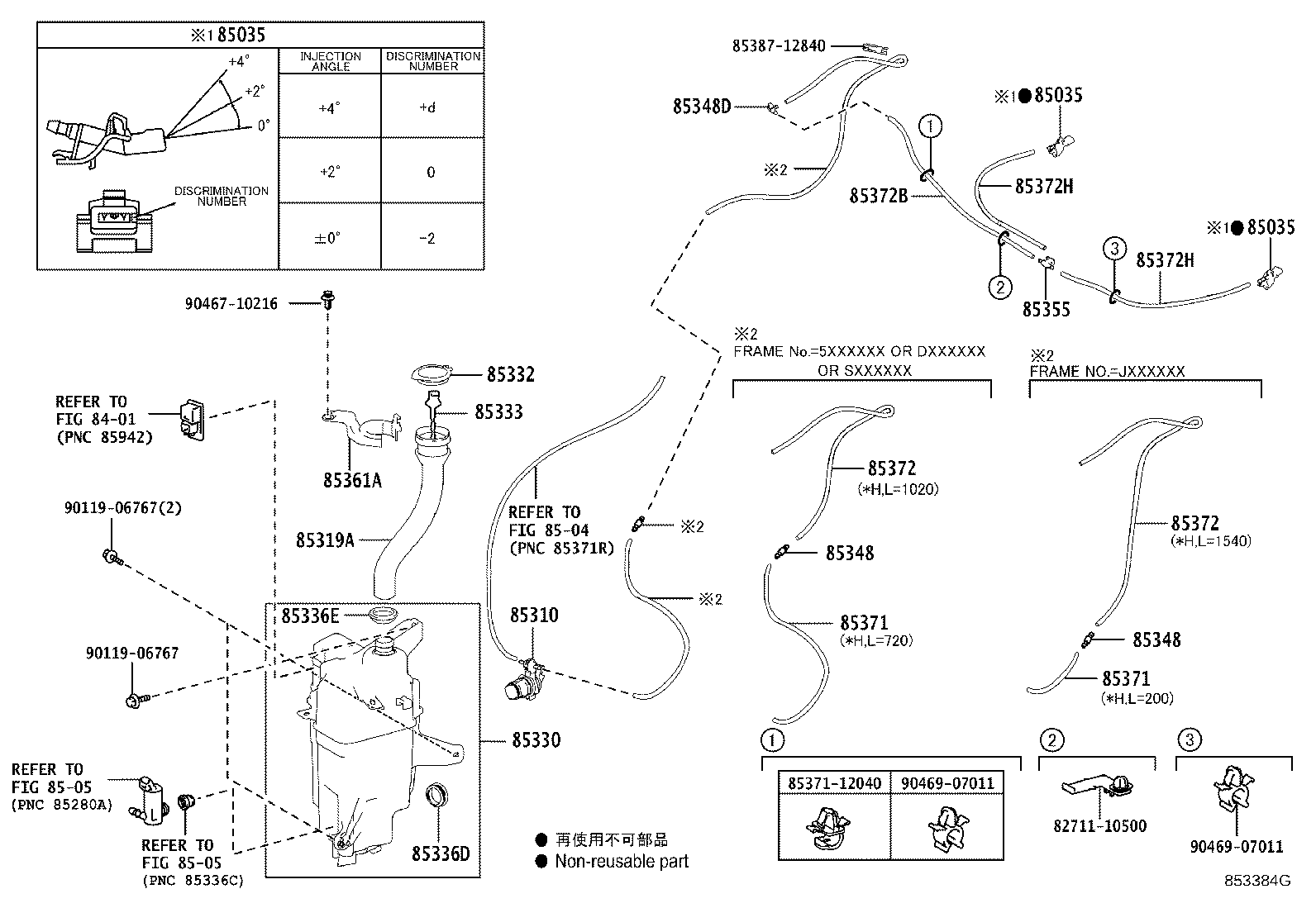

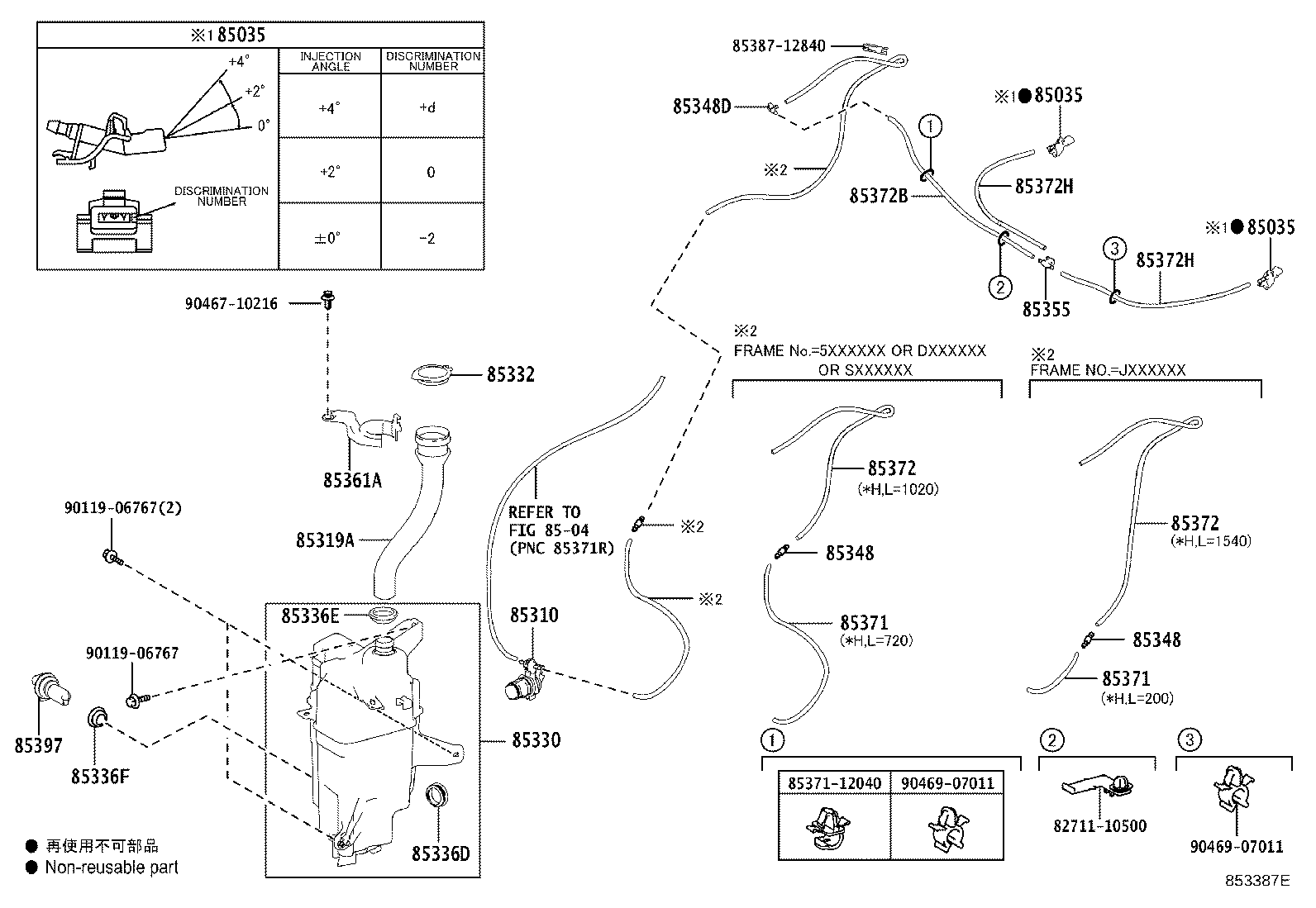

Figure 853389E 853389E 2012-12 → — Figure 853387E 853387E 2014-10 → 2015-10 Figure 853384G 853384G 2012-12 → 2015-10 Figure 853385I 853385I 2014-10 → 2015-10 Figure 853507D 853507D 2015-10 → — Figure 853507D 853507D 2016-10 → — Figure 853508E 853508E 2015-10 → — Figure 853508E 853508E 2016-10 → —

Part groups

PNCDescription
85035 Nozzle Sub-assy, Washer
85310 Motor And Pump Assy, Windshield Washer
85319A Hose, Inlet
85330 Jar Assy, Windshield Washer
85332 Cap, Windshield Washer Jar
85333 Filter, Windshield Washer Jar
85336D Packing, Windshield Washer Jar
85336E Packing, Windshield Washer Inlet Hose
85336F Packing, Windshield Washer Jar
85348 Joint, Windshield Washer Hose, NO.1
85348D Joint, Windshield Washer Elbow, NO.1
85355 Valve, Windshield Washer Hose
85361A Bracket, Windshield Washer, NO.1
85370 Hose Assy, Windshield Washer
85371 Hose, Windshield Washer (FROM MOTOR TO JOINT)
85372 Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
85372B Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2
85372H Hose, Windshield Washer (FROM JOINT TO JOINT), NO.3
85380 Nozzle & Hose Assy, FR Washer
85389D Spring(WASHER HOSE)
85397 Switch Assy,Level Warning
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
