Toyota RAV4

2012-12 → 2019-09 · chassis ALA4#,ASA44,AVA4#,WWA42,ZSA4# · catalogue 662540 · Europe

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp Cleaner

17 part groups · 2 illustrations

Illustrations

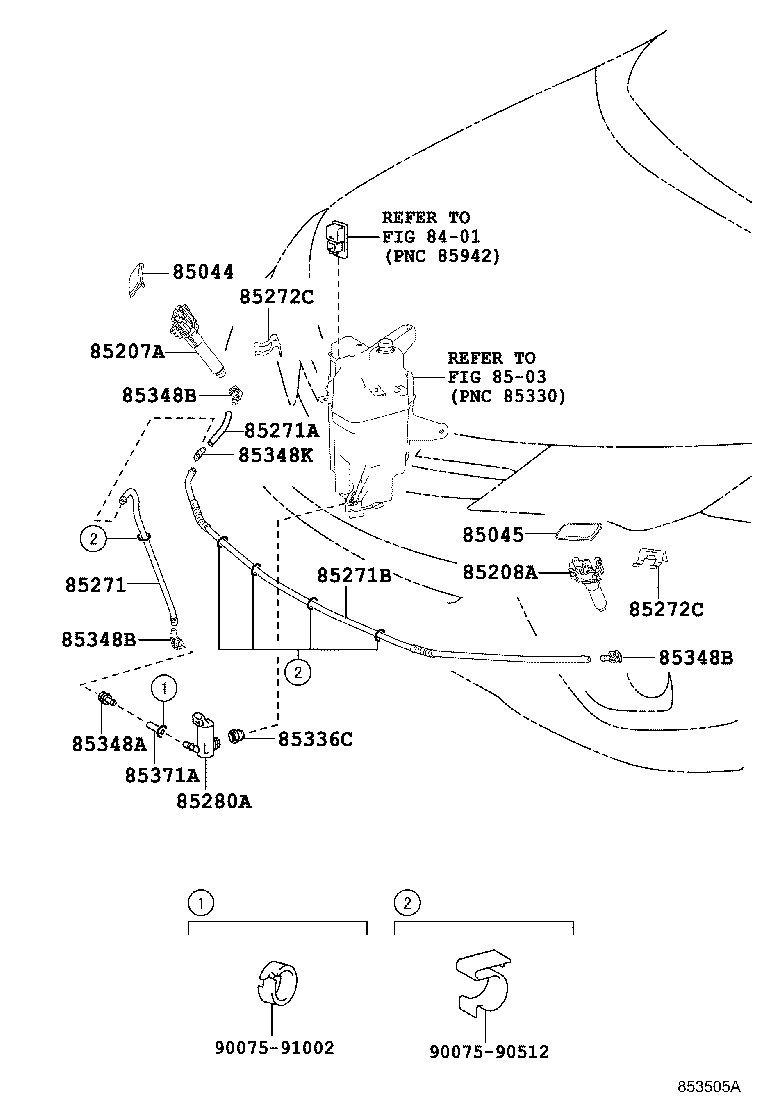

Figure 852983B 852983B 2012-12 → 2015-10 Figure 853505A 853505A 2015-10 → —

Part groups

PNCDescription
85044 Nozzle Sub-assy, TYPE1 H/Lamp Washer, RH
85045 Nozzle Sub-assy, TYPE1 H/Lamp Washer, LH
85207A Actuator Sub-assy, Headlamp Washer, RH
85208A Actuator Sub-assy, Headlamp Washer, LH
85271 Hose, Headlamp Cleaner, NO.1
85271A Hose, Headlamp Cleaner, NO.2
85271B Hose, Headlamp Cleaner, NO.3
85272A Clamp, Headlamp Cleaner, NO.1
85272B Clamp, Headlamp Cleaner, NO.2
85272C Clamp, Headlamp Cleaner, NO.3
85280A Motor And Pump Assy, Headlamp Cleaner
85336C Packing, Headlamp Cleaner Motor
85348A Joint, Headlamp Cleaner Hose, NO.1
85348B Joint, Headlamp Cleaner Hose, NO.2
85348C Joint, Headlamp Cleaner Hose, NO.3
85348K Joint, Headlamp Cleaner Elbow, NO.1
85371A Hose, Headlamp Cleaner(FROM MOTOR TO JOINT)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
