Toyota RAV4
2012-12 → 2019-09 · chassis ALA4#,ASA44,AVA4#,WWA42,ZSA4# · catalogue 662540 · Europe
Supported model
Data version 2019-09

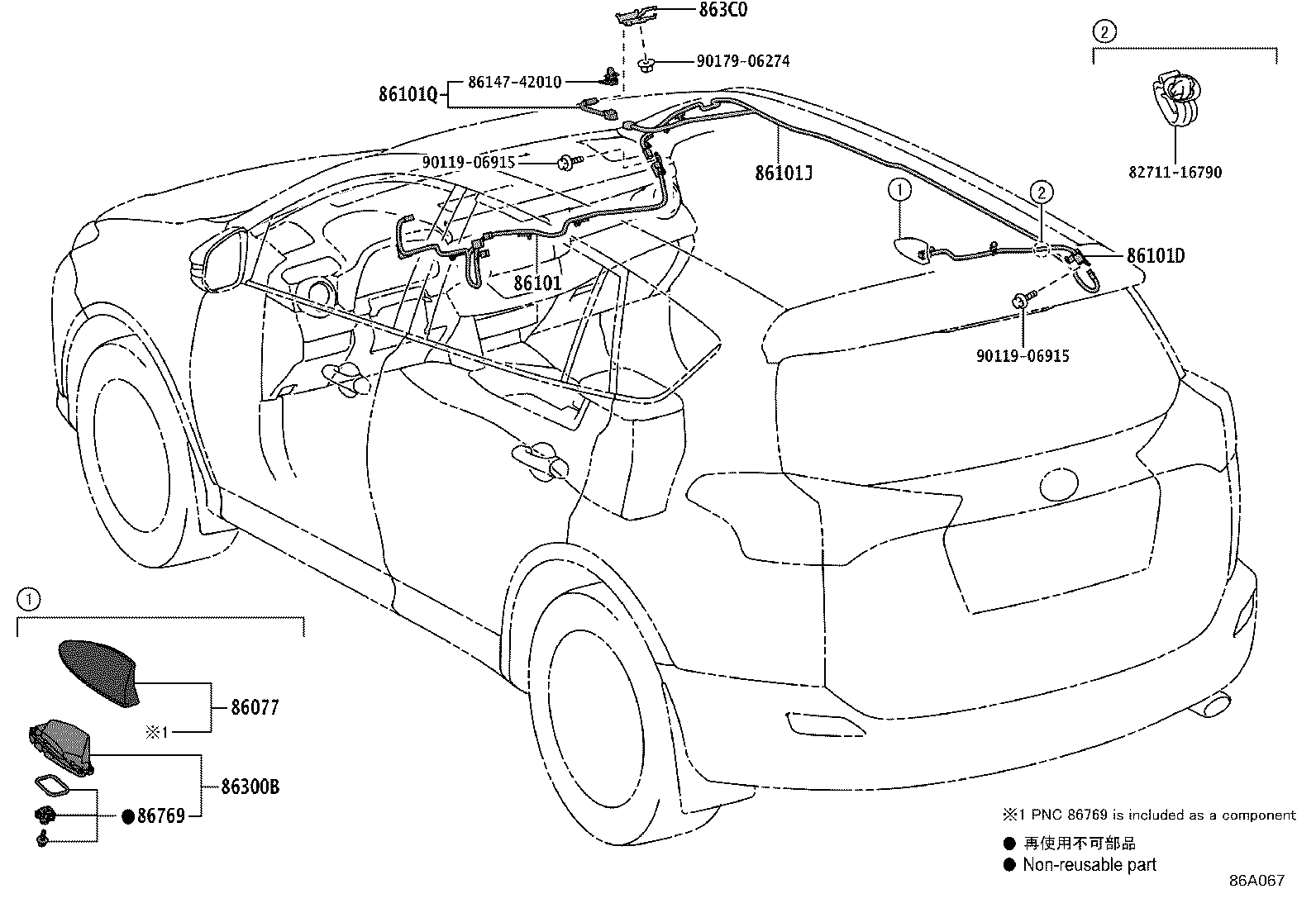

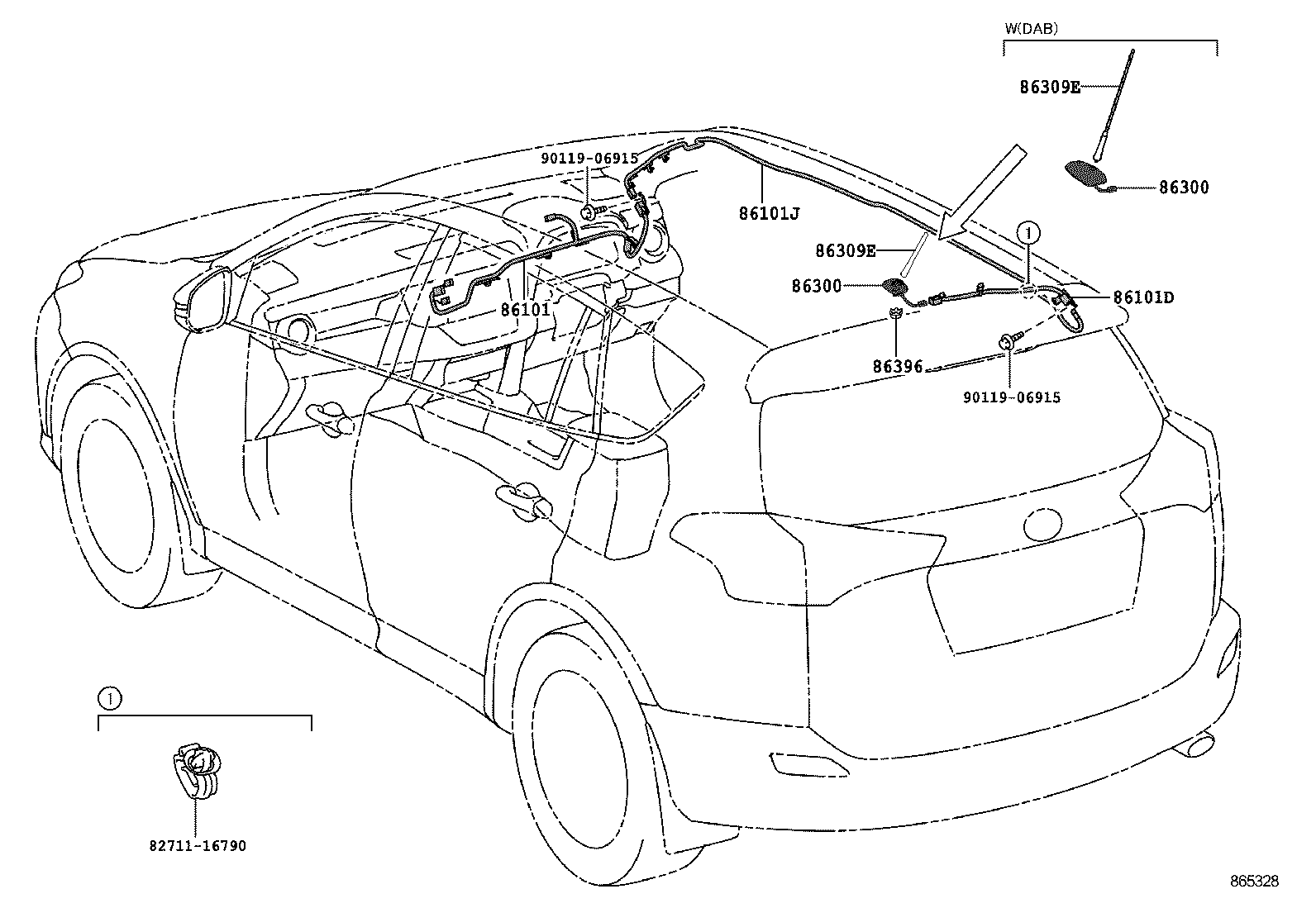

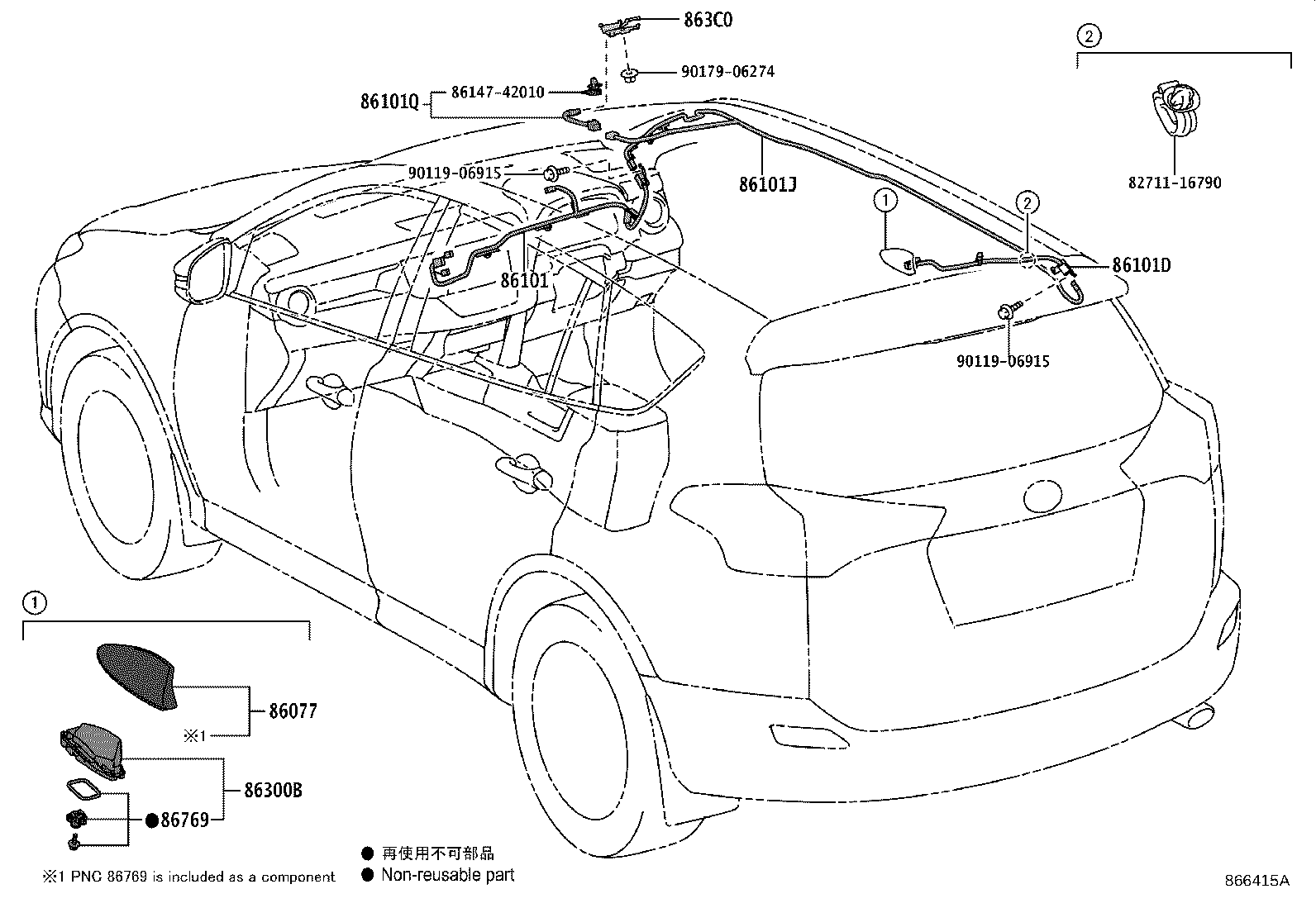

Antenna
11 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 86077 | Cover Kit, Antenna |
| 86101 | Cord Sub-assy, Antenna |
| 86101D | Cord Sub-assy, Antenna, NO.3 |
| 86101J | Cord Sub-assy, Antenna, NO.2 |
| 86101Q | Cord Sub-assy, Antenna, NO.4 |
| 86300 | Antenna Assy, W/Holder |
| 86300B | Antenna Assy, Amplifier, NO.1 |
| 86309E | Pole Sub-assy, Roof Antenna |
| 86396 | Nut, Antenna |
| 863C0 | Antenna Assy, Digital Audio Broadcasting |
| 86769 | Housing, Roof Antenna |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
