Toyota RAV4

2012-12 → 2019-09 · chassis ALA4#,ASA44,AVA4#,WWA42,ZSA4# · catalogue 662540 · Europe

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mirror

16 part groups · 2 illustrations

Illustrations

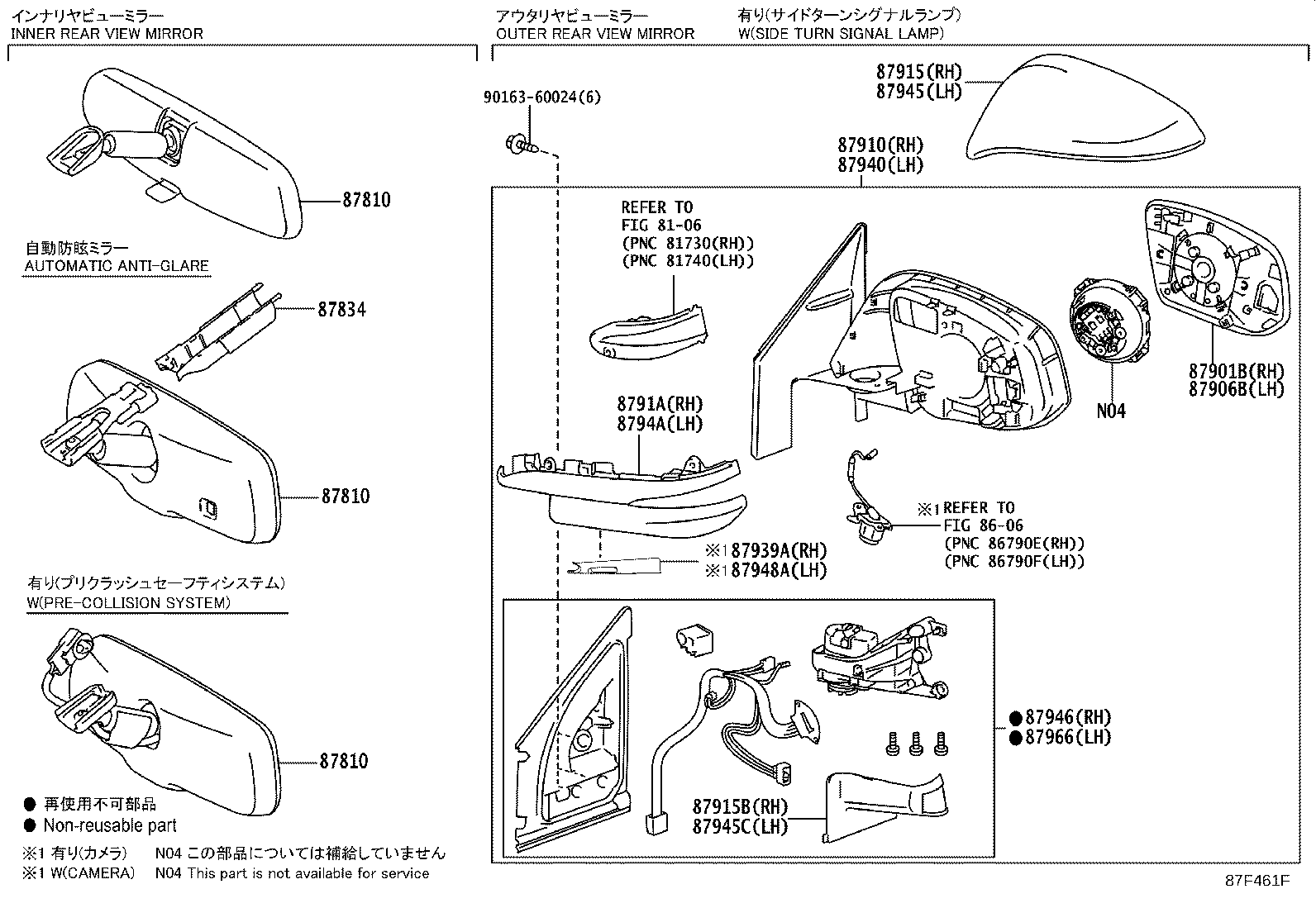

Figure 87D429H 87D429H 2012-12 → 2015-10 Figure 87F461F 87F461F 2015-10 → —

Part groups

PNCDescription
87810 Mirror Assy, Inner Rear View
87834 Cover, Inner Rear View Mirror Stay Holder
87901B Mirror Sub-assy, Outer Rear View, RH
87906B Mirror Sub-assy, Outer Rear View, LH
87910 Mirror Assy, Outer Rear View, RH
87915 Cover, Outer Mirror, RH
87915B Cover, Outer Mirror, Lower RH
8791A Cover, Outer Mirror, RH NO.2
87939A Cover, Outer Mirror Hole, RH
87940 Mirror Assy, Outer Rear View, LH
87945 Cover, Outer Mirror, LH
87945C Cover, Outer Mirror, Lower LH
87946 Retractor, Outer Mirror, RH
87948A Cover, Outer Mirror Hole, LH
8794A Cover, Outer Mirror, LH NO.2
87966 Retractor, Outer Mirror, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
