Toyota RAV4

2012-12 → 2019-09 · chassis ALA4#,ASA44,AVA4#,WWA42,ZSA4# · catalogue 662540 · Europe

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

20 part groups · 14 illustrations

Illustrations

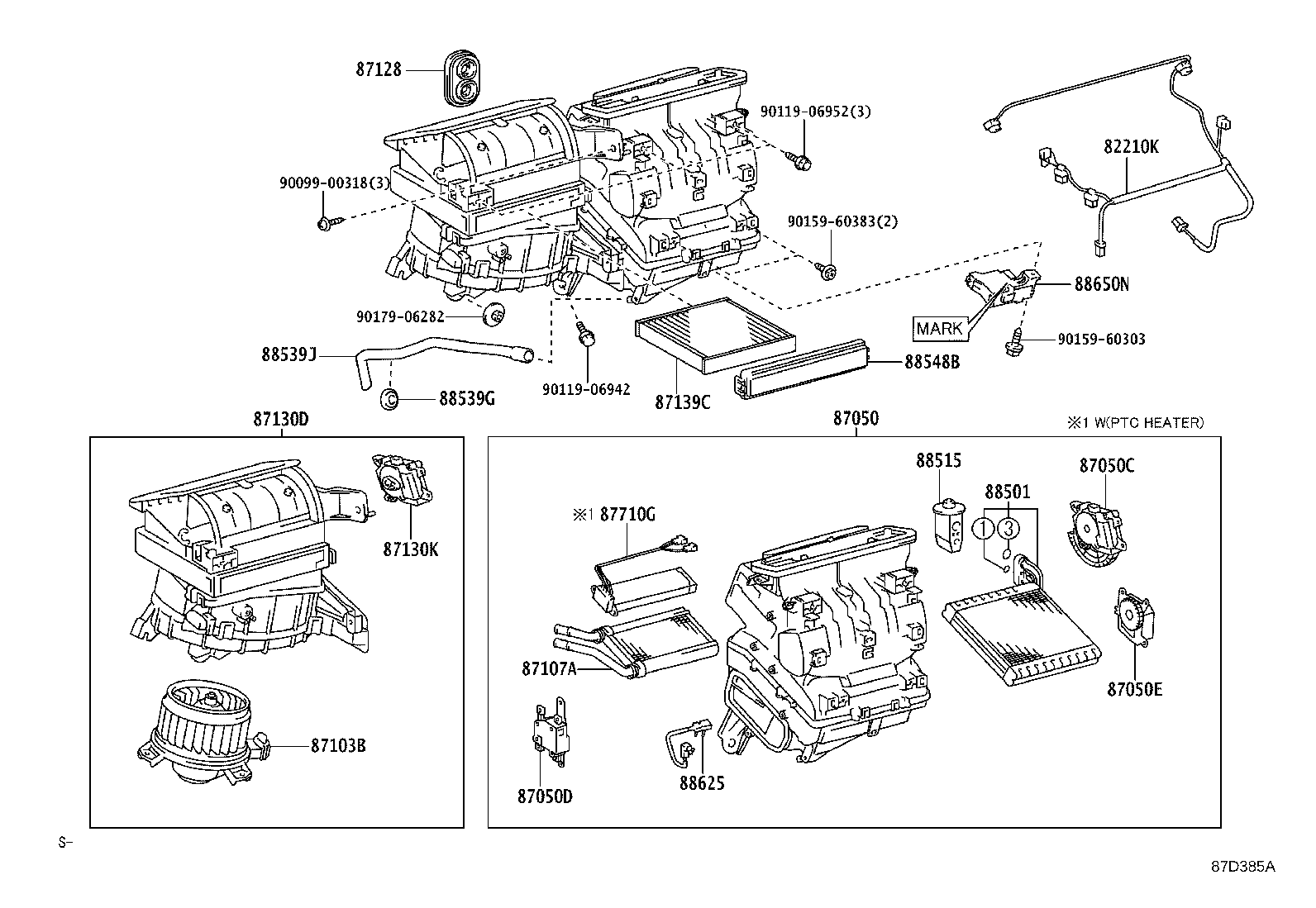

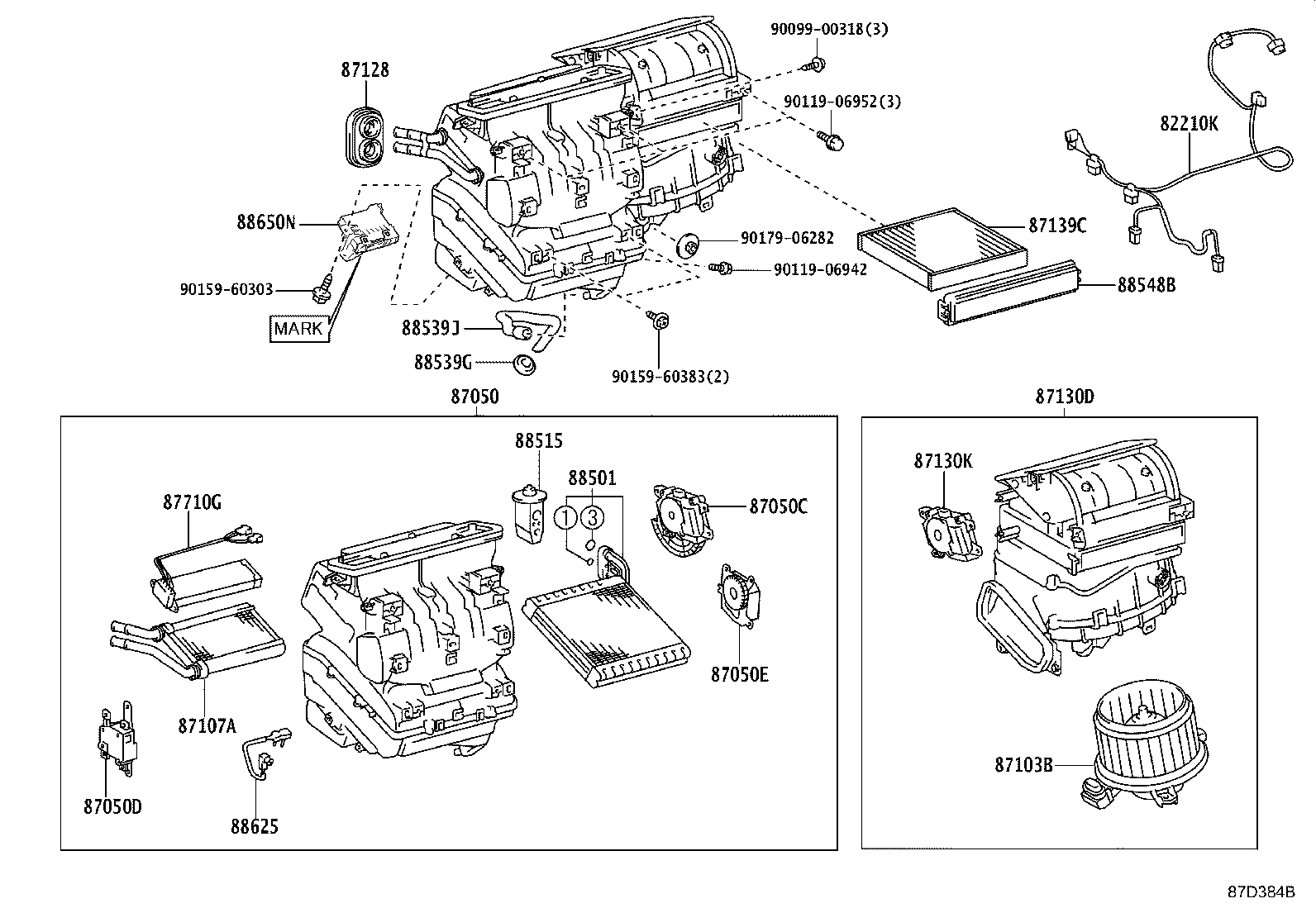

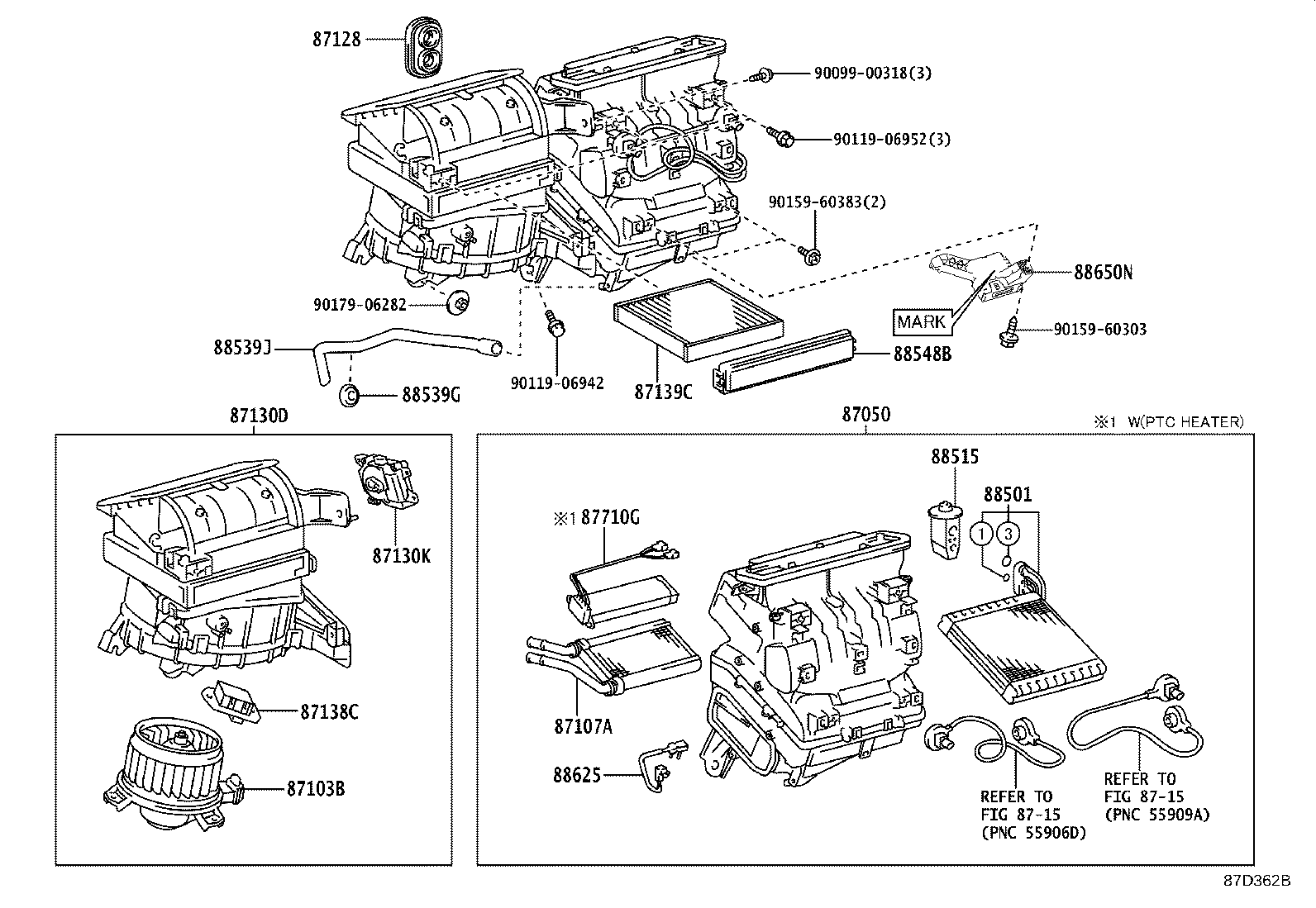

Figure 87D361B 87D361B 2012-12 → — Figure 87D361B 87D361B 2015-10 → — Figure 87D361B 87D361B 2016-08 → — Figure 87D361B 87D361B 2017-08 → — Figure 87D384B 87D384B 2012-12 → — Figure 87D384B 87D384B 2015-10 → — Figure 87D384B 87D384B 2016-08 → — Figure 87D384B 87D384B 2017-08 → — Figure 87D384B 87D384B 2017-10 → — Figure 87D362B 87D362B 2012-12 → — Figure 87D362B 87D362B 2015-10 → — Figure 87D385A 87D385A 2012-12 → — Figure 87D385A 87D385A 2015-10 → — Figure 879932D 879932D 2012-12 → —

Part groups

PNCDescription
82210K Harness Assy, Air Conditioner
87050 Radiator Assy, Air Conditioner
87050C Damper Servo Sub-assy, Air Conditioner Radiator, NO.1
87050D Damper Servo Sub-assy, Air Conditioner Radiator, NO.2
87050E Damper Servo Sub-assy, Air Conditioner Radiator, NO.3
87103B Motor Sub-assy, Blower W/Fan
87107A Unit Sub-assy, Heater Radiator
87128 Grommet, Heater
87130D Blower Assy
87130K Damper Servo Sub-assy, Blower, NO.1
87138C Resistor, Blower
87139C Filter, Clean Air
87710G Quick Heater Assy
88501 Evaporator Sub-assy, Cooler, NO.1
88515 Valve, Cooler Expansion
88539G Grommet (FOR COOLER UNIT DRAIN HOSE)
88539J Hose, Drain Cooler
88548B Case, Air Filter
88625 Thermistor, Cooler, NO.1
88650N Amplifier Assy, Air Conditioner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
