Toyota RAV4

2012-12 → 2019-09 · chassis ALA4#,ASA44,AVA4#,WWA42,ZSA4# · catalogue 662540 · Europe

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

20 part groups · 5 illustrations

Illustrations

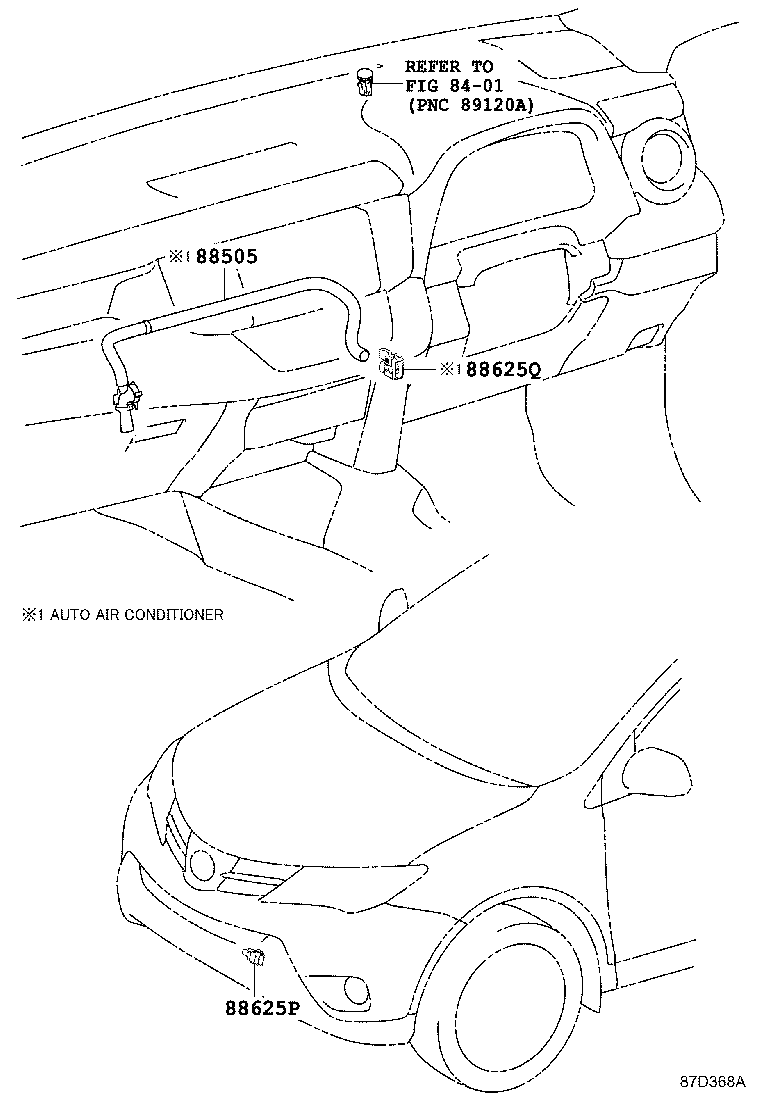

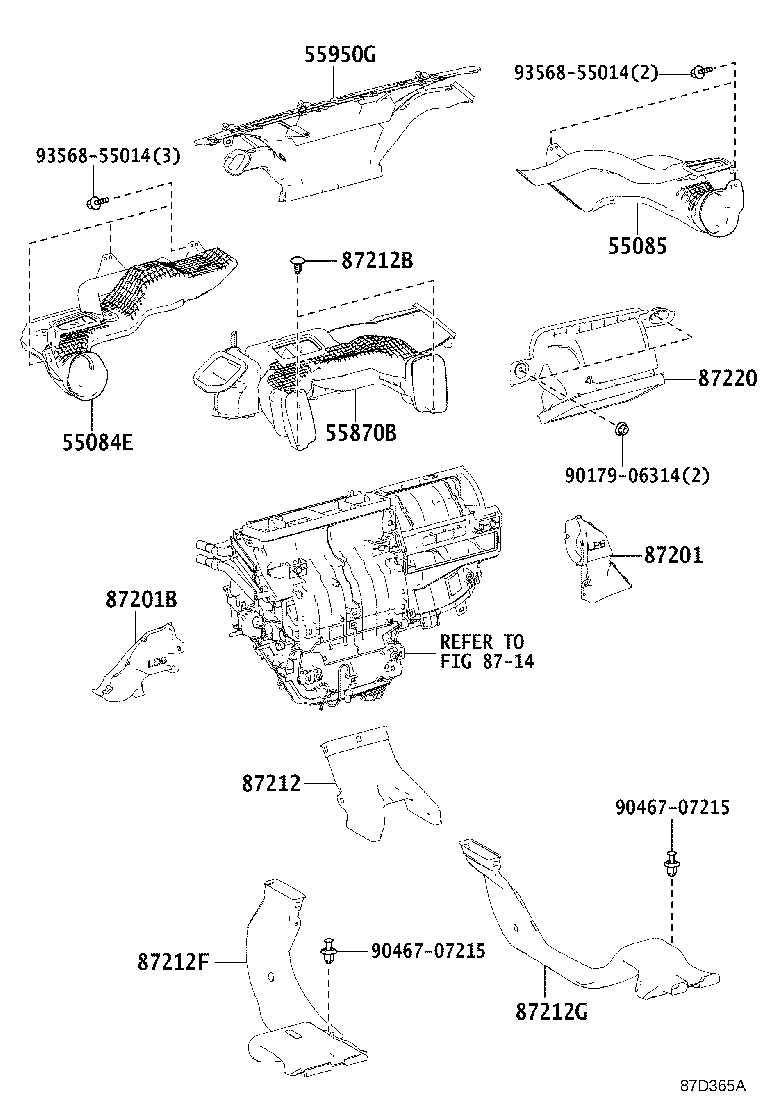

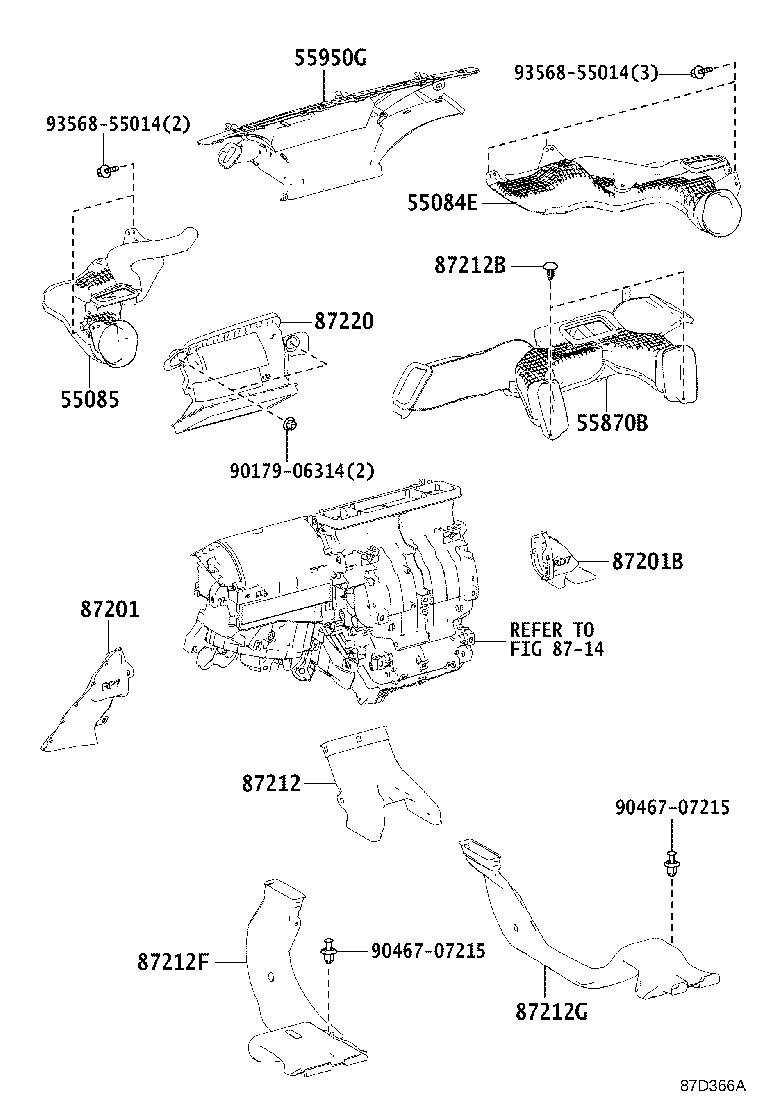

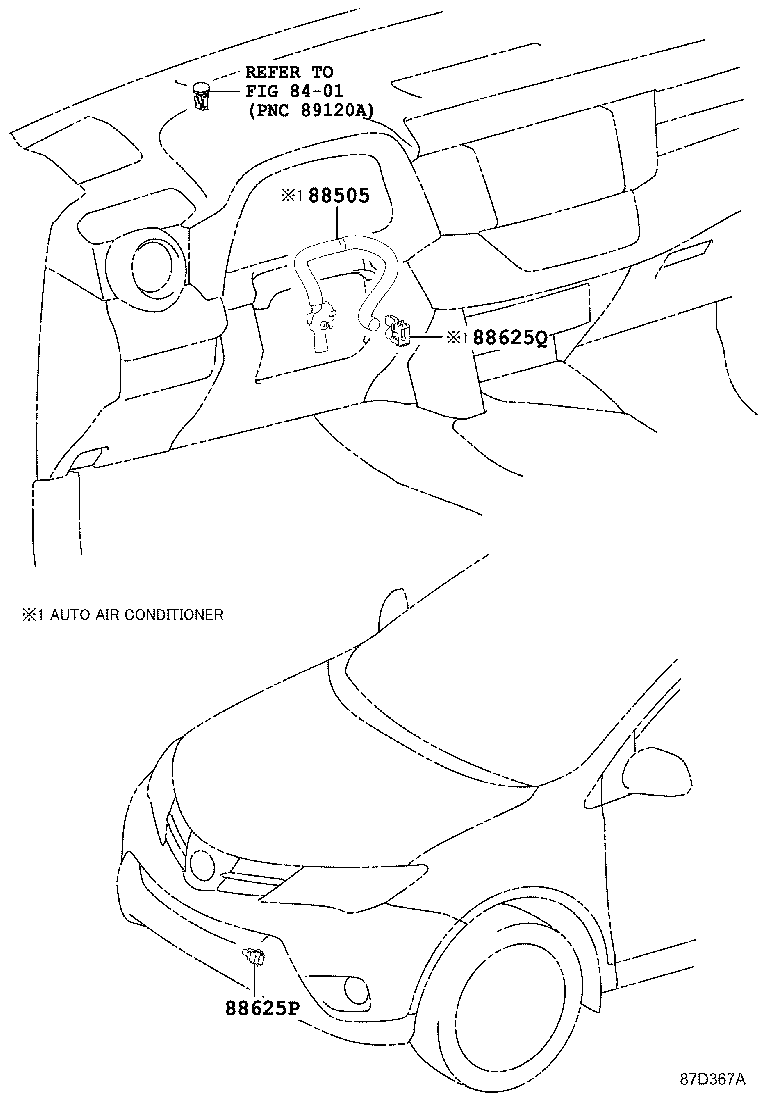

Figure 87D363B 87D363B 2012-12 → — Figure 87D365A 87D365A 2012-12 → — Figure 87D366A 87D366A 2012-12 → — Figure 87D367A 87D367A 2012-12 → — Figure 87D368A 87D368A 2012-12 → —

Part groups

PNCDescription
55084E Duct Sub-assy, Heater TO Register, NO.1
55085 Duct Sub-assy, Heater TO Register, NO.2
55870B Duct Assy, Heater TO Register
55900 Control Assy, Air Conditioner
55901D Control Sub-assy, Heater, NO.1
55902E Control Sub-assy, Heater, NO.2
55903A Control Sub-assy, Heater, NO.3
55906D Cable Sub-assy, Heater Control, NO.2
55909A Cable Sub-assy, Airmix Damper Control
55950G Nozzle Assy, Defroster
87201 Duct Sub-assy, Air, NO.1
87201B Duct Sub-assy, Air, NO.2
87212 Duct, Air, Rear NO.1
87212B Clip, Air Duct
87212F Duct, Air, Rear NO.2
87212G Duct, Air, Rear NO.3
87220 Duct Assy, Air
88505 Duct Sub-assy,Air Conditioner
88625P Thermistor, Cooler (AMBIENT TEMP. SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
