Toyota RAV4

2012-12 → 2019-09 · chassis ALA4#,ASA44,AVA4#,WWA42,ZSA4# · catalogue 662540 · Europe

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

27 part groups · 11 illustrations

Illustrations

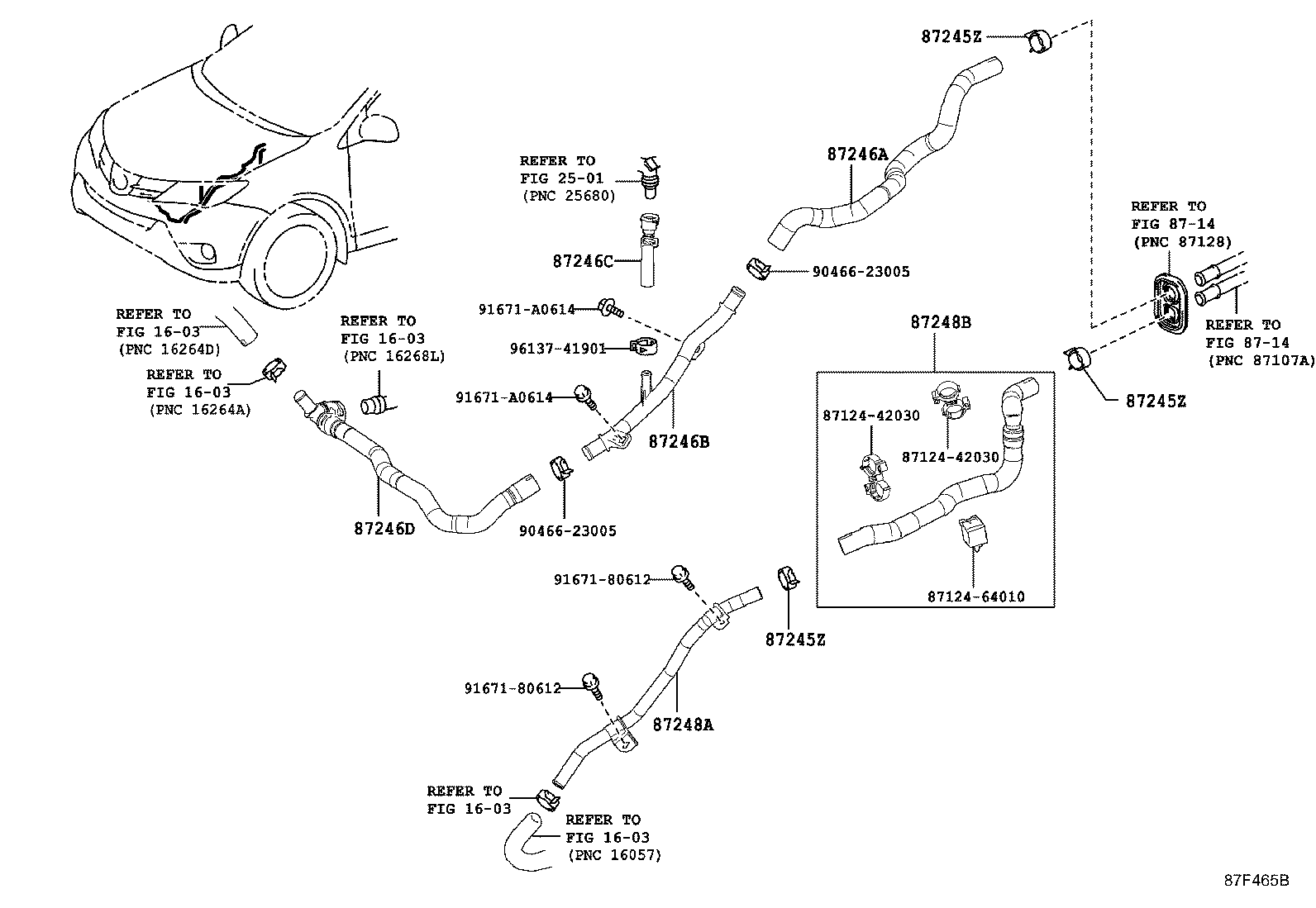

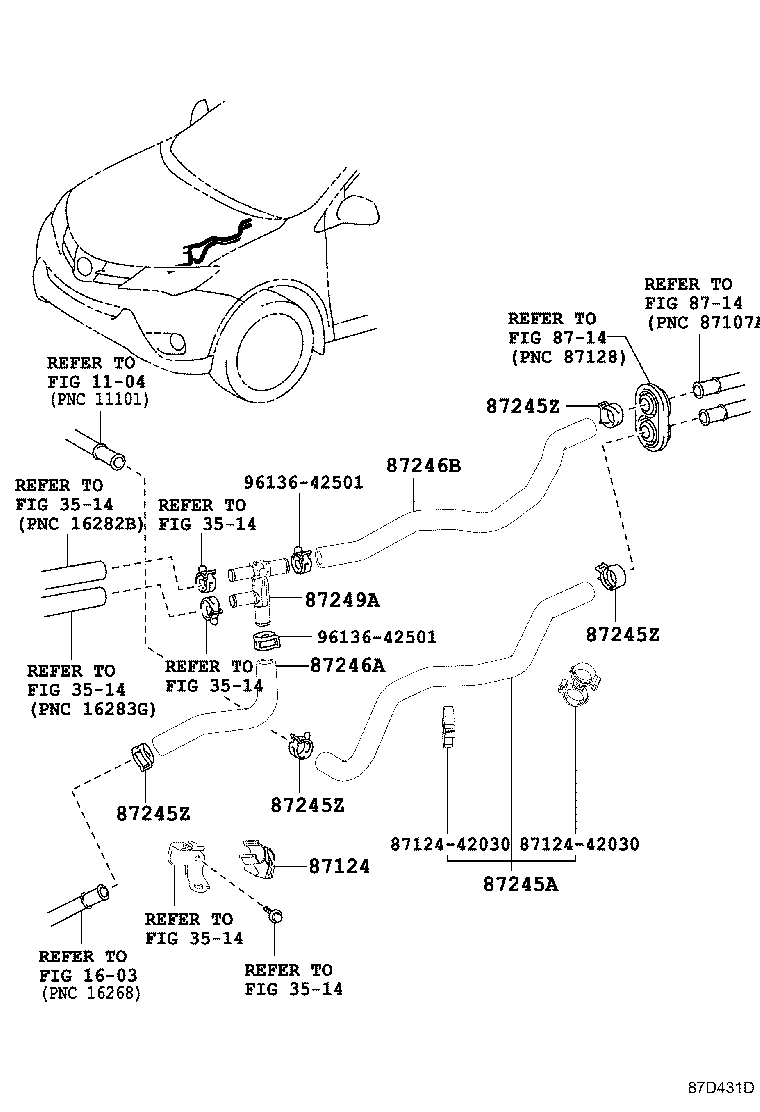

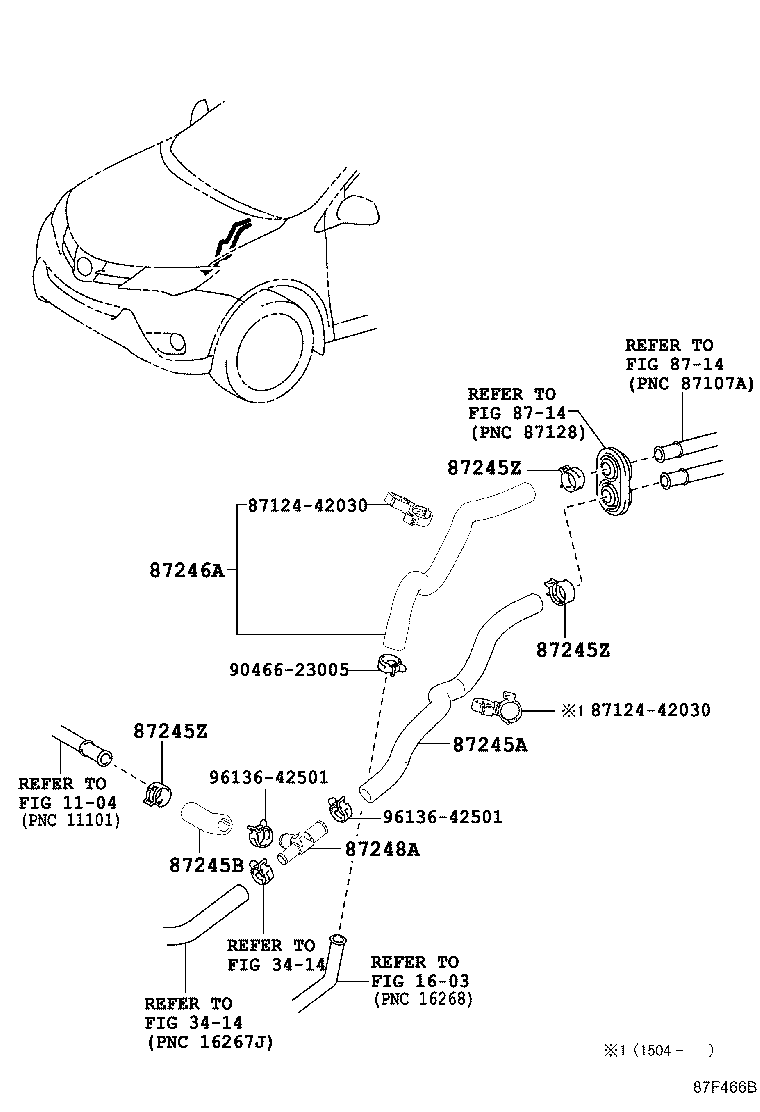

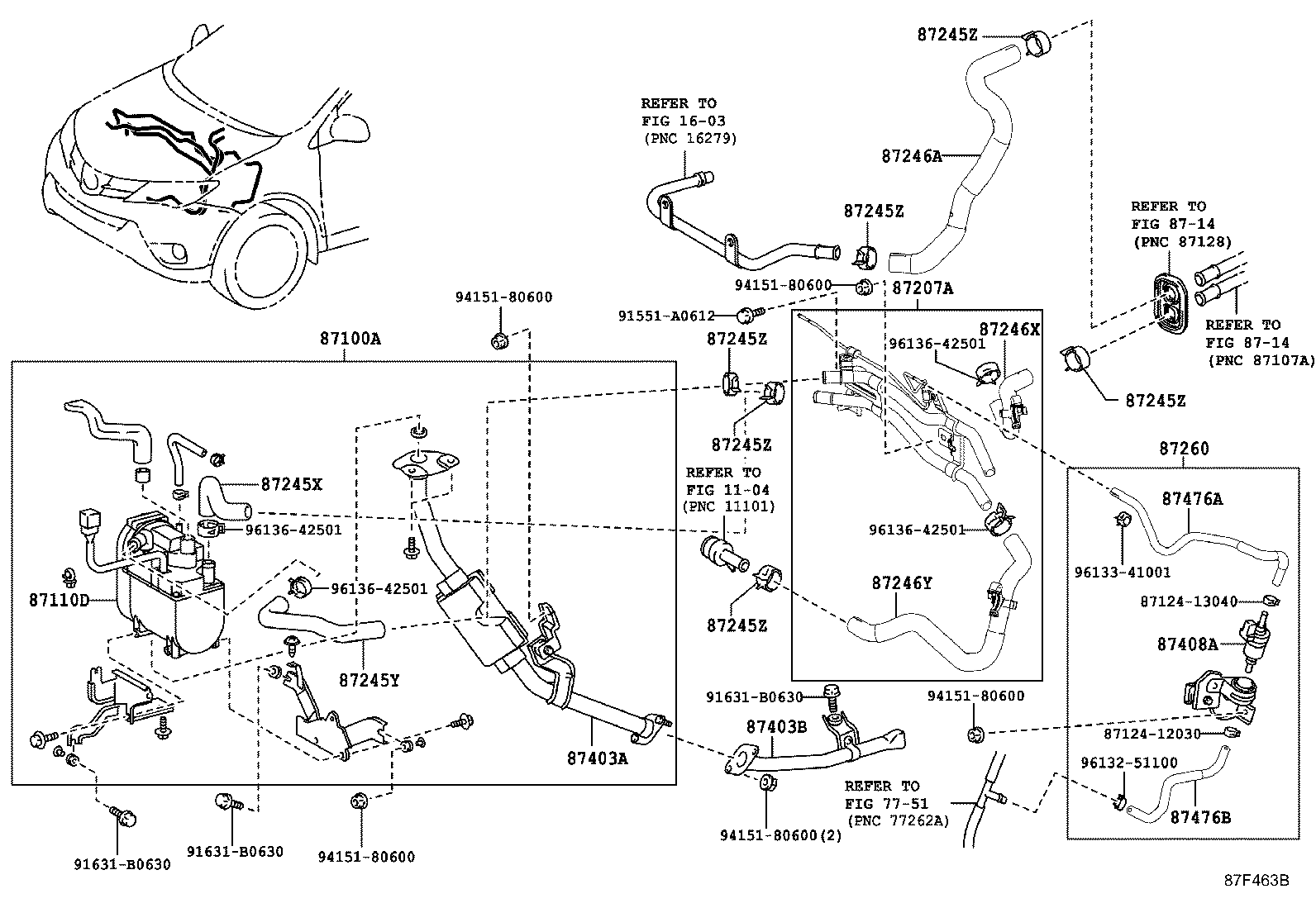

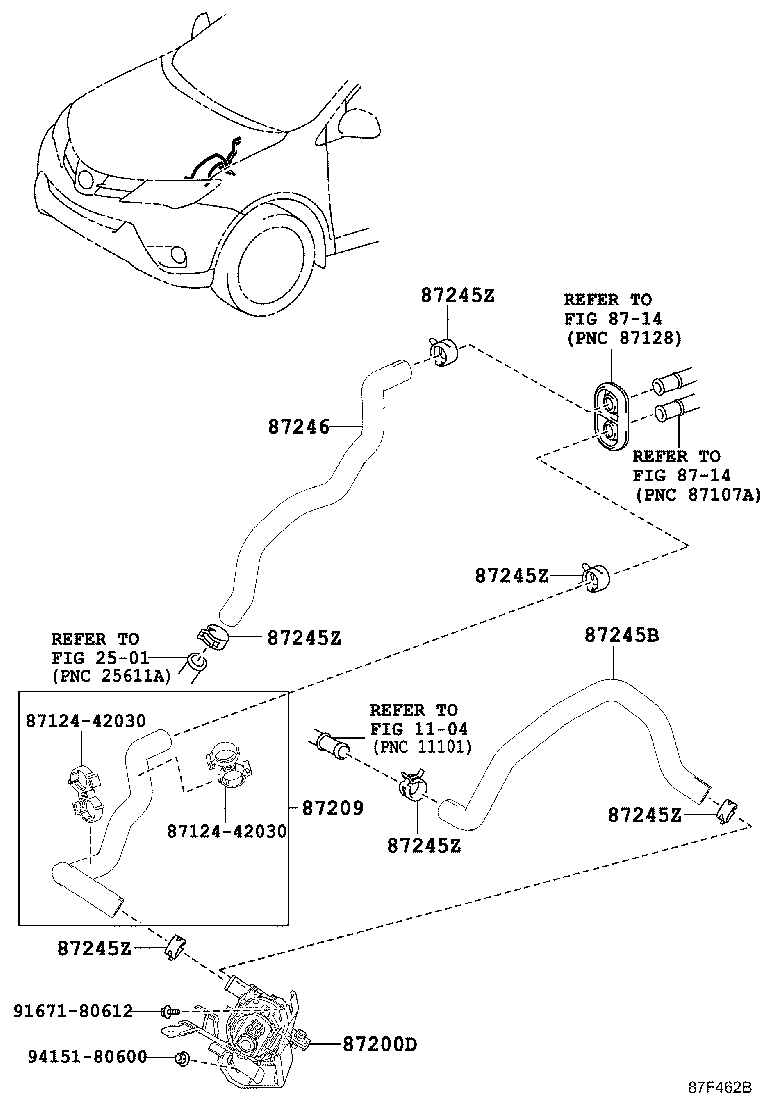

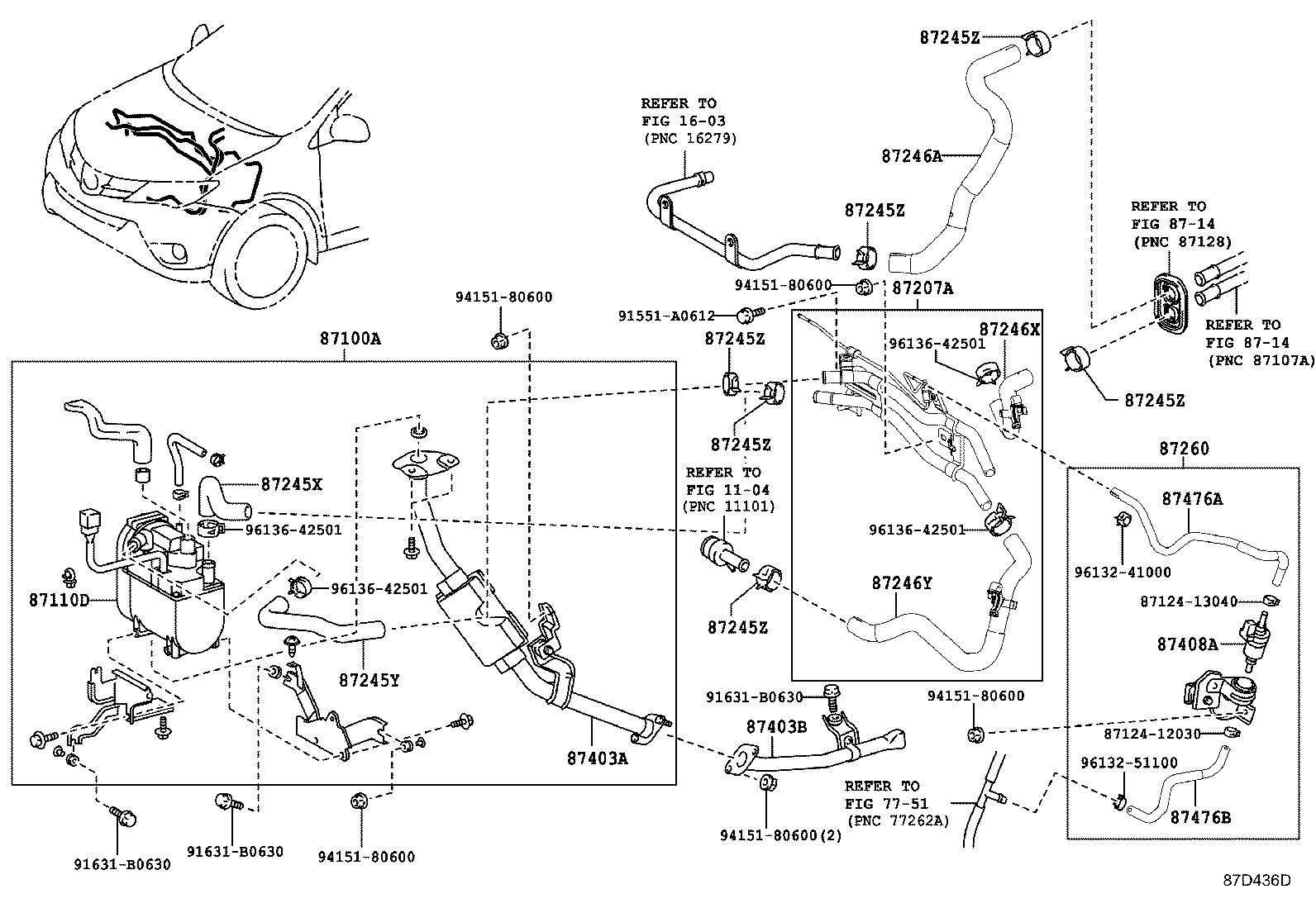

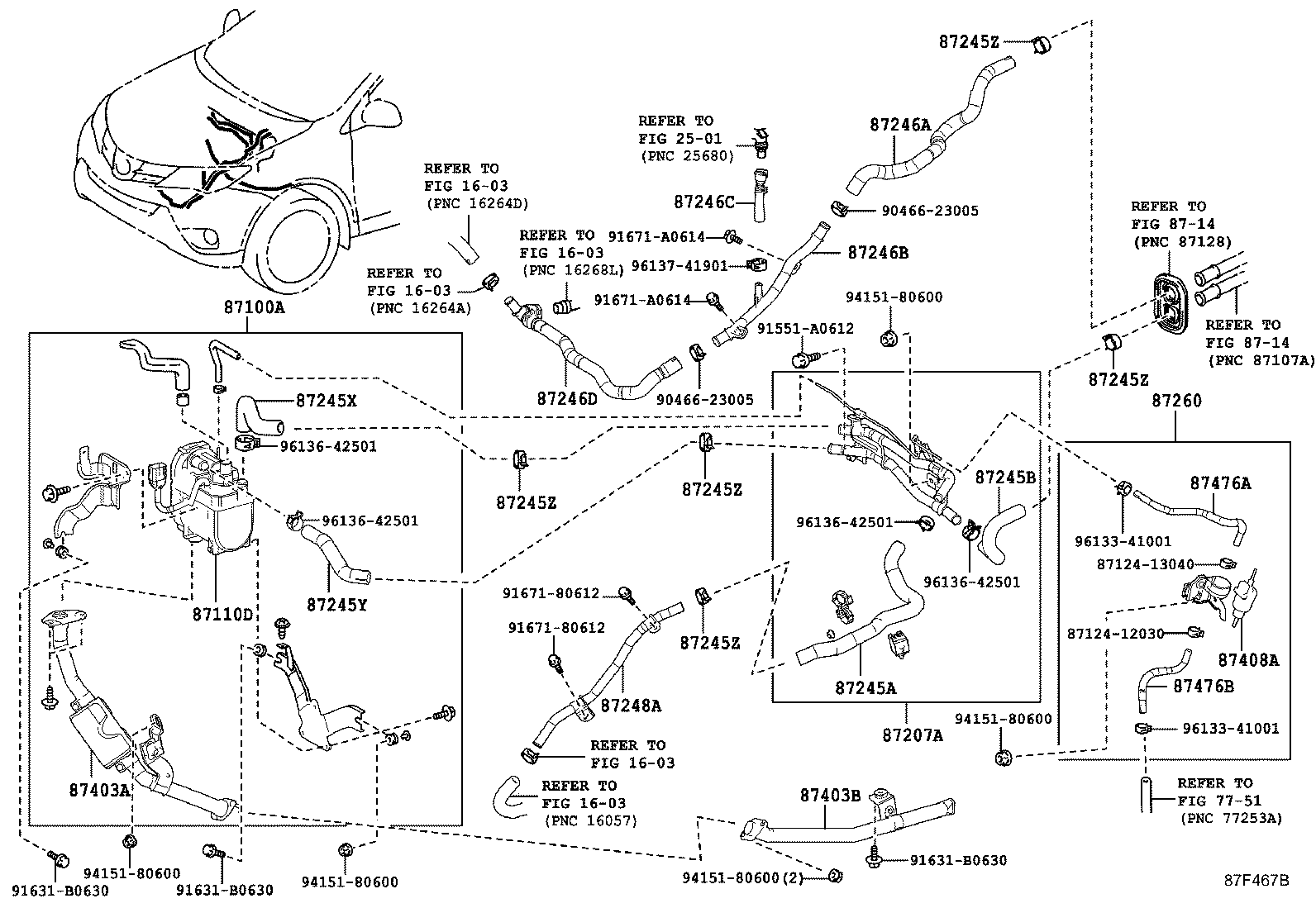

Figure 87D434B 87D434B 2012-12 → 2015-10 Figure 87D436D 87D436D 2012-12 → 2015-10 Figure 87F463B 87F463B 2015-10 → — Figure 87D432B 87D432B 2012-12 → — Figure 87D432B 87D432B 2015-10 → — Figure 87F466B 87F466B 2012-12 → — Figure 87F466B 87F466B 2015-10 → — Figure 87D431D 87D431D 2015-10 → — Figure 87F462B 87F462B 2015-10 → — Figure 87F465B 87F465B 2015-10 → — Figure 87F467B 87F467B 2015-10 → —

Part groups

PNCDescription
87100A Heater & Accessory Assy
87110D Heater Assy
87124 Clamp, Heater
87200D Accessory Assy, Heater
87207A Pipe & Hose Sub-assy, Water A
87209 Hose Sub-assy, Water
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245X Hose, Heater Water
87245Y Hose, Heater Water
87245Z Clip OR Clamp (FOR HEATER WATER HOSE)
87246 Hose, Heater Water, Outlet
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87246C Hose, Heater Water, Outlet C
87246D Hose, Heater Water, Outlet D
87246X Hose, Heater Water
87246Y Hose, Heater Water
87248A Pipe, Heater Water Inlet, A
87248B Pipe, Heater Water Inlet, B
87249A Pipe, Heater Water Outlet, A
87260 Pump Assy, Heater
87403A Pipe Sub-assy, Exhaust
87403B Pipe Sub-assy, Exhaust
87408A Pump Sub-assy, Fuel
87476A Hose, Heater Fuel, NO.1
87476B Hose, Heater Fuel, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
