Toyota RAV4

2012-12 → 2019-09 · chassis ALA4#,ASA44,AVA4#,WWA42,ZSA4# · catalogue 662540 · Europe

Supported model Data version 2019-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

14 part groups · 11 illustrations

Illustrations

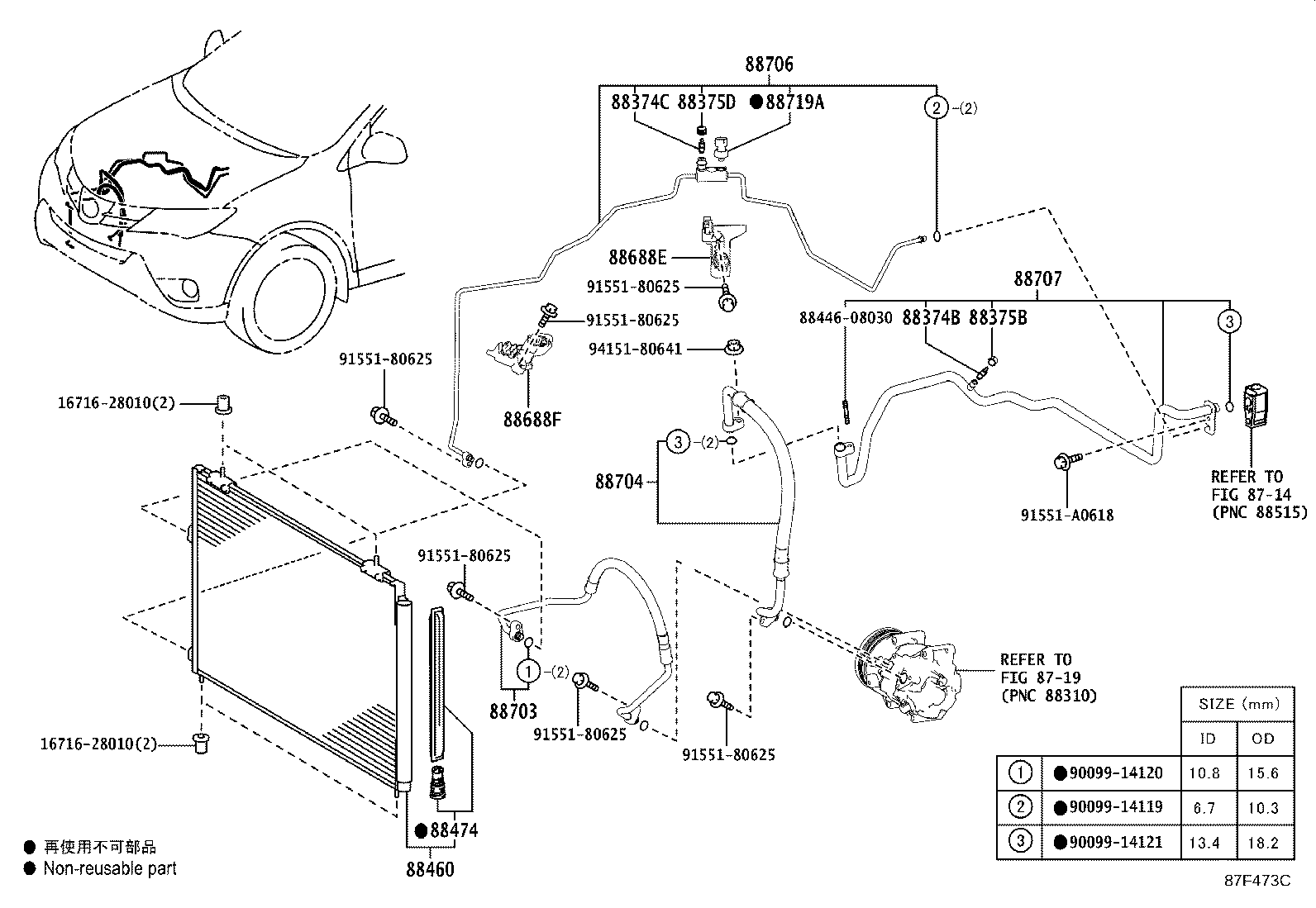

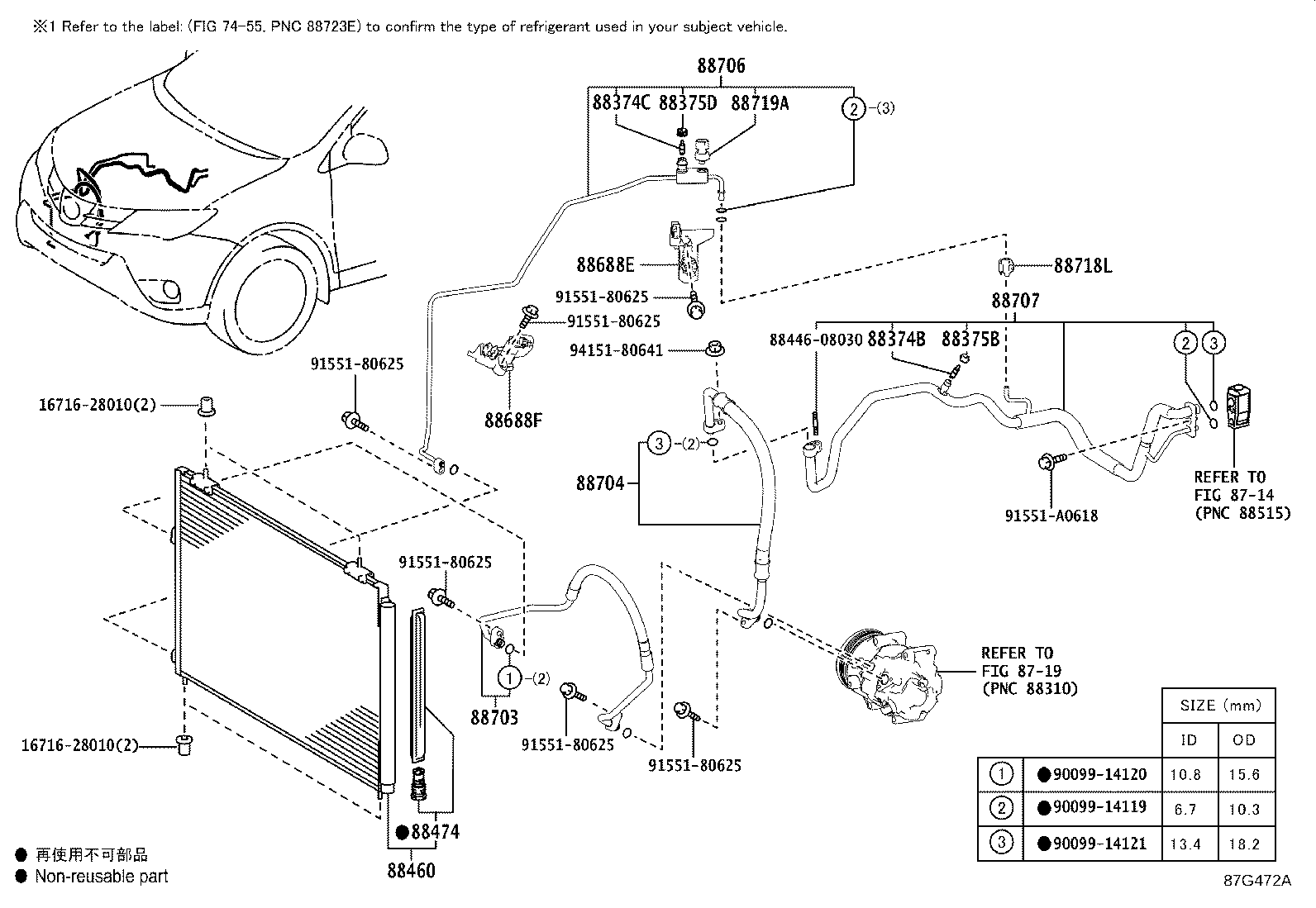

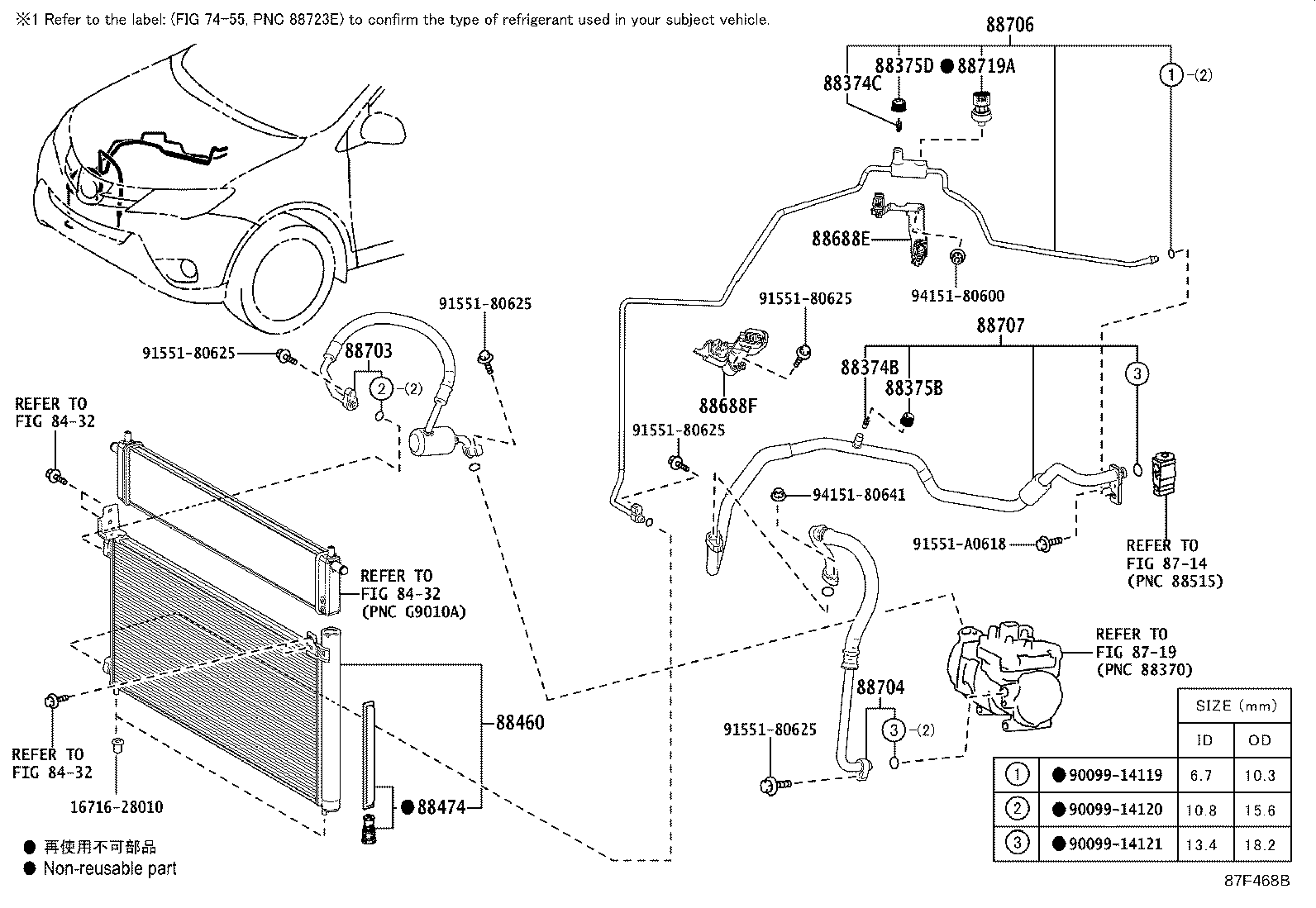

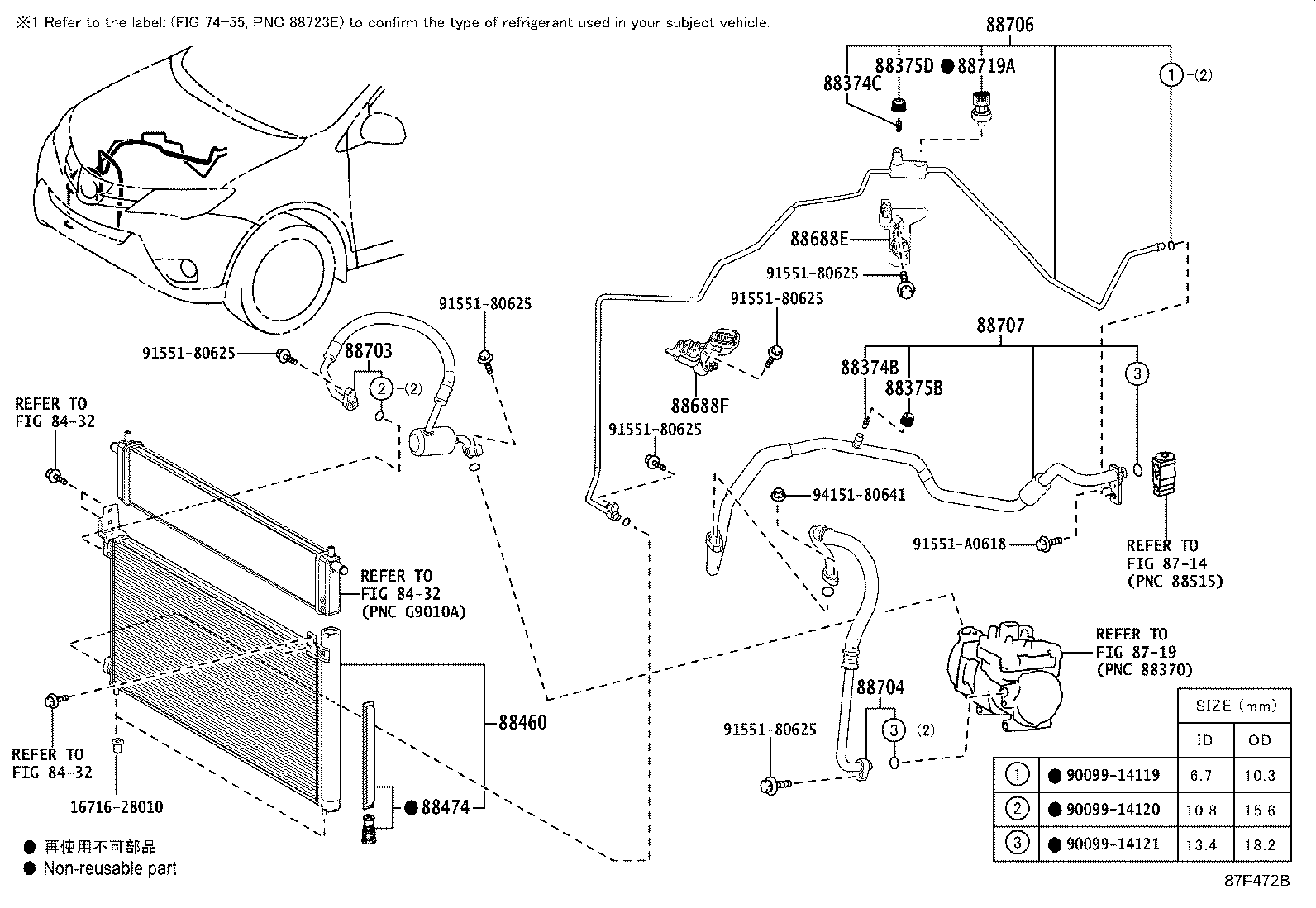

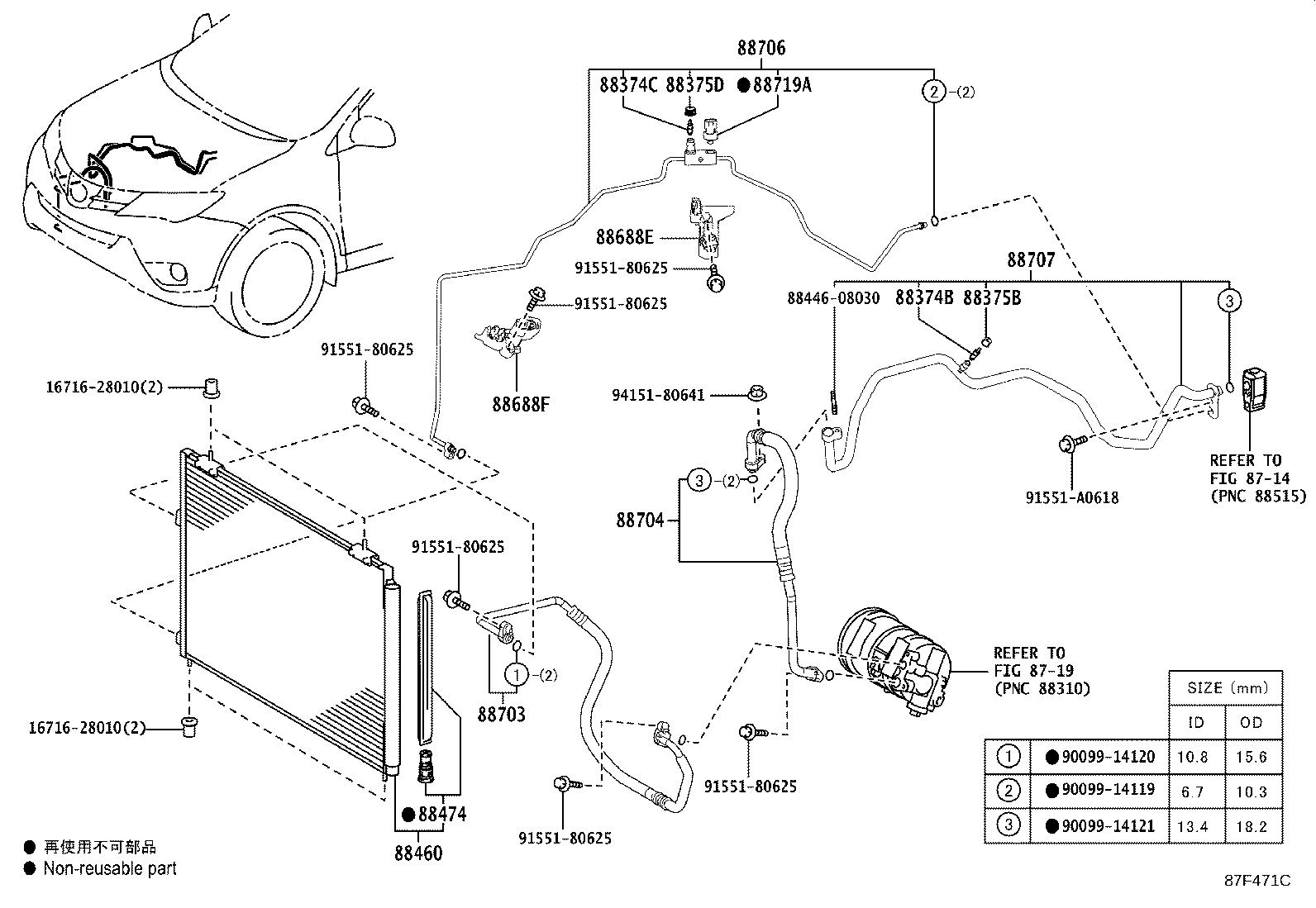

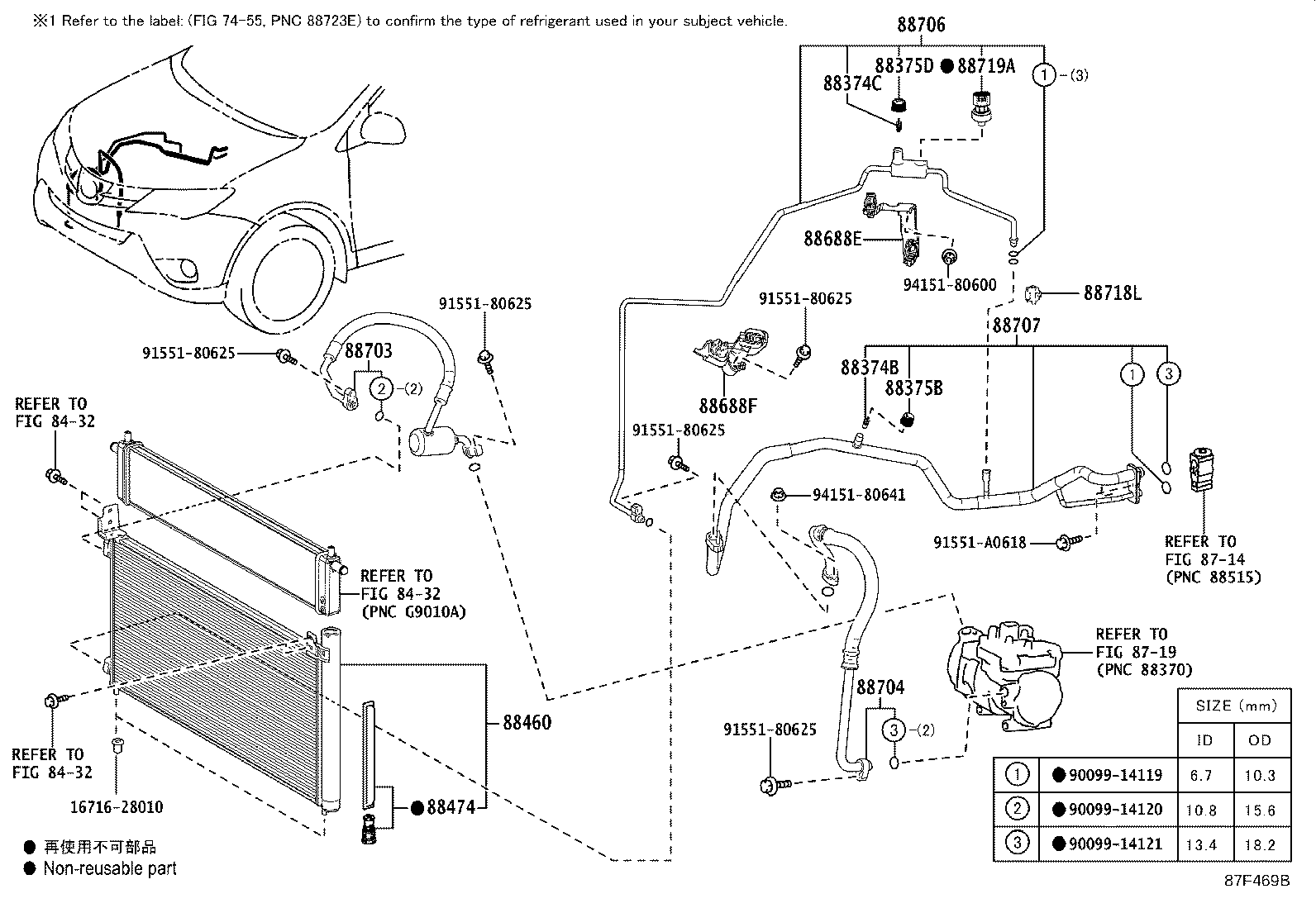

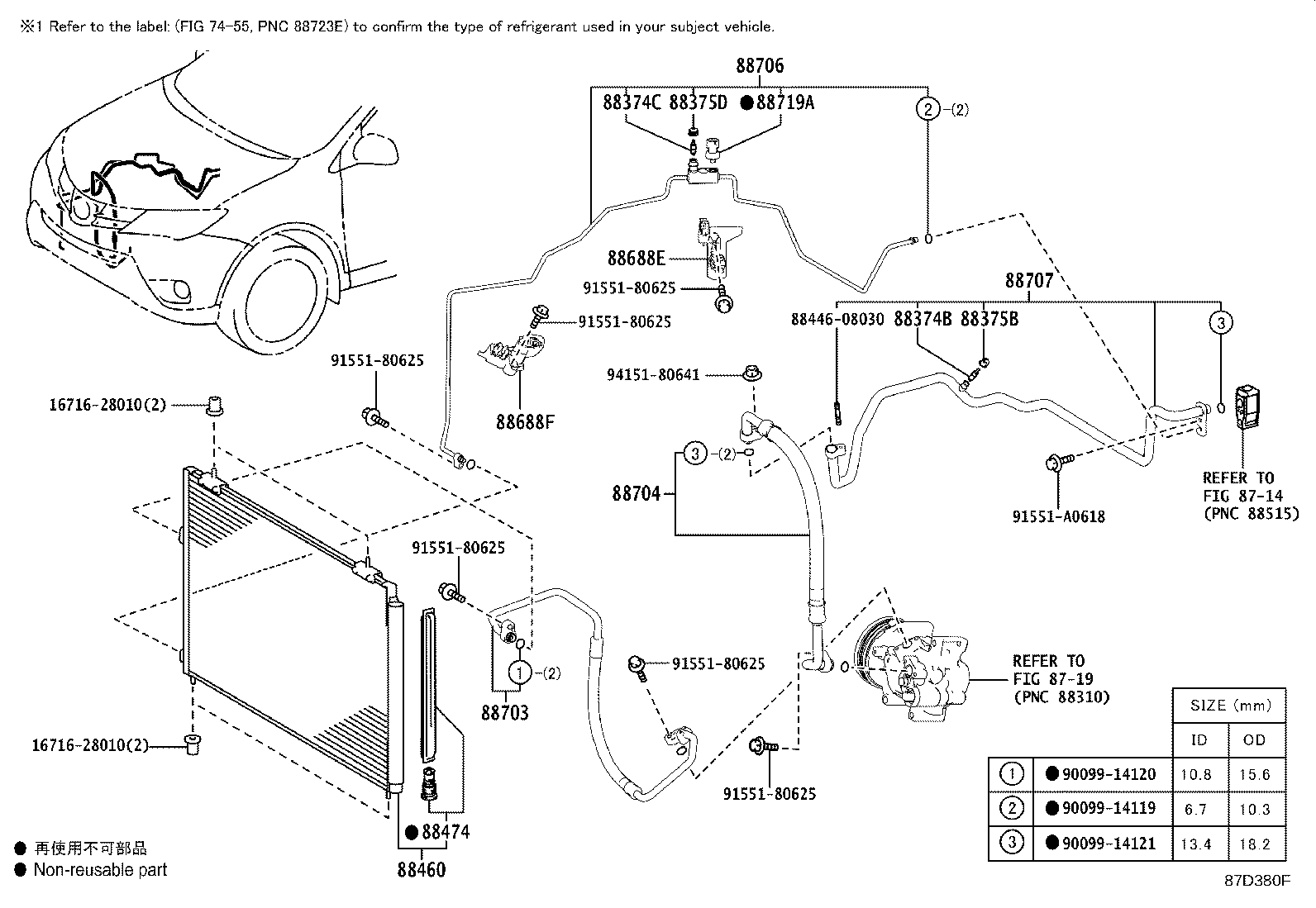

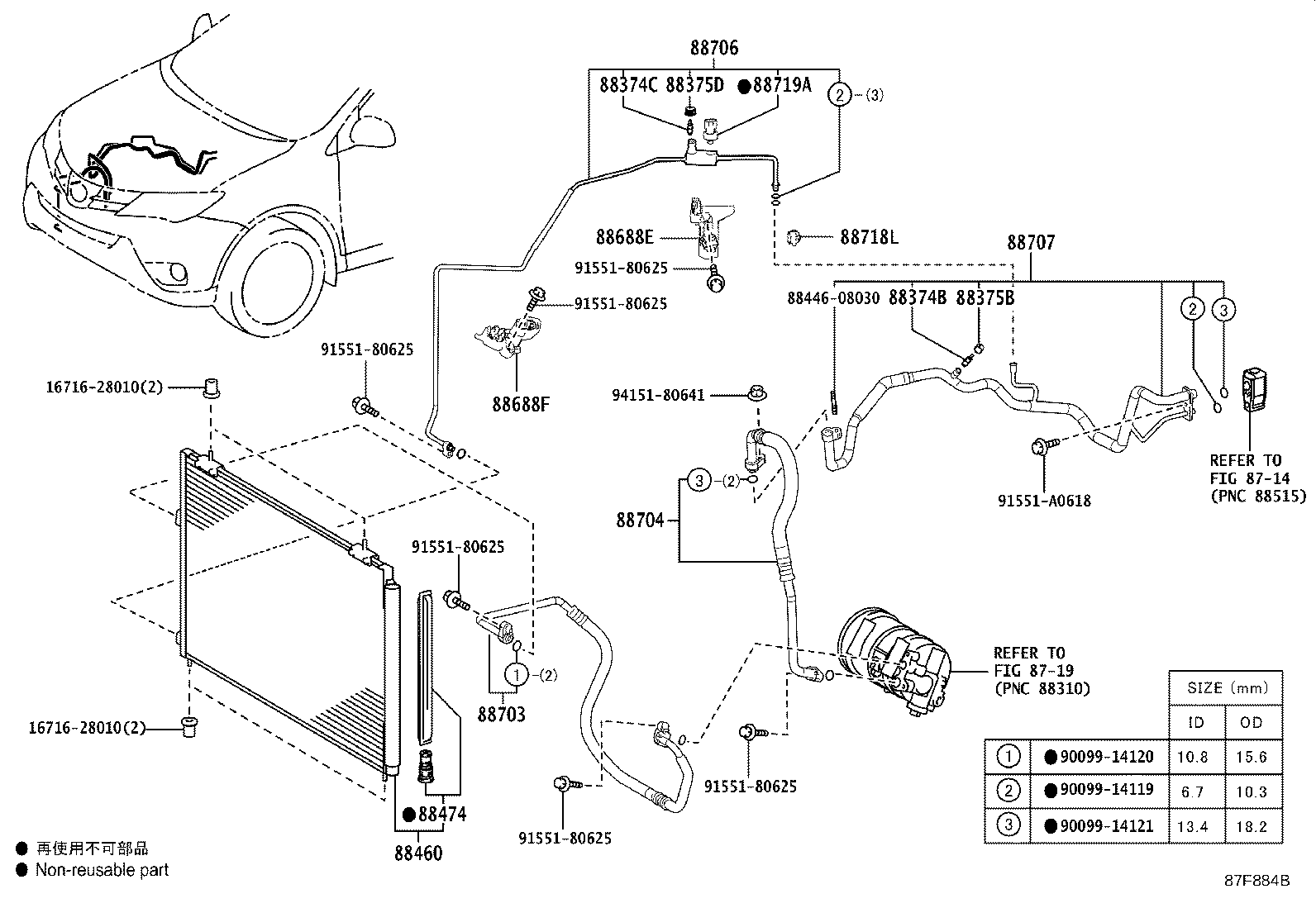

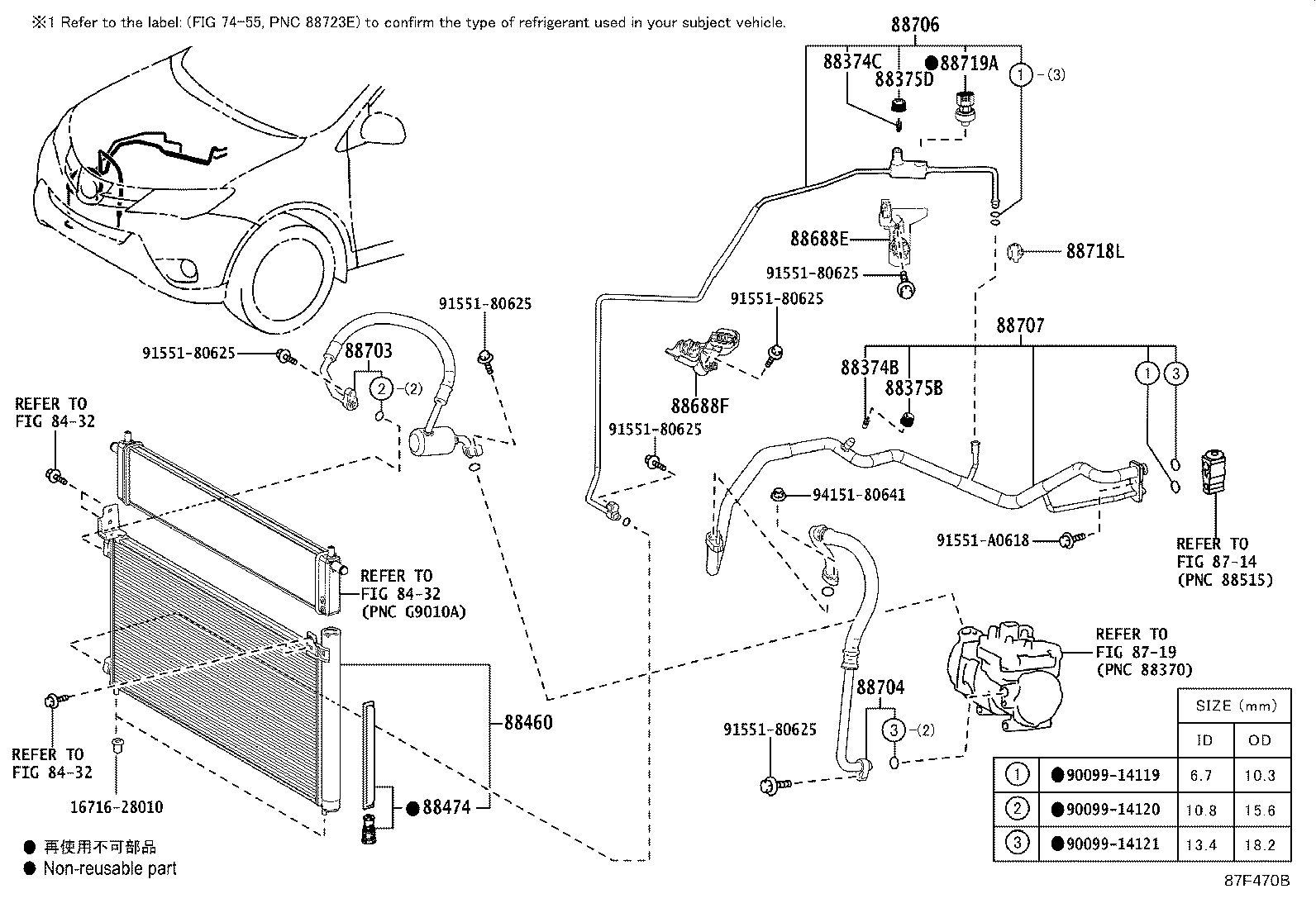

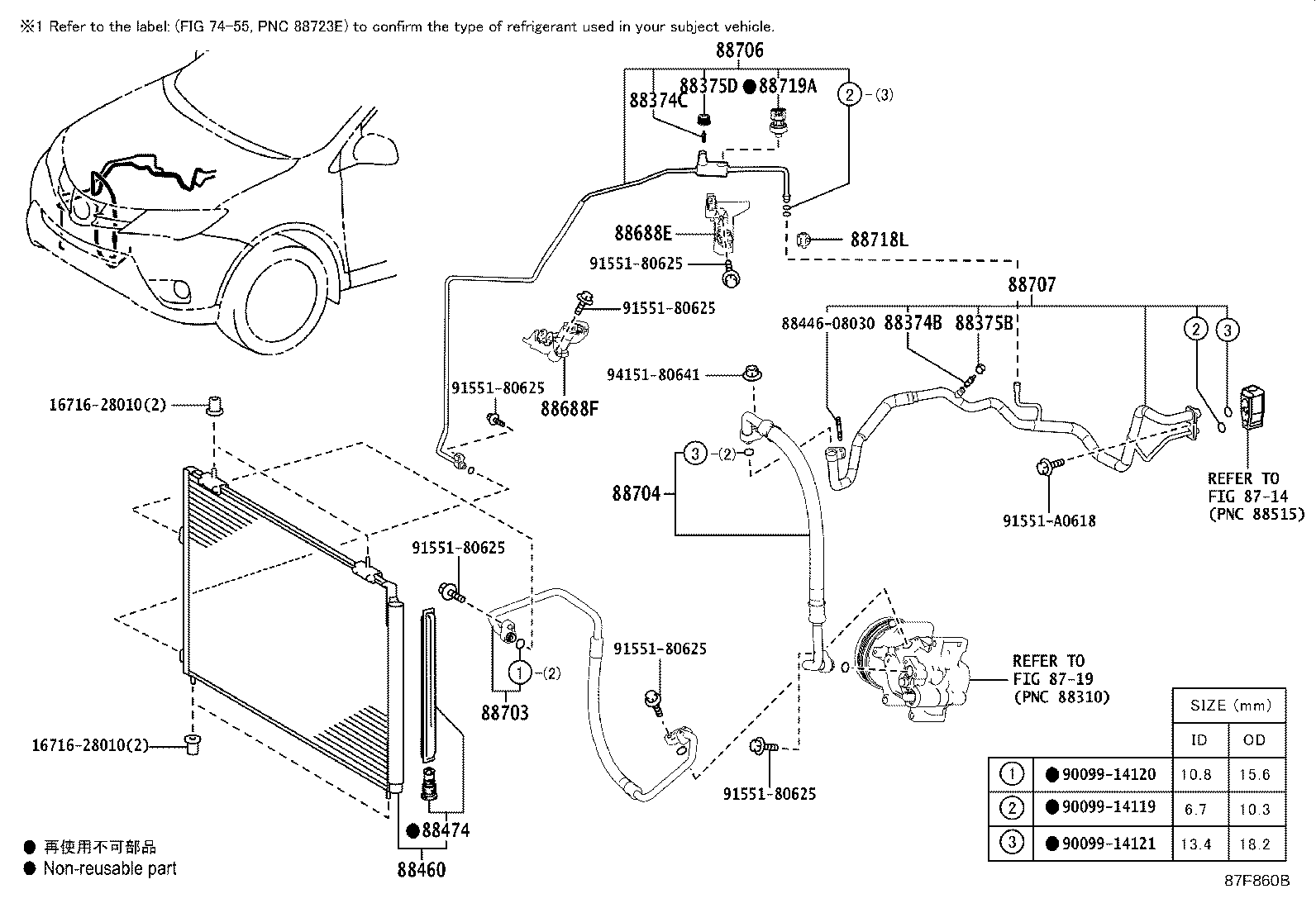

Figure 87D378D 87D378D 2012-12 → — Figure 87F473C 87F473C 2015-10 → — Figure 87D380F 87D380F 2012-12 → — Figure 87F472B 87F472B 2015-10 → — Figure 87F468B 87F468B 2015-10 → — Figure 87F469B 87F469B 2015-10 → — Figure 87F470B 87F470B 2015-10 → — Figure 87F860B 87F860B 2016-08 → — Figure 87F471C 87F471C 2015-10 → — Figure 87F884B 87F884B 2016-08 → — Figure 87G472A 87G472A 2017-08 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88460 Condenser Assy, Cooler
88474 Dryer, Cooler
88688E Bracket, Cooler Refrigerant Hose, NO.1
88688F Bracket, Cooler Refrigerant Hose, NO.2
88703 Hose Sub-assy, Discharge
88704 Hose Sub-assy, Suction
88706 Pipe Sub-assy, Liquid
88707 Pipe Sub-assy, Suction
88718L Clamp, Piping
88719A Sensor, Air Conditioner Pressure
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
