Toyota RAV4
2020-06 → present · chassis AXAP54 · catalogue 666210 · Europe
Supported model
Data version 2023-10
Cylinder Block

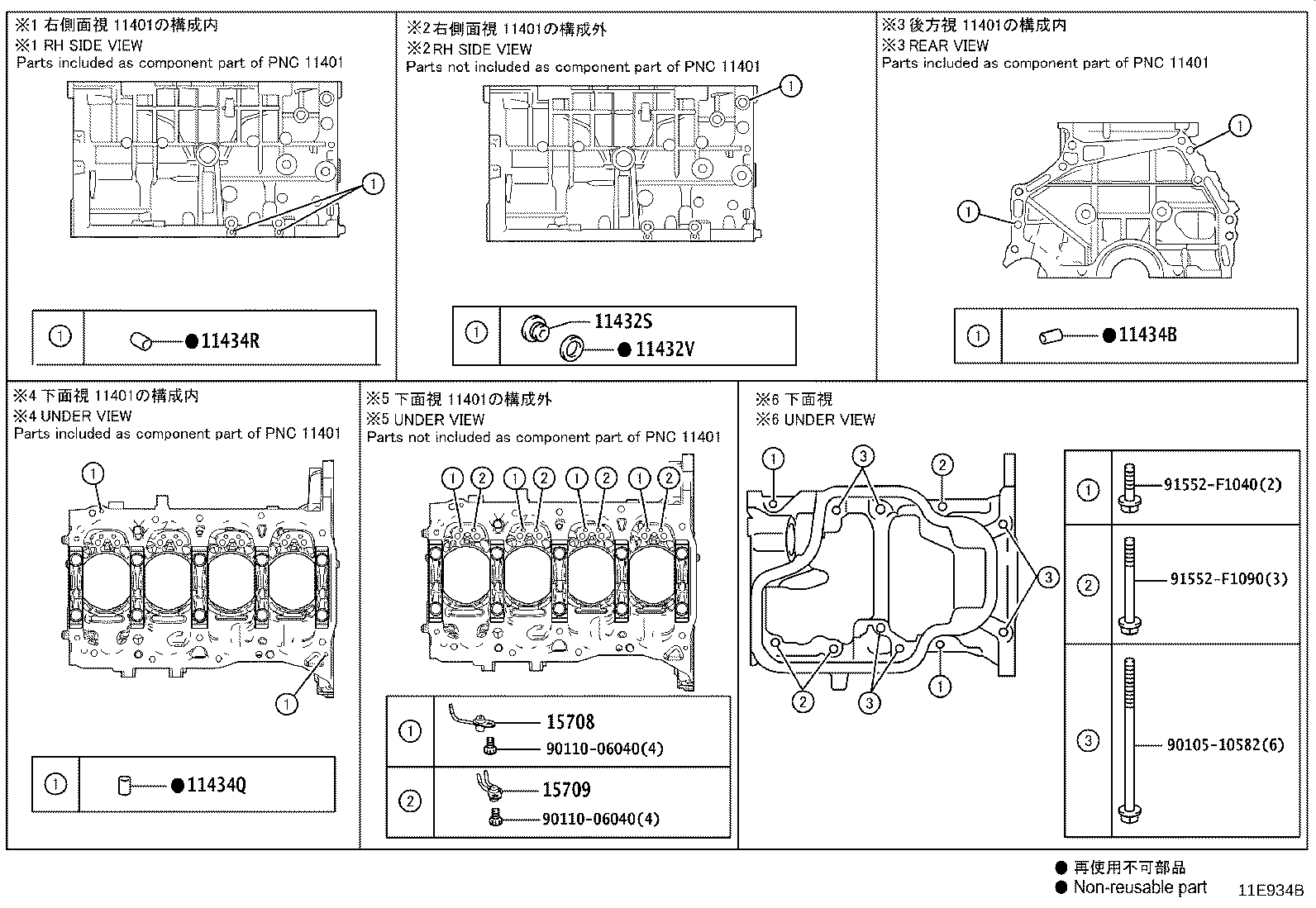

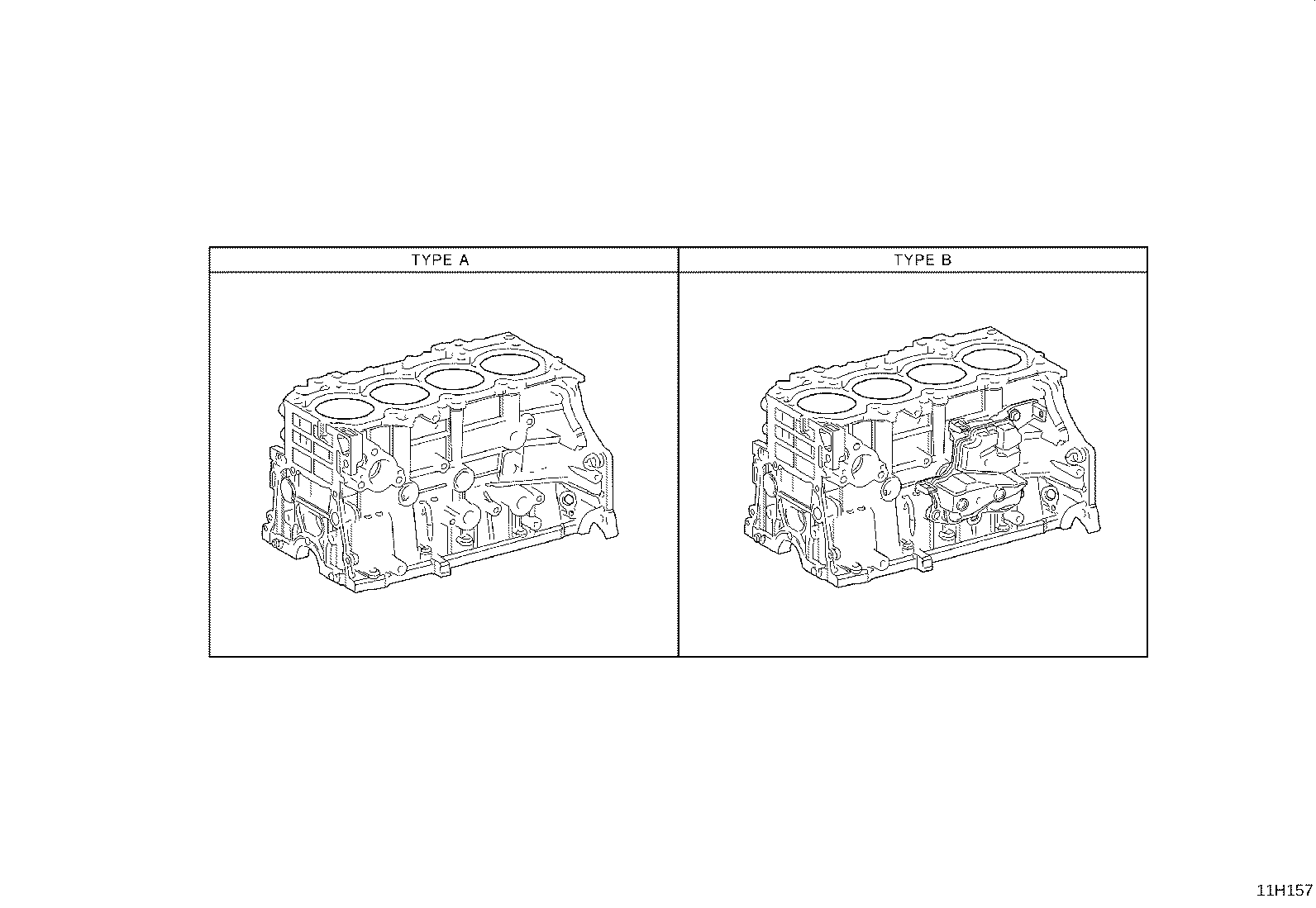

30 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 11361J | Cover, Flywheel Housing Under |
| 11363A | Cover, Flywheel Housing Side |
| 11401 | Block Sub-assy, Cylinder |
| 11401G | Sensor, Crank Position |
| 11401L | Seal, Engine Rear Oil |
| 11401V | O-ring, Crank Position Sensor |
| 11411A | Pin, Ring(FOR CYLINDER BLOCK NO.1 ) |
| 11416 | Bolt(FOR CRANKSHAFT BEARING CAP SET) |
| 11420 | Crankcase Assy, Stiffening |
| 11432S | Plug, W/Head Straight Screw, NO.2(FOR CYLINDER BLOCK) |
| 11432V | Gasket, Straight Screw Plug NO.2(FOR CYLINDER BLOCK) |
| 11434A | Pin, Straight(FOR TIMING GEAR COVER SET) |
| 11434B | Pin, Straight(FOR CLUTCH HOUSING SET) |
| 11434J | Pin, Ring (FOR CYLINDER HEAD SET) |
| 11434N | Pin, Straight(FOR WATER INLET HOUSING) |
| 11434Q | Pin, Straight(FOR CRANKCASE) |
| 11434R | Pin, Straight(FOR DRIVE SHAFT BEARING BRACKET) |
| 11445 | Spacer, Cylinder Block Water Jacket |
| 11452 | Guide, Oil Level Gage |
| 11452B | Ring, O(FOR OIL LEVEL GAGE GUIDE) |
| 12101A | Plug(FOR OIL PAN DRAIN) |
| 12101B | Gasket(FOR OIL PAN DRAIN PLUG) |
| 12102A | Pan Sub-assy, Oil, NO.2 |
| 13620B | Balancer Assy, Engine |
| 15250 | Valve Assy, Oil Pressure Control |
| 15301 | Gage Sub-assy, Oil Level |
| 15703A | Valve Sub-assy, Oil Nozzle |
| 15708 | Nozzle Sub-assy, Oil, NO.1 |
| 15709 | Nozzle Sub-assy, Oil, NO.2 |
| 17169A | Insulator, Exhaust Manifold Heat, NO.3 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
