Toyota RAV4
2020-06 → present · chassis AXAP54 · catalogue 666210 · Europe
Supported model
Data version 2023-10

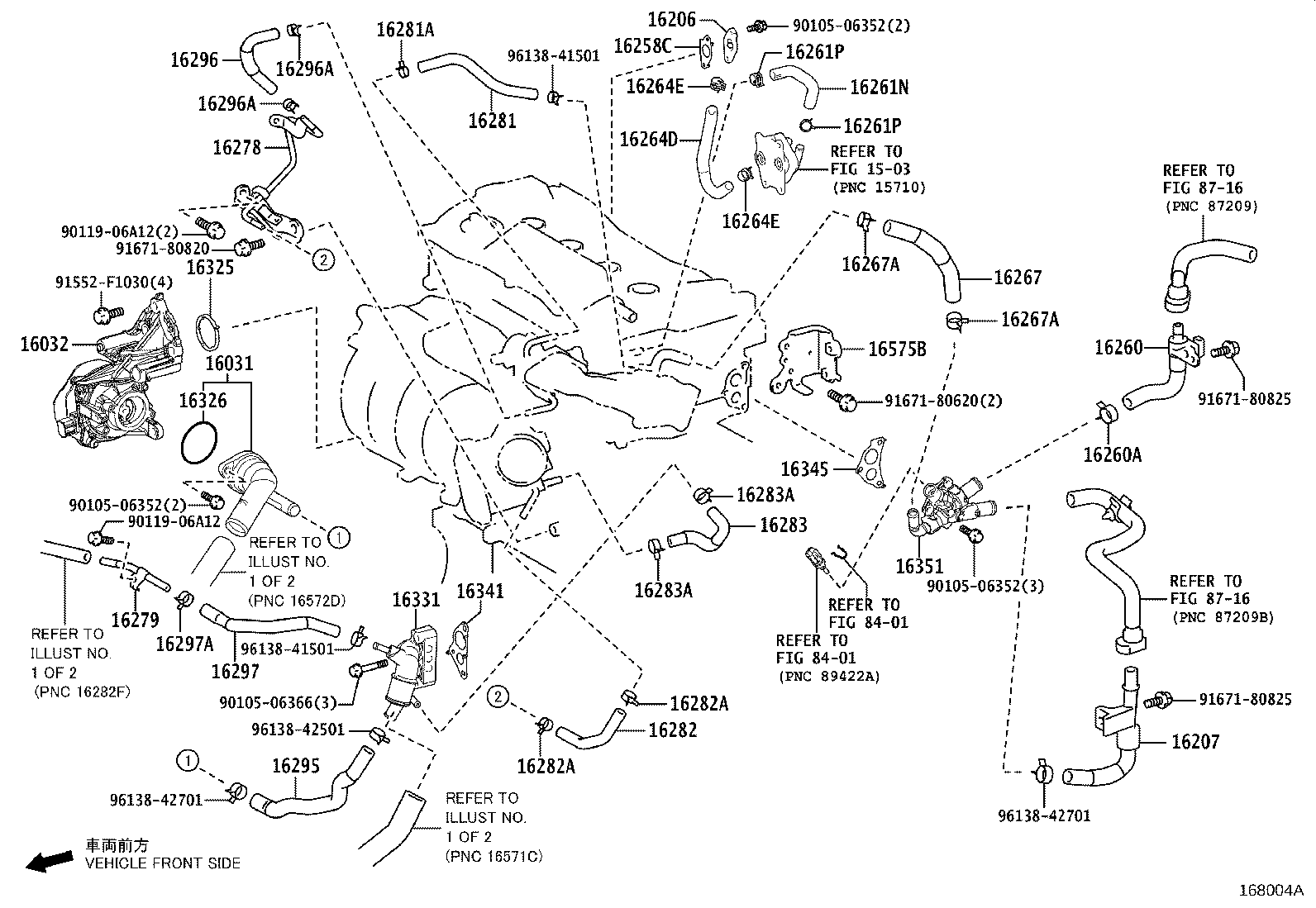

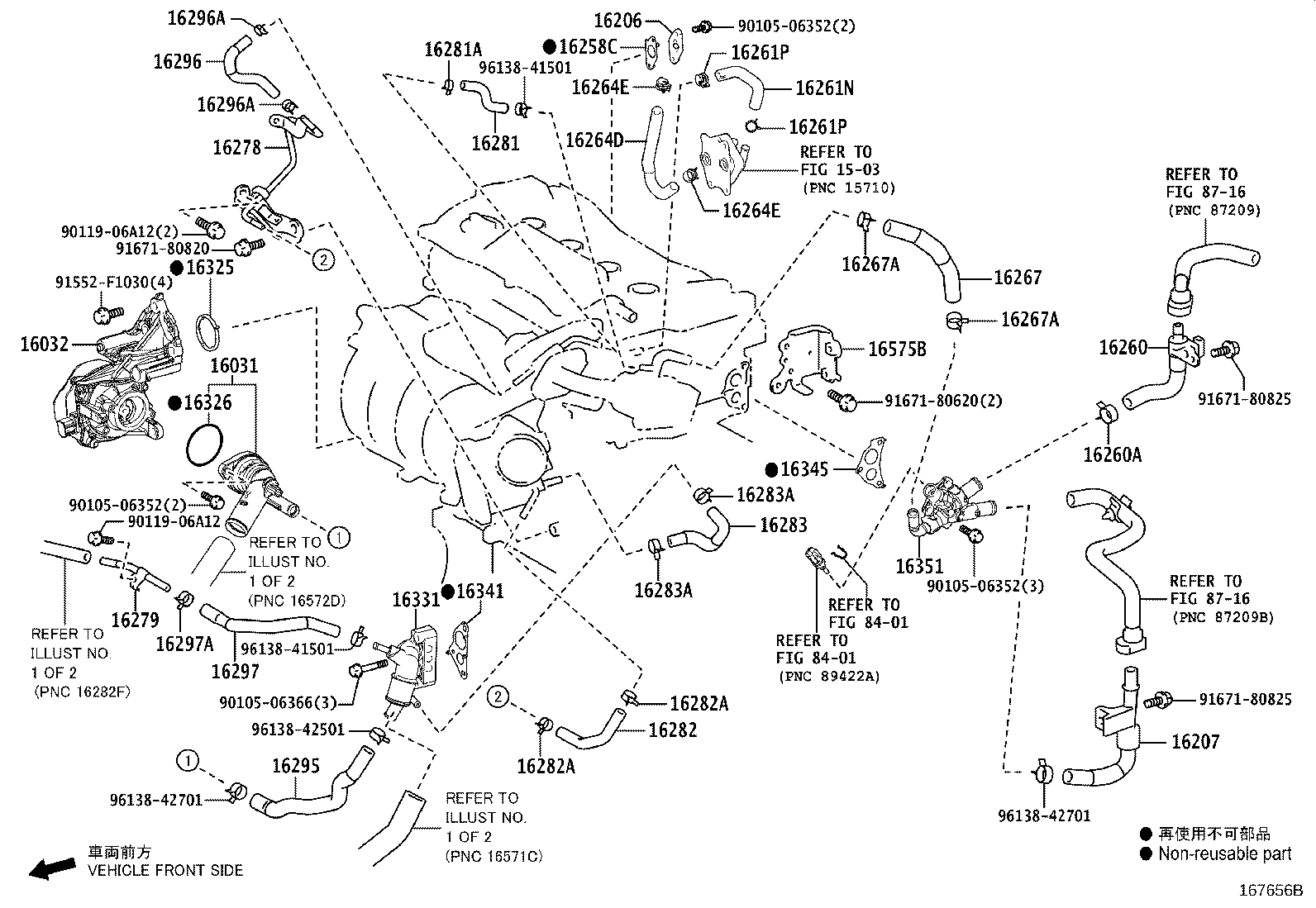

Radiator & Water Outlet
54 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 16031 | Water Inlet Sub-assy, W/Thermostat |
| 16032 | Housing Sub-assy, Water Inlet W/Water Pump |
| 16206 | Pipe Sub-assy, Water By-pass |
| 16207 | Pipe Sub-assy, Water By-pass, NO.2 |
| 16258C | Gasket(FOR WATER BY-PASS PIPE) |
| 16260 | Hose Assy, Water By-pass |
| 16260A | Clip(FOR WATER BY-PASS HOSE ASSY) |
| 16261N | Hose, Water By-pass, NO.2 |
| 16261P | Clip(FOR WATER BY-PASS HOSE NO.2) |
| 16264D | Hose, Water By-pass, NO.2 |
| 16264E | Clip(FOR WATER BY-PASS HOSE NO.2) |
| 16267 | Hose, Water By-pass, NO.3 |
| 16267A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3) |
| 16278 | Pipe, Water By-pass, NO.2 |
| 16279 | Pipe, Water By-pass, NO.3 |
| 16281 | Hose, Water By-pass, NO.4 |
| 16281A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4) |
| 16281N | Hose, Water By-pass, NO.4 |
| 16282 | Hose, Water By-pass, NO.5 |
| 16282A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5) |
| 16282F | Hose, Water By-pass, NO.5 |
| 16283 | Hose, Water By-pass, NO.6 |
| 16283A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6) |
| 16283D | Hose, Water By-pass, NO.6 |
| 16291 | Joint, Water Hose |
| 16295 | Hose, Water By-pass, NO.7 |
| 16296 | Hose, Water By-pass, NO.8 |
| 16296A | Clip(FOR WATER BY-PASS HOSE NO.8) |
| 16297 | Hose, Water By-pass, NO.9 |
| 16297A | Clip(FOR WATER BY-PASS HOSE NO.9) |
| 16325 | Gasket, Water Inlet Housing, NO.1 |
| 16326 | Gasket, Water Inlet Housing, NO.2 |
| 16331 | Outlet, Water |
| 16341 | Gasket, Water Outlet |
| 16345 | Gasket, Water Outlet Pipe |
| 16351 | Outlet, Water By-pass |
| 16360A | Fan Assy, W/Motor |
| 16400 | Radiator Assy |
| 16400B | Plug, Radiator Drain Cock |
| 16400F | Packing(FOR RADIATOR DRAIN COCK) |
| 16401 | Cap Sub-assy, Radiator |
| 16414 | Bolt, Radiator Tank Pipe |
| 16470 | Tank Assy, Radiator Reserve |
| 16471B | Cap, Reserve Tank |
| 16523A | Cushion, Radiator Support |
| 16535 | Support, Radiator, Lower |
| 16571A | Clamp OR Clip, Hose(FOR RADIATOR INLET) |
| 16571C | Hose, Radiator, NO.1 |
| 16571D | Clip, Radiator Hose, NO.1 |
| 16572A | Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1) |
| 16572D | Hose, Radiator, NO.2 |
| 16572E | Clip, Radiator Hose, NO.2 |
| 16575B | Bracket, Water Hose Clamp, NO.2 |
| 16897A | Neck, Filler |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
