Toyota RAV4

2020-06 → present · chassis AXAP54 · catalogue 666210 · Europe

Supported model Data version 2023-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Drive Shaft

30 part groups · 2 illustrations

Illustrations

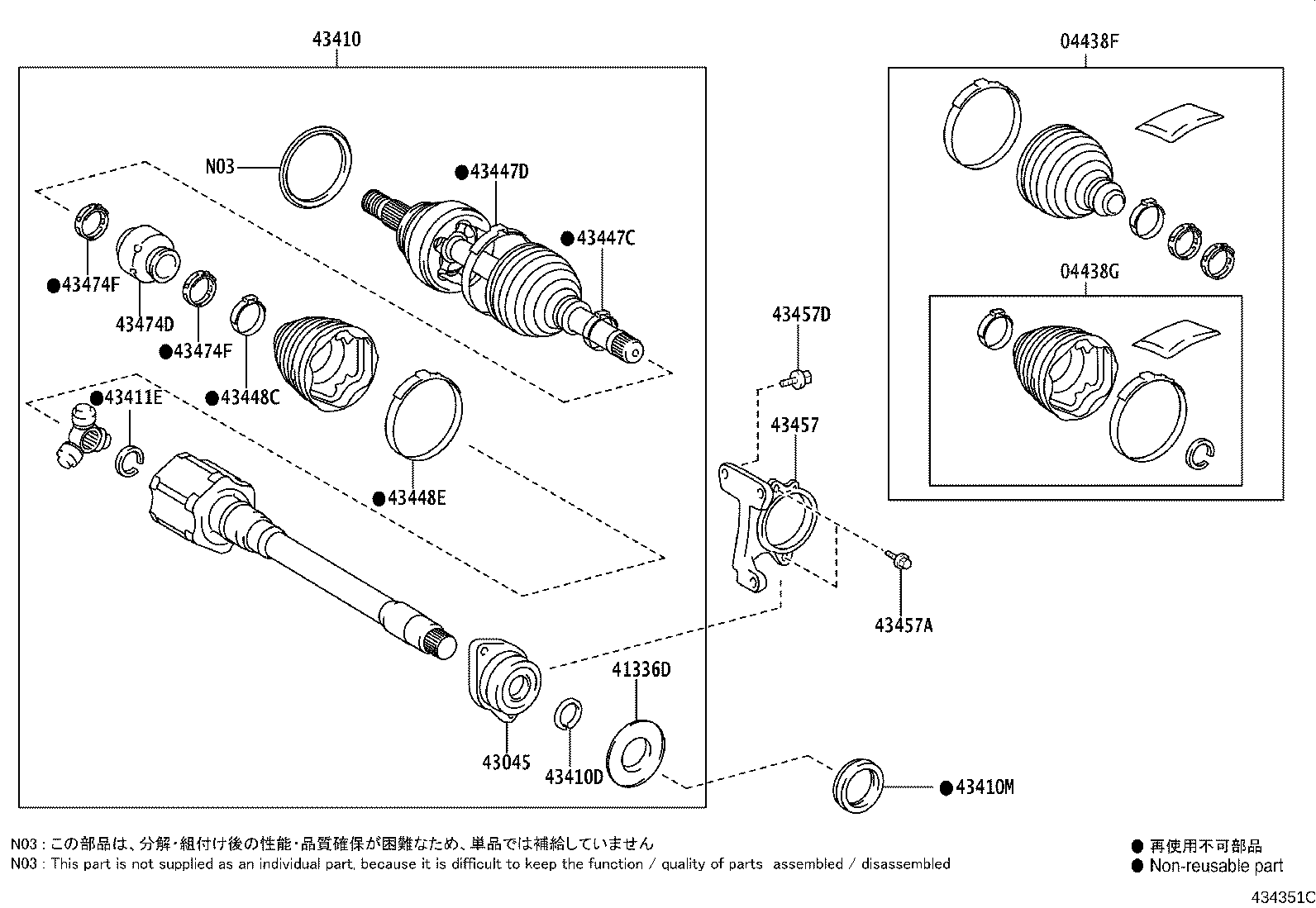

Figure 434350D 434350D 2020-06 → — Figure 434351C 434351C 2020-06 → —

Part groups

PNCDescription
04438F Boot Kit, Front Drive Shaft, IN & Outboard, RH
04438G Boot Kit, Front Drive Shaft Inboard Joint, RH
04438H Boot Kit, Front Drive Shaft, IN & Outboard, LH
04438J Boot Kit, Front Drive Shaft Inboard Joint, LH
41336D Cover, Front Drive Shaft Dust, RH
41336E Cover, Front Drive Shaft Dust, LH
43045 Case Sub Assy, Drive Shaft Bearing
43410 Shaft Assy, Front Drive, RH
43410D Ring, Shaft Snap (FOR FRONT DRIVE SHAFT)
43410M Oil Seal, Front Drive Shaft, RH
43411E Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
43412B Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
43420 Shaft Assy, Front Drive, LH
43420G Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
43420H Oil Seal, Front Drive Shaft, LH
43447C Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
43447D Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
43447E Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
43447F Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
43448C Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
43448E Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
43448F Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
43448G Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
43457 Bracket, Drive Shaft Bearing
43457A Bolt (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
43457D Bolt(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)
43474D Damper, Front Drive Shaft, RH
43474E Damper, Front Drive Shaft, LH
43474F Clamp (FOR FRONT DRIVE SHAFT DAMPER RH)
43474G Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
