Toyota RAV4
2020-06 → present · chassis AXAP54 · catalogue 666210 · Europe
Supported model
Data version 2023-10

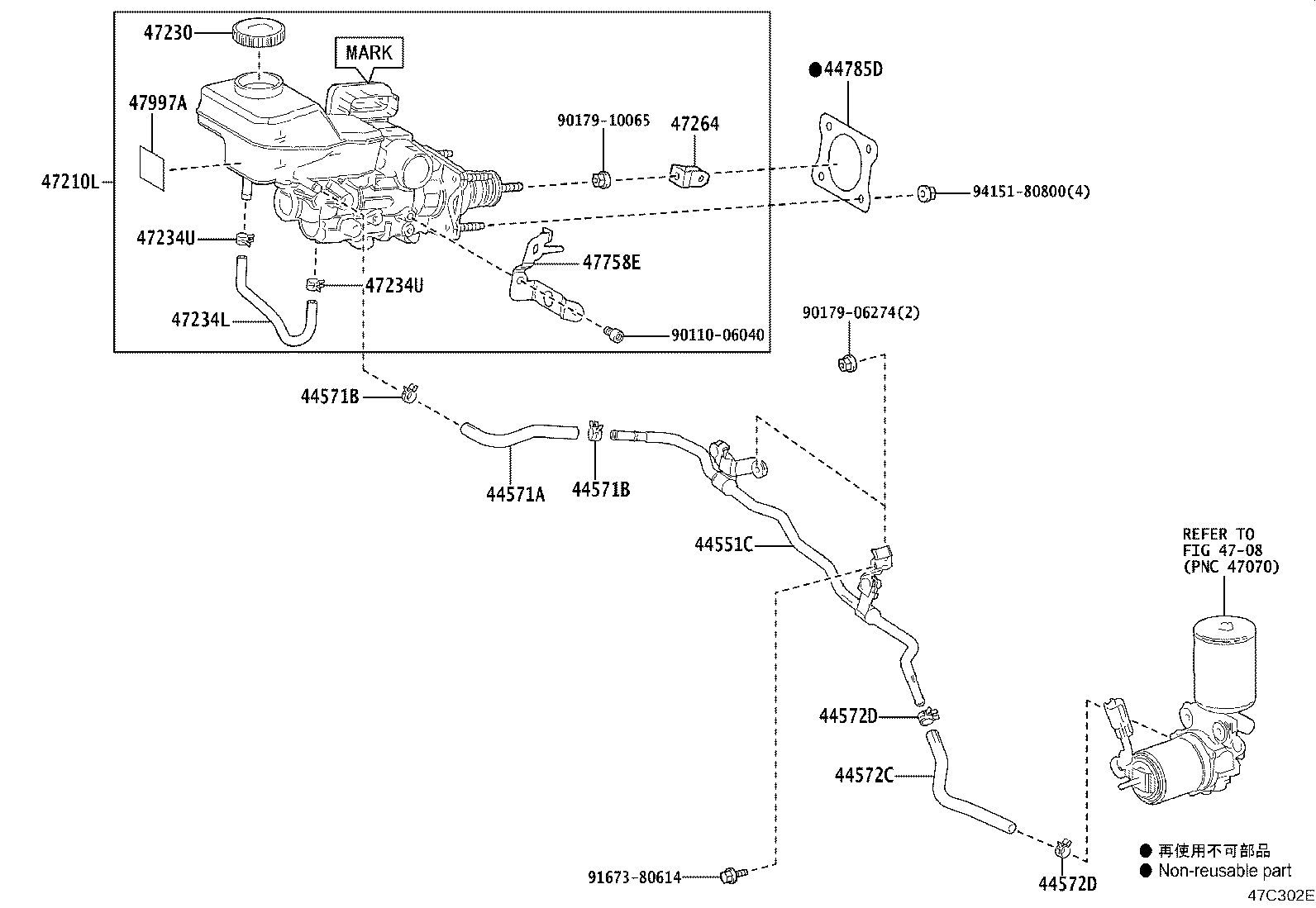

Brake Master Cylinder
20 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 44521C | Collar, Brake Actuator Case |
| 44551C | Tube, Brake Actuator, NO.1 |
| 44571A | Hose, Brake Actuator, NO.1 |
| 44571B | Clip, Hose(FOR BRAKE ACTUATOR HOSE NO.1) |
| 44572C | Hose, Brake Actuator, NO.2 |
| 44572D | Clip, Hose(FOR BRAKE ACTUATOR HOSE NO.2) |
| 44785D | Gasket, Brake Master Cylinder |
| 47070B | Pump Assy, Brake Booster W/Accumulator |
| 47210L | Brake Booster Assy, W/Master Cylinder |
| 47230 | Cap Assy, Brake Master Cylinder Reservoir Filler |
| 47234L | Hose, Reservoir, NO.1 |
| 47234U | Clip(FOR RESERVOIR HOSE NO.1) |
| 47235G | Hose, Reservoir, NO.2 |
| 47235J | Clip(FOR RESERVOIR HOSE NO.2) |
| 47264 | Clevis, Master Cylinder Push Rod |
| 47758E | Bracket, Wire Clamp, NO.1 |
| 47759E | Bracket, Wire Clamp, NO.2 |
| 47941A | Bracket, Brake Power Supply, NO.1 |
| 47942 | Bracket, Brake Power Supply, NO.2 |
| 47997A | Label, Accumulator Caution, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
