Toyota RAV4
2020-06 → present · chassis AXAP54 · catalogue 666210 · Europe
Supported model
Data version 2023-10
Roof Panel & Back Panel
60 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|

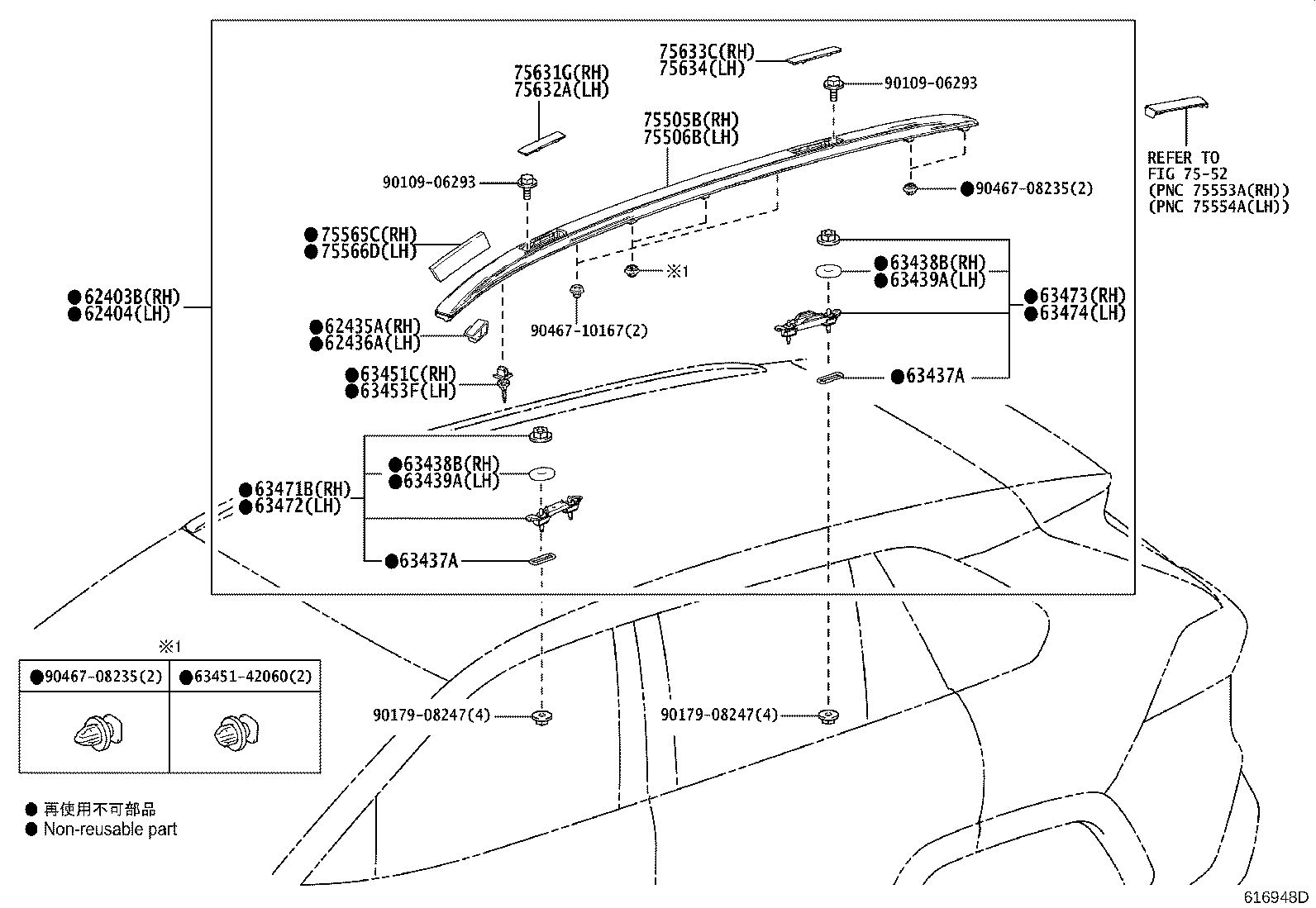

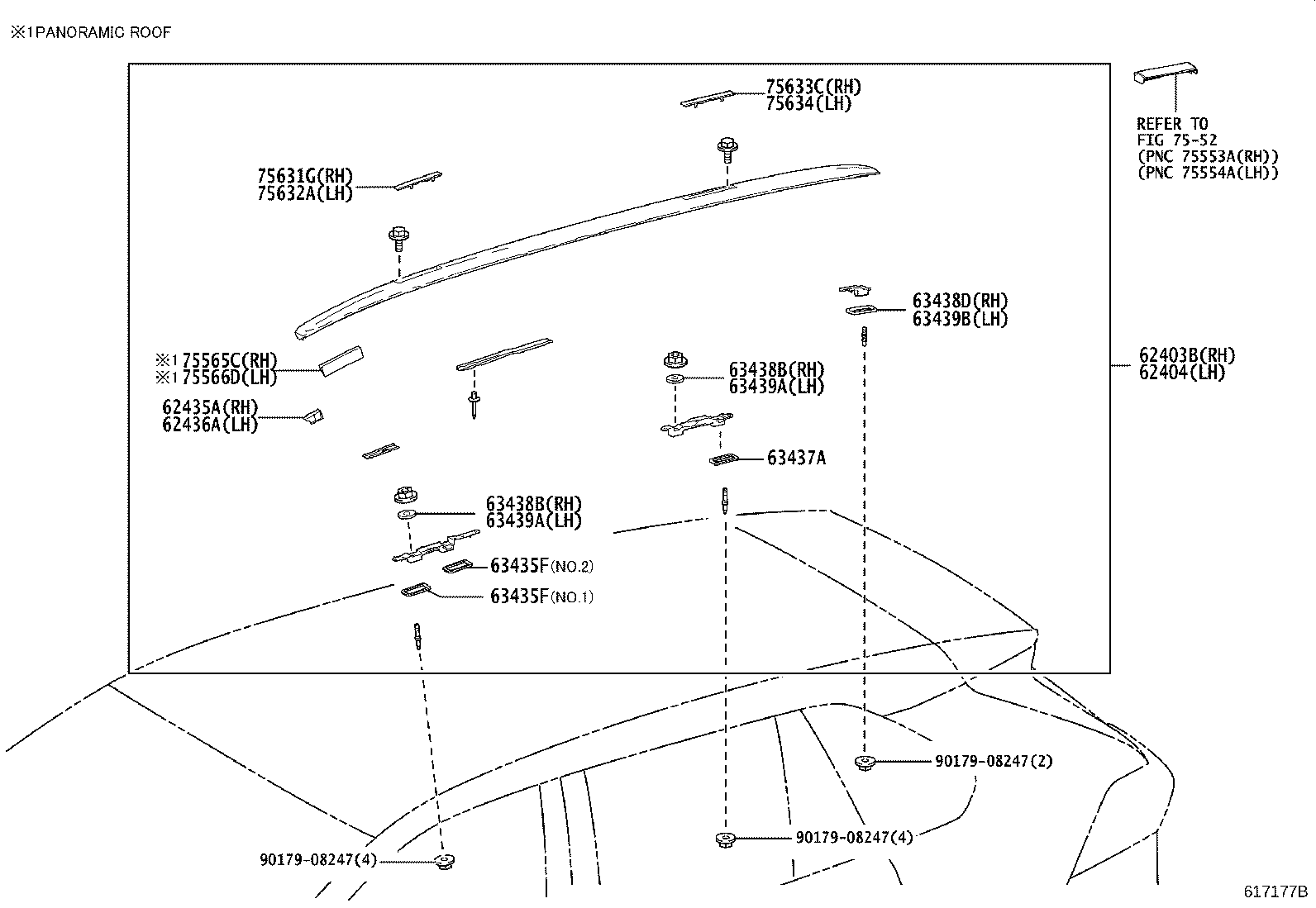

| 62403B | Garnish Sub-assy, Roof Side Rail, RH |
| 62404 | Garnish Sub-assy, Roof Side Rail, LH |
| 62435A | Pad, Roof Side Rail, Front RH |
| 62436A | Pad, Roof Side Rail, Front LH |

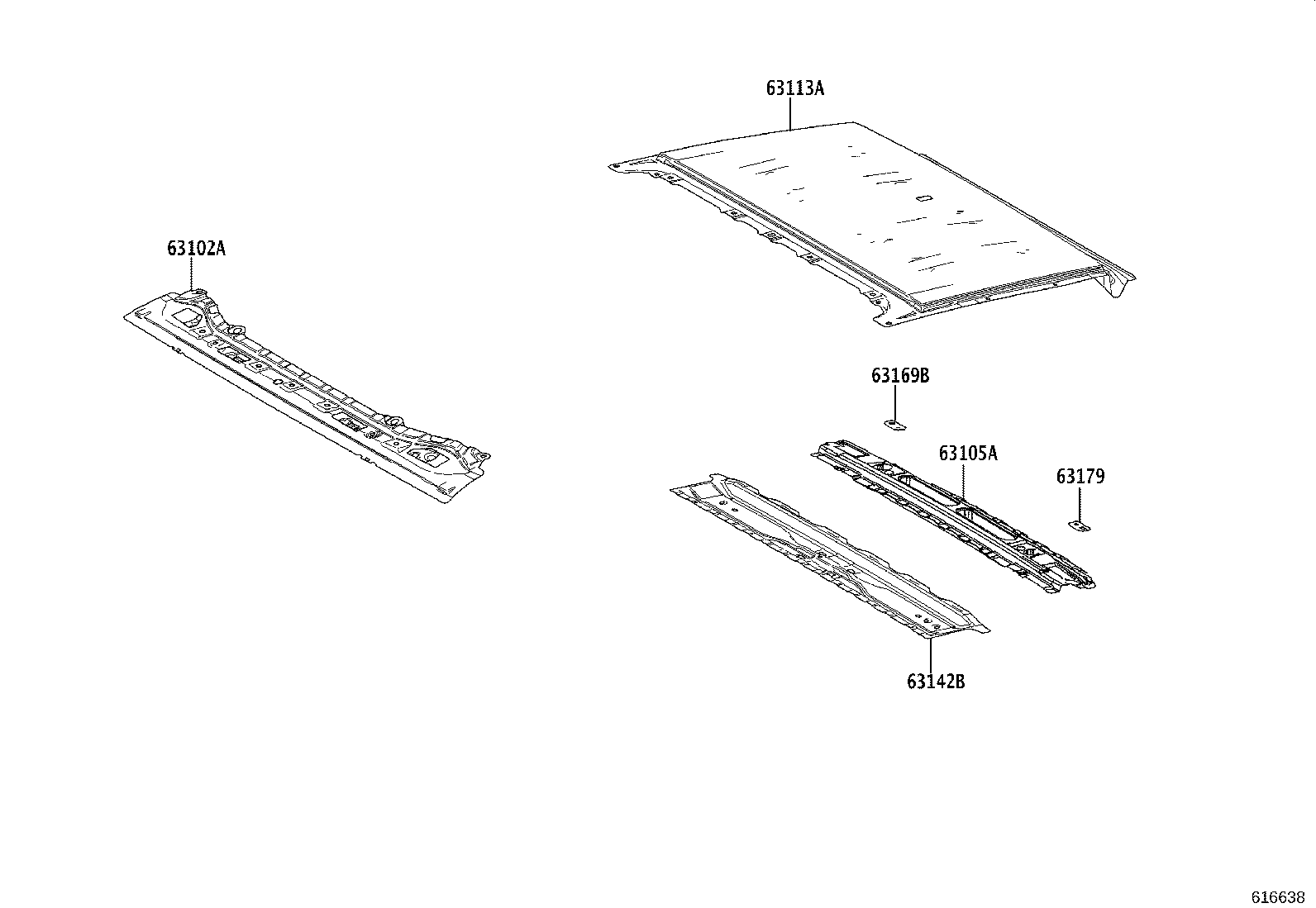

| 63102A | Panel Sub-assy, Windshield Header |
| 63103B | Reinforcement Sub-assy, Roof Panel, Center |
| 63105A | Frame Sub-assy, Back Door Opening |
| 63111 | Panel, Roof |
| 63113A | Panel, Roof, NO.3 |
| 63142B | Reinforcement, Roof Panel, Rear |
| 63143B | Reinforcement, Roof Panel, NO.3 |
| 63144B | Reinforcement, Roof Panel, NO.4 |
| 63146C | Reinforcement Sub-assy, Roof Panel, NO.6 |
| 63149D | Reinforcement, Roof Panel, NO.8 |
| 63169B | Plate, Roof Panel Reinforcement, RH |
| 63179 | Plate, Roof Panel Reinforcement, LH |
| 63200 | Housing Assy, Moon Roof |
| 63201A | Panel Sub-assy, Sliding Roof OR Removable Roof |
| 63201P | Glass Sub-assy, Sliding Roof |
| 63202H | Rail Sub-assy, Slide Roof |
| 63217E | Garnish, Sliding Roof, Front RH |
| 63217K | Garnish, Sliding Roof Side, RH |
| 63217Q | Garnish, Sliding Roof Side, RH |
| 63217R | Garnish, Sliding Roof Side, RH |
| 63218E | Garnish, Sliding Roof, Front LH |
| 63218M | Garnish, Sliding Roof Side, LH |
| 63218R | Garnish, Sliding Roof Side, LH |
| 63218S | Garnish, Sliding Roof Side, LH |
| 63219A | Garnish, Sliding Roof, Rear |
| 63231C | Bracket, Room Lamp |
| 63233C | Panel, Sliding Roof Housing |
| 63241A | Bracket, Sliding Roof Housing Front Mounting, RH |
| 63242A | Bracket, Sliding Roof Housing Front Mounting, LH |
| 63243C | Bracket, Sliding Roof Housing Center Mounting, RH |
| 63244C | Bracket, Sliding Roof Housing Center Mounting, LH |
| 63245D | Bracket, Sliding Roof Housing Rear Mounting, RH |
| 63246D | Bracket, Sliding Roof Housing Rear Mounting, LH |
| 63251 | Weatherstrip, Sliding Roof Panel OR Removable Roof |
| 63260J | Gear Assy, Sliding Roof Drive |
| 63260K | Gear Assy, Sliding Roof Drive |
| 63435F | Seal, Roof Carrier, NO.1 |
| 63437A | Seal, Roof Carrier, NO.2 |
| 63438B | Seal, Roof Carrier, NO.3 RH |
| 63438D | Seal, Roof Carrier, NO.3 RH |
| 63439A | Seal, Roof Carrier, NO.3 LH |
| 63439B | Seal, Roof Carrier, NO.3 LH |
| 63451C | Retainer, Roof Rack, Front RH |
| 63453F | Retainer, Roof Rack, Front LH |
| 63471B | Leg, Roof Rack, Front RH |
| 63472 | Leg, Roof Rack, Front LH |
| 63473 | Leg, Roof Rack, Rear RH |
| 63474 | Leg, Roof Rack, Rear LH |
| 75505B | Garnish Sub-assy, Roof Side, Front RH |
| 75506B | Garnish Sub-assy, Roof Side, Front LH |
| 75565C | Protector, Roof Side Garnish, Front RH |
| 75566D | Protector, Roof Side Garnish, Front LH |
| 75631G | Lid, Roof Side Garnish, NO.1 RH |
| 75632A | Lid, Roof Side Garnish, NO.1 LH |
| 75633C | Lid, Roof Side Garnish, NO.2 RH |
| 75634 | Lid, Roof Side Garnish, NO.2 LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
