Toyota RAV4

2020-06 → present · chassis AXAP54 · catalogue 666210 · Europe

Supported model Data version 2023-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

10 part groups · 2 illustrations

Illustrations

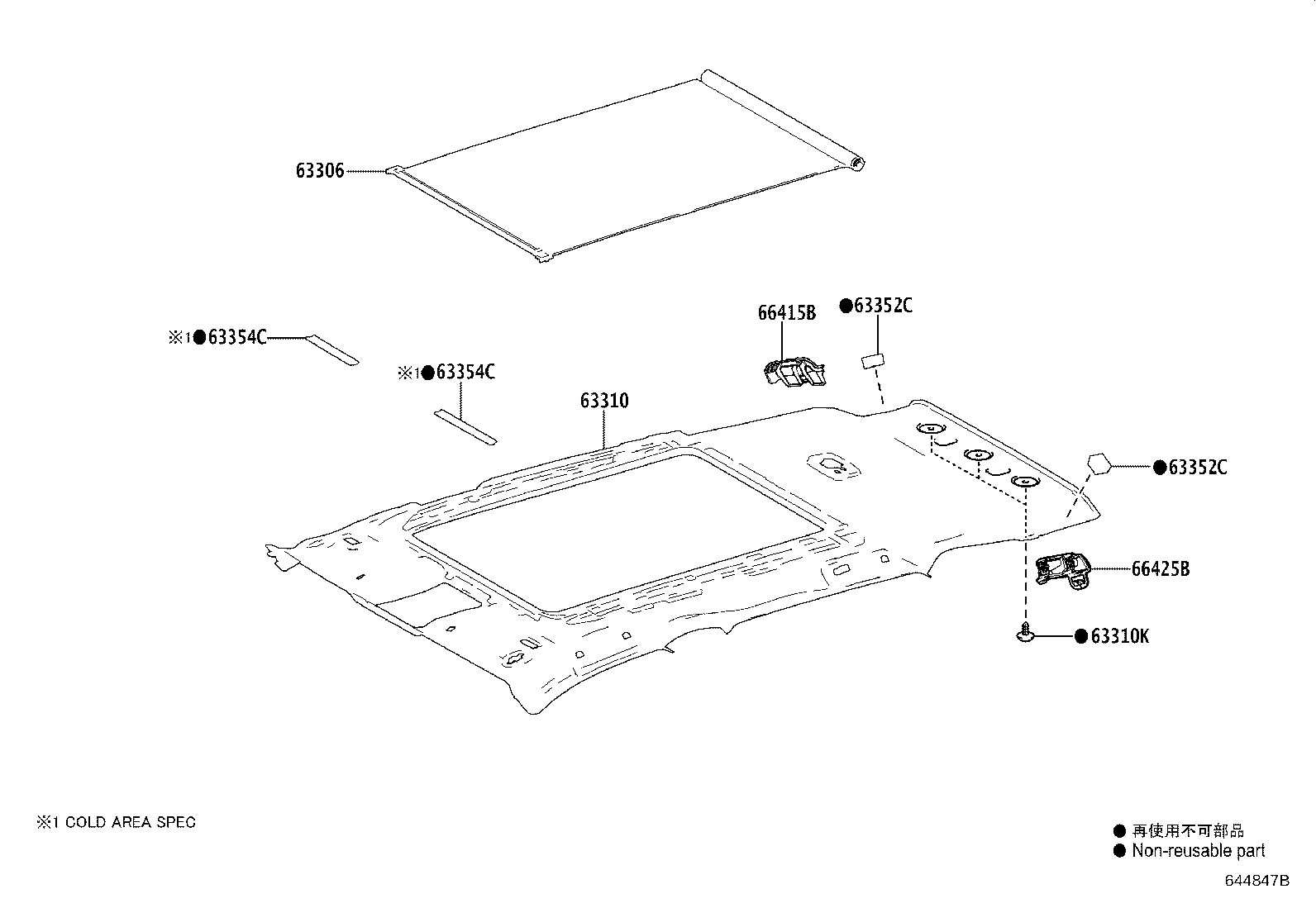

Figure 644846B 644846B 2020-06 → — Figure 644847B 644847B 2020-06 → —

Part groups

PNCDescription
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310K Clip
63341 Pad, Roof Silencer, NO.1
63351B Pad, Roof Headlining
63352C Pad, Roof Headlining, End
63352D Pad, Roof Headlining, NO.2
63354C Pad, Roof Headlining Front Side
66415B Spacer, Side Rail, Rear NO.2 RH
66425B Spacer, Side Rail, Rear NO.2 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
