Toyota RAV4
2020-06 → present · chassis AXAP54 · catalogue 666210 · Europe
Supported model
Data version 2023-10

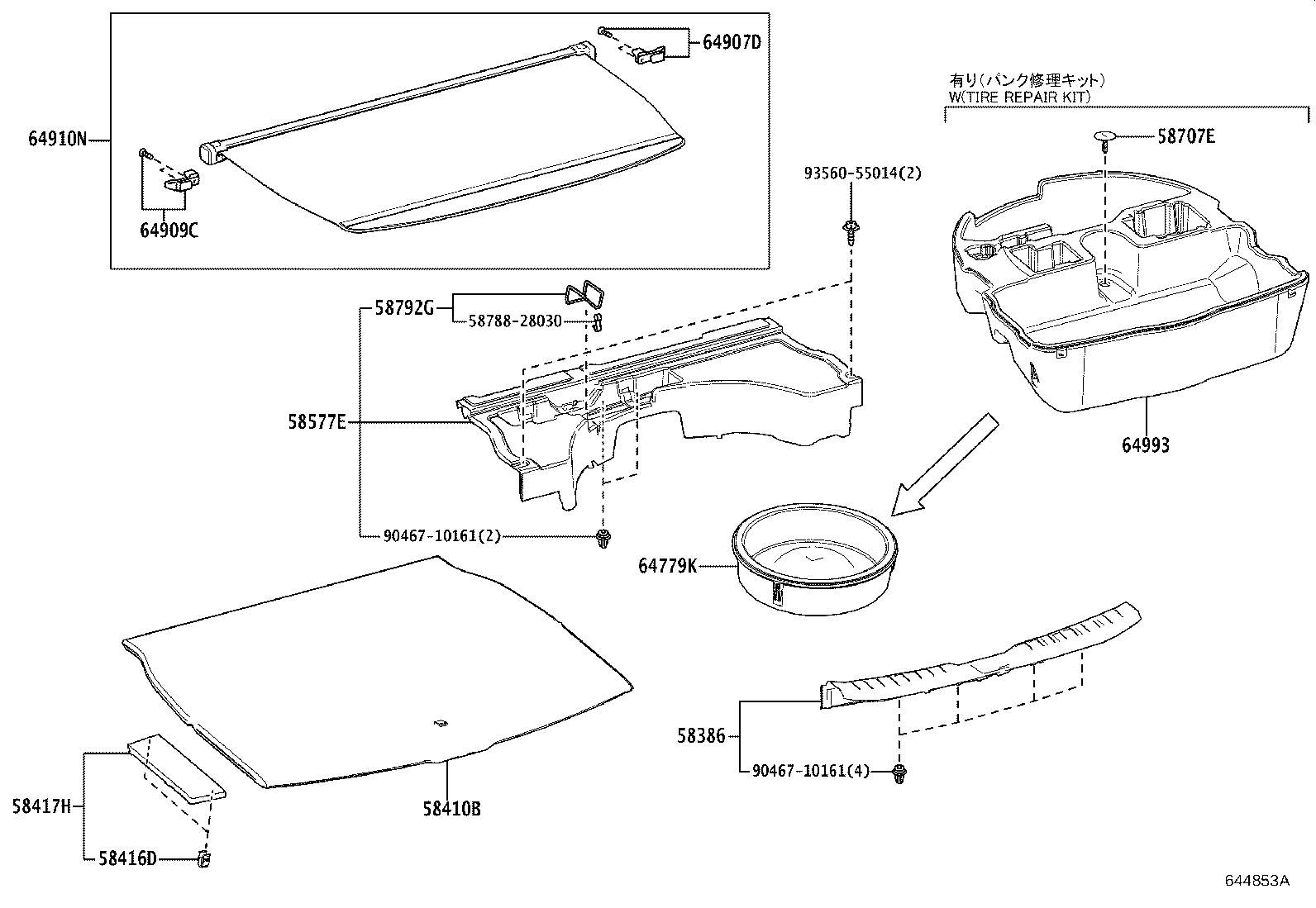

Deck Board & Deck Trim Cover
22 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58386 | Plate, Rear Floor Finish |
| 58410B | Board Assy, Deck |
| 58416D | Clip, Rear Floor Board |
| 58417H | Board, Rear Floor, NO.3 |
| 58460D | Striker Assy, Luggage Hold Belt |
| 58577E | Plate, Rear Floor Mat Support Side, NO.1 |
| 58707E | Plug Set, Hole |
| 58792G | Support, Jack Carrier |
| 64714J | Cover, Deck Side Trim, RH |
| 64730C | Board, Deck Trim Side, RH |
| 64730H | Clip(FOR DECK TRIM SIDE PANEL) |
| 64730J | Panel Assy, Deck Trim Side, RH |
| 64730K | Clip(FOR DECK SIDE TRIM PANEL) |
| 64740E | Panel Assy, Deck Trim Side, LH |
| 64779K | Stopper, Spare Wheel Cover |
| 64907D | Stopper Sub-assy, Tonneau Cover, RH |
| 64909C | Stopper Sub-assy, Tonneau Cover, LH |
| 64910N | Cover Assy, Tonneau |
| 64993 | Box, Deck Floor, Rear |
| 65351A | Cover, Battery Hole |
| 73708A | Bracket Set, Tether Anchor |
| 75210B | Box Assy, Tool |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
