Toyota RAV4

2020-06 → present · chassis AXAP54 · catalogue 666210 · Europe

Supported model Data version 2023-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate

18 part groups · 3 illustrations

Illustrations

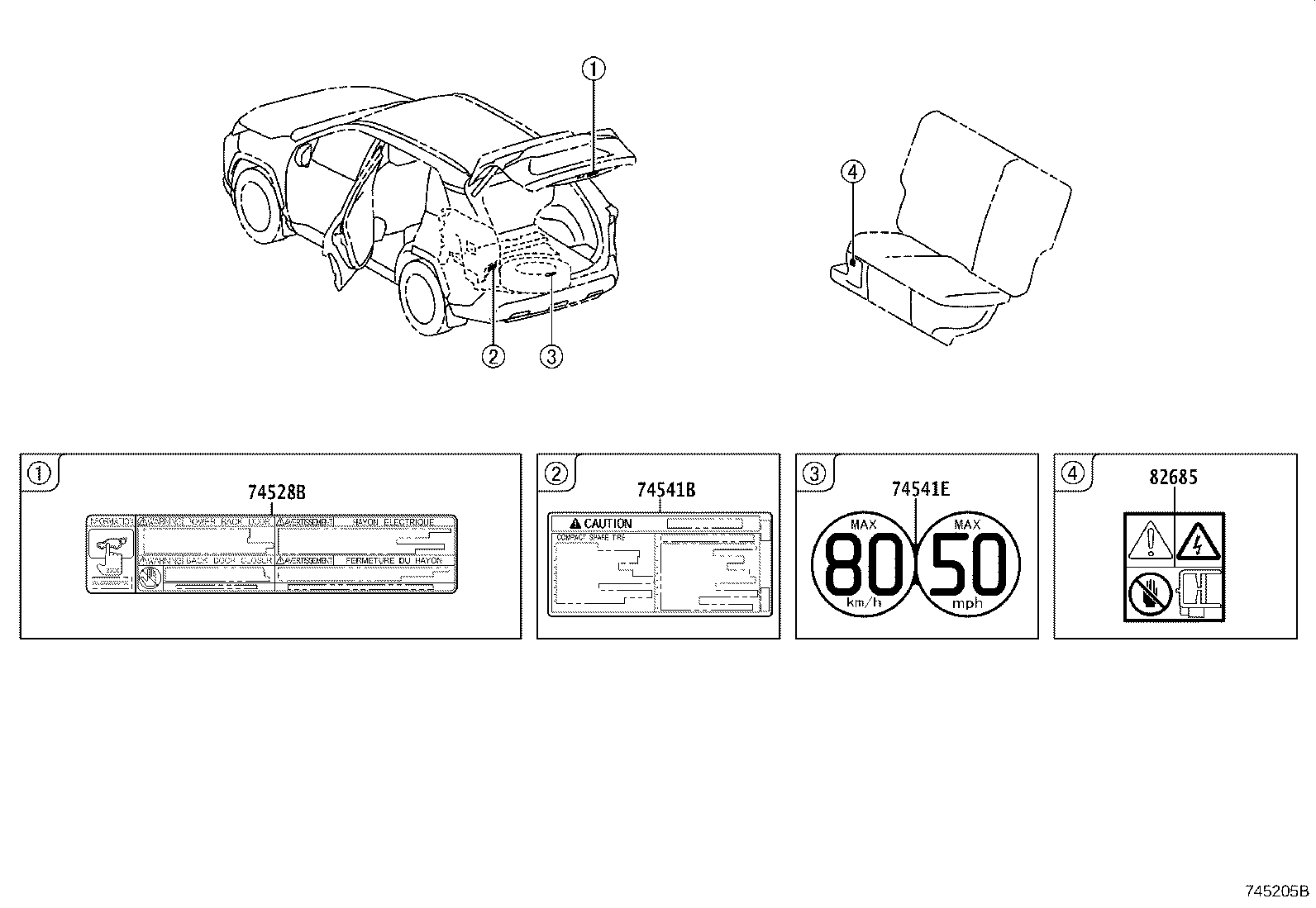

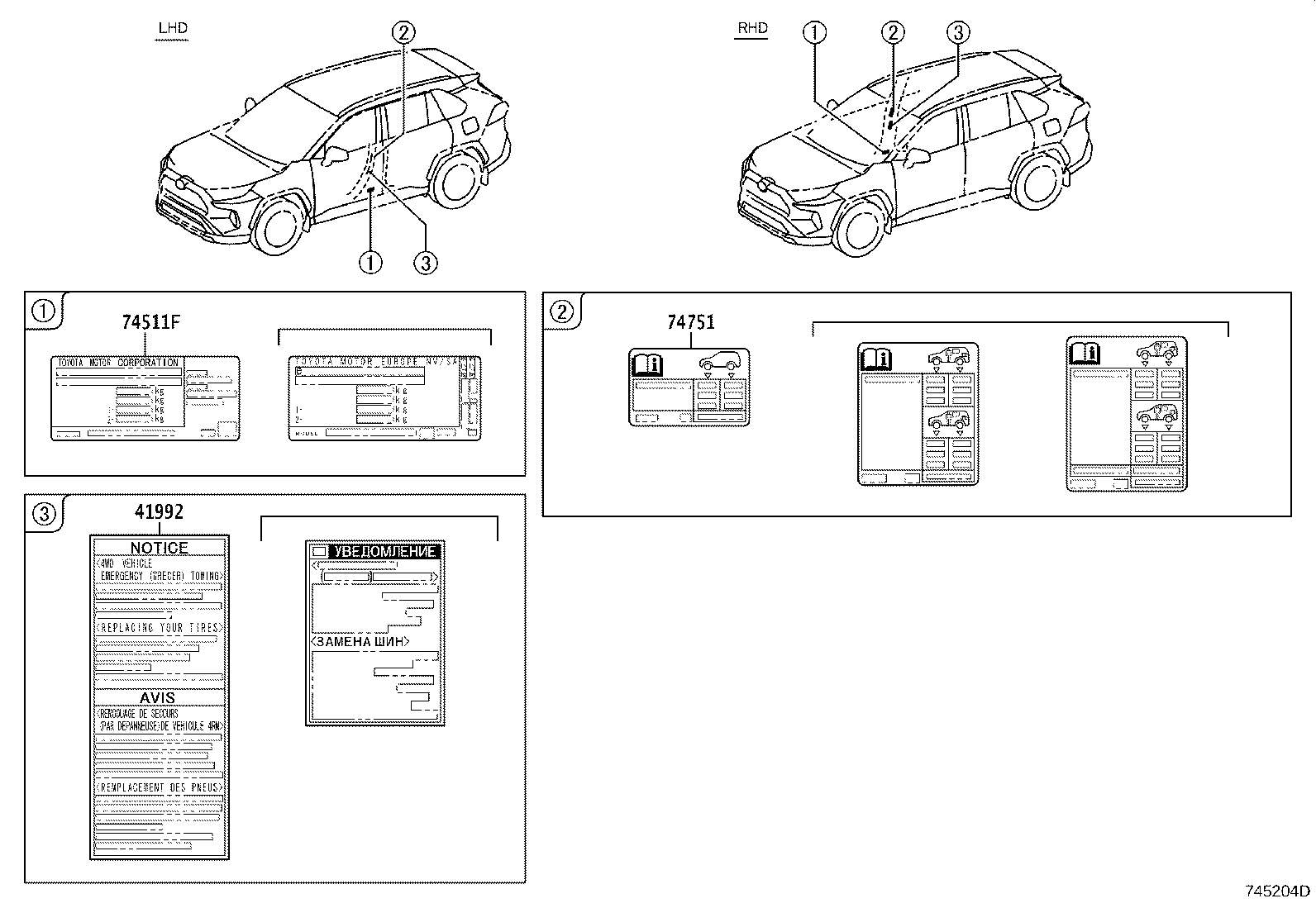

Figure 745203B 745203B 2020-06 → — Figure 745204D 745204D 2020-06 → — Figure 745205B 745205B 2020-06 → —

Part groups

PNCDescription
11293D Label, Engine Caution
16793B Label, Cooling Fan Information
41992 Label, Differential Notice
47288 Label, Brake Fluid Notice
74511F Label, Name (IDENTIFICATION LASER LABEL)
74515C Label, Theft Warning Information
74528B Label, Back Door Caution
74541B Plate, Compact Spare Tire Caution
74541E Plate, Compact Spare Tire Caution
74559B Label, Fuel Information
74573D Label, Electric Vehicle Battery Caution
74751 Label, Tire Pressure Information
82685 Plate, Caution
88723H Label, Cooler Service Caution
88723J Label, Cooler Service Caution, NO.2
89356A Label, Clearance Warning Information
G9275 Label, Battery Caution, NO.1
G92A1 Label, Hybrid Coolant System Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
