Toyota RAV4
2020-06 → present · chassis AXAP54 · catalogue 666210 · Europe
Supported model
Data version 2023-10

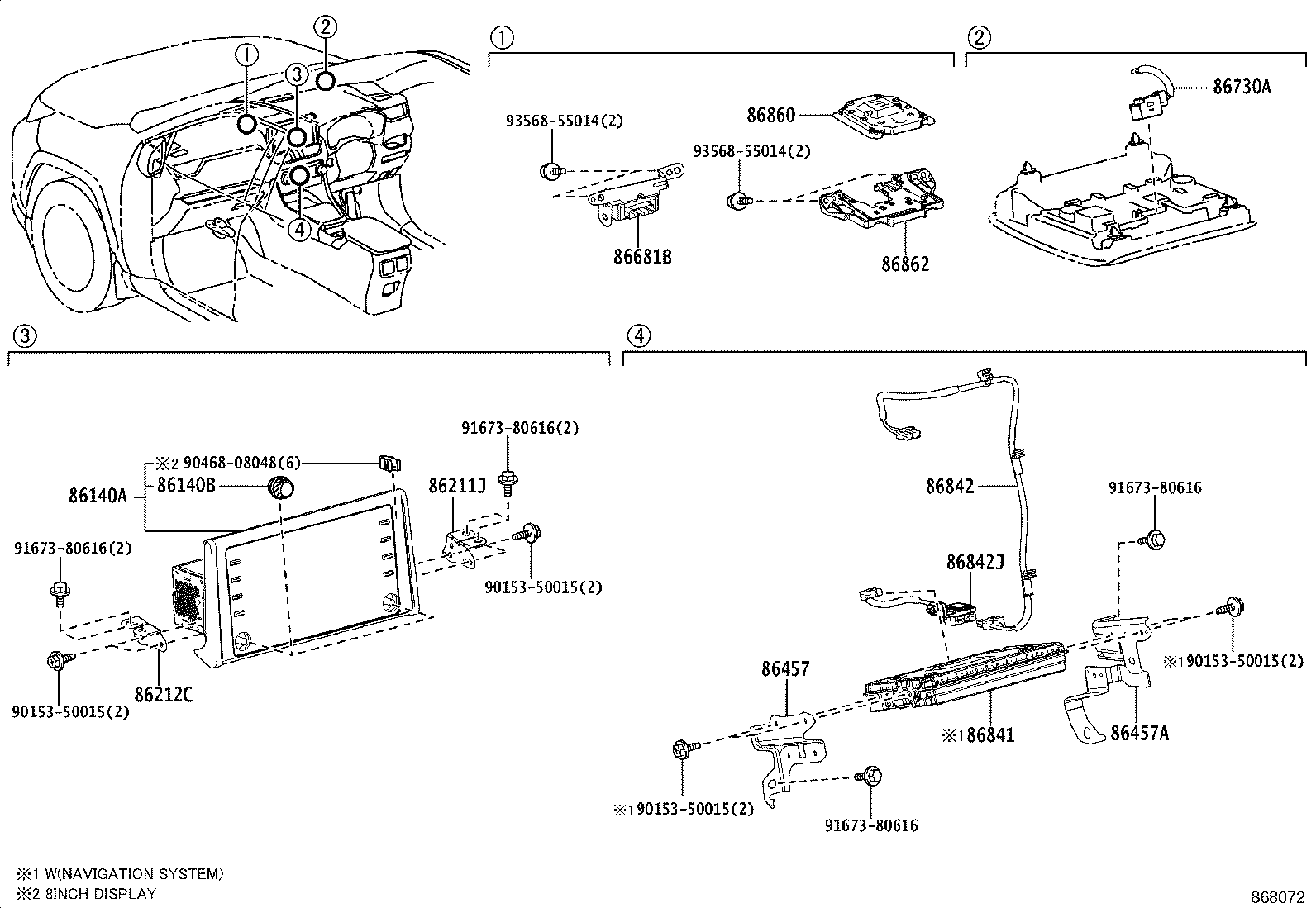

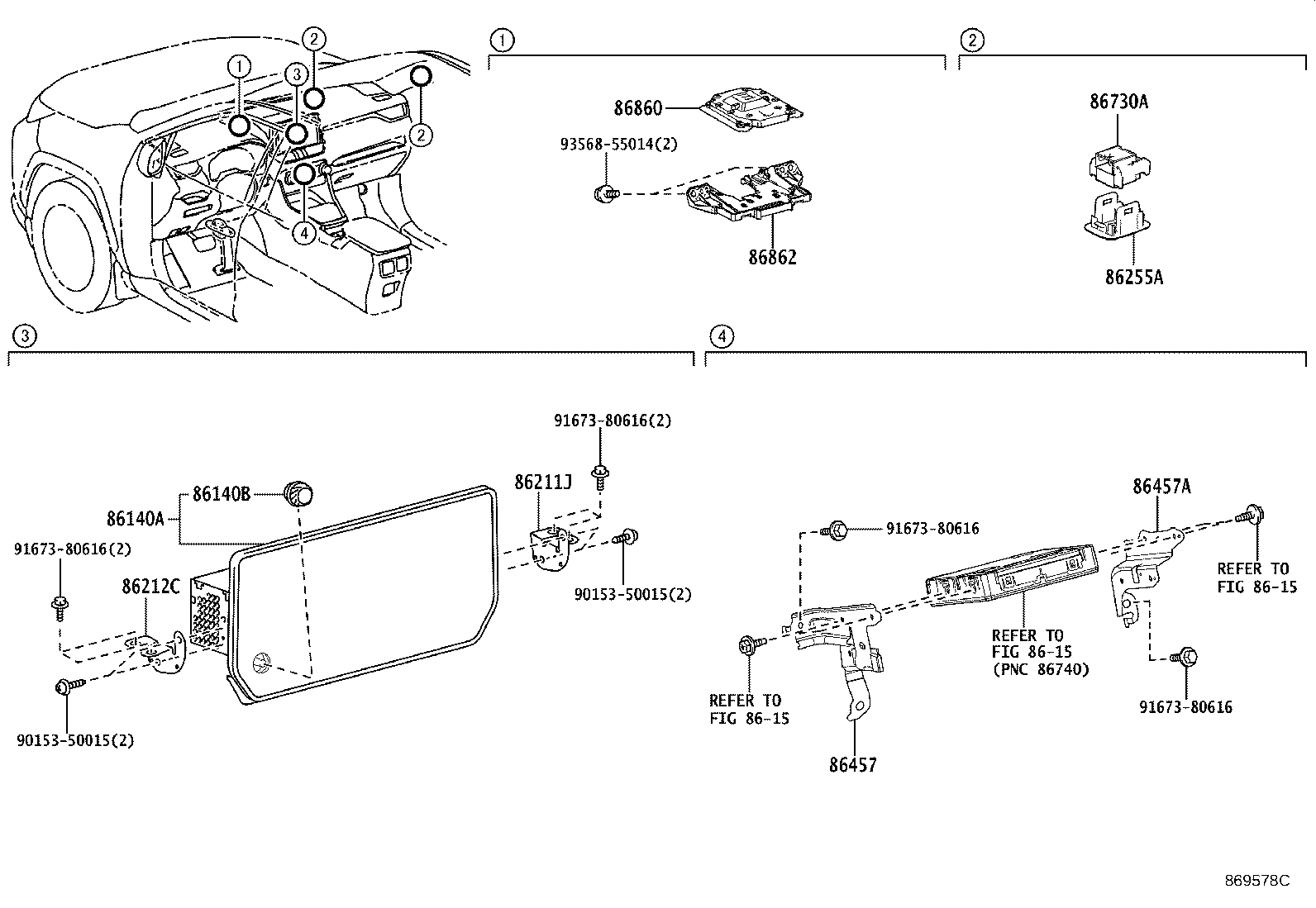

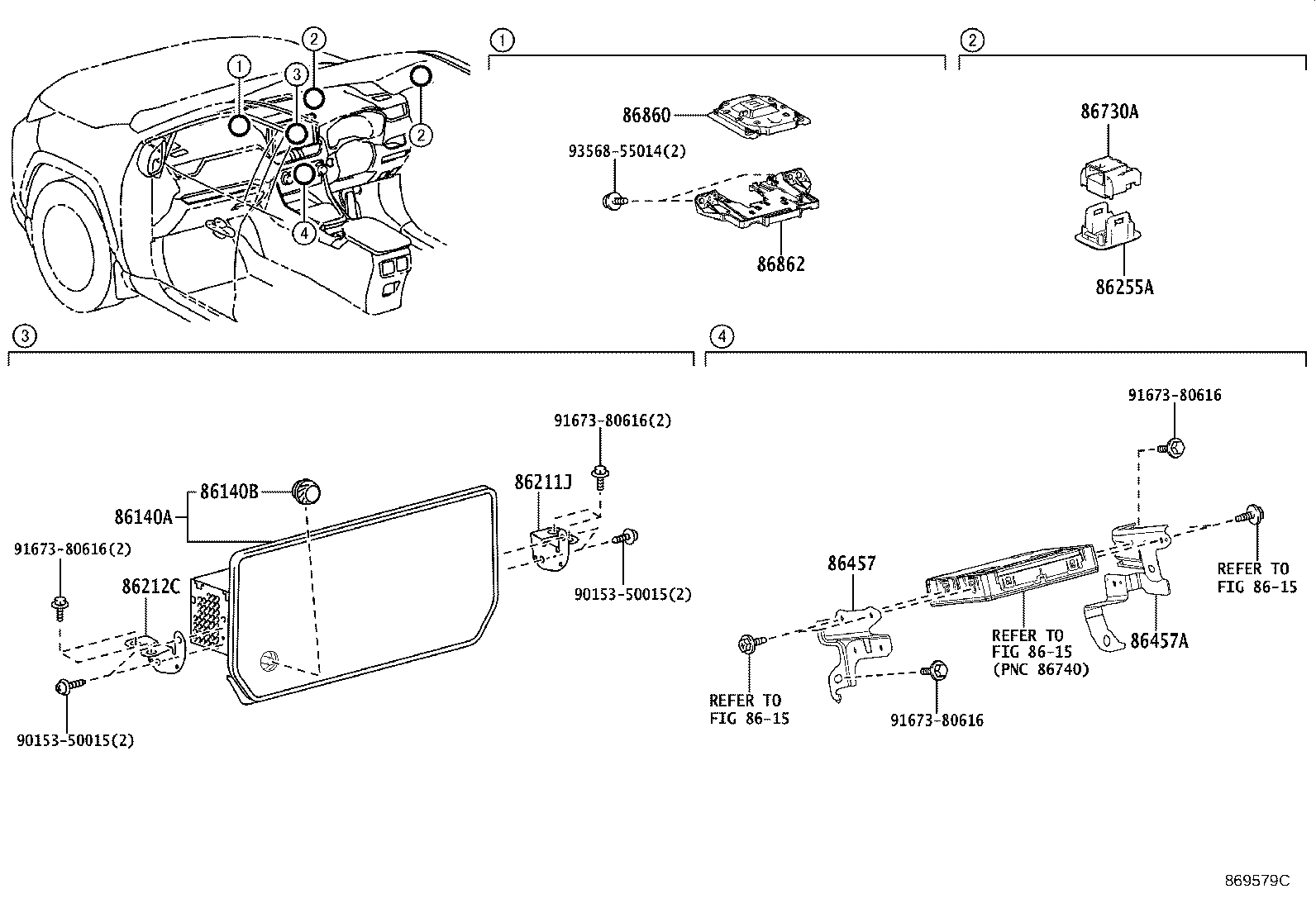

Navigation & Front Monitor Display
14 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 86140A | Receiver Assy, Radio & Display |
| 86140B | Knob, Radio & Display Receiver Switch |
| 86211J | Bracket, Radio Receiver, NO.1 |
| 86212C | Bracket, Radio Receiver, NO.2 |
| 86255A | Case, Microphone, NO.1 |
| 86457 | Bracket, Multi-media Module NO.1 |
| 86457A | Bracket, Multi-media Module NO.2 |
| 86681B | Divider, Antenna |
| 86730A | Microphone Assy, Telephone |
| 86841 | Computer, Navigation |
| 86842 | Wire, Navigation, NO.1 |
| 86842J | Wire, Navigation, NO.2 |
| 86860 | Antenna Assy, Navigation |
| 86862 | Bracket, Navigation Antenna |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
