Toyota RAV4

2020-06 → present · chassis AXAP54 · catalogue 666210 · Europe

Supported model Data version 2023-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Camera & Rear Monitor Display

6 part groups · 2 illustrations

Illustrations

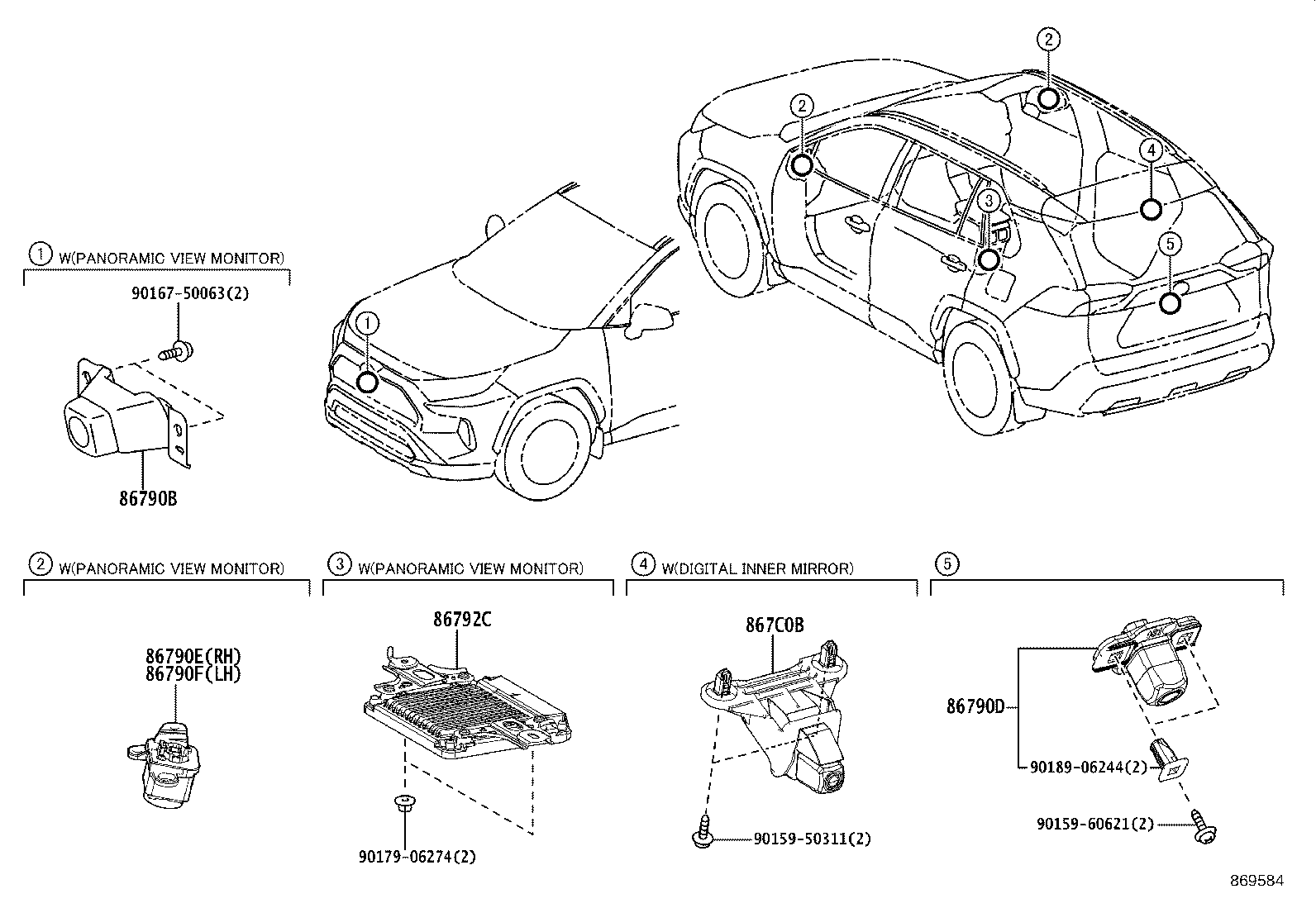

Figure 868093A 868093A 2020-06 → 2022-10 Figure 869584 869584 2022-10 → —

Part groups

PNCDescription
86790B Camera Assy, Television, FR
86790D Camera Assy, Television, RR
86790E Camera Assy, Television, Side RH
86790F Camera Assy, Television, Side LH
86792C Computer, Parking Assist
867C0B Camera Assy, Inner Mirror, RR
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
