Toyota RAV4
2020-06 → present · chassis AXAP54 · catalogue 666210 · Europe
Supported model
Data version 2023-10
Telephone & Mayday
9 part groups · 2 illustrations

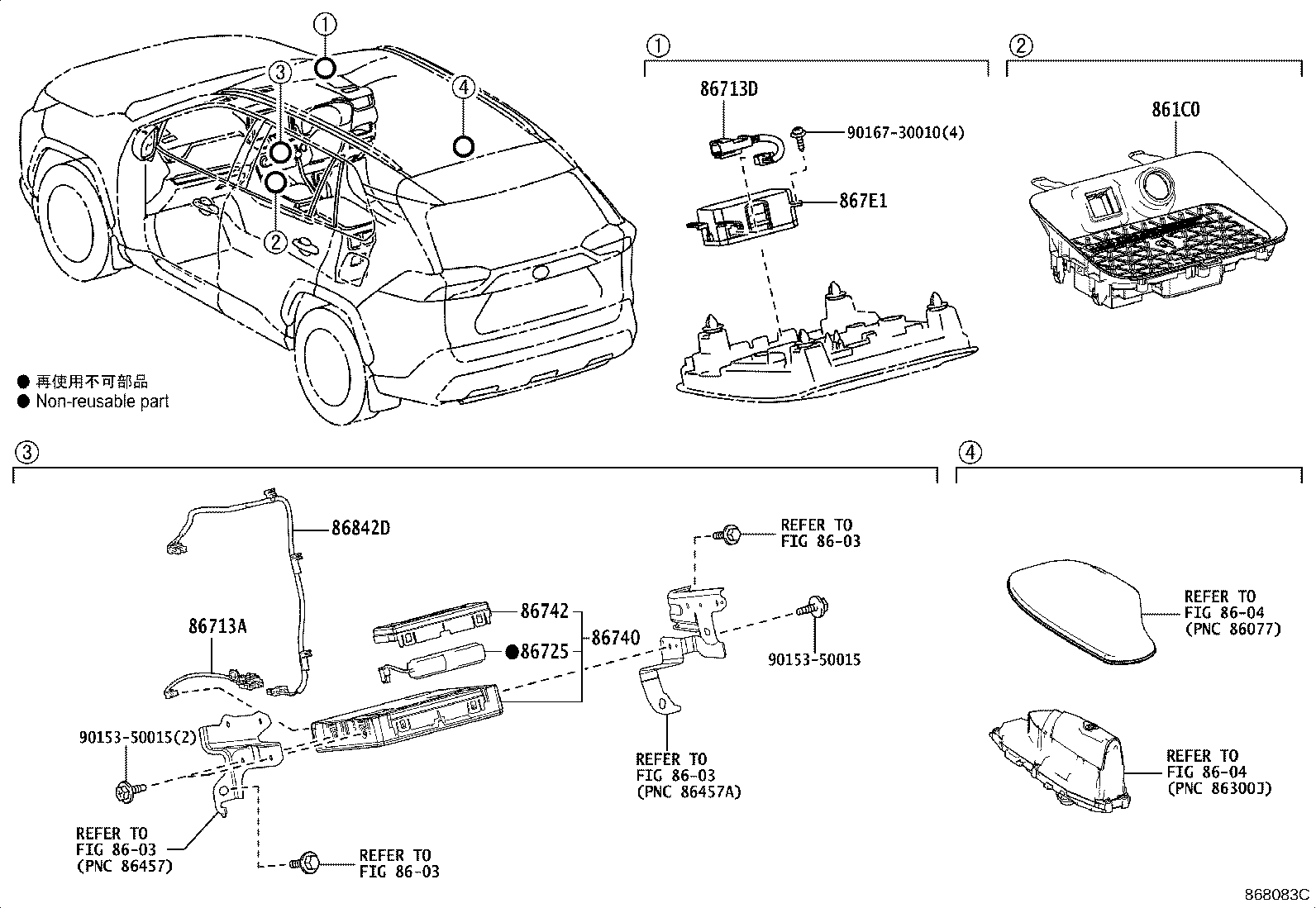

Part groups
| PNC | Description |
|---|---|
| 861C0 | Cradle Assy, Mobile Wireless Charger |
| 86713 | Wire, Telephone Computer |
| 86713A | Wire, Telephone Computer, (TO TRANSCEIVER) |
| 86713D | Wire, Mayday |
| 86725 | Battery, Mobilephone |
| 86740 | Transceiver Assy, Telephone |
| 86742 | Cover, Transceiver |
| 867E1 | Box, Communication Telematics |
| 86842D | Wire, Navigation |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
