Toyota RAV4
2020-06 → present · chassis AXAP54 · catalogue 666210 · Europe
Supported model
Data version 2023-10

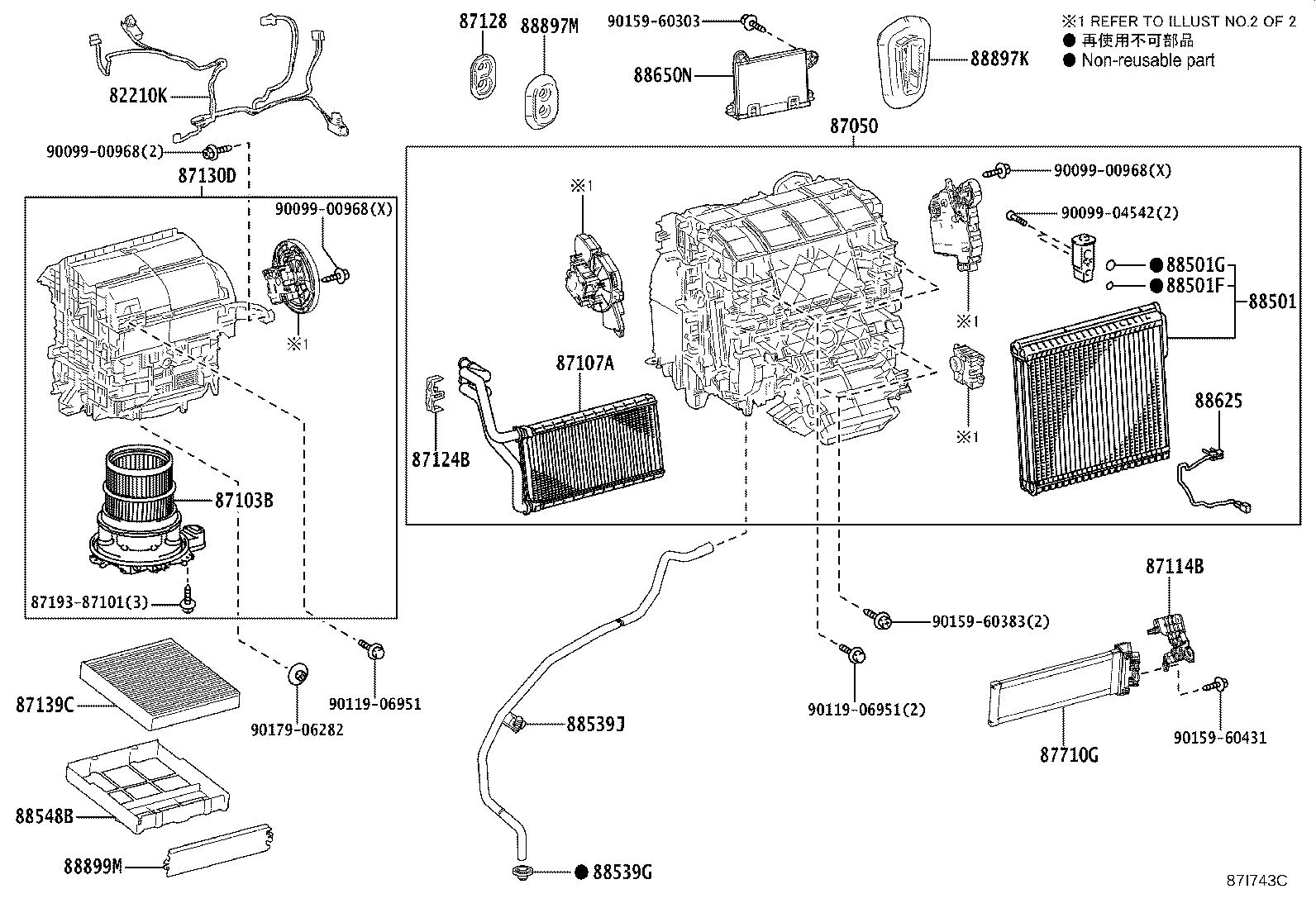

Heating & Air Conditioning - Cooler Unit
25 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 82210K | Harness Assy, Air Conditioner |
| 87050 | Radiator Assy, Air Conditioner |

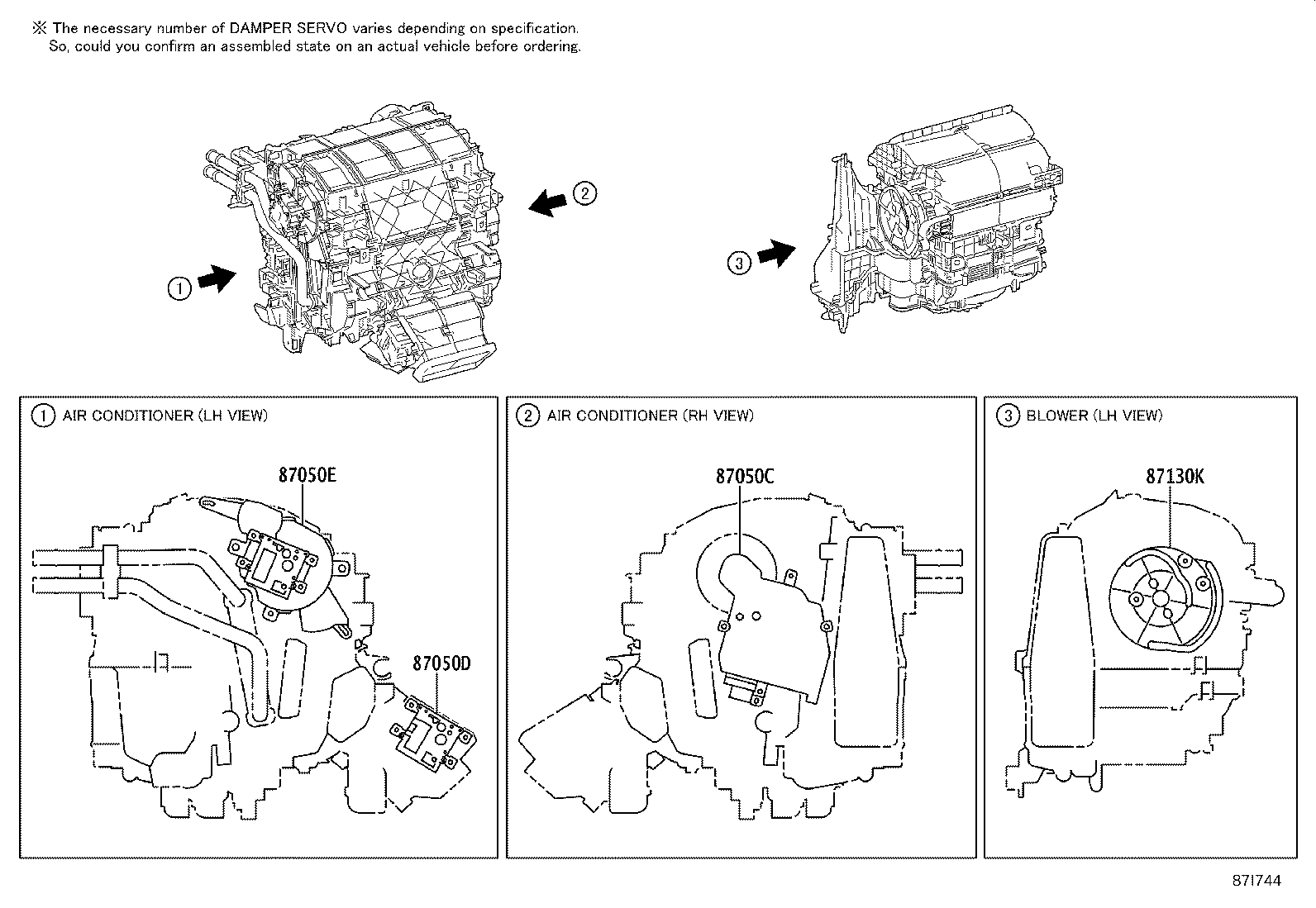

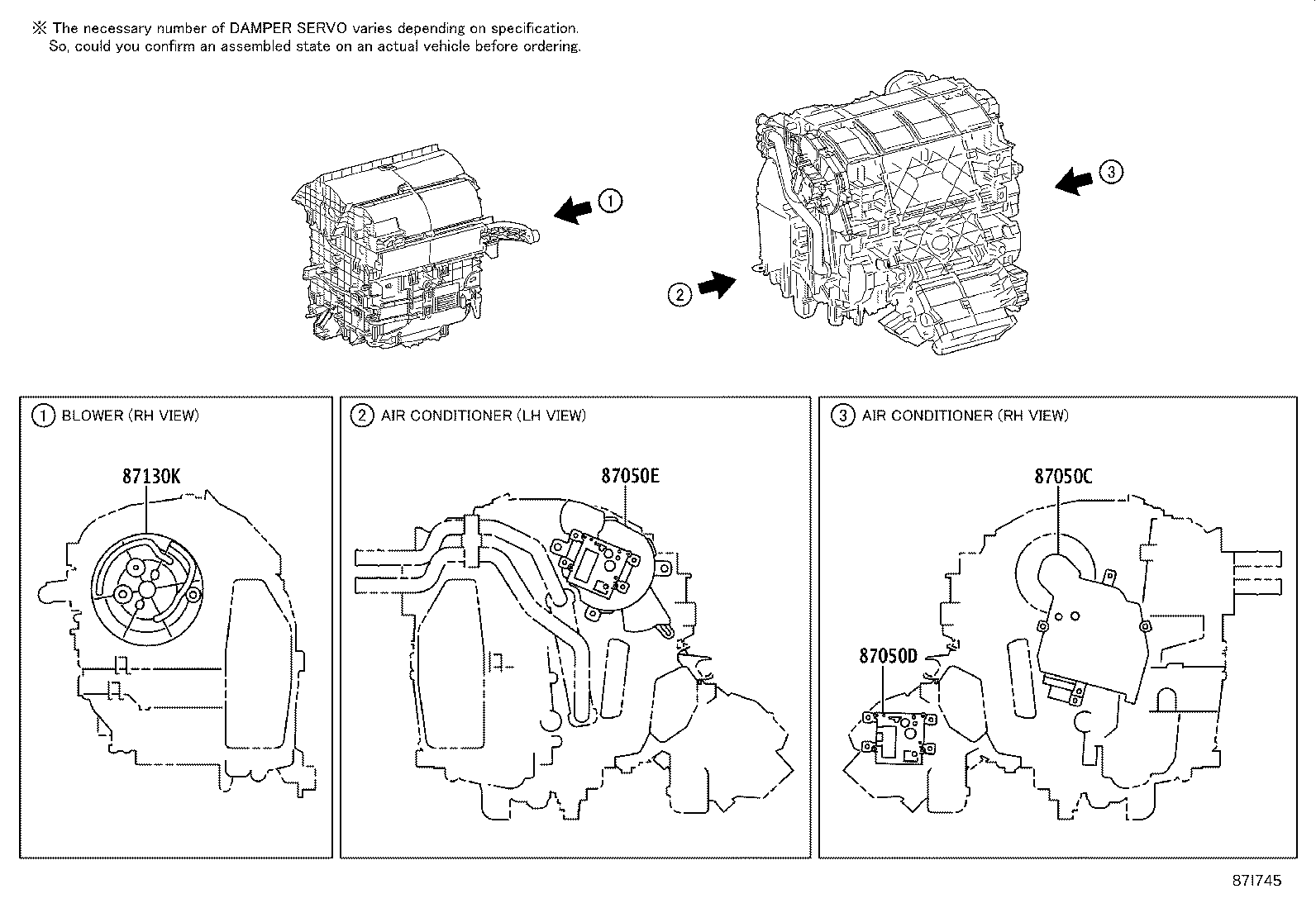

| 87050C | Damper Servo Sub-assy, Air Conditioner Radiator, NO.1 |
| 87050D | Damper Servo Sub-assy, Air Conditioner Radiator, NO.2 |
| 87050E | Damper Servo Sub-assy, Air Conditioner Radiator, NO.3 |
| 87103B | Motor Sub-assy, Blower W/Fan |
| 87107A | Unit Sub-assy, Heater Radiator |
| 87114B | Cover, Heater |
| 87124B | Clamp, Heater |
| 87128 | Grommet, Heater |
| 87130D | Blower Assy |
| 87130K | Damper Servo Sub-assy, Blower, NO.1 |
| 87139C | Filter, Clean Air |
| 87710G | Quick Heater Assy |
| 88501 | Evaporator Sub-assy, Cooler, NO.1 |
| 88501F | O-ring, Cooler Evaporator NO.1(DISCHARGE) |
| 88501G | O-ring, Cooler Evaporator NO.1(SUCTION) |
| 88539G | Grommet (FOR COOLER UNIT DRAIN HOSE) |
| 88539J | Hose, Drain Cooler |
| 88548B | Case, Air Filter |
| 88625 | Thermistor, Cooler, NO.1 |
| 88650N | Amplifier Assy, Air Conditioner |
| 88897K | Grommet, (FOR COOLER PIPE) |
| 88897M | Grommet (FOR HEATER PIPE) |
| 88899M | Plate, Cover(FOR AIR FILTER) |
