Toyota Hilux

1972-05 → 1978-07 · chassis RN2# · catalogue 671220 · Europe

Discontinued model Data version 1978-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Partial Engine Assembly

1 part groups · 3 illustrations

Illustrations

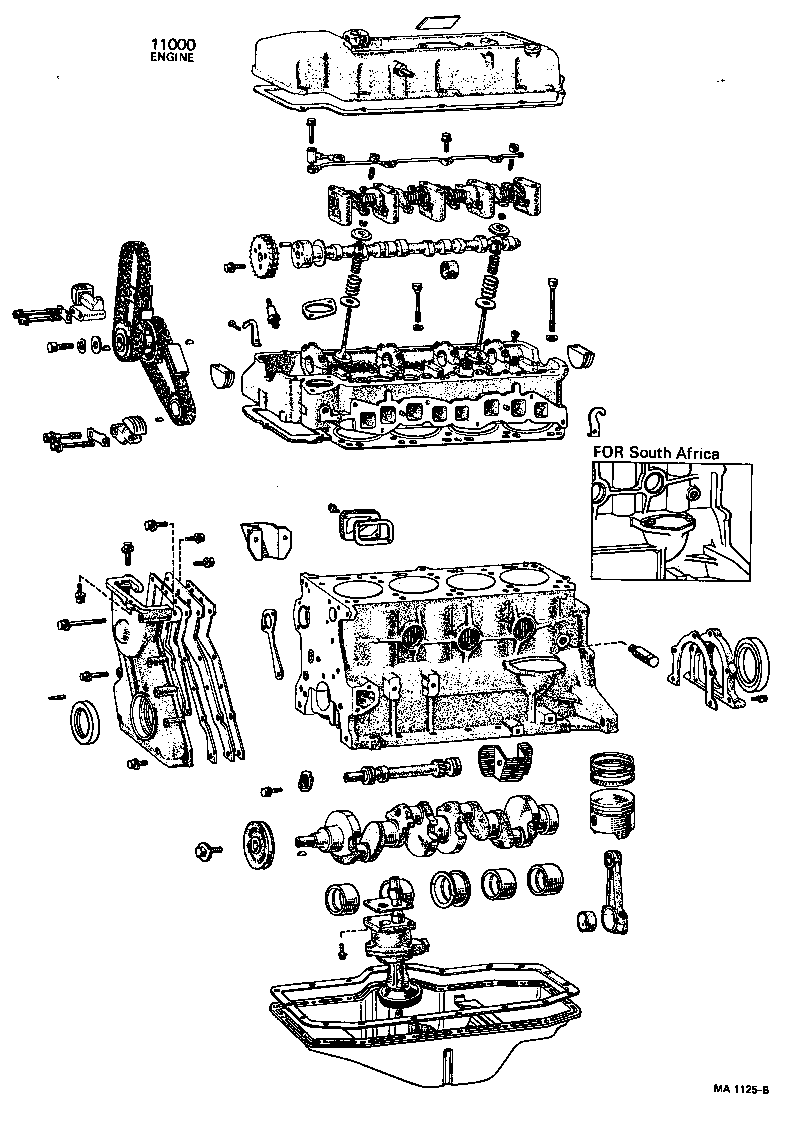

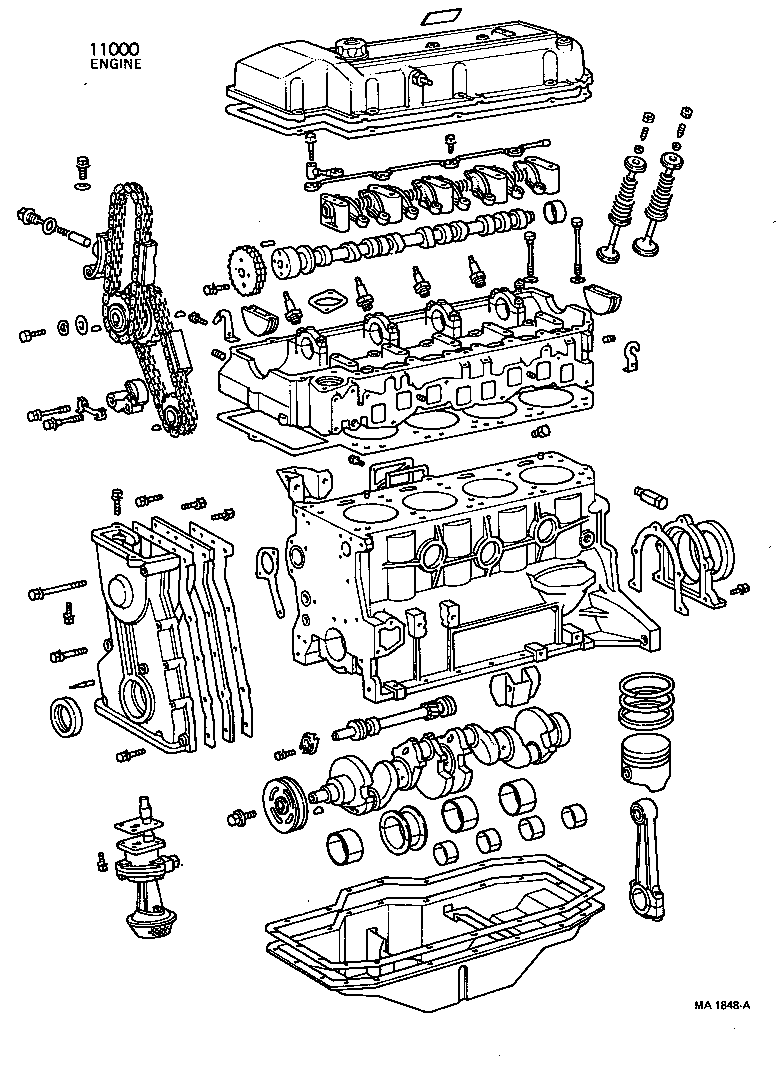

Figure MA3346 MA3346 1972-05 → 1978-07 Figure MA1125B MA1125B 1974-04 → 1975-09 Figure MA1848A MA1848A 1975-09 → 1978-07

Part groups

PNCDescription
11000 Engine Assy, Partial
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
