Toyota Hilux

1972-05 → 1978-07 · chassis RN2# · catalogue 671220 · Europe

Discontinued model Data version 1978-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Block

29 part groups · 3 illustrations

Illustrations

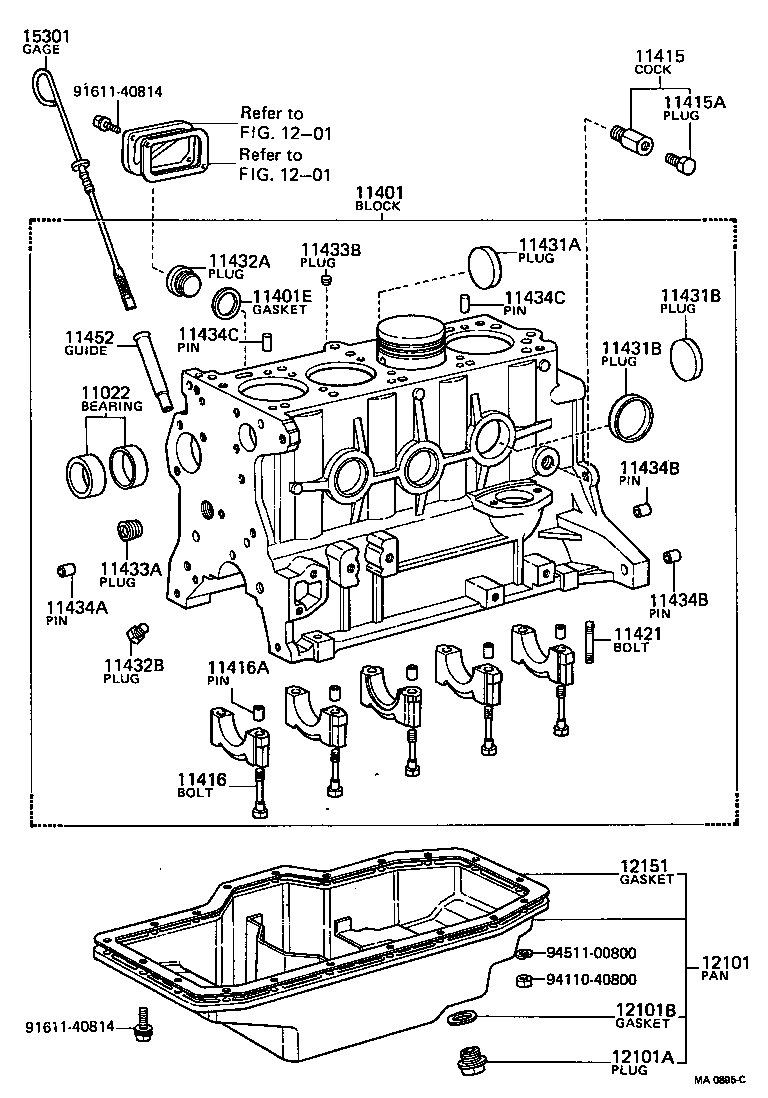

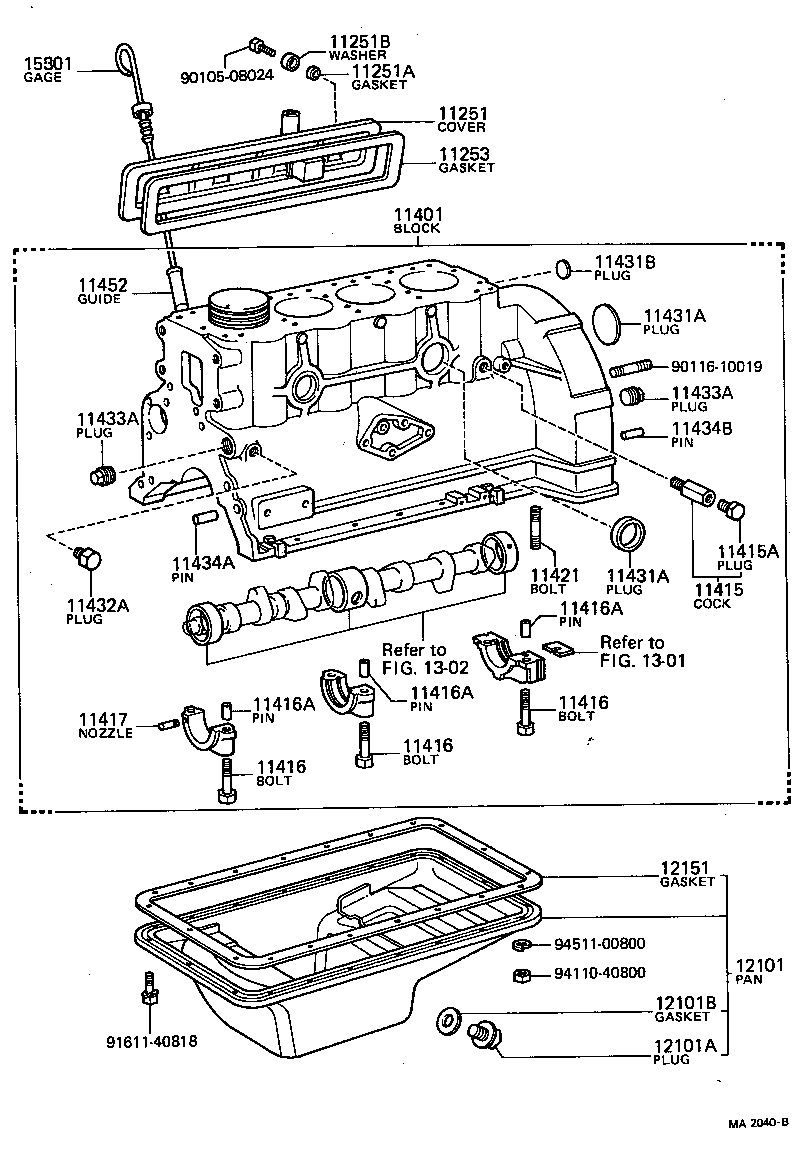

Figure MA0900A MA0900A 1972-05 → 1975-11 Figure MA2040B MA2040B 1975-11 → 1978-07 Figure MA0895C MA0895C 1974-04 → 1978-07

Part groups

PNCDescription
11022 Bearing Set, Pump Drive Shaft
11251 Cover, Valve Push Rod
11251A Gasket(FOR VALVE PUSH ROD COVER BOLT)
11251B Washer, Seal(FOR VALVE PUSH ROD COVER BOLT)
11253 Gasket, Valve Push Rod Cover
11401 Block Sub-assy, Cylinder
11401E Gasket(FOR CYLINDER BLOCK PLUG)
11415 Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK)
11415A Plug, Water Drain Cock(FOR CYLINDER BLOCK)
11416 Bolt(FOR CRANKSHAFT BEARING CAP SET)
11416A Pin, Ring(FOR CRANKSHAFT BEARING CAP SET)
11417 Nozzle, Oil
11421 Bolt, Stud(FOR OIL PAN)
11431A Plug, Tight, NO.1(FOR CYLINDER BLOCK)
11431B Plug, Tight, NO.2(FOR CYLINDER BLOCK)
11432A Plug, W/Head Taper Screw, NO.1
11432B Plug, W/Head Taper Screw, NO.2
11433A Plug, Straight, NO.1
11433B Plug, Straight, NO.2
11434A Pin, Straight(FOR TIMING GEAR COVER SET)
11434B Pin, Straight(FOR CLUTCH HOUSING SET)
11434C Pin, Straight (FOR CYLINDER HEAD SET)
11452 Guide, Oil Level Gage
11462 Liner, Cylinder
12101 Pan Sub-assy, Oil
12101A Plug(FOR OIL PAN DRAIN)
12101B Gasket(FOR OIL PAN DRAIN PLUG)
12151 Gasket, Oil Pan
15301 Gage Sub-assy, Oil Level
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
