Toyota Hilux

1972-05 → 1978-07 · chassis RN2# · catalogue 671220 · Europe

Discontinued model Data version 1978-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Pump

15 part groups · 3 illustrations

Illustrations

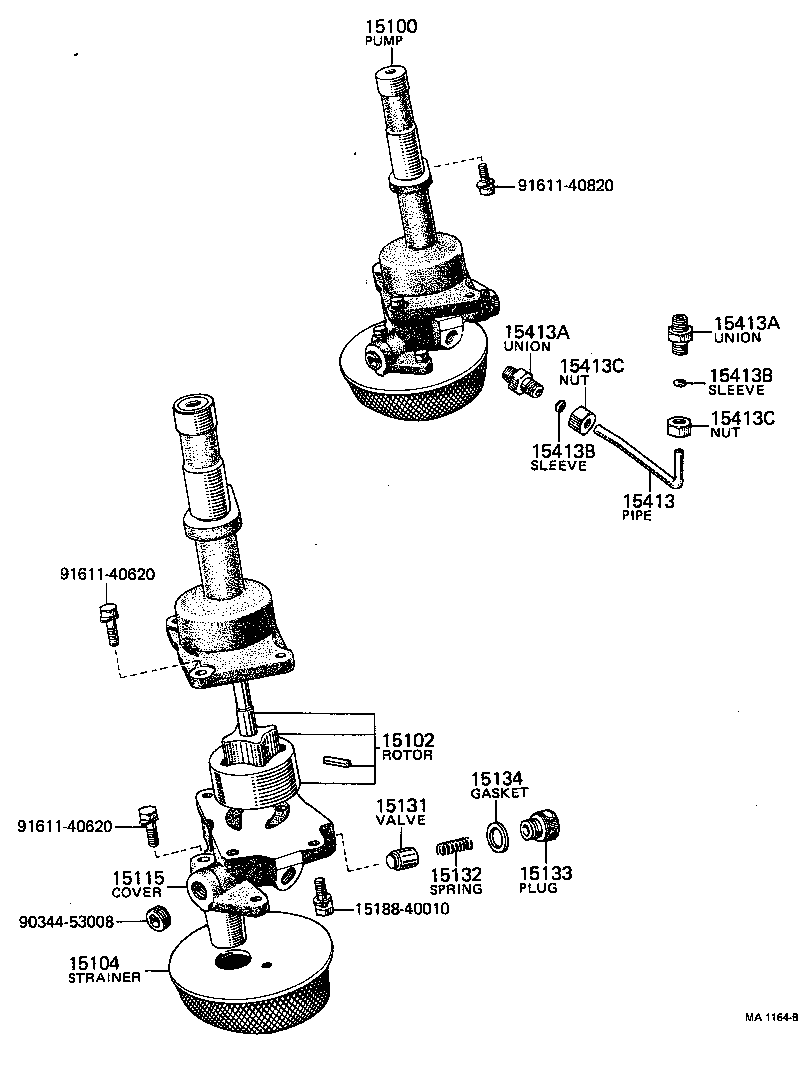

Figure MA0078B MA0078B 1972-05 → 1972-12 Figure MA1164B MA1164B 1972-12 → 1978-07 Figure MA0989B MA0989B 1974-04 → 1978-07

Part groups

PNCDescription
15012 Cover Sub-assy, Oil Pump
15100 Pump Assy, Oil
15102 Rotor Set, Oil Pump
15104 Strainer Sub-assy, Oil
15115 Cover, Oil Pump
15119 Gasket, Oil Pump Cover
15131 Valve, Oil Pump Relief
15132 Spring, Oil Pump Relief Valve
15133 Plug, Oil Pump Relief Valve
15134 Gasket, Oil Pump Relief Valve
15193 Gasket, Oil Pump
15413 Pipe, Oil Pump Outlet
15413A Union(FOR OIL PUMP OUTLET PIPE)
15413B Sleeve, Ball(FOR OIL PUMP OUTLET PIPE)
15413C Nut, Union(FOR OIL PUMP OUTLET PIPE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
