Toyota Hilux

1972-05 → 1978-07 · chassis RN2# · catalogue 671220 · Europe

Discontinued model Data version 1978-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

17 part groups · 5 illustrations

Illustrations

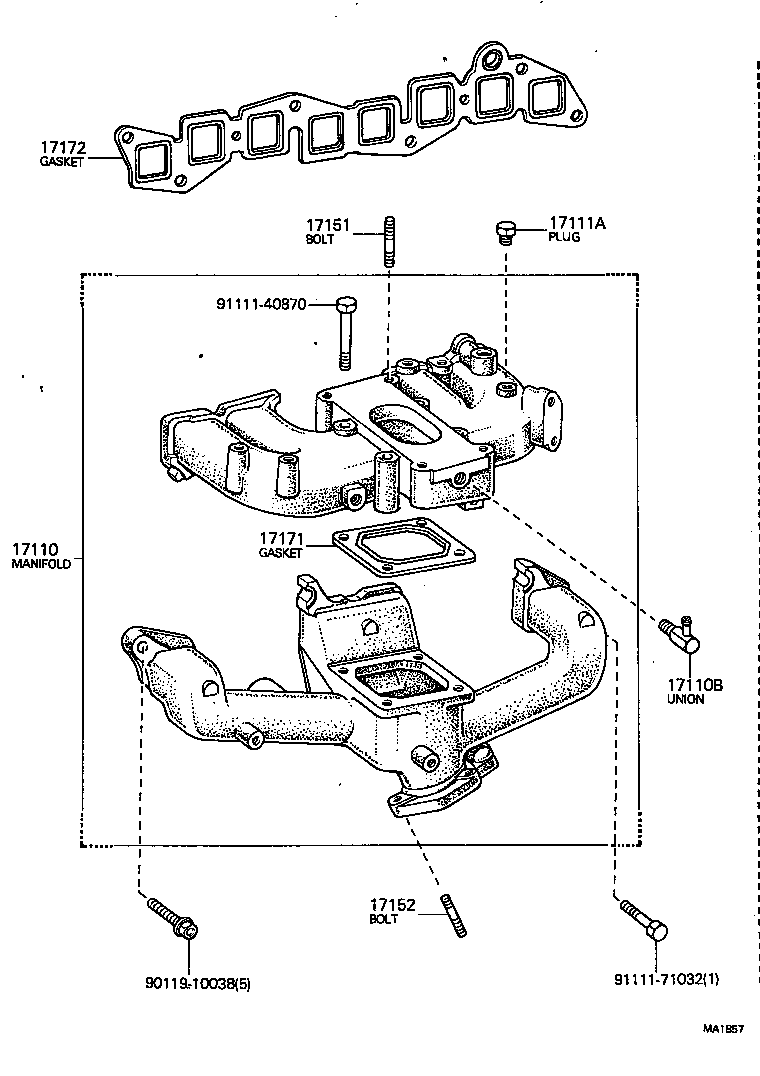

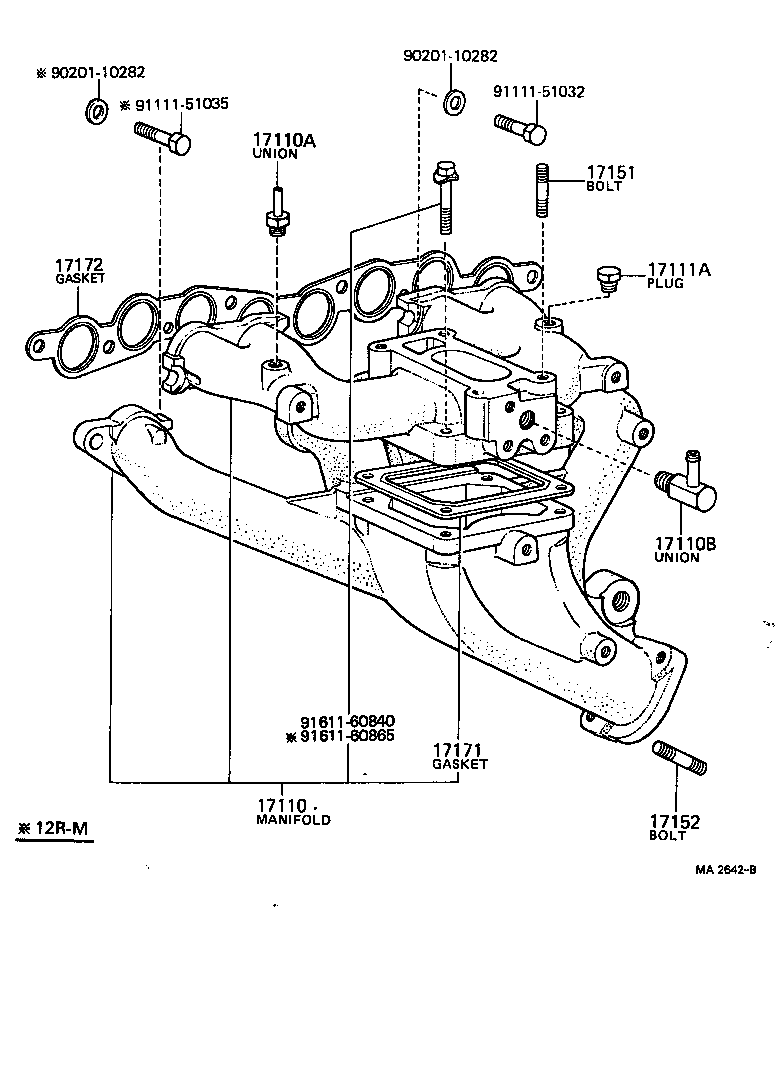

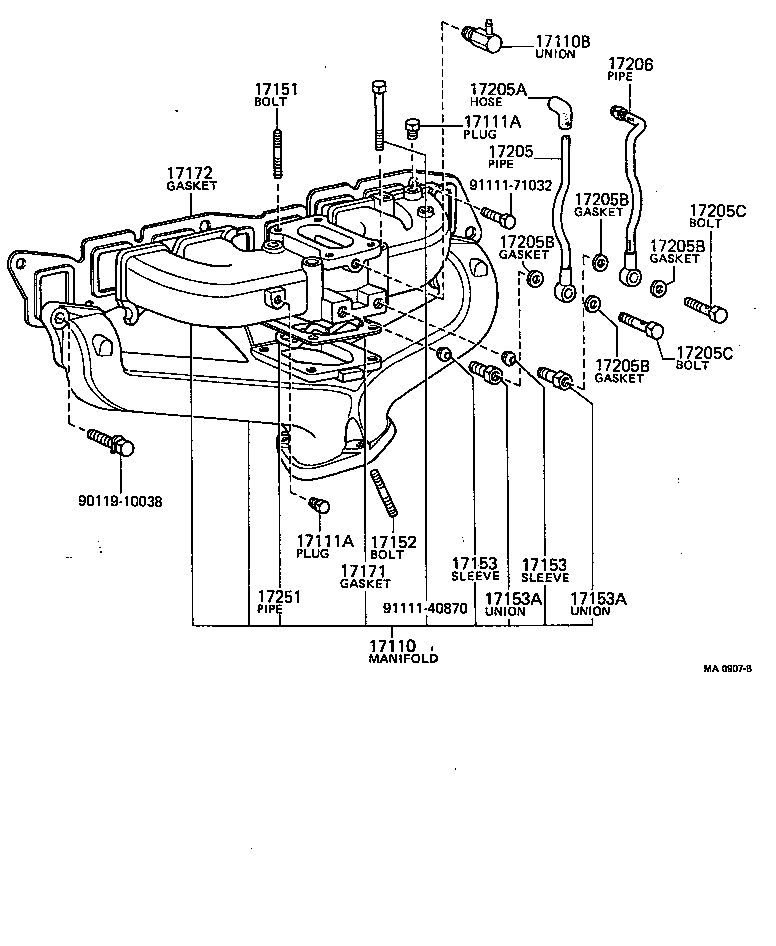

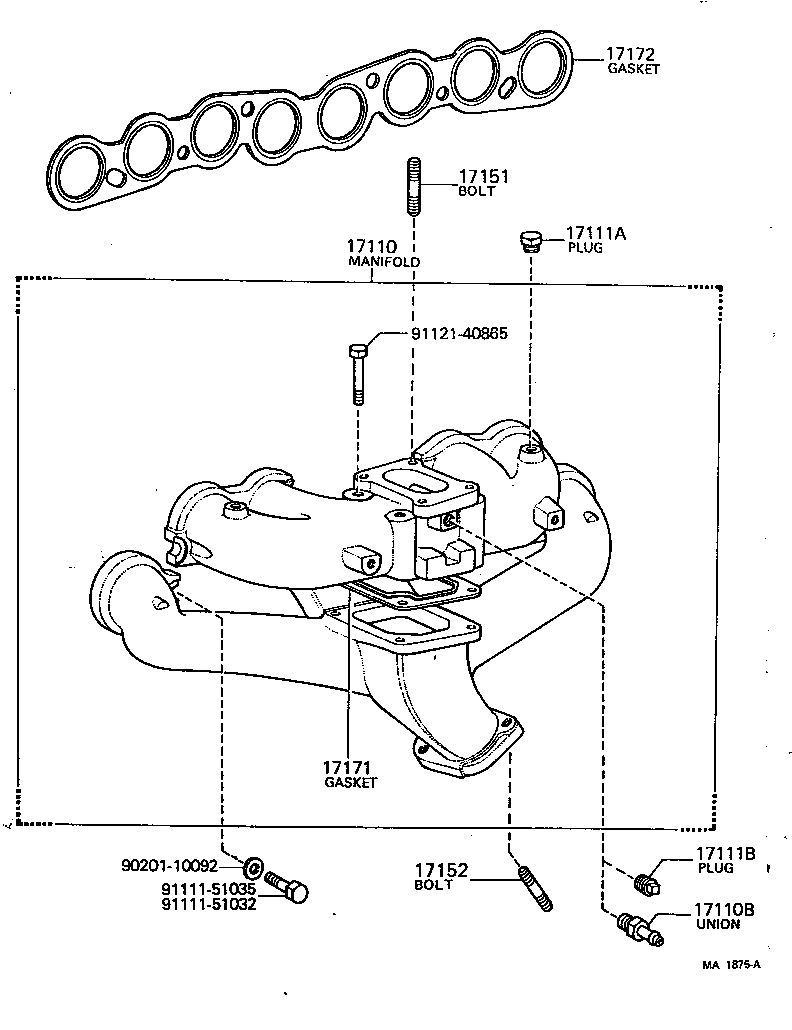

Figure MA1410B MA1410B 1972-05 → 1975-02 Figure MA1875A MA1875A 1975-02 → 1975-11 Figure MA2642B MA2642B 1975-11 → 1978-07 Figure MA0907B MA0907B 1974-04 → 1977-01 Figure MA1857 MA1857 1977-01 → 1978-07

Part groups

PNCDescription
17110 Manifold Assy
17110A Union, Vacuum Hose
17110B Union(FOR VENTILATION HOSE TO MANIFOLD)
17111A Plug, NO.1
17111B Plug, NO.2
17151 Bolt, Stud(FOR MANIFOLD TO CARBURETOR)
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17153 Sleeve, Ball(FOR AUTOMATIC CHOKE STOVE PIPE)
17153A Union(FOR AUTOMATIC CHOKE STOVE PIPE)
17171 Gasket, Intake TO Exhaust Manifold
17172 Gasket, Manifold TO Cylinder Head
17205 Pipe, Automatic Choke Stove Inlet
17205A Hose(FOR AUTOMATIC CHOKE STOVE PIPE)
17205B Gasket(FOR AUTOMATIC CHOKE STOVE PIPE)
17205C Bolt, Union(FOR AUTOMATIC CHOKE STOVE PIPE)
17206 Pipe, Automatic Choke Stove Outlet
17251 Pipe,Automatic Choke Stove
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
