Toyota Hilux

1972-05 → 1978-07 · chassis RN2# · catalogue 671220 · Europe

Discontinued model Data version 1978-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

18 part groups · 6 illustrations

Illustrations

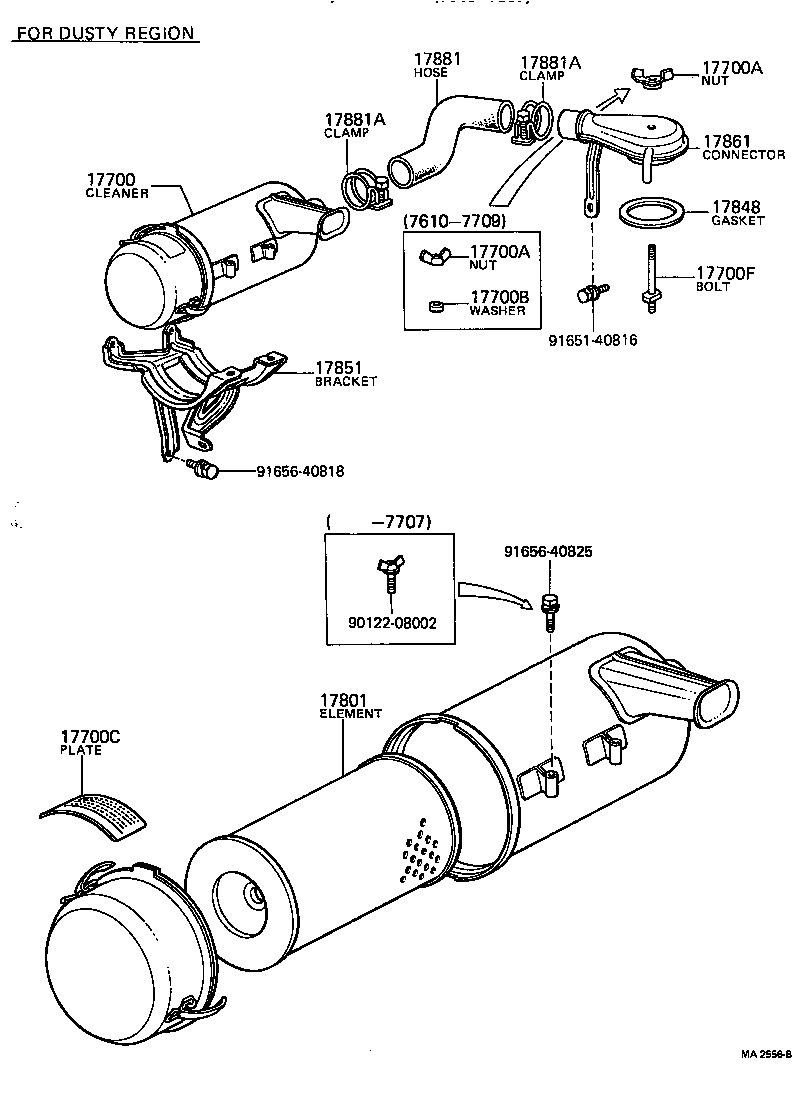

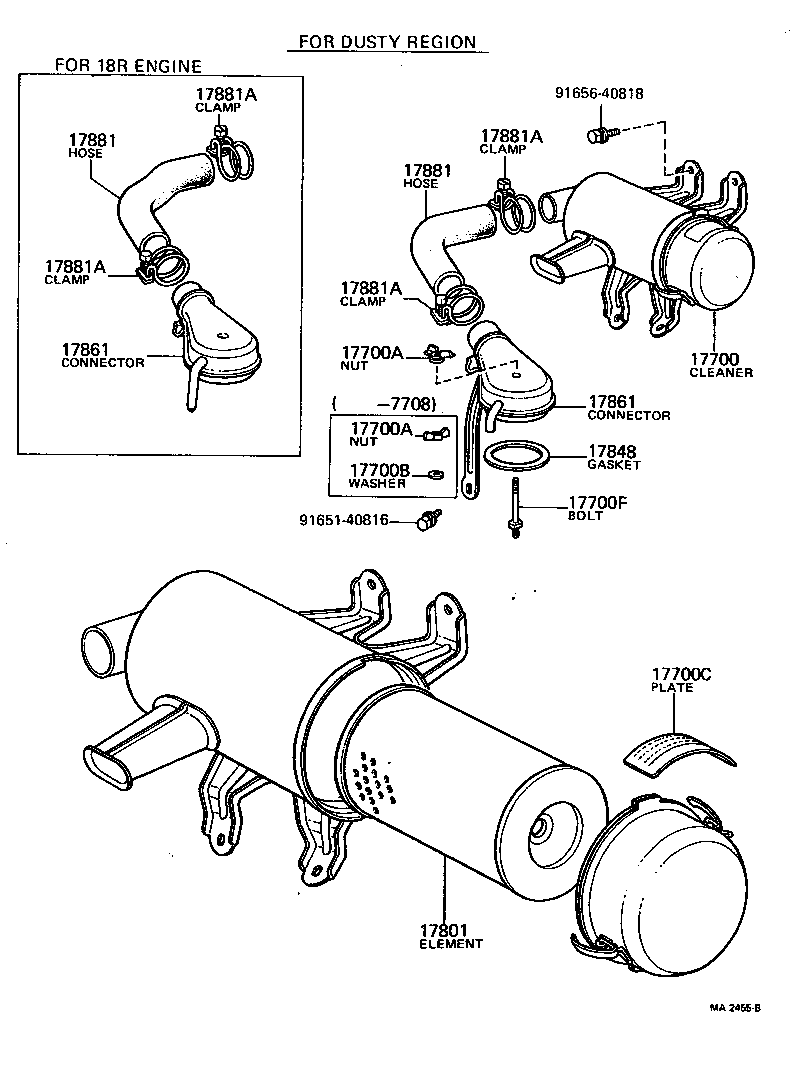

Figure MA2125B MA2125B 1972-05 → 1978-07 Figure MA0909B MA0909B 1974-04 → 1978-07 Figure MA2455B MA2455B 1976-09 → 1978-07 Figure MA2556B MA2556B 1976-10 → 1978-07 Figure MA3143A MA3143A 1977-10 → 1978-07 Figure MA3144A MA3144A 1977-11 → 1978-07

Part groups

PNCDescription
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17700B Washer, Seal(FOR AIR CLEANER)
17700C Plate, Air Cleaner Caution (FOR ENGINE MODEL)
17700F Bolt, Stud(FOR AIR CLEANER SETTING)
17705 Cap Sub-assy, Air Cleaner
17706 Inlet Sub-assy, Air Cleaner, NO.2
17784 Screen, Air Cleaner
17789 Cap, Air Cleaner Screen
17801 Element Sub-assy, Air Cleaner Filter
17841 Gasket, Filter Element
17845 Gasket, Air Cleaner Cap
17848 Gasket, Air Cleaner TO Carburetor
17851 Bracket, Air Cleaner Support
17861 Connector, Intake Air
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
23262B Valve, Bimetal Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
