Toyota Hilux

1972-05 → 1978-07 · chassis RN2# · catalogue 671220 · Europe

Discontinued model Data version 1978-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

8 part groups · 6 illustrations

Illustrations

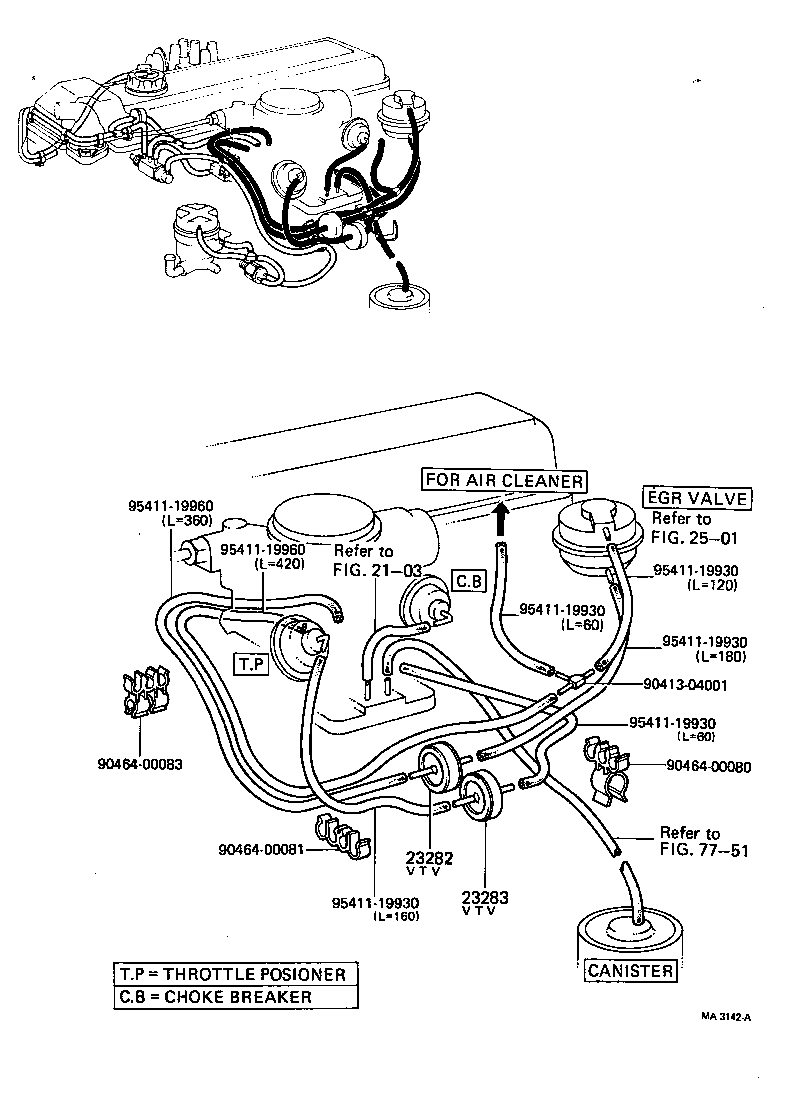

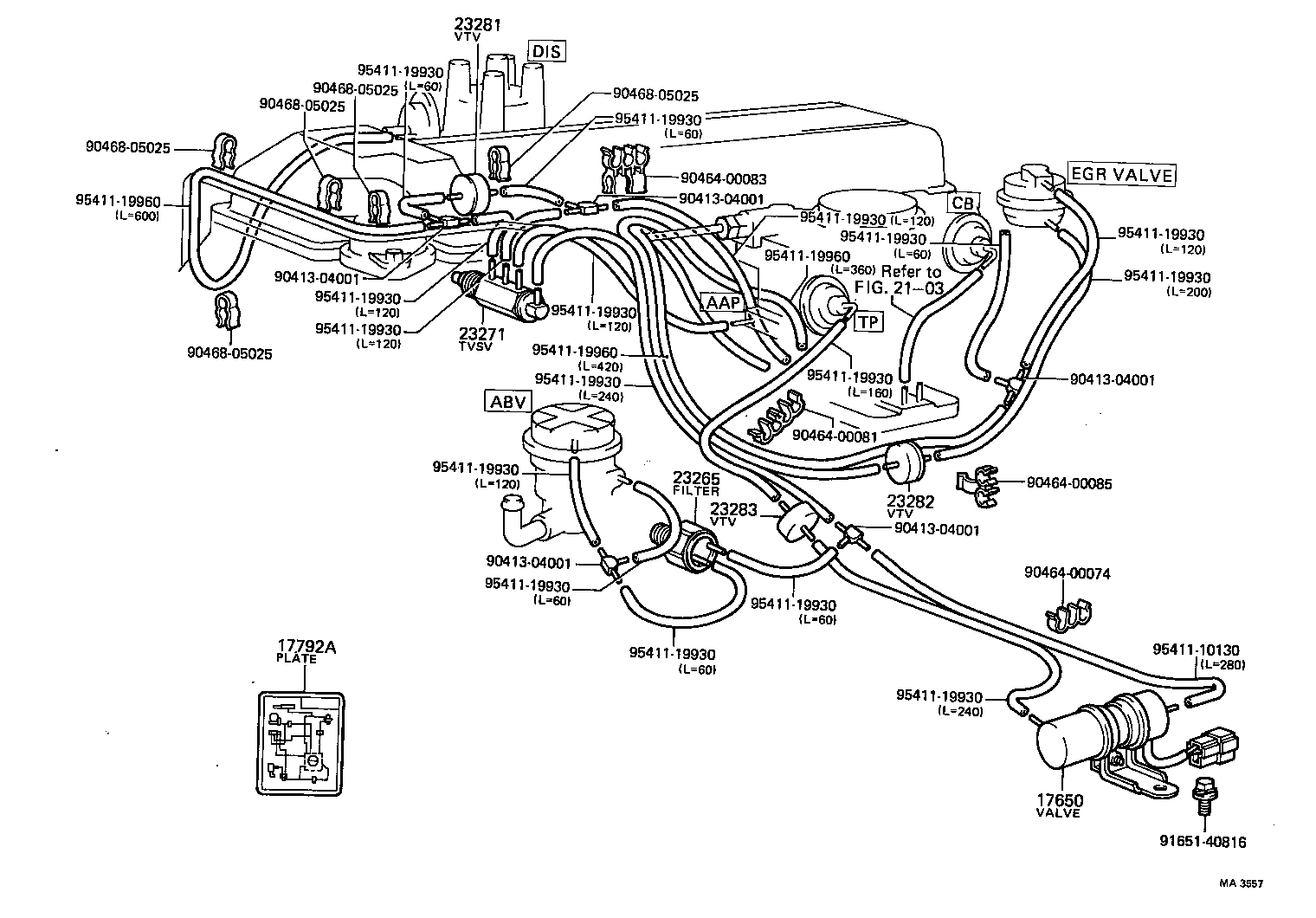

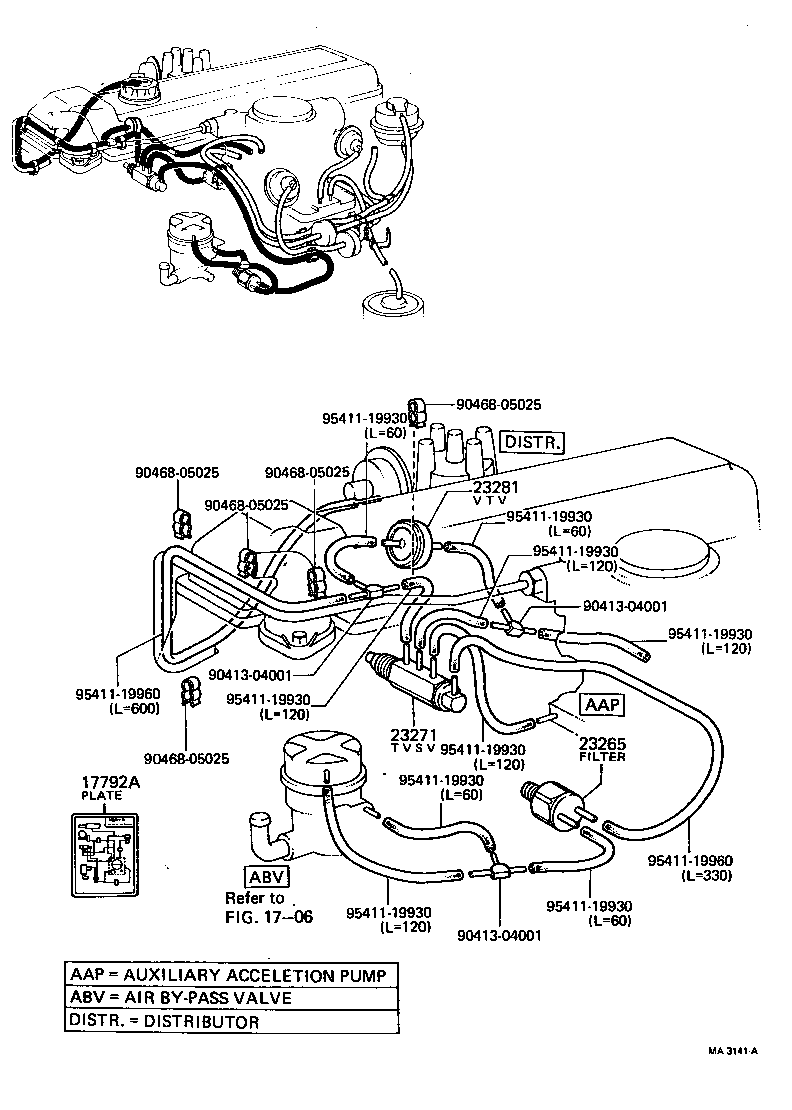

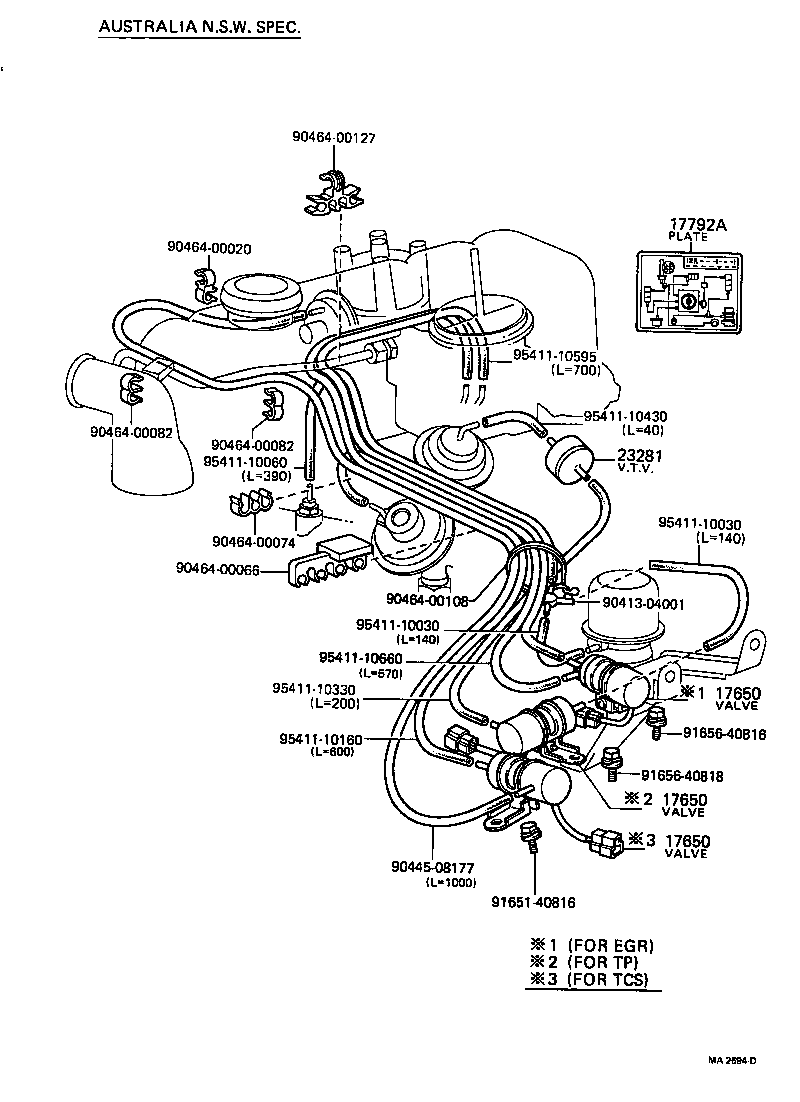

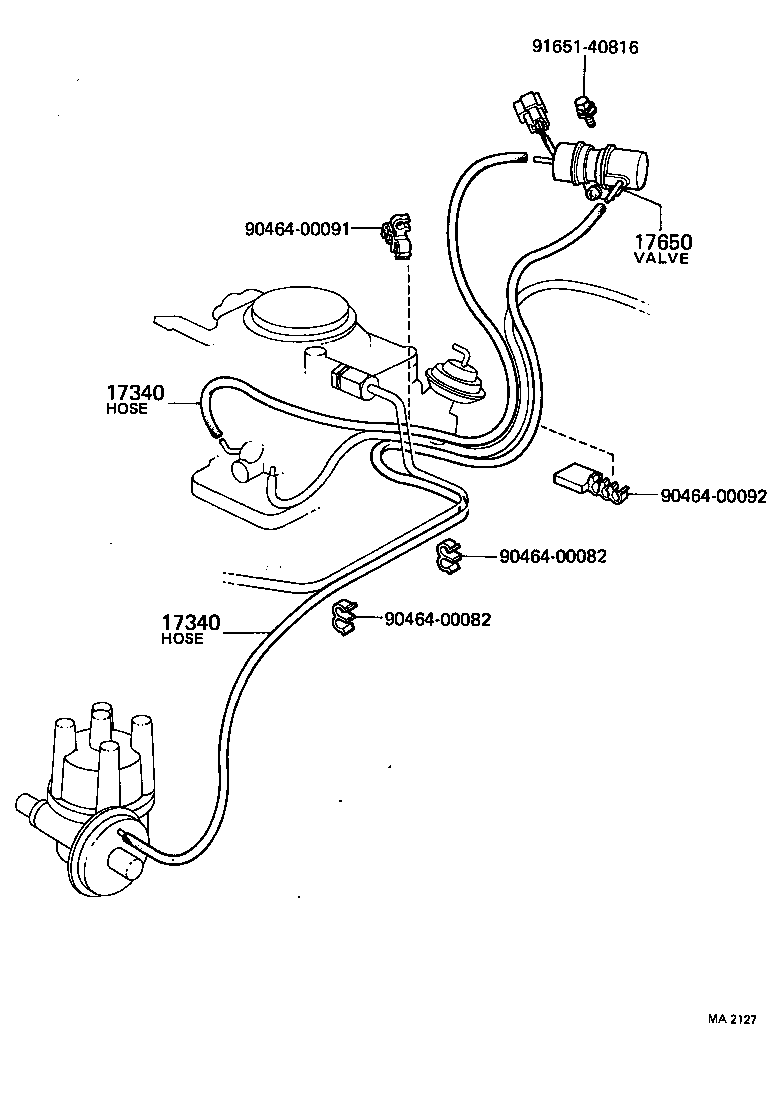

Figure MA9501 MA9501 1972-05 → 1978-07 Figure MA2127 MA2127 1976-03 → 1978-07 Figure MA2694D MA2694D 1977-02 → 1978-07 Figure MA3141A MA3141A 1977-11 → 1978-05 Figure MA3142A MA3142A 1977-11 → 1978-05 Figure MA3557 MA3557 1978-05 → 1978-07

Part groups

PNCDescription
17340 Hose Assy, Vacuum Switching Valve
17650 Valve Assy, Vacuum Switching
17792A Plate, Engine Vacuum Hose Information
23265 Filter, Gas, NO.1
23271 Valve, Thermostatic Vacuum Switching, NO.1
23281 Valve, Vacuum Transmitting, NO.1
23282 Valve, Vacuum Transmitting, NO.2
23283 Valve, Vacuum Transmitting, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
