Toyota Hilux

1972-05 → 1978-07 · chassis RN2# · catalogue 671220 · Europe

Discontinued model Data version 1978-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Pipe & Clamp

11 part groups · 4 illustrations

Illustrations

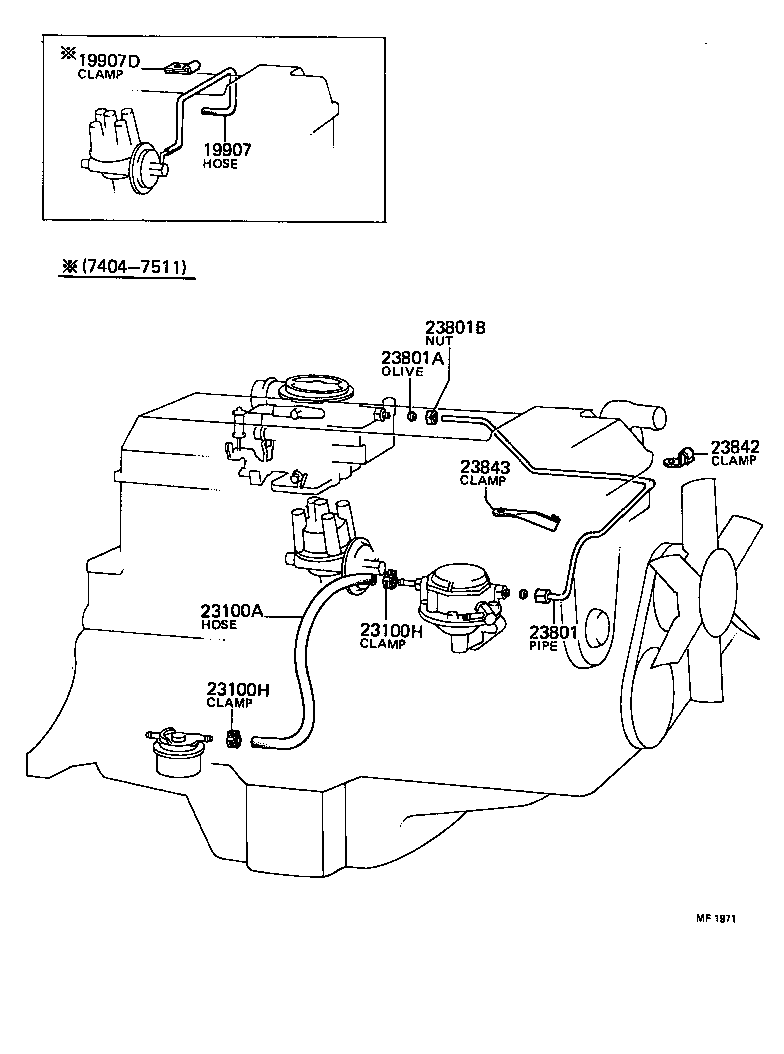

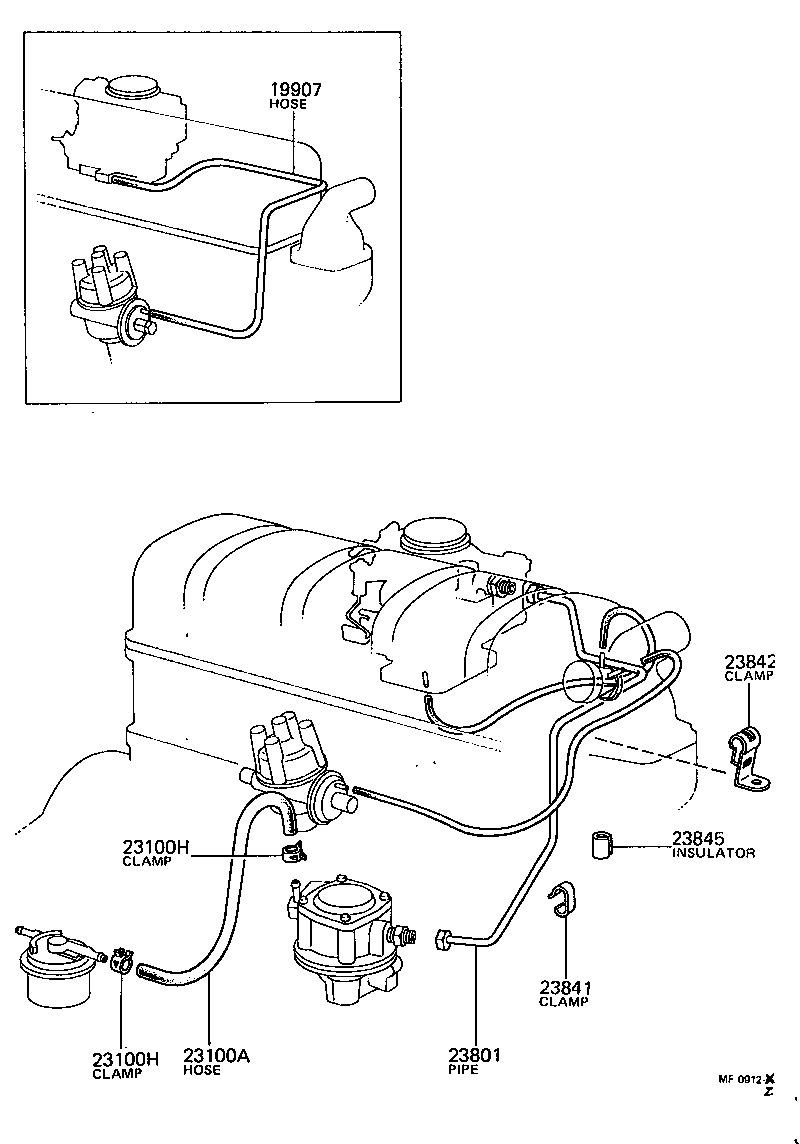

Figure MF1295A MF1295A 1972-05 → 1974-08 Figure MF0912Z MF0912Z 1974-08 → 1975-11 Figure MF1447B MF1447B 1975-11 → 1978-07 Figure MF1971 MF1971 1974-04 → 1978-07

Part groups

PNCDescription
19907 Hose, Vacuum, NO.1
19907D Clamp, Distributor Vacuum Hose
23100A Hose, Fuel
23100H Clip(FOR FUEL HOSE)
23801 Pipe OR Hose Sub-assy, Carburetor Fuel, NO.1
23801A Olive(FOR FUEL PIPE)
23801B Nut, Union(FOR FUEL PIPE)
23841 Clamp, Fuel Pipe(HOSE), NO.1
23842 Clamp, Fuel Pipe(HOSE), NO.2
23843 Clamp, Fuel Pipe(HOSE), NO.3
23845 Insulator, Fuel Pipe
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
