Toyota Hilux

1972-05 → 1978-07 · chassis RN2# · catalogue 671220 · Europe

Discontinued model Data version 1978-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Gas Recirculation System

13 part groups · 2 illustrations

Illustrations

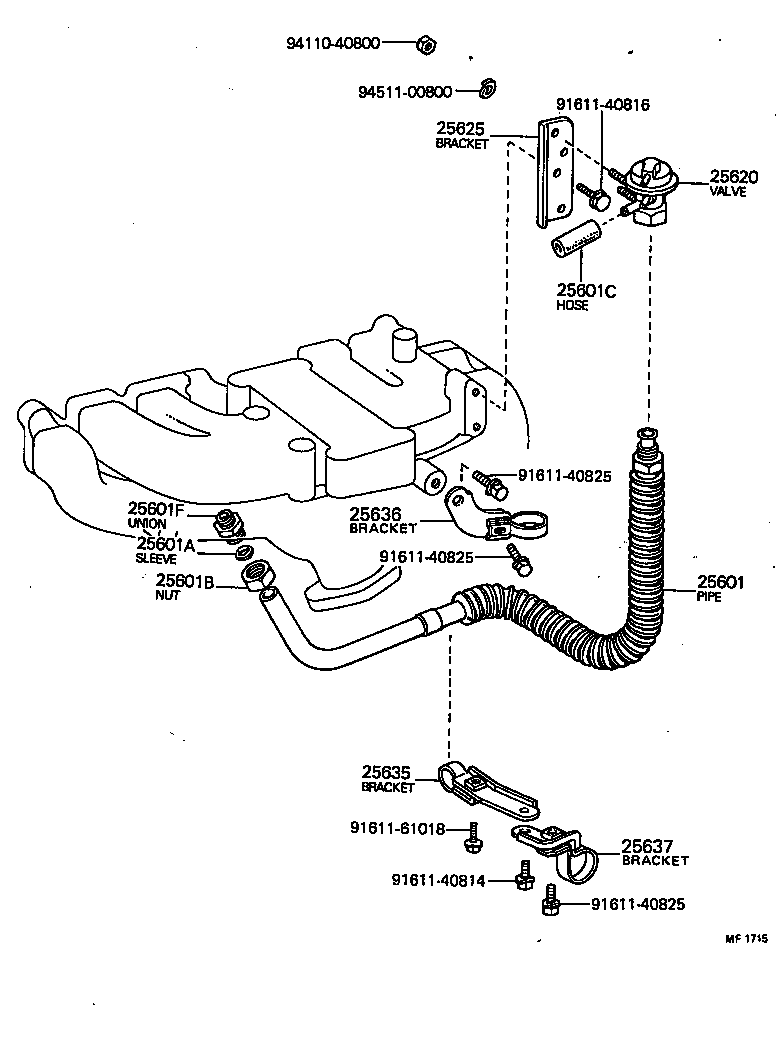

Figure MF1738B MF1738B 1977-02 → 1978-07 Figure MF1715 MF1715 1977-11 → 1978-07

Part groups

PNCDescription
25601 Pipe Sub-assy, Egr, NO.1
25601A Sleeve, Ball, Egr Pipe, NO.1
25601B Nut, Union, Egr Pipe, NO.1
25601C Hose(FOR EGR PIPE, NO.1)
25601F Union(FOR EGR PIPE, NO.1)
25620 Valve Assy, Egr
25624 Adapter, Egr Valve
25625 Bracket, Egr Valve
25627 Gasket, Egr Valve
25629 Gasket, Egr Valve Adapter
25635 Bracket, Egr Pipe, NO.1
25636 Bracket, Egr Pipe, NO.2
25637 Bracket, Egr Pipe, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
