Toyota Hilux

1972-05 → 1978-07 · chassis RN2# · catalogue 671220 · Europe

Discontinued model Data version 1978-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Master Cylinder

14 part groups · 2 illustrations

Illustrations

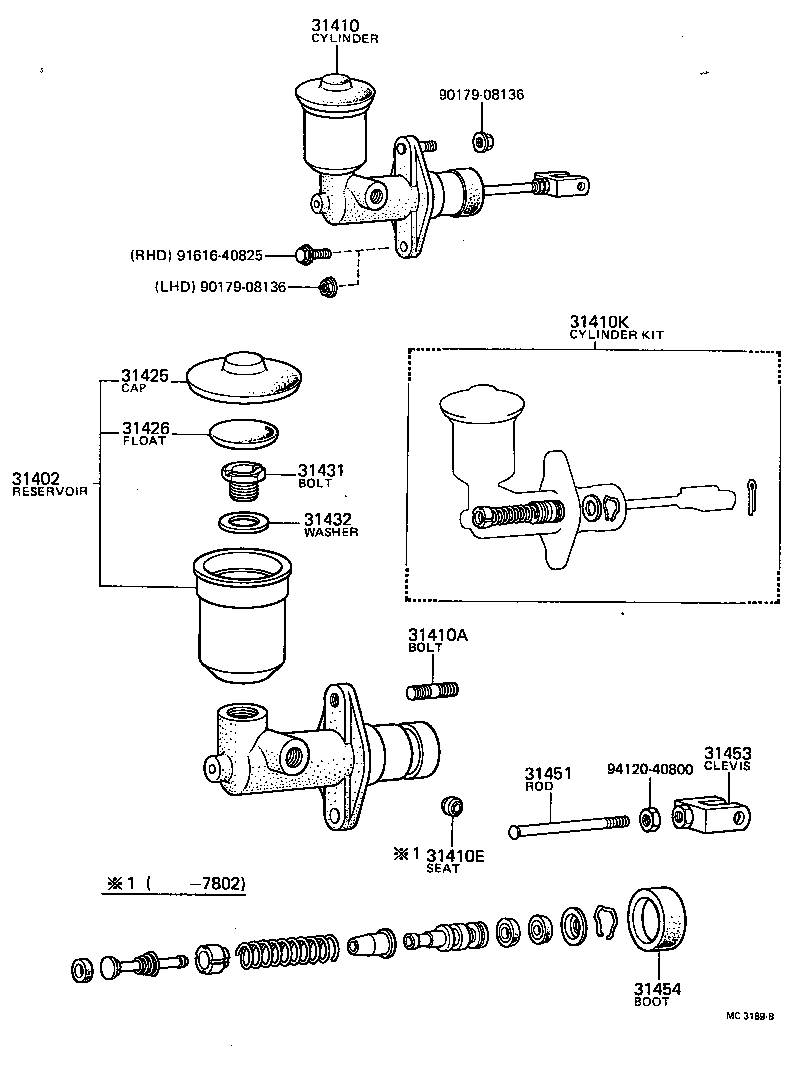

Figure MC1808C MC1808C 1972-05 → 1974-08 Figure MC3189B MC3189B 1974-08 → 1978-07

Part groups

PNCDescription
31402 Reservoir Sub-assy, Clutch Master Cylinder
31410 Cylinder Assy, Clutch Master
31410A Bolt(FOR CLUTCH MASTER CYLINDER SETTING)
31410E Seat, Union(FOR CLUTCH MASTER CYLINDER)
31410K Cylinder Kit, Clutch Master
31412 Cap, Clutch Master Cylinder
31412A Gasket(FOR CLUTCH MASTER CYLINDER CAP)
31425 Cap, Clutch Master Cylinder Reservoir Filler
31426 Float, Clutch Master Cylinder Reservoir
31431 Bolt, Clutch Master Cylinder Reservoir Set
31432 Washer, Clutch Reservoir Set Bolt
31451 Rod, Clutch Master Cylinder Push
31453 Clevis, Clutch Master Cylinder Push Rod
31454 Boot, Clutch Master Cylinder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
