Toyota Hilux
1972-05 → 1978-07 · chassis RN2# · catalogue 671220 · Europe
Discontinued model
Data version 1978-08

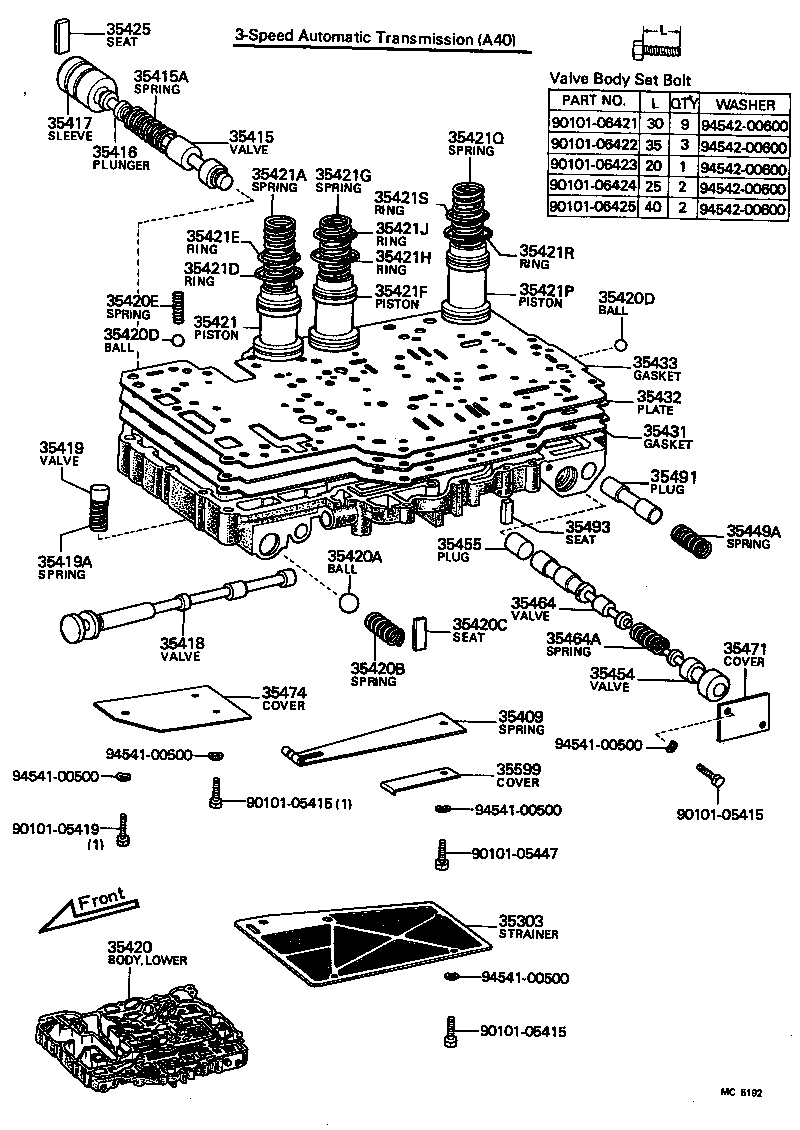

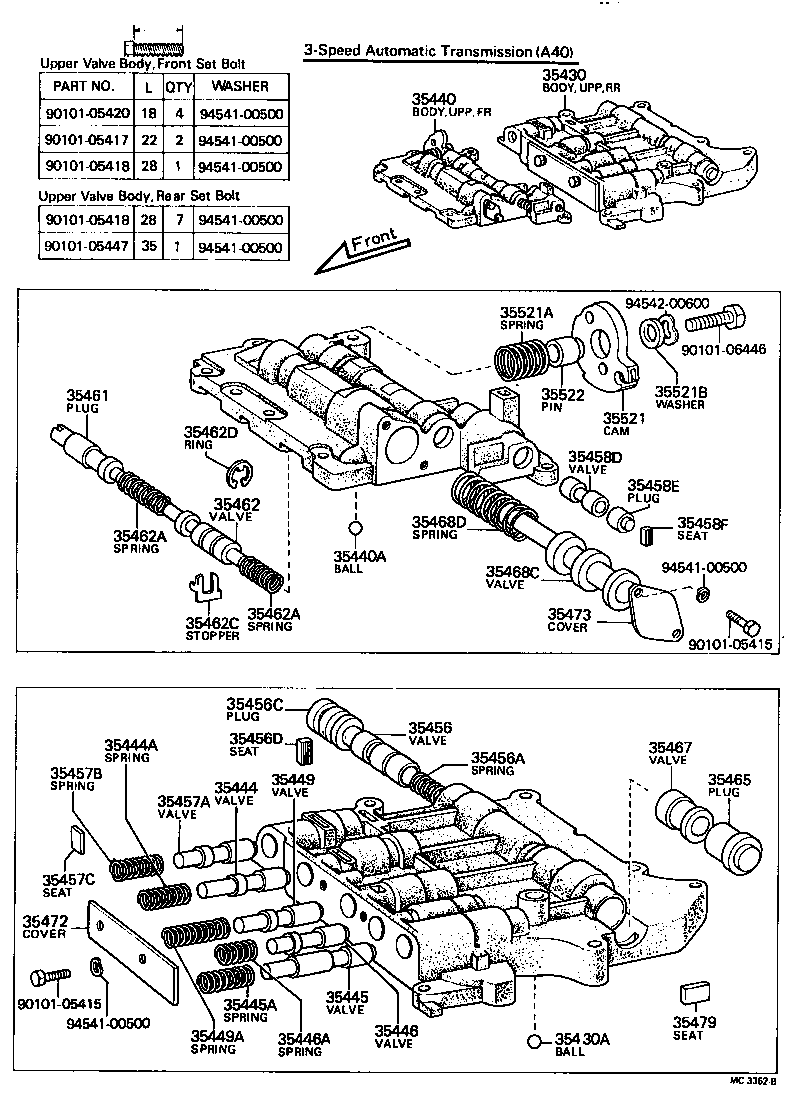

Valve Body & Oil Strainer (ATM)
98 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 35303 | Strainer Sub-assy, Oil |
| 35306 | Strainer Sub-assy, Rear Oil |
| 35339 | Gasket, Oil Strainer |
| 35409 | Spring Sub-assy, Manual Detent |
| 35410 | Body Assy, Transmission Valve |
| 35410A | Ball (FOR REVERSE SHIFT RESTRICT) |
| 35410C | Plug (FOR TRANSMISSION VALVE BODY) |
| 35410E | Bolt, Stud (FOR TRANSMISSION VALVE BODY) |
| 35415 | Valve, Pressure Regulator |
| 35415A | Spring, Compression (FOR PRESSURE REGULATOR VALVE) |
| 35415B | Ring, Hole Snap (FOR PRESSURE REGULATOR VALVE SET) |
| 35415C | Bolt, Set (FOR VALVE SPRING) |
| 35416 | Plunger, Primary Regulator Valve, NO.1 |
| 35417 | Sleeve, Pressure Regulator Valve |
| 35418 | Valve, Manual |
| 35419 | Valve, Check, NO.1 |
| 35419A | Spring, Compression (FOR CHECK VALVE) |
| 35420 | Body Assy, Lower Valve |
| 35420A | Ball (FOR PRESSURE RELIEF) |
| 35420B | Spring (FOR PRESSURE RELIEF) |
| 35420C | Seat (FOR PRESSURE RELIEF) |
| 35420D | Ball (FOR LOWER VALVE BODY) |
| 35420E | Spring (FOR LOWER VALVE BODY) |
| 35421 | Piston, Accumulator, NO.1 |
| 35421A | Spring, Compression (FOR ACCUMULATOR PISTON NO.1) |
| 35421D | Ring (FOR ACCUMULATOR PISTON NO.1) |
| 35421E | Ring (FOR ACCUMULATOR PISTON NO.1) |
| 35421F | Piston, Accumulator, NO.2 |
| 35421G | Spring, Compression (FOR ACCUMULATOR PISTON NO.2) |
| 35421H | Ring (FOR ACCUMULATOR PISTON NO.2) |
| 35421J | Ring (FOR ACCUMULATOR PISTON NO.2) |
| 35421P | Piston, Accumulator, NO.3 |
| 35421Q | Spring, Compression (FOR ACCUMULATOR PISTON NO.3) |
| 35421R | Ring (FOR ACCUMULATOR PISTON NO.3) |
| 35421S | Ring (FOR ACCUMULATOR PISTON NO.3) |
| 35425 | Seat, Pressure Regulator Valve Sleeve |
| 35429 | Tube, Line Pressure |
| 35430 | Body Assy, Rear Upper Valve |
| 35430A | Ball (FOR REAR UPPER VALVE BODY) |
| 35431 | Gasket,Valve Body |
| 35432 | Plate, Valve Body, NO.1 |
| 35433 | Gasket, Valve Body, NO.1 |
| 35436 | Retainer, Pressure Regulator Spring |
| 35439 | Seat, Pressure Regulator Valve Spring |
| 35440 | Body Assy, Front Upper Valve |
| 35440A | Ball (FOR FRONT UPPER VALVE BODY) |
| 35444 | Valve, Intermediate Modulator |
| 35444A | Spring, Compression (FOR INTERMEDIATE MODULATOR VALVE) |
| 35445 | Valve, Low Modulator |
| 35445A | Spring, Compression (FOR LOW MODULATOR VALVE) |
| 35446 | Valve, Governor Modulator |
| 35446A | Spring, Compression (FOR GOVERNOR MODULATOR VALVE) |
| 35449 | Valve, Sequence |
| 35449A | Spring, Compression (FOR SEQUENCE VALVE) |
| 35454 | Valve, Low Coast Shift |
| 35455 | Plug, 1-2 Shift Valve Low |
| 35456 | Valve, 2-3 Shift |
| 35456A | Spring, Compression (FOR 2-3 SHIFT VALVE) |
| 35456C | Plug (FOR 2-3 SHIFT VALVE) |
| 35456D | Seat (FOR 2-3 SHIFT VALVE) |
| 35457 | Valve, Throttle Modulator |
| 35457A | Valve, Detent Regulator |
| 35457B | Spring, Compression (FOR DETENT REGULATOR VALVE) |
| 35457C | Seat (FOR DETENT REGULATOR VALVE) |
| 35458 | Valve, Throttle Relay |
| 35458A | Spring, Compression (FOR THROTTLE RELAY VALVE) |
| 35458D | Valve, Cut Back |
| 35458E | Plug (FOR CUT BACK VALVE) |
| 35458F | Seat (FOR CUT BACK VALVE) |
| 35459 | Plug, Throttle Relay |
| 35461 | Plug, Down Shift |
| 35462 | Valve, Throttle |
| 35462A | Spring, Compression (FOR THROTTLE VALVE) |
| 35462B | Pin, Slotted Spring (FOR THROTTLE VALVE SET) |
| 35462C | Stopper, Valve Vibrating |
| 35462D | Ring, E (FOR THROTTLE VALVE) |
| 35464 | Valve, 1-2 Shift |
| 35464A | Spring, Compression (FOR 1-2 SHIFT VALVE) |
| 35465 | Plug, Intermediate Shift Valve |
| 35467 | Valve, Intermediate Shift |
| 35468 | Valve, Orifice Control |
| 35468A | Spring, Compression (FOR ORIFICE CONTROL VALVE SPRING) |
| 35468C | Valve, Secondary Regulator |
| 35468D | Spring, Compression (FOR SECONDARY REGULATOR VALVE) |
| 35469 | Spacer (FOR VALVE BODY DOWN SHIFT PLUG) |
| 35471 | Cover, Valve Body, NO.1 |
| 35472 | Cover, Valve Body, NO.2 |
| 35473 | Cover, Transmission Valve Body |
| 35474 | Cover, Valve Body, NO.4 |
| 35477 | Gasket, Valve Body Cover |
| 35479 | Seat, Intermediate Shift Valve |
| 35491 | Plug, Reverse Brake |
| 35493 | Seat, Shift Valve Spring |
| 35521 | Cam, Throttle Valve |
| 35521A | Spring (FOR THROTTLE VALVE CAM RETURN) |
| 35521B | Washer (FOR THROTTLE VALVE CAM SET) |
| 35522 | Pin, Throttle Valve Cam |
| 35599 | Cover, Manual Detent Spring |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
