Toyota Hilux

1972-05 → 1978-07 · chassis RN2# · catalogue 671220 · Europe

Discontinued model Data version 1978-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Propeller Shaft & Universal Joint

26 part groups · 3 illustrations

Illustrations

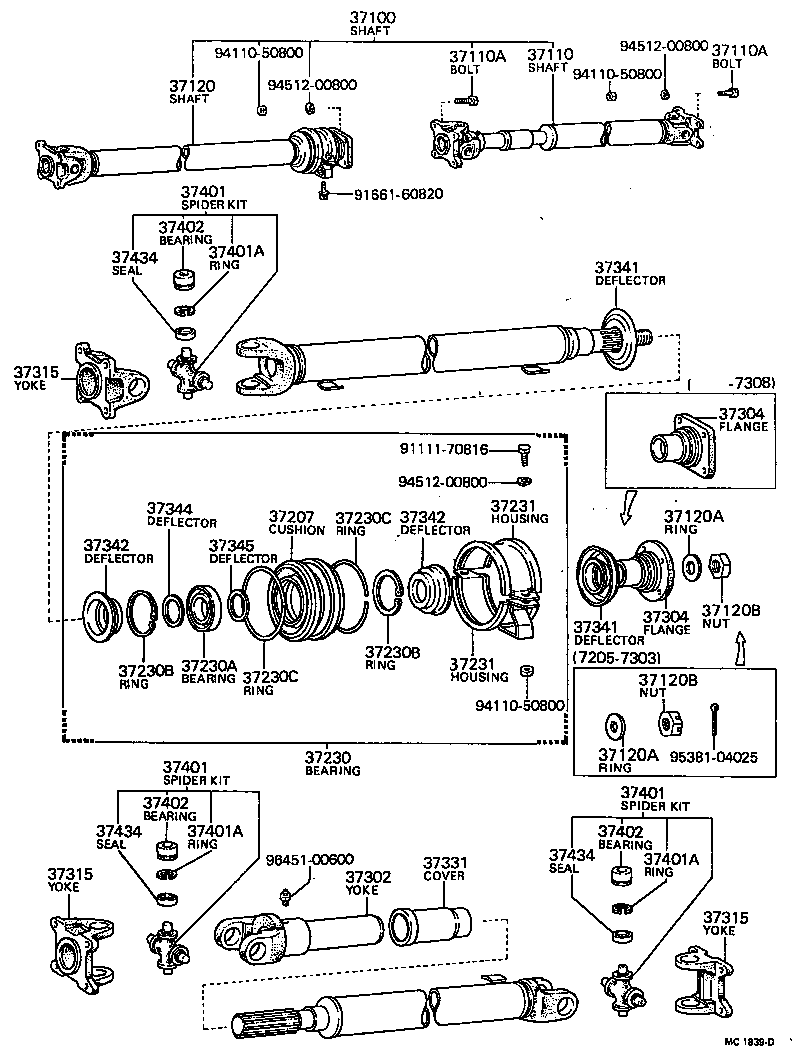

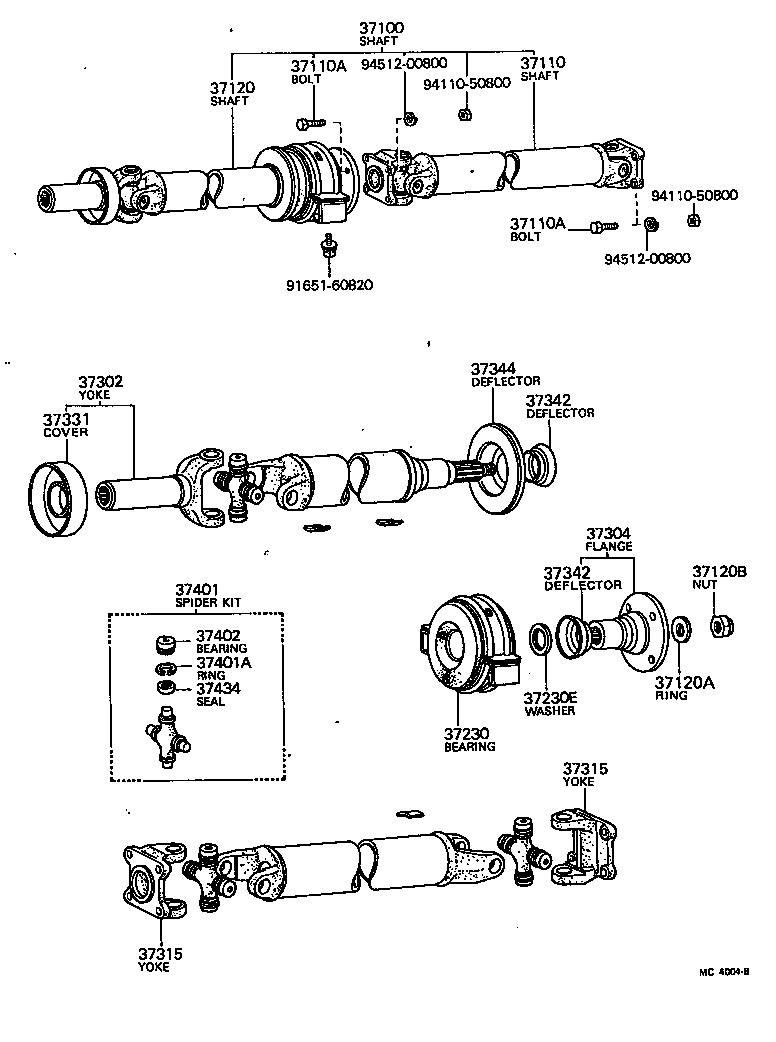

Figure MC3907A MC3907A 1972-05 → 1978-07 Figure MC1839D MC1839D 1972-05 → 1975-09 Figure MC4004B MC4004B 1975-09 → 1978-07

Part groups

PNCDescription
37100 Shaft Assy, Propeller W/Center Bearing
37101A Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
37110 Shaft Assy, Propeller
37110A Bolt (FOR PROPELLER SHAFT)
37120 Shaft Assy, Propeller Intermediate
37120A Washer, Plate (FOR PROPELLER INTERMEDIATE SHAFT SET)
37120B Nut (FOR PROPELLER INTERMEDIATE SHAFT SETTING)
37207 Cushion Sub-assy, Center Support Bearing, NO.1
37230 Bearing Assy, Center Support, NO.1
37230A Bearing, NO.1 (FOR CENTER SUPPORT)
37230B Ring, Snap, NO.1 (FOR CENTER SUPPORT BEARING)
37230C Ring, Set, NO.1 (FOR CENTER SUPPORT BEARING CUSHION)
37230E Washer, NO.1 (FOR CENTER SUPPORT BEARING)
37231 Housing, Center Support Bearing
37302 Yoke Sub-assy, Universal Joint Sleeve
37304 Flange Sub-assy, Universal Joint
37315 Yoke, Universal Joint Flange
37331 Cover, Sliding Shaft Dust
37341 Deflector, Propeller Shaft Dust, NO.1
37342 Deflector, Propeller Shaft Dust, NO.2
37344 Deflector, Propeller Shaft Dust, NO.3
37345 Deflector, Propeller Shaft Dust, NO.4
37401 Spider Kit, Universal Joint
37401A Ring, Hole Snap (FOR SPIDER BEARING)
37402 Bearing Sub-assy, Universal Joint Spider
37434 Seal, Universal Joint Spider Bearing
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
