Toyota Hilux
1972-05 → 1978-07 · chassis RN2# · catalogue 671220 · Europe
Discontinued model
Data version 1978-08

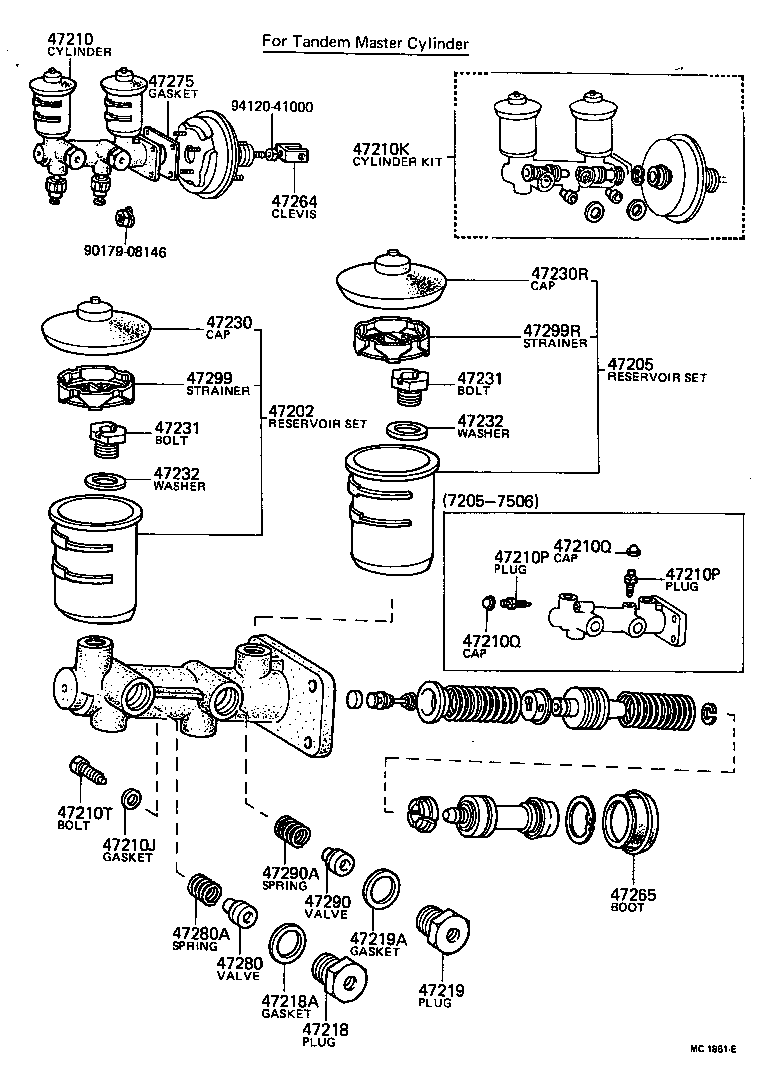

Brake Master Cylinder
31 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 47202 | Reservoir Sub-assy, Brake Master Cylinder |
| 47205 | Reservoir Set, Brake Master Cylinder(FOR REAR SIDE) |
| 47210 | Cylinder Assy, Master, W/O Booster |
| 47210J | Gasket(FOR MASTER CYLINDER) |
| 47210K | Cylinder Kit, Brake Master |
| 47210P | Plug, Bleeder(FOR BRAKE MASTER CYLINDER) |
| 47210Q | Cap, Bleeder Plug(FOR BRAKE MASTER CYLINDER) |
| 47210T | Bolt(FOR BRAKE MASTER CYLINDER) |
| 47218 | Plug, Master Cylinder Fluid Outlet |
| 47218A | Gasket(FOR FLUID OUTLET PLUG) |
| 47218B | Bolt, Union(FOR MASTER CYLINDER FLUID OUTLET) |
| 47218C | Gasket(FOR MASTER CYLINDER FLUID OUTLET) |
| 47218D | Union(FOR MASTER CYLINDER FLUID OUTLET) |
| 47219 | Plug, Master Cylinder Fluid Outlet(FOR REAR SIDE) |
| 47219A | Gasket(FOR FLUID OUTLET PLUG REAR SIDE) |
| 47230 | Cap Assy, Brake Master Cylinder Reservoir Filler |
| 47230R | Cap Assy, Reservoir, NO.2(FOR REAR SIDE) |
| 47231 | Bolt, Brake Master Cylinder Reservoir Set |
| 47232 | Washer, Brake Reservoir Set Bolt |
| 47261 | Rod, Master Cylinder Push |
| 47264 | Clevis, Master Cylinder Push Rod |
| 47265 | Boot, Master Cylinder |
| 47275 | Gasket, Brake Master Cylinder |
| 47276 | Bracket, Brake Master Cylinder |
| 47278 | Gasket, Brake Master Cylinder Bracket |
| 47280 | Valve Assy, Brake Master Cylinder Outlet Check |
| 47280A | Spring, Compression |
| 47290 | Valve Assy, Master Cylinder Outlet(FOR REAR SIDE) |
| 47290A | Spring, Compression(FOR FLUID OUTLET REAR SIDE) |
| 47299 | Strainer, Brake Master Cylinder Reservoir |
| 47299R | Strainer, Master Cylinder Reservoir, Rear |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
