Toyota Hilux
1972-05 → 1978-07 · chassis RN2# · catalogue 671220 · Europe
Discontinued model
Data version 1978-08

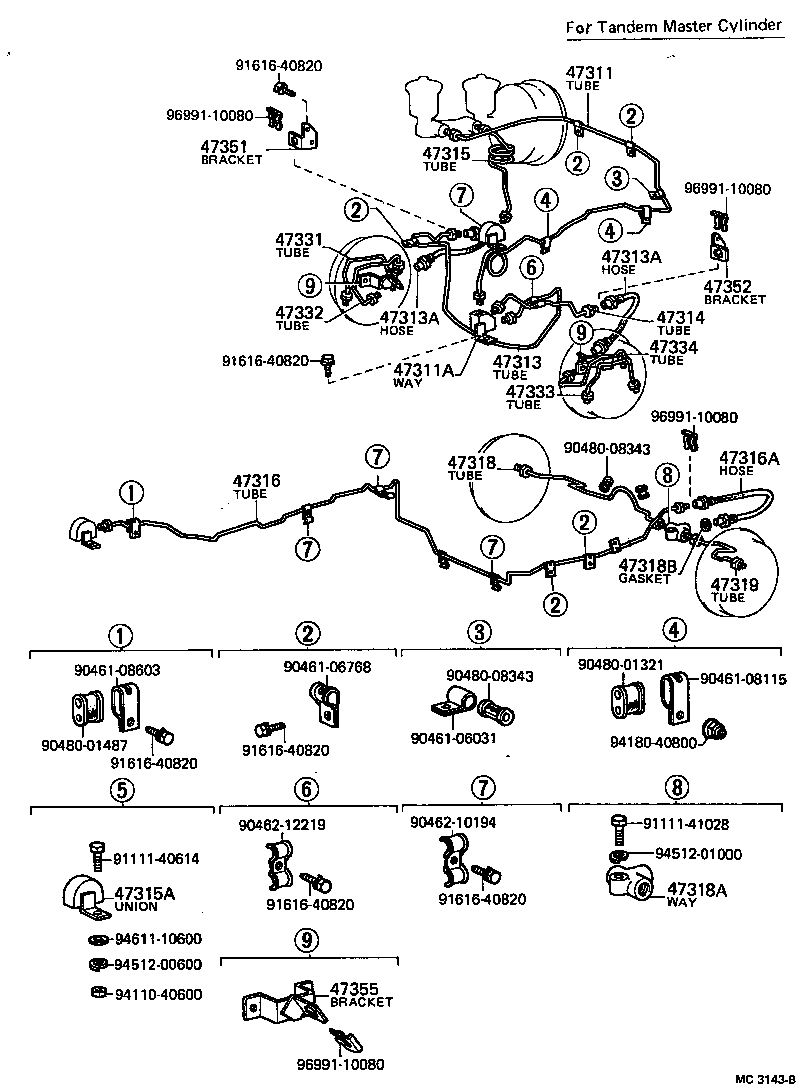

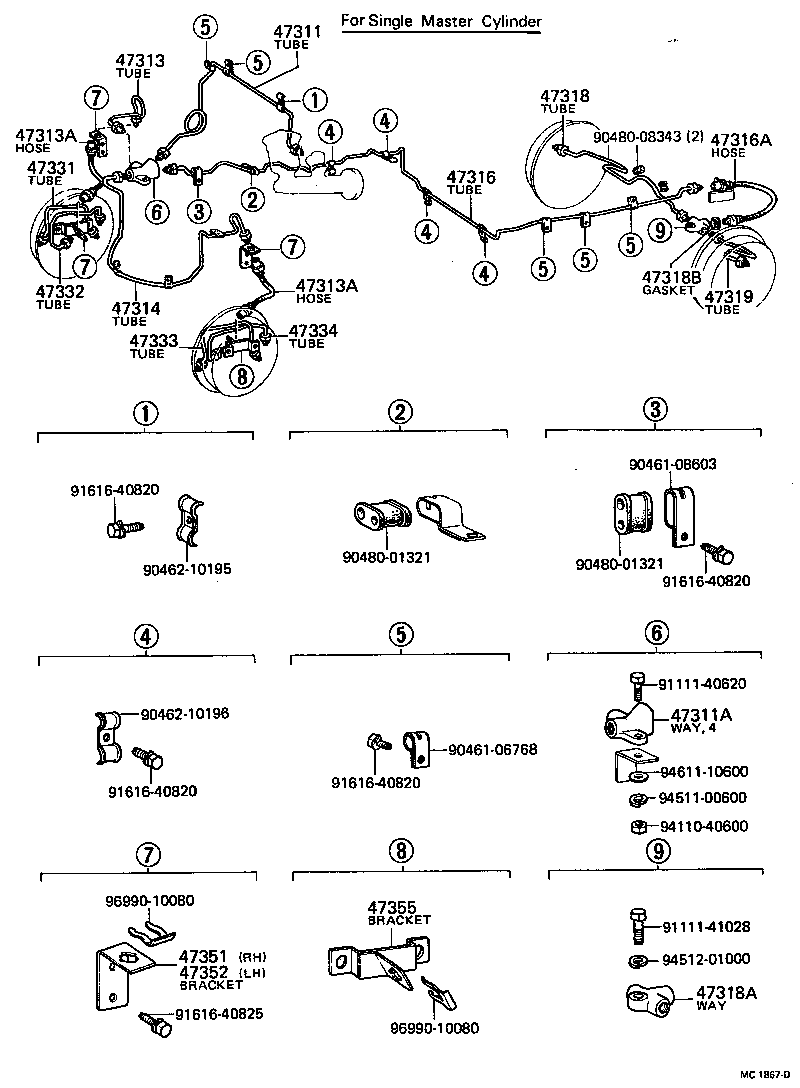

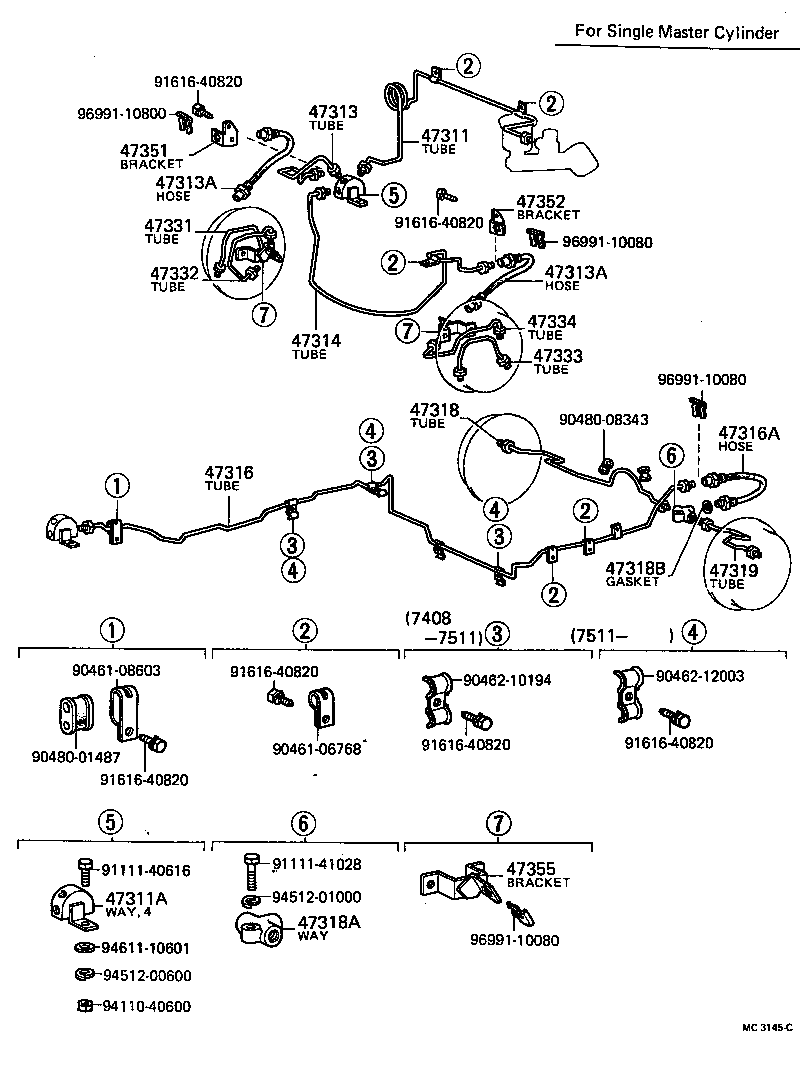

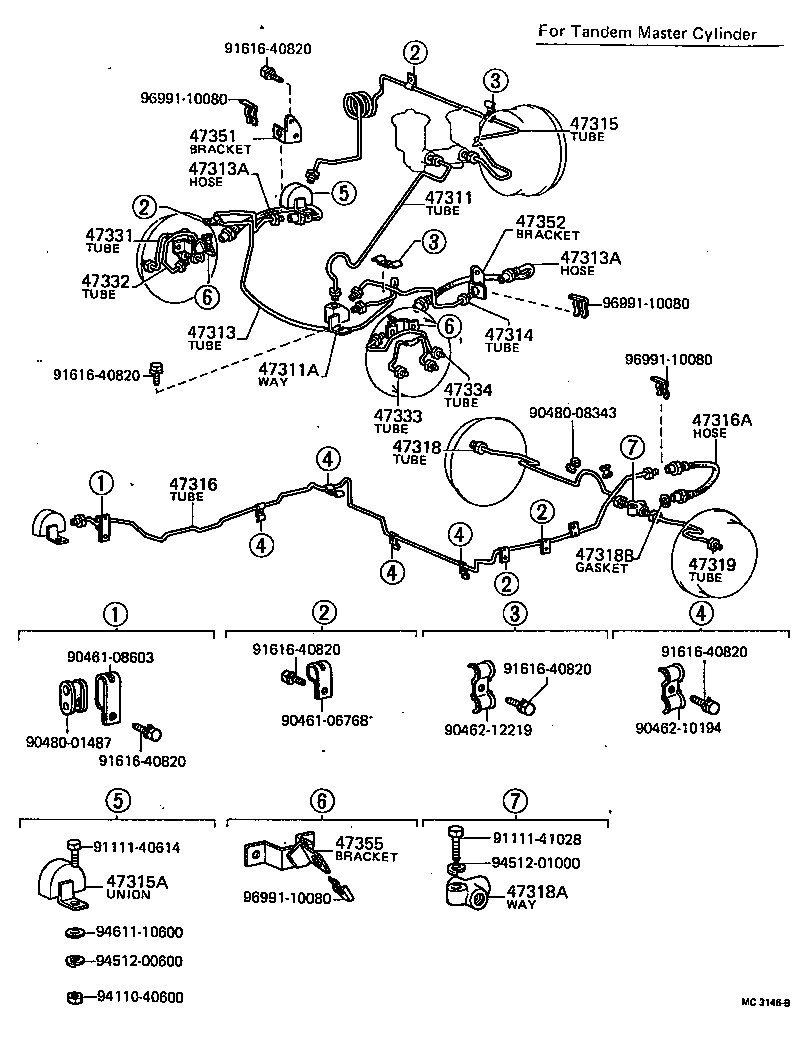

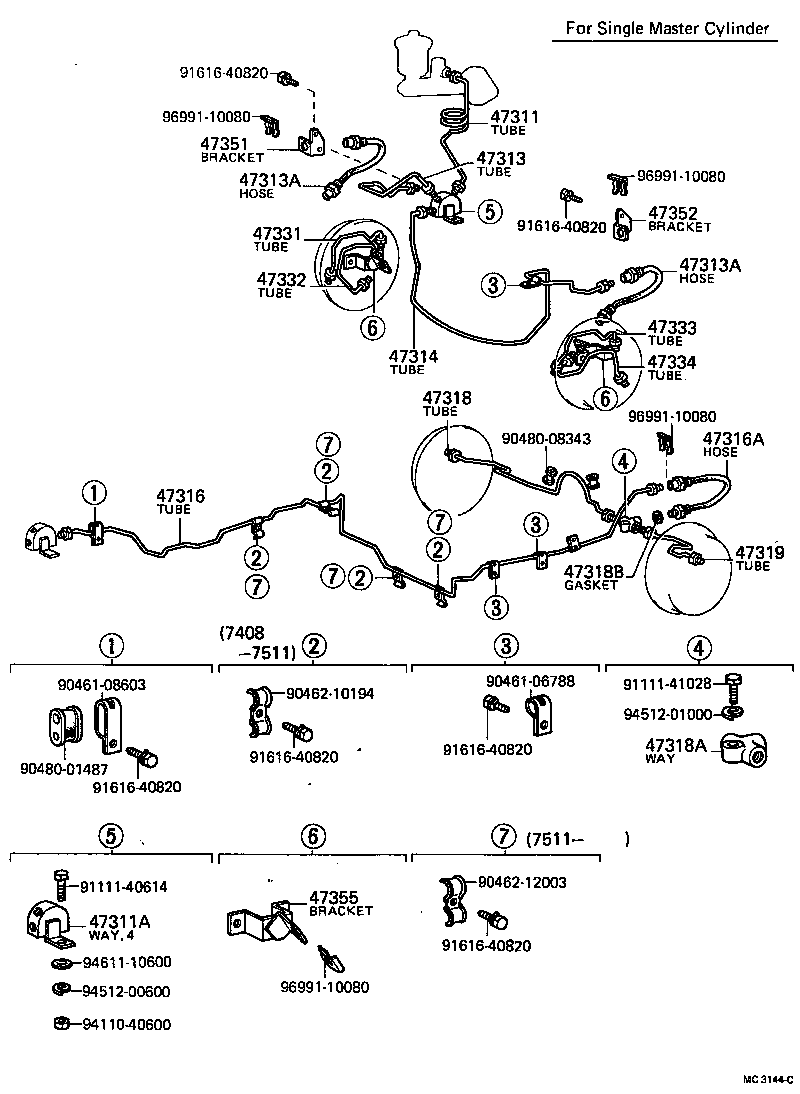

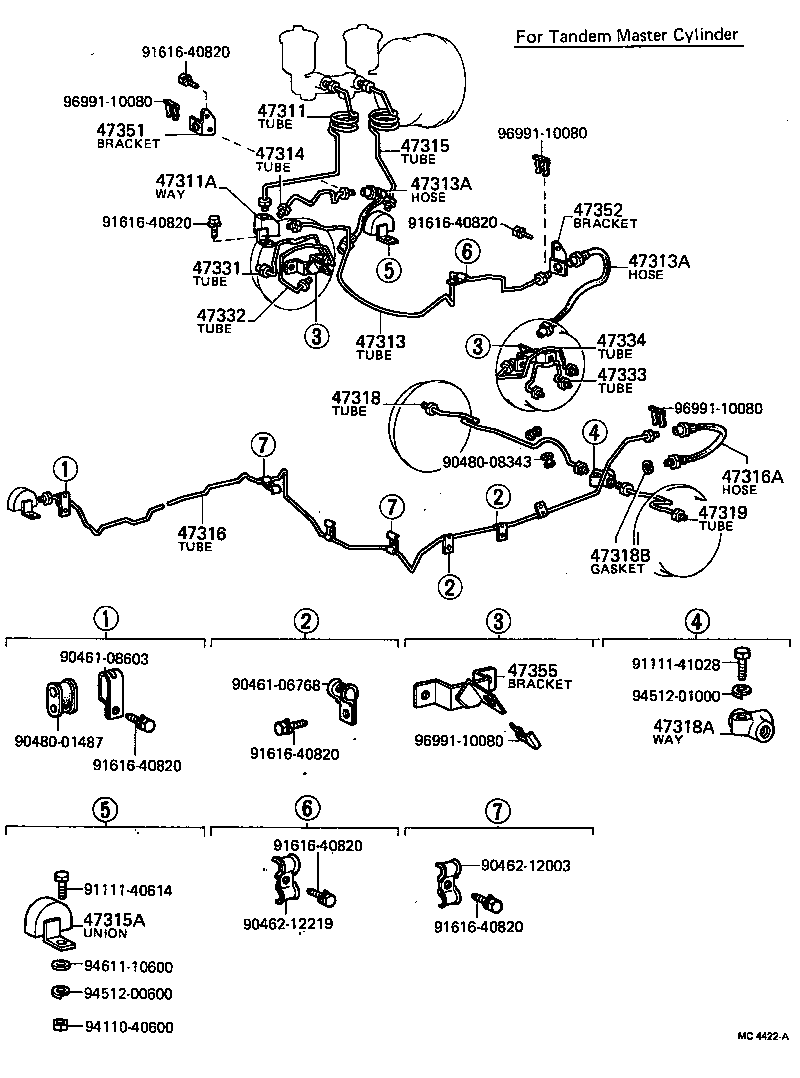

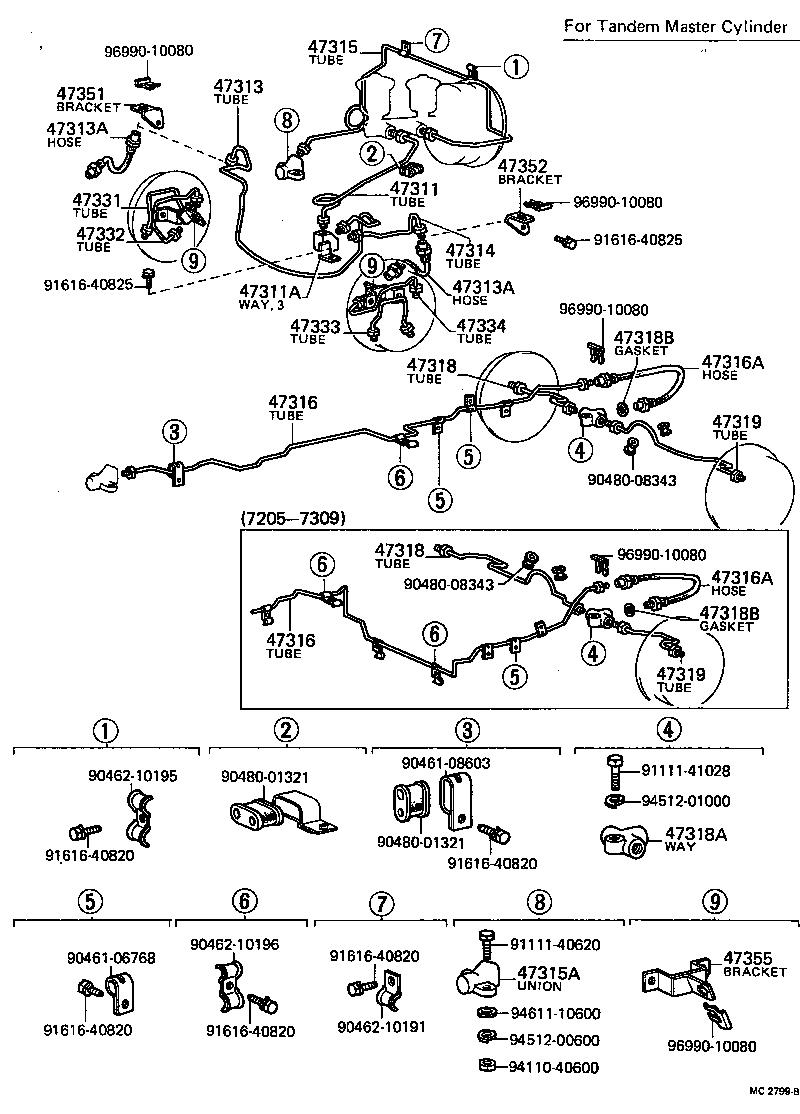

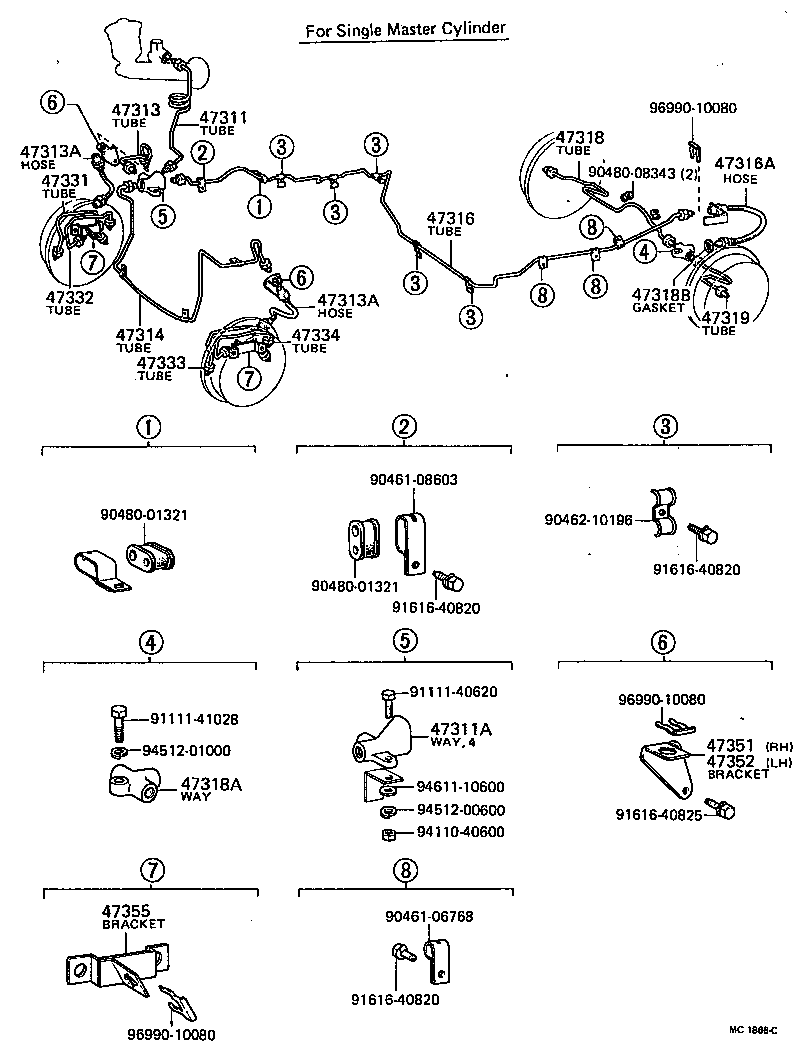

Brake Tube & Clamp
37 part groups · 10 illustrations
Part groups
| PNC | Description |
|---|---|
| 47311 | Tube, Front Brake, NO.1 |
| 47311A | Way(FOR FRONT BRAKE TUBE) |
| 47313 | Tube, Front Brake, NO.3 |
| 47313A | Hose, Flexible, NO.1(FOR FRONT) |
| 47314 | Tube, Front Brake, NO.4 |
| 47315 | Tube, Front Brake, NO.5 |
| 47315A | Way OR Union(FOR REAR BRAKE TUBE) |
| 47316 | Tube, Front Brake, NO.6 |
| 47316A | Hose, Flexible(FOR REAR BRAKE TUBE) |
| 47318 | Tube, Front Brake, NO.8 |
| 47318A | Way(FOR REAR RH BRAKE TUBE) |
| 47318B | Gasket(FOR REAR RH BRAKE TUBE) |
| 47319 | Tube, Front Brake, NO.9 |
| 47325 | Tube, Rear Brake, NO.5 |
| 47331 | Tube, Rear Brake, NO.10 |
| 47332 | Tube, Rear Brake, NO.11 |
| 47333 | Tube, Rear Brake, NO.12 |
| 47334 | Tube, Rear Brake, NO.13 |
| 47351 | Bracket, Flexible Hose(FOR FRONT RH) |
| 47352 | Bracket, Flexible Hose(FOR FRONT LH) |
| 47353 | Bracket, Flexible Hose(FOR REAR) |
| 47355 | Bracket, Flexible Hose, NO.2(FOR FRONT) |

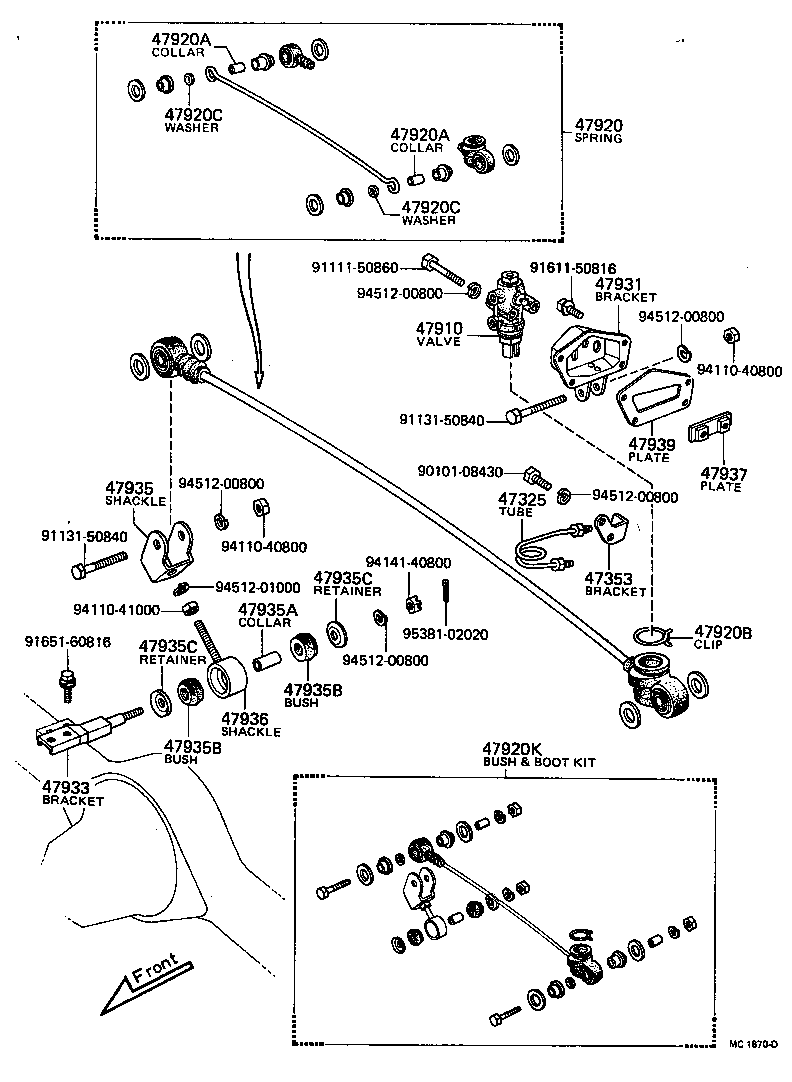

| 47910 | Valve Assy, Load Sensing Proportioning |
| 47920 | Spring Assy, Load Sensing |
| 47920A | Collar(FOR LOAD SENSING SPRING) |
| 47920B | Clip(FOR LOAD SENSING VALVE BOOT) |
| 47920C | Washer(FOR LOAD SENSING SPRING) |
| 47920K | Bush & Boot Kit, Load Sensing Spring |
| 47931 | Bracket, Load Sensing Valve |
| 47933 | Bracket, Load Sensing Shackle, NO.1 |
| 47935 | Shackle, Load Sensing Spring, NO.1 |
| 47935A | Collar(FOR LOAD SENSING SPRING SHACKLE) |
| 47935B | Bush(FOR LOAD SENSING SPRING SHACKLE) |
| 47935C | Retainer(FOR LOAD SENSING SPRING SHACKLE) |
| 47936 | Shackle, Load Sensing Spring, NO.2 |
| 47937 | Plate, Load Sensing Valve Set |
| 47939 | Plate, Valve Bracket Dust |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
