Toyota Hilux
1972-05 → 1978-07 · chassis RN2# · catalogue 671220 · Europe
Discontinued model
Data version 1978-08
Rear Spring & Shock Absorber
34 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 48046 | Seat Sub-assy, Spring U Bolt, RH |
| 48046A | Bolt, U(FOR REAR SPRING) |
| 48047 | Seat Sub-assy, Spring U Bolt, LH |

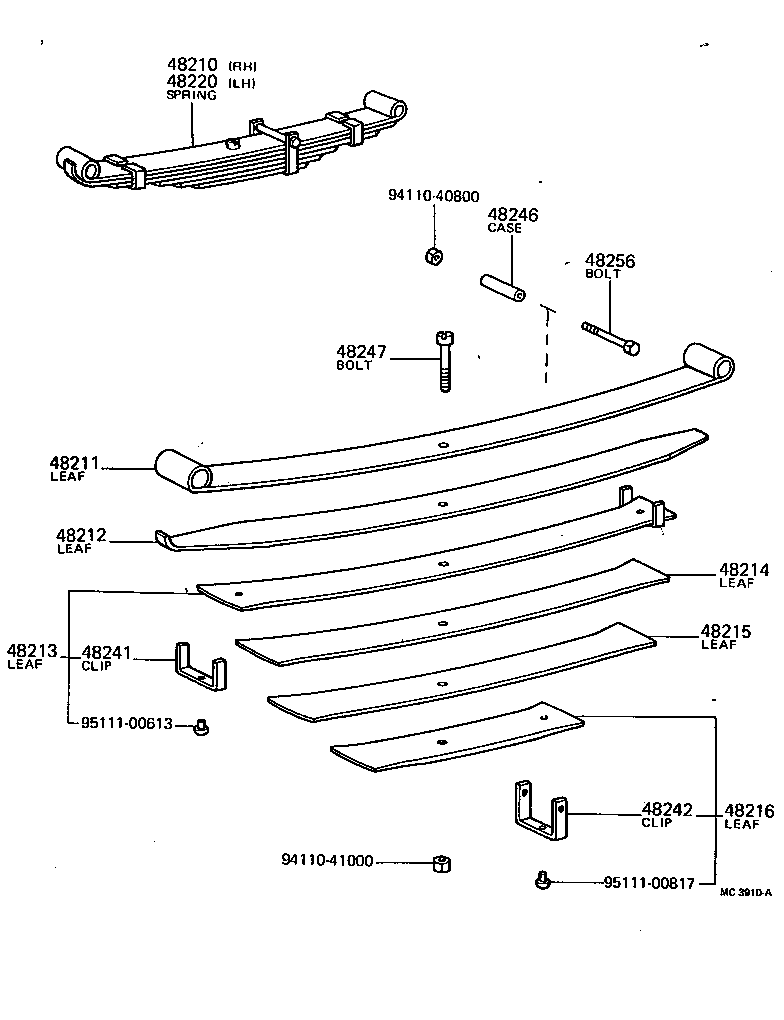

| 48210 | Spring Assy, Rear RH |
| 48210A | Bush(FOR REAR SPRING SHACKLE UPPER) |
| 48210B | Bush(FOR REAR SPRING PIN) |
| 48210G | Bush(FOR REAR SPRING SHACKLE LOWER) |
| 48210K | Shackle Kit, Rear Spring |
| 48210L | Pin Kit, Rear Spring |
| 48211 | Leaf, Rear Spring, NO.1 |
| 48212 | Leaf, Rear Spring, NO.2 |
| 48213 | Leaf, Rear Spring, NO.3 |
| 48214 | Leaf, Rear Spring, NO.4 |
| 48215 | Leaf, Rear Spring, NO.5 |
| 48216 | Leaf, Rear Spring, NO.6 |
| 48220 | Spring Assy, Rear LH |
| 48241 | Clip, Rear Spring, NO.1 |
| 48242 | Clip, Rear Spring, NO.2 |
| 48246 | Case, Rear Spring Clip Bolt |
| 48247 | Bolt, Rear Spring, Center |
| 48256 | Bolt, Hexagon(FOR REAR SPRING CLIP SET) |
| 48306 | Bumper Sub-assy, Rear Spring |
| 48382 | Spacer, Bumper Block |
| 48401 | Bracket Sub-assy, Rear Spring, Front RH |
| 48402 | Bracket Sub-assy, Rear Spring, Front LH |
| 48404 | Bracket Sub-assy, Rear Spring, Rear RH |
| 48405 | Bracket Sub-assy, Rear Spring, Rear LH |
| 48530 | Absorber Assy, Shock, Rear RH |
| 48530A | Bush(FOR REAR SHOCK ABSORBER) |
| 48530B | Washer, Rear Shock Absorber Cushion, NO.1 |
| 48530C | Washer, Rear Shock Absorber Cushion, NO.2 |
| 48530D | Washer, Rear Shock Absorber Cushion, NO.3 |
| 48530E | Washer, Rear Shock Absorber Cushion, NO.4 |
| 48540 | Absorber Assy, Shock, Rear LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
